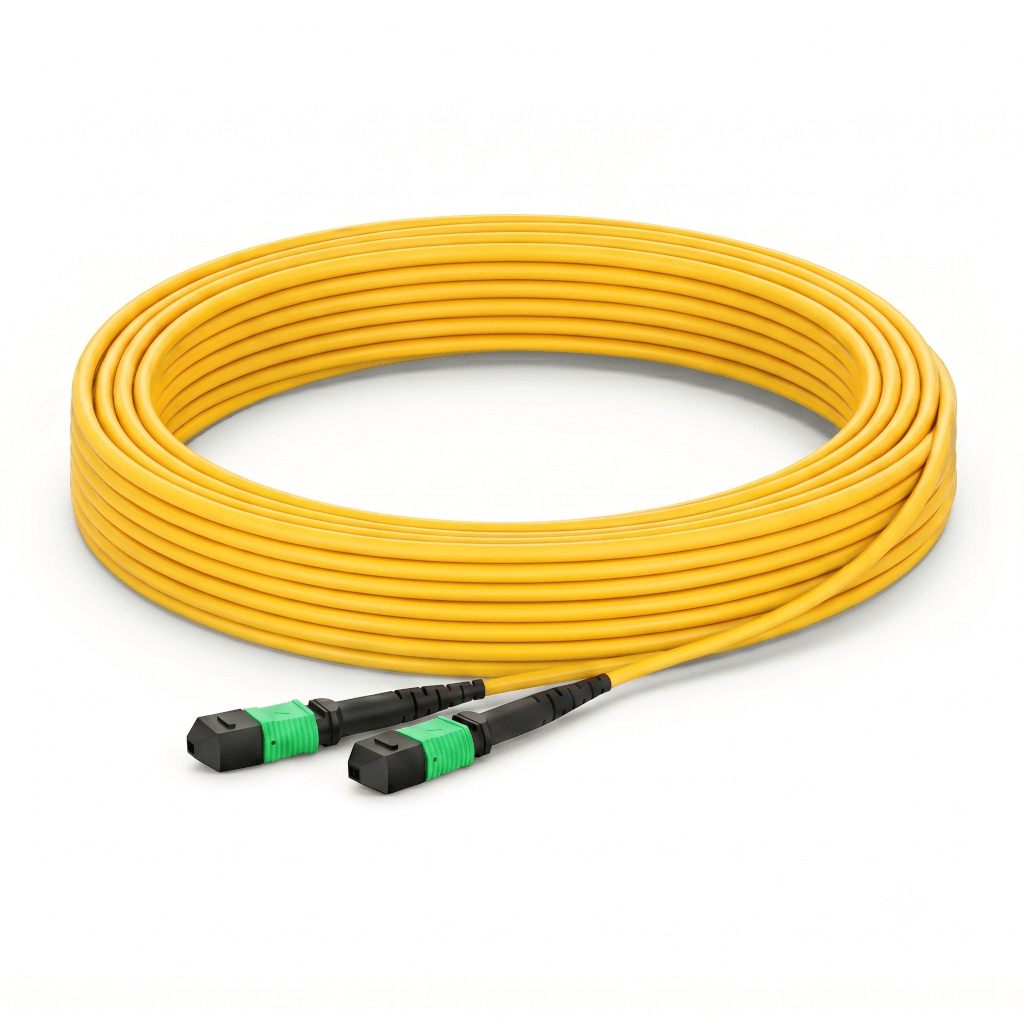

MPO-12 APC (Female) to MPO-12 APC (Female), 12 Fibers, Single-Mode OS2, LSZH, 0.35dB Max, Type B
SKU: FBR-MPO12/12S/APC-OS2
Price range: $42.00 through $86.00 VAT excl.
- ≤0.35dB insertion loss for stable 100G/400G/800G links
- G.657.A1 fiber, 10mm bend radius for high-density routing
- Supports InfiniBand and Ethernet single-mode networks
- Compatible with OSFP / QSFP112 / QSFP-DD modules
- Designed for spine-leaf, racks, patch panels, and backbone
- LSZH jacket for safe indoor deployment
- 2-Year Warranty
- AsterNOS Preloaded
- Perpetual License
MPO-12 Fiber Jumper, Female to Female, APC, 12F, OS2, 0.35dB, Type B Polarity
The APC endface applies an industry-standard 8° angled polish that sharply curtails light reflection back toward the laser source. This geometry eliminates a primary cause of signal instability and transceiver degradation in high-speed optical links — keeping your links clean and your hardware protected.
Purpose-engineered for single-mode InfiniBand and Ethernet interconnects, this jumper mates directly with dual-port OSFP, single-port OSFP, and QSFP112 transceivers. Real-world deployment applications span dual-port OSFP switch-to-switch connections, transceiver patching within ConnectX-7® host channel adapters and BlueField-3® Data Processing Units (DPUs) installed in compute and storage nodes, and both in-band management and out-of-band control plane connectivity. From AI training clusters to cloud-scale backbone links, this cable handles it all.
| Length | 1m, 3m, 5m, 10m, 15m, 30m |
|---|
