16 x 25Gb SFP28, 4 x 100Gb QSFP28, Campus Aggregation Switch
Price range: 2.171,00 € through 2.605,00 €
- Marvell Prestera Aldrin 3 SONiC Switch.
- 16 x 25GbE ports, 4 x 100GbE QSFP28 uplinks.
- Installed was a feature-rich SONiC NOS.
- Supports advanced routing, including BGP, EVPN, and VRF.
- Features VXLAN and EVPN virtualization capabilities.
- Offers high availability with MLAG and BFD.
- Built-in security, such as 802.1x, DAI, and IPSG.
- Description
- Specification
- Connection
- Additional information
- Management
- Documentation
- Warranty
- Reviews (0)
The CX204P-16Y-M-E is a 16-port 25Gb SFP28 layer 3 aggregation switch, engineered to meet the growing demands for higher bandwidth at the aggregation layers. Powered by the Marvell Prestera Aldrin 2 chip, it provides significant uplink capacity with 4x100Gb QSFP28 ports, making it an ideal choice for enterprise distribution, high-density server connectivity requiring 25GbE, and flexible data center aggregation points.
This switch comes preloaded with AsterNOS, Asterfusion’s enterprise-grade SONiC Network Operating System. Leveraging the power of open networking, AsterNOS provides comprehensive Layer 3 IPv4/IPv6 routing capabilities, including advanced protocols like BGP, OSPFv2/v3, and VRF for efficient traffic segmentation and management. Crucially, it fully supports VXLAN and EVPN (Type 2/3/5), enabling seamless integration into virtualized and multi-tenant environments and simplifying the expansion of your network fabric.
Designed for reliability, the CX204P-16Y-M-E incorporates key high-availability features such as MLAG (Multi-Chassis Link Aggregation) and BFD (Bi-Directional Forwarding Detection), ensuring continuous network uptime and rapid failover. Security is paramount, with robust built-in features including 802.1x authentication, Dynamic ARP Inspection (DAI), IP Source Guard (IPSG), and Control Plane Policing (CoPP) to protect your infrastructure. Simplified deployment and management are achieved through Zero Touch Provisioning (ZTP) and industry-standard CLI, while support for PTP IEEE 1588v2 ensures precise time synchronization for critical applications.
Specification
Rack & Physical

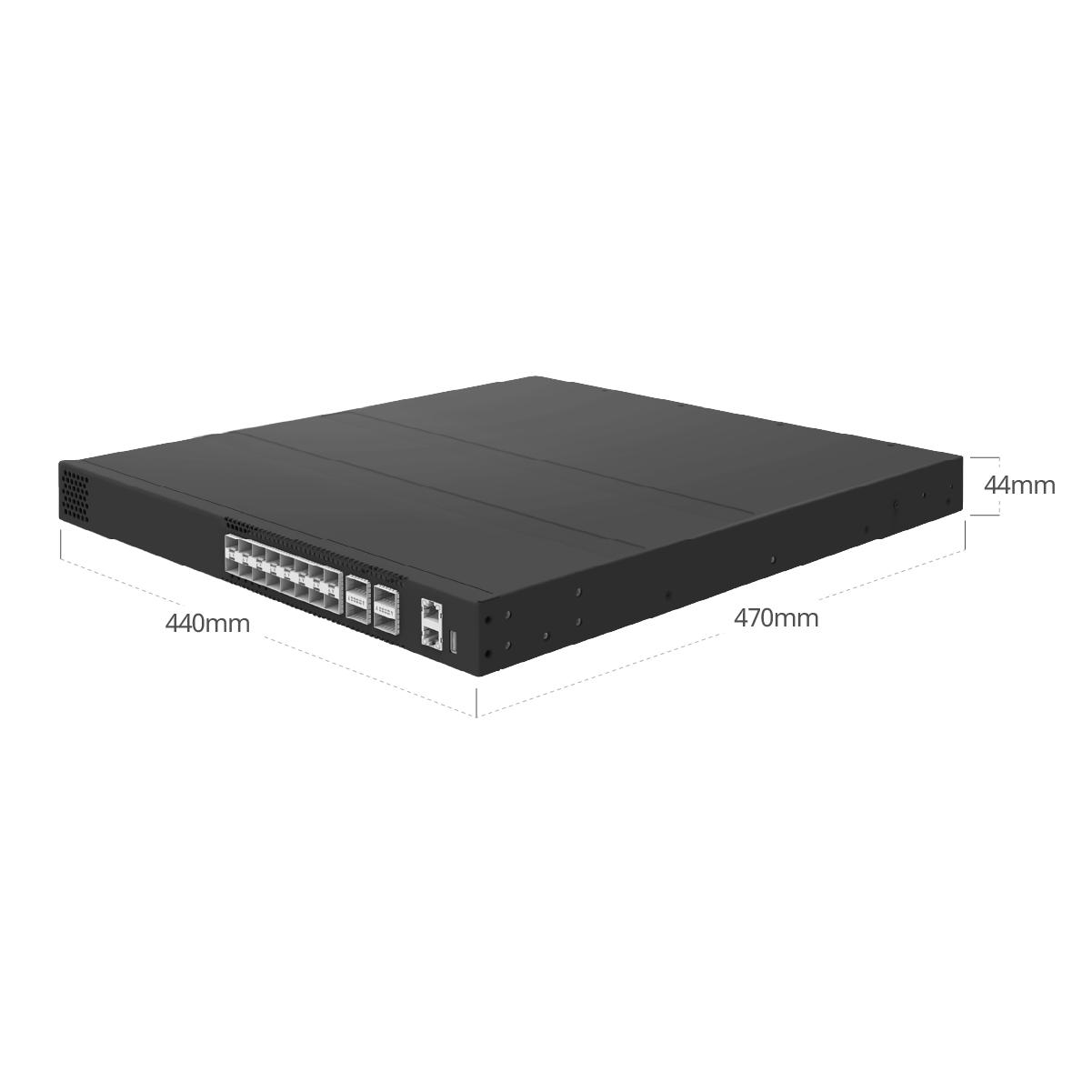

Dimension (HxWxD) 44×440×470mm(1.73×17.32×18.50″)
Weight 9KG(19.84lb)
Rack Space 1U
Airflow Front to Rear
Data Plane Ports

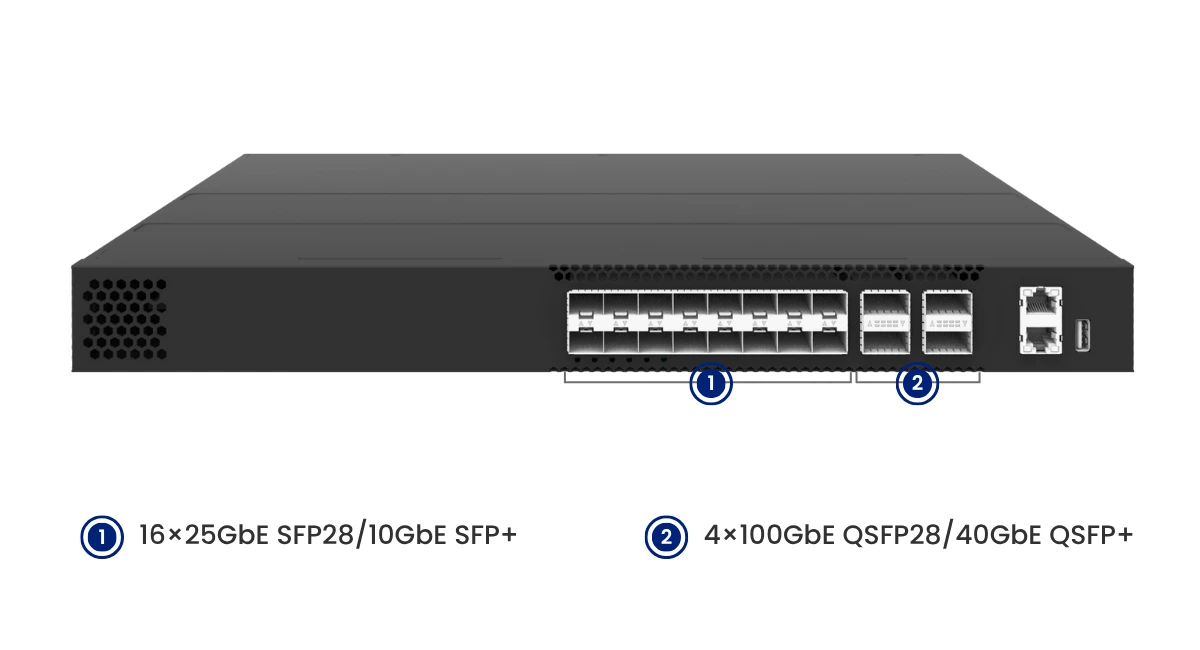

Fixed Interfaces
(16) 25GbE SFP+
Fixed Interfaces
(4) 100GbE QSFP28 (downgradable to 4×40GbE)
Switch Core
Switch ASIC Marvell Aldrin 2
Switching Capacity 1.09 Tbps
Packet Buffer 6MB
Forwarding Rate 600Mpps

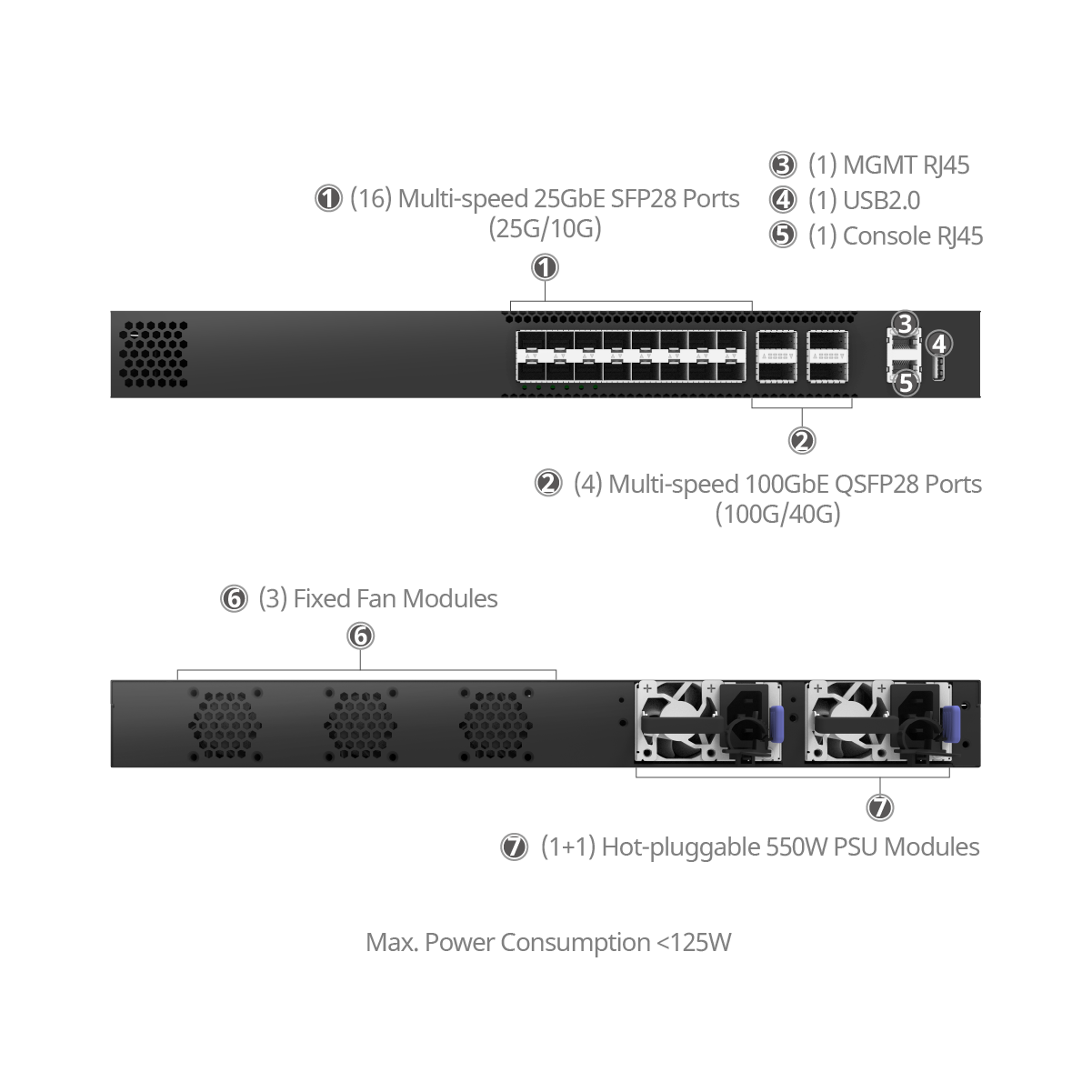

Management & Control
Management Ports
(1) USB2.0, (1) Console RJ45, (1) MGMT RJ45
Control CPU OCTEON CN9130
Control Flash 32GB eMMC
Address & Routing Entries
Mac Addr. Entries 32K
Nexthop 8K
IPv6 Prefix Routes 8K
IPv4 Prefix Routes 16K
Power & Cooling
Power Module (1+1) Hot Pluggable Power
FAN Modules (3) Fixed Fans
Input Range 100~240V AC
Max. Power Consumption <125W
Operating Environment
Operating temperature 0~45℃ (32 to 113℉)
Operating Humidity 5% – 90% (non-condensing)

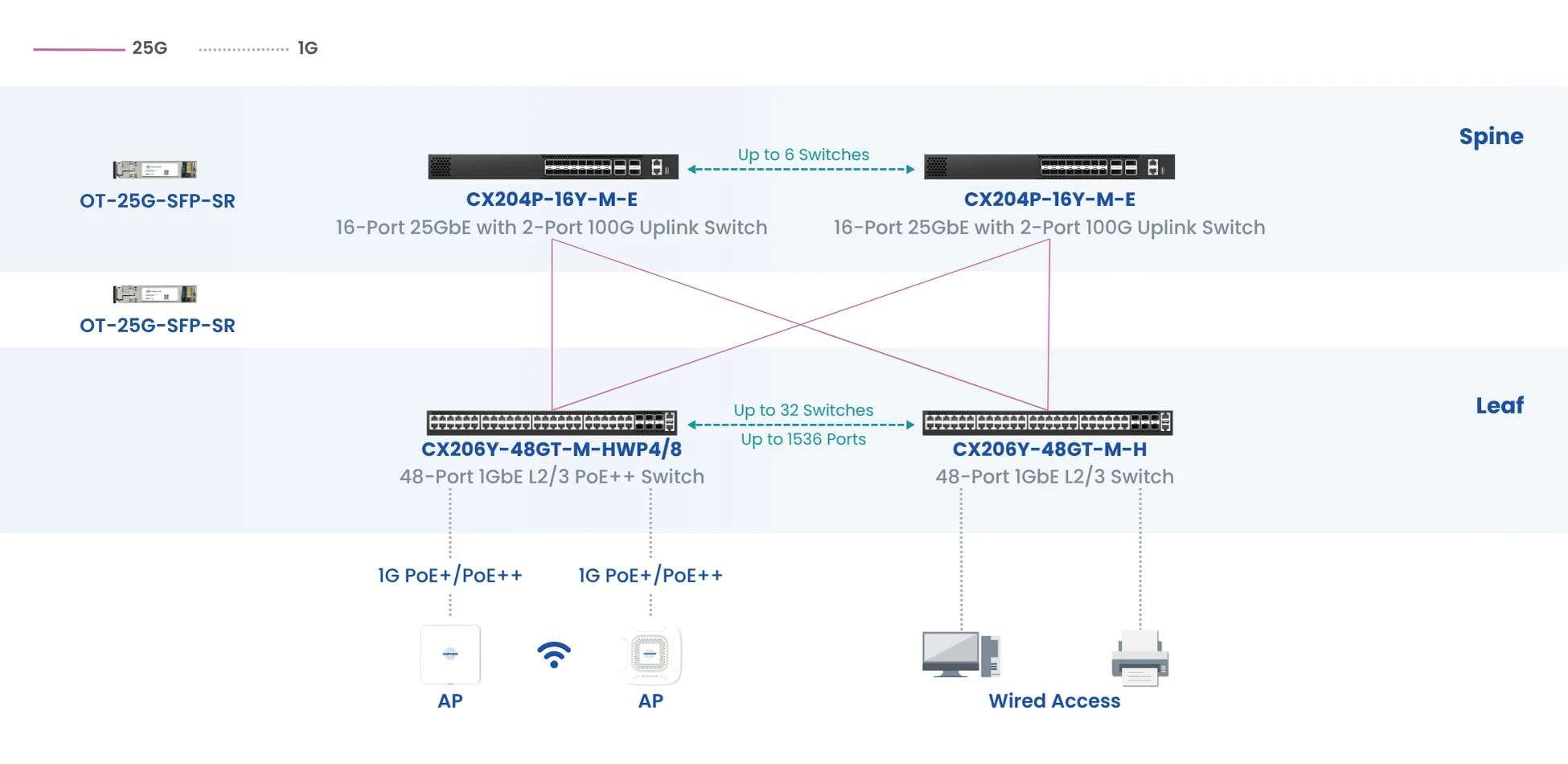

CX204P-16Y-M-E 25GbE Spine Switch Connectivity
Links 25GbE spine layers with 100G uplinks and connects to 1GbE PoE++ leaf switches, enabling scalable, high-bandwidth access and aggregation for enterprise networks.
| PTP Extension Card | Class C, None |
|---|
Free OpenWiFi Network Controller
our free management controller
Unified Visualization, Management & O&M with OpenWiFi Network Controller
Our campus switches, powered by enterprise SONiC, integrate with a TIP OpenWiFi – based controller. This integration enables unified monitoring, automated deployment, and streamlined operations.​
Key features include intelligent topology planning, ZTP, real – time network visualization, and script – based automation. With centralized remote management and flexible deployment options (cloud or on – premise), this solution offers full control over the entire campus network, from APs to switches. It helps IT teams optimize performance, speed up troubleshooting, and scale easily.
Campus Access Switch Documentation
Product Assurance & Logistics
Warranty & Support
Quality Certifications
Delivery Time
Our standard products are typically shipped within one week (business days).
For custom products, please contact customer service to inquire about the specific delivery time.
1.09 Tbps
600 Mpps
6 MB
4x100GbE
SONiC
Advanced Hardware Features
Engineered for scalability, efficiency, and always-on reliability.
25/100G High-Speed Ports Enable Flexible Network Scaling
Boasting 16×25GbE and 4×100GbE ports, the device supports interface splitting via breakout cables, which helps enhance the efficiency of network resource usage and accommodate diverse application scenarios.

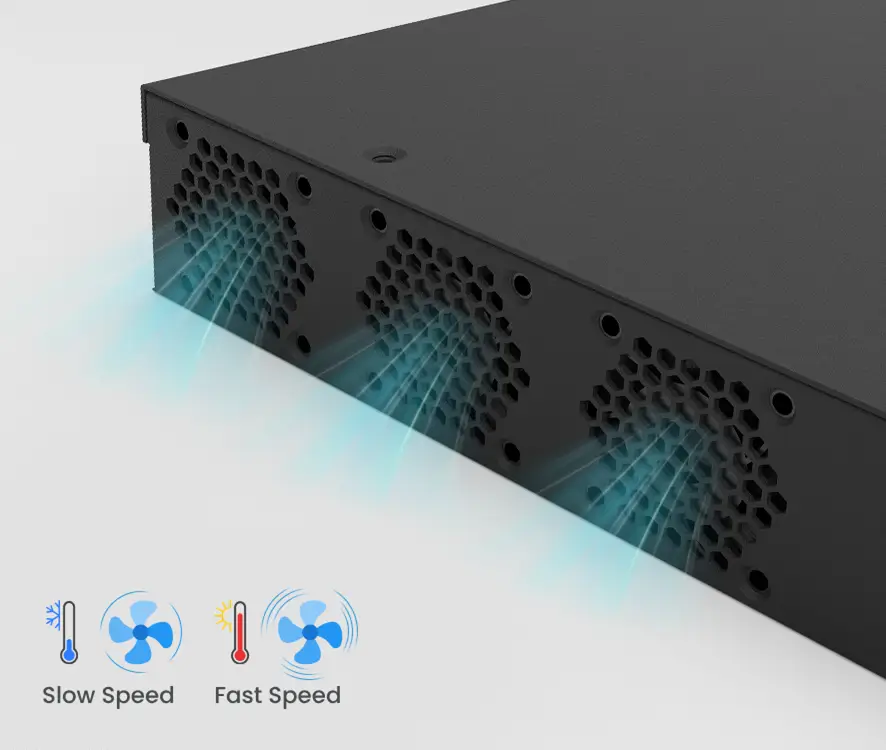

The dual 1+1 hot-pluggable power supplies ensure continuous operation by allowing replacement without system shutdown. Equipped with 3 fixed fan modules, the system delivers reliable cooling performance to maintain stability and efficiency under demanding workloads.
Optional MPLS Module
Enhance Your Network with Advanced MPLS Capabilities
This switch model supports robust MPLS functionality, enabling efficient label-switched path management and seamless traffic forwarding across complex networks. It delivers active-active-like reliability through MPLS-based redundancy mechanisms, ensuring uninterrupted connectivity for mission-critical applications.
Advanced Routing Capabilities
Equipped with powerful routing capabilities, including static routing, VRF, OSPFv2/v3, BGP, and MP-BGP, this model ensures flexible network segmentation and dynamic route management for demanding enterprise and campus environments.
HIGHLIGHT
Comprehensive Virtualization
Feature Set
This model supports full network virtualization features:
GRE/static GRE tunnels for point-to-point overlays, plus VXLAN with BGP-EVPN for scalable L2/L3 virtualization across distributed environments.Perfect for flexible, multi-tenant campus/enterprise networks.
HIGHLIGHT
Advanced Network Protection
Features
This model delivers robust L2/L3 security at the network edge and core, featuring storm control, DHCPv4/v6 Snooping, ND Snooping, RA Guard, and SAVI. With DAI, IP Source Guard (IPv4/IPv6), and CoPP, it protects against spoofing, man-in-the-middle attacks, and control plane overload—ensuring a secure, resilient network.
HIGHLIGHT
BFD-Based Link Fault Detection & Re-routing in Sub-50ms
BFD-based link fault detection and sub-50ms re-routing capabilities ensure rapid, reliable failover across critical routing protocols including OSPF, BGP, and IS-IS, minimizing network downtime and maintaining uninterrupted traffic flow even during unexpected link failures.
HIGHLIGHT
Achieve Seamless Redundancy & Active-active Reliability with MC-LAG Support
MC-LAG support enables networks to maintain uninterrupted connectivity through seamless redundancy and active-active reliability,
ensuring zero downtime and optimal performance during link or device failures.
OPTIONAL
Enterprise SONiC Switches with PTP Support
Our switch fully supports IEEE1588 PTPv2 and SMPTE 2059-2 standards both through hardware and software. The hardware port supports PTP as a Boundary Clock (BC) or Transparent Clock (TC), with customizable modules to fit customer needs. On the software side, Asteraix leads the way in implementing and optimizing PTP in SONiC, delivering top performance on our AsterNOS Enterprise Distribution. Currently, it supports PTP Class C with a maximum time error of ≤10 ns.
OPTIONAL
Network Packet Broker Functionality
The SONiC-based campus switches CX-M series take full advantage of SONiC’s open and containerized architecture, and fully leverage its capabilities by installing the new APP-PB container and deploying packet broker docker functionality on SONiC.
This integration unlocks a range of advanced features, including traffic mirroring, raw data tagging, filtering, aggregation, preprocessing, load balancing, and output replication.
