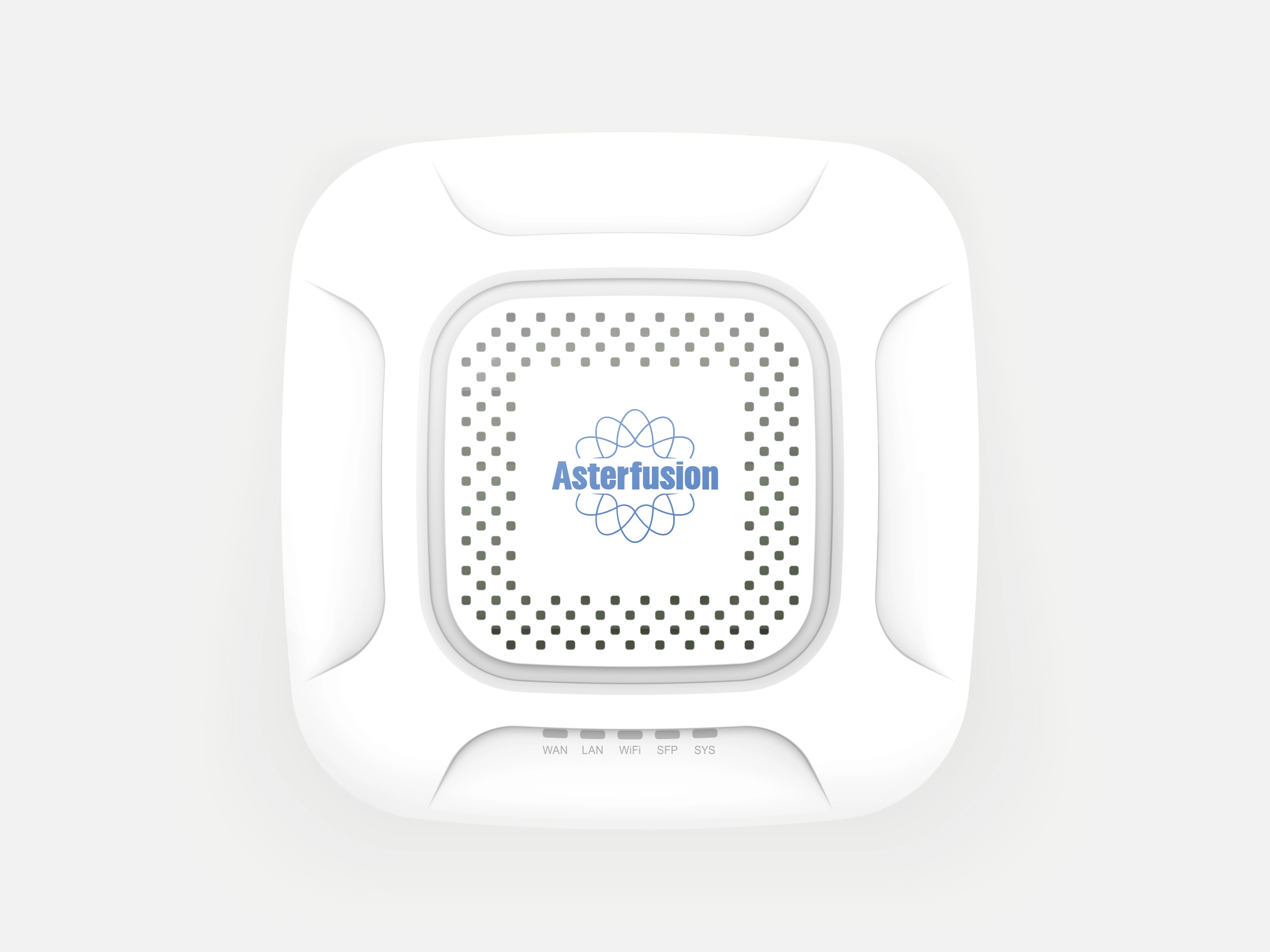

WiFi 7 (802.11be) Access Point – Tri-Band Indoor Ceiling Mount | OpenWiFi Compatible
$249.00
Experience next-gen wireless speed and flexibility with our Tri-Band WiFi 7 Access Point. Supports OpenWiFi for customizable network performance in enterprise and industrial environments.
- Tri-band operation (2.4GHz / 5GHz / 6GHz)
- 9 Gbps max throughput
- PoE++ (802.3bt) and 10GbE SFP+ uplink
- WPA3 + MPSK enhanced security
- OpenWiFi support for open-source flexibility
Enhance your enterprise connectivity to the next level with Indoor WiFi 7 Access Point, designed for ultra-high-speed wireless performance, seamless roaming, and open network connectivity. It is designed for demanding environments, such as smart offices, VR/AR laboratories, stadiums, and industrial IoT. This access point can provide up to 9 Gbps total throughput with the latest 802.11be (WiFi 7) standard.
Based on the Qualcomm IPQ5322 platform, this tri-band unit operates across 2.4GHz, 5GHz, and 6GHz frequencies. It supports 320 MHz channel width, Multi-Link Operation (MLO), MU-MIMO, and 4096QAM modulation. This ensures low latency and high data rates even in dense client scenarios.
Compatibility with OpenWiFi makes this AP ideal for customizable deployments and centralized controller-based management.
Ethernet Ports | 1x10/100/1000/2500Mbps Ethernet port(PoE input) 1x10/100/1000/2500Mbps Ethernet port 1x10Gbps SFP+ port | ||
Console Port | 1xRJ45 | ||
AP Chip | Qualcomm IPQ5322 | ||
Wireless Standards | 802.11a/b/g/n/ac/ax/be | ||
Frequency Band | 2.4 GHz | 5 GHz | 6 GHz | ||
Transmission Rate | 9000Mpbs | ||
Peak Data Rate | 2.4GHz: 688Mbps | 5GHz: 2882Mbps | 6GHz: 5764Mbps | ||
Antenna Type | 2x2 2.4G antenna | 2x2 5GHz antenna | 2x2 6GHz antenna | ||
Antenna gain | 4dBi | ||
Max. Access Client Number | 1024 | ||
Recommended Access Clients | 100 | ||
Power Method | PoE | Mount Type | Ceiling |
Max Power Consumption | 36Watt | Input Power | 802.3bt Power over Ethernet | 12V 3A DC |
Dimension | 208x208x46mm | Weight | 0.55KG |
Op.Temperature | -20 - 55℃(-4 to 131°F) | Op. Humidity | 5% - 95%(non-condensing) |
WLAN
Technologies: MU-MIMO, OFDMA, TWT
Max Clients: 1024
Recommended Clients: 100
Virtual APs: Up to 16
Forwarding Mode: Direct / Tunnel
Features: SSID Hiding, Low-rate Client Limitation, Air Time Fairness (ATF)
Network
IP Assignment: Static IP, DHCP
Protocols: DHCP, VLAN, LLDP, PPPoE Client
Services: NAT, ACL, NTP
Advanced: VXLAN, Dynamic VLAN, Multicast-to-Unicast
Security
Encryption: WPA/WPA2/WPA3 (PSK, Enterprise, MPSK)
Authentication: Built-in Portal, External Portal, or RADIUS Client
Management
Features: NTP, Remote Packet Capture, ZTP, Network Telemetry, Location Report
Device Management: SSH, Web, Syslog, Asteria Campus Controller
Roaming
Standards: 802.11k/v/r
Smart Roaming: Signal Threshold Configurable, Sticky Client Prevention
Quality of Service (QoS)
Controls: SSID-based Rate Limit, Port-based DSCP, DNS-based DSCP
WMM (802.11e): Supported
Client Isolation
VLAN-based Isolation: Supported
SSID-based Isolation: Supported
Radio Management
Features: DFS, TPC
