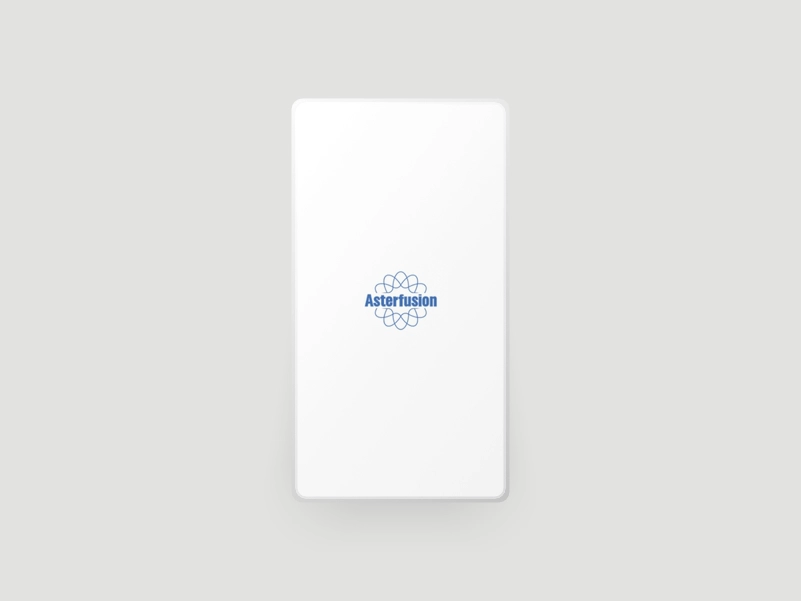

2.975Gbps Indoor WiFi 6 Access Point – OpenWiFi Support
$139.00
- WiFi 6 (802.11ax) support with dual-band (2.4GHz + 5GHz)
- Data rate up to 2975 Mbps
- Powered by Qualcomm IPQ5018 chipset
- PoE (Power over Ethernet) support
- Seamless roaming with handoff delay <10ms
- Enhanced network security with WPA3, MPSK
- OpenWiFi compatible
Experience next-gen wireless performance with the AP6020W Indoor WiFi 6 Access Point, engineered for seamless, high-speed connectivity. This dual-band wall-mounted unit supports OpenWiFi, making it ideal for flexible enterprise deployments, remote workers, and smart office environments.
Use Case Scenarios
Corporate conference rooms
Remote worker home setups
Campus or hotel wall-plate APs
High-density public areas like malls or airports
Ethernet Ports | 1x10/100/1000/2500Mbps Ethernet port(PoE input) 1x10/100/1000Mbps Ethernet port 1 pair of RJ45 pass-through ports | ||
AP Chip | Qualcomm IPQ5018+QCN6102+QCA8337 | ||
Wireless Standards | 802.11a/b/g/n/ac/ax | ||
Frequency Band | 2.4 GHz | 5 GHz | ||
Transmission Rate | 2975Mpbs | ||
Peak Data Rate | 2.4GHz: 573Mbps | 5GHz: 2404Mbps | ||
Antenna Type | 2x2 2.4G/5GHz antenna | ||
Antenna gain | 2.4G 1.7dBi | 5G 2.9dBi | ||
Max. Access Client Number | 512 | ||
Recommended Access Clients | 100 | ||
Power Method | PoE | Mount Type | Wall-plate |
Max Power Consumption | 18Watt | Input Power | 802.3af Power over Ethernet | 12V 1.5A DC |
Dimension | 160x86x29mm | Weight | 0.26KG |
Op.Temperature | -20 - 40℃(-4 to 104F) | Op. Humidity | 5% - 95%(non-condensing) |
WLAN
- Support MU-MIMO, OFDMA, TWT
- Max. Access Client Number: 512
- Recommended Access Clients: 100
- Max. Virtual AP Number: 8
- Forwarding Mode: Direct forwarding / Tunnel forwarding
- Support SSID Hiding, Access Limitations of Low-rate Clients, Air Time Fairness (ATF)
Security
- Encryption: WPA-PSK / WPA2-PSK / WPA-Enterprise / WPA2- Enterprise / WPA3-Enterprise / MPSK
- Authentication: Built-in/External Portal, or Radius Client
Management
- Support NTP, Remote Packet Capture, ZTP
- Support Network telemetry
- Support Location Report
- Device Management: SSH, WEB, Syslog, Asteria Campus Controller
Network
- IP Address Acquire: Static IP, DHCP acquisition
- Support DHCP, VLAN, LLDP, PPPoE Client
- Support NAT, ACL, NTP
- Support VXLAN, Dynamic VLAN, Multicast to Unicast
Roaming
- Support 802.11k/v/r
- Support (Signal strength threshold configurable) Sticky Client Roaming
Quality of Service
- QoS: Rate limit based on SSID, Port-based DSCP, DNS-based DSCP
- WMM (802.11e): Support
Client Isolation
- VLAN based Isolation: Support
- SSID based Isolation: Support
Radio Management
- Support DFS, TPC
