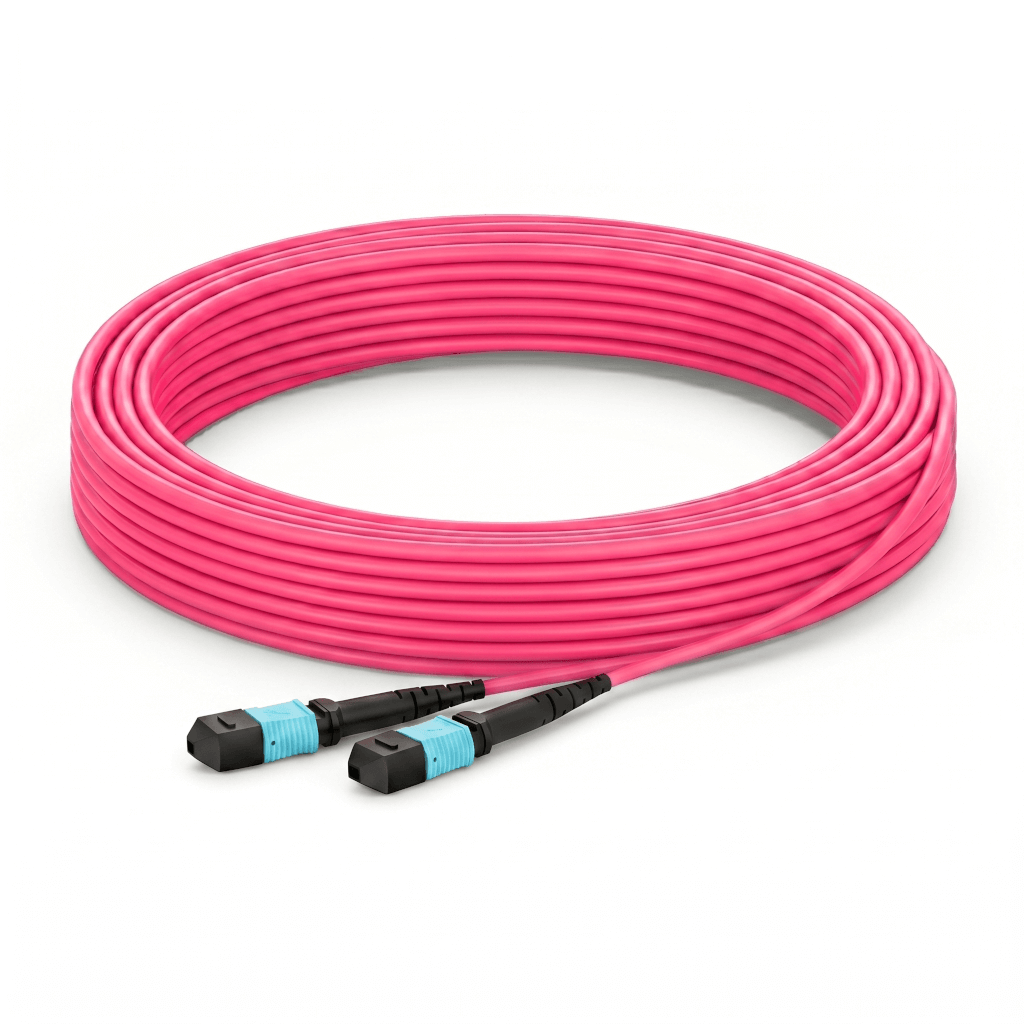

MPO-12 UPC (Female) to MPO-12 UPC (Female), 12 Fibers, Multimode (OM4), LSZH, 0.35dB Max, Type B
Price range: $25.00 through $100.00 VAT excl.
- ≤0.35dB ultra-low insertion loss for stable 100G/400G/800G links
- Bend-insensitive fiber, ≥7.5mm minimum bend radius
- Supports InfiniBand and Ethernet networks
- Compatible with 100G QSFP28 SR4,40G SFP+ SR4 transceivers
- Ideal for patch panels, cassettes, and short-reach rack connections
MPO-12 Fiber Jumper, Female to Female, UPC, 12F, OM4, 0.35dB, Type B Polarity
MPO-12 jumpers serve as the critical short-reach link between trunk cables, patch panels, and active equipment — enabling smooth capacity upgrades and simplified fiber management without re-terminating backbone infrastructure. Designed specifically for within-cabinet patching in high-density data center environments, this jumper eliminates the need for time-consuming field splicing while reducing the cable volume and management overhead that slow down rack deployments.
The MPO-12 connector format retains compatibility with 12-fiber parallel multimode optical systems. This makes the jumper equally at home in 100G QSFP28 SR4 and 40G QSFP+ SR4 deployments.
| Connector Type | MPO Female to Female | Fiber Grade | Bend Insensitive |
|---|---|---|---|
| Polish Type | UPC to UPC | Polarity | Type B |
| Fiber Mode | OM4 50/125μm | Fiber Count | 12F |
| Wavelength | 850/1300nm | Cable Jacket | LSZH |
| Insertion Loss | ≤0.35dB | Return Loss | ≥35dB |
| Attenuation at 850 nm | ≤2.3 dB/km | Attenuation at 1300 nm | ≤1.0dB/km |
| Min. Bend Radius (Fiber Core) | 7.5mm | Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
| Cable Diameter | 3.0mm | Tensile Strength | 80/150N (Long/Short Term) |
| Operating Temperature | -10 to 60°C (14 to 140℉) | Storage Temperature | -10 to 70°C (14 to 158℉) |
| Length | 1m, 3m, 5m, 10m, 15m, 30m |
|---|
