Enterprise Edge Router with SONiC and VPP on Marvell OCTEON 10, 2x100Gbps Throughput with 2M Routes
Price range: $7,897.00 through $10,807.00 VAT excl.
- Turnkey edge router with AsterNOS-VPP pre-installed on each of two independent CN103 DPUs (SONiC control plane + VPP data plane)
- Two independent 100 Gbps forwarding domains in a single 1U box, each with its own routing table, VRF, BGP sessions, and firewall policy
- 2 x 8-core ARM64 Neoverse N2 CPUs @ 2.5GHz (Marvell OCTEON 10 CN103, one per DPU)
- 2 x 2 x 100GE QSFP28, 2 x 2 x 10GE SFP+, optional 2 x 2 x 2.5GE RJ45
- 2 x 16GB pluggable DDR5 SO-DIMM, expandable up to 2 x 48GB
- True inline crypto engine per DPU with 2 x 80Gbps encryption/decryption capacity
- 2 x 100Gbps routing, 2 x 100Gbps firewall, 2 x 80Gbps IPsec — independent per DPU
- Optional M.2 NVMe SSD up to 4TB, PTP/SyncE (20ns, BC support), 5G/LTE (Global) per DPU
- <200W power consumption with full configuration and workload
Ready to deploy
AsterNOS-VPP pre-installed: SONiC control plane + VPP data plane, no integration needed.
2x100 Gbps routing
Line-rate L3 routing with up to 2M RIB entries and full BGP/MP-BGP tables.
Secure by default
IPsec & WireGuard VPN, NAT/CGNAT/MAP-T, and an N-tuple ACL firewall built in.
Automate & observe
ZTP, gNMI, and REST API, plus NetFlow/IPFIX, Prometheus, and SNMP telemetry.

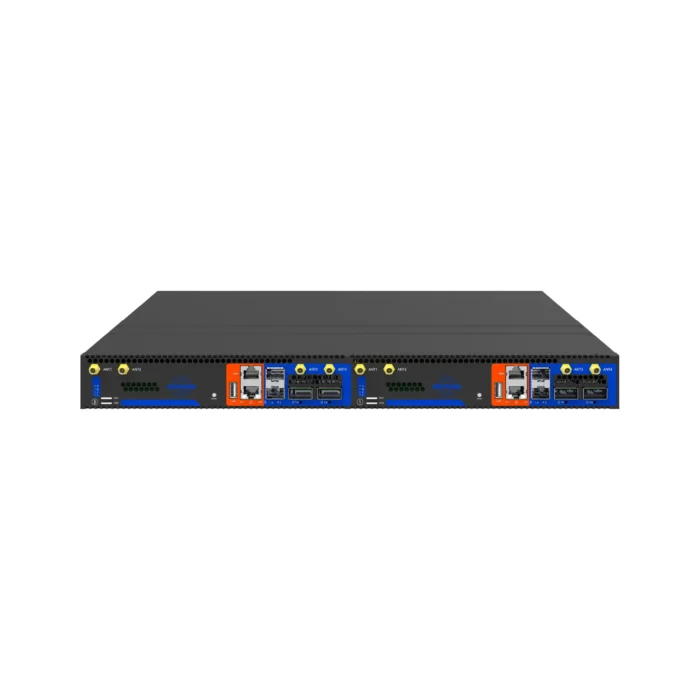

The RT3616 is a turnkey enterprise edge router
built around two independent Marvell OCTEON 10 CN103 DPUs, each pre-installed with its own instance of Asterfusion's AsterNOS-VPP network operating system. Where the ET3608-based RT3608 runs one AsterNOS-VPP instance on one DPU, the RT3616 runs two — each with its own routing table, VRF structure, BGP sessions, IPsec tunnels, and firewall policy, and no shared state between them. This gives two distinct routers in a single 1U box rather than a high-availability pair, delivering 2 x 100 Gbps of hardware-accelerated L3 forwarding, 2 x 80 Gbps of stateful firewall, and 2 x 80 Gbps of inline IPsec, all under 200 W. It targets ISPs, carriers, and data center edge deployments that exceed the capacity of a single-DPU router.
On the data plane
each AsterNOS-VPP instance carries a full, independently configured routing table with its own BGP policy, route maps, prefix filters, and VRF structure — one DPU can peer with upstream ISPs while the other terminates a customer-facing fabric, with no convergence event on one instance affecting the other's forwarding. Each DPU's inline crypto engine also runs independently: a combined 160 Gbps IPsec workload can be split across the two engines, or one DPU can be dedicated to encrypted tunnel termination while the other handles clear-text routing, with hardware-enforced separation between the two traffic planes.
On the hardware side, the RT3616 provides 2 x 2 x 100GE QSFP28 and 2 x 2 x 10GE SFP+ interfaces (two ports of each type per DPU), 2 x 16GB DDR5 memory expandable to 2 x 48GB, and dual M.2 NVMe slots. Optional modules add PTP/SyncE timing accurate to 20ns with boundary clock support and over 8 hours of holdover, plus 5G/LTE connectivity per DPU. Full configuration and workload draw under 200W, with 2+1 hot-swappable fan modules and 1+1 hot-swappable power modules for continuous operation. AsterNOS-VPP is perpetually licensed per DPU with a yearly major-version upgrade subscription.
Feature Highlights
- - Dual independent DPUs — two Marvell OCTEON 10 CN103 processors, each running its own AsterNOS-VPP instance with separate routing table, VRF, BGP sessions, and firewall policy.
- 2 x 100 Gbps L3 routing — independently configured BGP policy, route maps, prefix filters, and VRF structure per DPU; no shared convergence state.
- 2 x 100 Gbps hardware firewall — stateful inspection and ACLs enforced per DPU in the VPP packet pipeline, with zone-based policy and SPI (Commercial Plus).
- 2 x 80 Gbps inline IPsec — dedicated crypto engine per DPU; workload can be split across both engines or isolated to one DPU with hardware-enforced traffic-plane separation.
- High-density interfaces — 2 x 2 x 100GE QSFP28, 2 x 2 x 10GE SFP+, 2 x 16GB DDR5 (expandable to 2 x 48GB), dual M.2 NVMe.
- Low-power, high-availability design — under 200W at full configuration and workload, with 2+1 hot-swappable fans and 1+1 hot-swappable power modules.
| Computing | |||
|---|---|---|---|
| DPU | 2 x Marvell CN103 | Cache | L2 8MB, L3 16MB |
| Memory | 2 x 16GB DDR5, up to 2 x 48GB | SSD | 2 x M.2 NVME 256G |
| AI accelerator (Option) | |||
| Compute performance | up to 160 TOPS up to 100 TFLOPS @bFP16 | Memory | 24GB LPDDR5/LPDDR5X Memory bandwidth: 153.6GB/b |
| Network interface | |||
| 10GE (SFP+) | 2 x 2 | 100GE(QSFP28) | 2 x 2 |
| 5G/LTE (Option) | 2 x 2 SIM cards, M.2 B key | ||
| Network performance | |||
| L3 Switching capacity | 2 x 200Gbps | Firewall capacity | 2 x 100Gbps |
| Routing capacity | 2 x 100Gbps | Encryption and Decryption capacity | 2 x 80Gbps |
| PTP/SyncE accuracy | 20ns | PTP/SyncE holdover time | > 8hours |
| Misc interface | |||
| USB | 2 x USB 3.0 | Console | 2 x Console RJ45 |
| MGMT | 2 x MGMT GE RJ45 | ||
| Electrical characteristics | |||
| Fan Module | 2+1 Hot-swappable | Power Module | 1+1 Hot-swappable |
| Maximum power consumption | 200W (FULL configuration and workload) | Input voltage | 100~240VAC |
| Mechanical | |||
| Operating temperature | 0 – 45℃ | Dimensions (H x W x D mm) | 44 x440 x 470 |
| Relative humidity | 5% - 95% (non-condensing) | Height | 1U |
Loading…
Loading…
Loading…
| Memory | 2x16GB, 2x32GB, 2x48GB |
|---|---|
| Role | Router |
| Silicon | OCTEON 10 CN103 |
| Speed | 100G |
| Throughput | 200Gbps |
| SSD Module | 0T |
| 5G/LTE Module | None, Included |
| AI Module | None, Included |
| Software | 2 x Pro CN103 |
