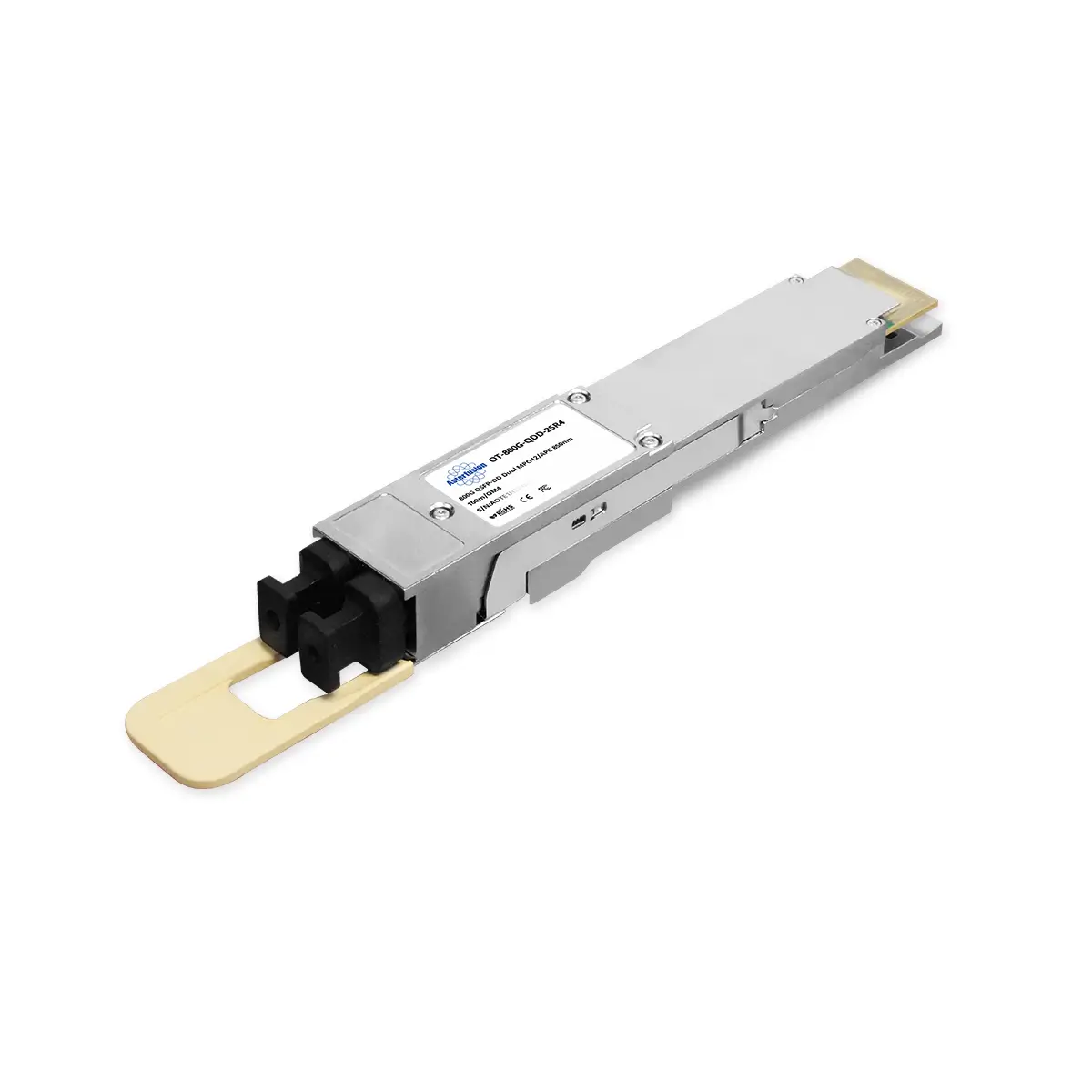

800G QSFP-DD 2SR4 850nm 100m Optical Transceiver Module Dual MPO-12 APC
$1,410.00
Bandwidth: 800G (8×100G PAM4 channels)
Transmission Distance: 100m over OM4/OM5 MMF
Connector Type: Dual MPO-12 APC
Wavelength: 850nm
Power Efficiency: ≤14W, ideal for dense data centers
Modulation: 8×100Gb/s PAM4 (optical & electrical)
Breakout Options: Supports 1×800G SR8, 2×400G SR4, 2×200G SR4, and 8×100G SR
Monitoring: Built-in digital diagnostics (DDM/DOM) for real-time reliability
Compliance: QSFP-DD MSA, IEEE 802.3, CMIS standard
The 800G QSFP-DD 2SR4 Optical Transceiver Module is fully compliant with QSFP-DD MSA, CMIS, IEEE 802.3, and RoHS standards. It supports 800 Gbps throughput (8 × 106.25 Gbps via PAM4). It can operate between 0 °C and 70 °C. The 800G OSFP optical module is equipped with dual MPO-12 APC receptacles and advanced silicon photonics with 7 nm DSPs. Moreover, this hot-pluggable module supports DDM/DOM real-time monitoring and long-reach transmission distance up to 10km using standard single-mode fiber, delivering long-reach connectivity ideal for modern data centers, edge deployments, and cloud backbones.
Specifications
Form Factor | QSFP112-DD | Connector | Dual MPO12/APC |
Media | MMF | Max. Cable Distance | 100m OM4 |
Data Rate | 800Gbps | Wavelengths Range | 850nm |
Extinction Ratio | >2.5dB | Receiver Sensitivity | <-4.6dBm |
TX Power | -4.6~4dBm | RX Power | -6.4~4dBm |
Supply Voltage | 3.3V | Power Consumption | <14W |
Op. Temperature | 0 to 70°C (32 to 158°F) | DSP | Tx and Rx |
DDM/DOM | Supported | Inbuilt FEC | Yes |
Electrical Interface | Hot-pluggable | Protocols | CMIS, QSFP-DD MSA |
| Compatible Brands | Generic, Asterfusion, Nvidia, Juniper, Cisco |
|---|
Warranty & Delivery Information
Warranty
Quality Certifications
Delivery Time
Our standard products are typically shipped within one week (business days).
For custom products, please contact customer service to inquire about the specific delivery time.
