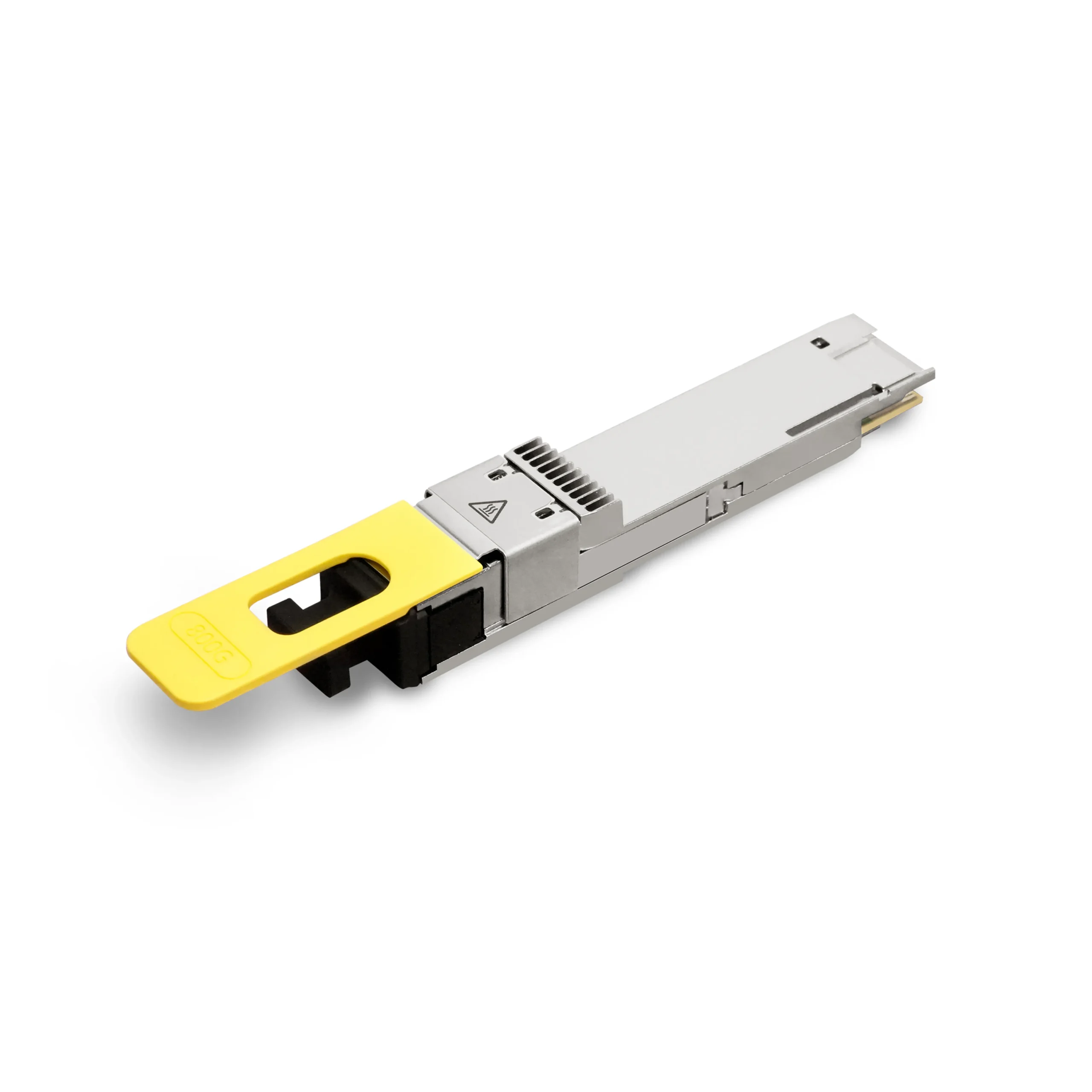

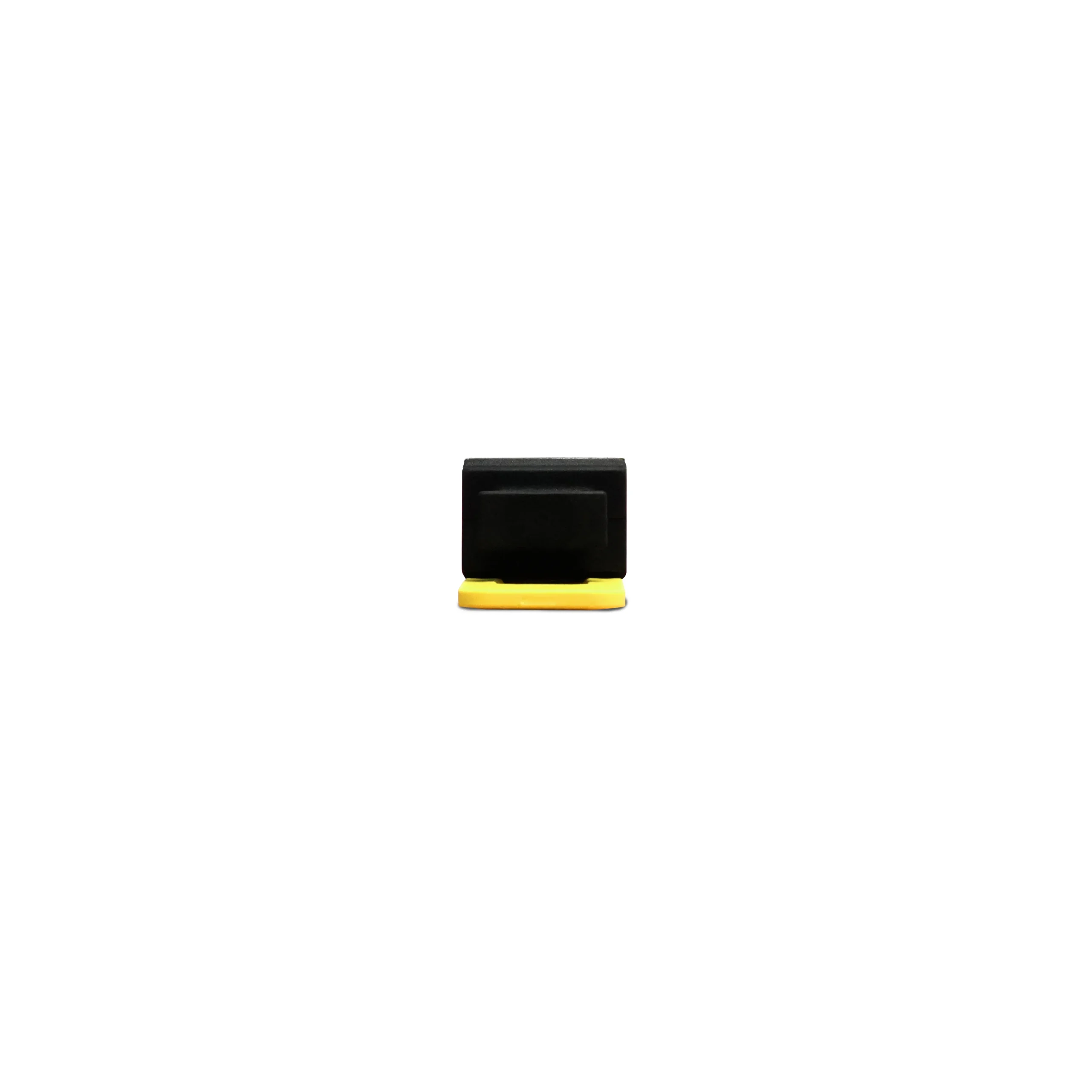

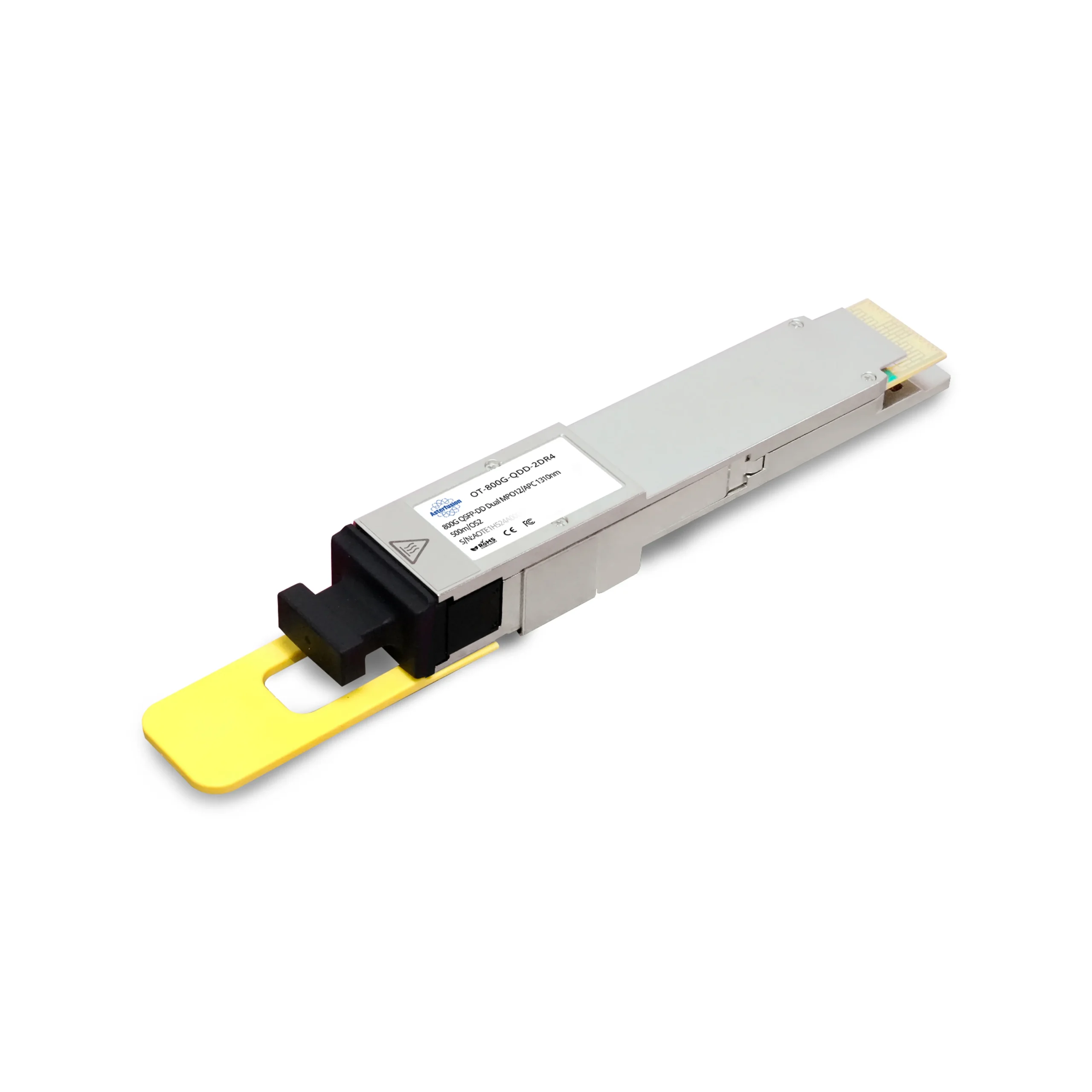

800G QSFP-DD 2DR4 1310nm 500m Dual MPO12 APC Optical Transceiver Module
$1,939.00 VAT excl.
Bandwidth: 800G (8×100G PAM4 channels)
Transmission Distance: Up to 500m over OS2 SMF
Connector Type: Dual MPO-12 APC
Wavelength: 1310nm
Power Consumption: ≤16.5W for energy-efficient deployments
Breakout Options: Supports 2×400G DR4, 2×200G DR4, 8×100G DR, and 800G DR8
Diagnostics: Built-in DDM/DOM for real-time monitoring
Compliance: QSFP-DD MSA, IEEE 802.3, CMIS standard
The QSFP-DD 800G 2DR4 optical transceiver module delivers ultra-high-speed, medium-reach connectivity for AI/ML clusters, high-performance computing (HPC), cloud-scale data centers, and enterprise backbones. Supporting eight 100G PAM4 lanes (aggregate 800Gbps) over single-mode fiber (SMF), it achieves distances up to 500m at 1310nm wavelength. With dual MPO-12 APC connectors, built-in digital diagnostics (DDM), and support for breakout configurations (2×400G, 2×200G, 8×100G), this hot-pluggable module offers energy efficiency, scalability, and reliability.
The QSFP-DD 800G 2DR4 optical transceiver module is optimized for medium-reach, high-density 800G Ethernet networks. With versatile breakout options, energy-efficient design, and advanced monitoring features, it ensures low-latency, reliable, and scalable connectivity for next-generation cloud, HPC, and AI-driven infrastructures.
| Form Factor | QSFP-DD | Connector | Dual MPO12 APC |
|---|---|---|---|
| Media | SMF | Max. Cable Distance | 500m |
| Data Rate | 800Gbps | Wavelengths Range | 850nm |
| TX Power | -2.9~4dBm | Minimum Receiver Power | -5.9dBm |
| Extinction Ratio | >2.5dB ? | DDM/DOM | Supported |
| Supply Voltage | 3.3V | ||
| Op. Temperature | 0 to 70°C (32 to 158°F) | Humidity(non-condensing) | 0-85% |
| St. Temperature | -40 to 85°C (-40 to 185°F) | Electrical Interface | Hot-pluggable |
| Application | Data centers, 800G 2DR4 | Protocols | QSFP-DD MSA, IEEE 802.3 protocol |
| Compatible Brands | Generic, Asterfusion, Nvidia, Juniper, Cisco |
|---|---|
| Connector | Dual MPO12/APC |
| Interface | QSFP-DD, OSFP |
| Model | 2DR4 |
| Reach | 500m |
| Speed | 800G |
