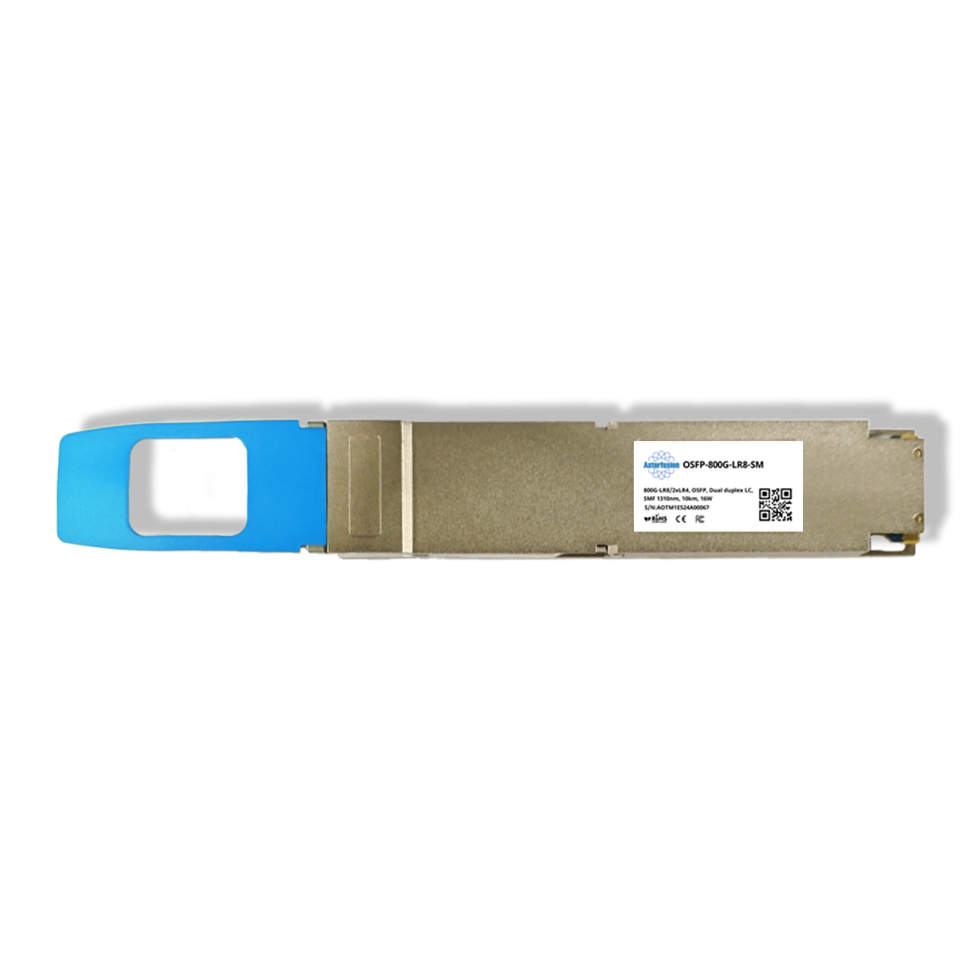

OSFP 800G 2LR4 1310nm 10km Optical Transceiver Module Dual Duplex LC
$2,016.00
Transmission Distance: Up to 10km over OS2 SMF
Connector Type: Dual Duplex LC
Wavelength: 1310nm
Power Efficiency: ≤16W, optimized for long-haul operations
Chipset: Advanced 7nm DSP with SiPh & 3D packaging integration
Compliance: OSFP MSA, IEEE 802.3, CMIS-compatible
Diagnostics: Digital monitoring for real-time performance insights
The OSFP 800G 2LR4 optical transceiver module is designed for long-reach optical communication in next-generation data centers, HPC clusters, 5G networks, and content delivery networks (CDNs). Supporting 2x400G LR4 over 1310nm OS2 single-mode fiber (SMF), it enables distances up to 10km while consuming less than 16W of power. Leveraging silicon photonics (SiPh) and 7nm DSP technology, this module delivers reliable, scalable, and energy-efficient performance for mission-critical, high-bandwidth environments.
Specifications
Form Factor | OSFP | Connector | Dual Duplex LC |
Media | SMF | Max. Cable Distance | 10km |
Data Rate | 800Gbps | Wavelengths Range | 1310nm |
Transmitter Type | EML | Receiver Type | PIN |
TX Power | -2.7~5.1dBm | RX Power | -9~5.1dBm |
Extinction Ratio | >3.5dB | Receiver Sensitivity | <-6.8dBm |
Supply Voltage | 3.3V | Power Consumption | <16W |
Op. Temperature | 0 to 70°C (32 to 158°F) | Humidity(non-condensing) | 5-85% |
DDM/DOM | Supported | Electrical Interface | Hot-pluggable |
Applications | 800G Ethernet Data Center | Protocols | CMIS, OSFP MSA, IEEE 802.3 |
| Compatible Brands | Generic, Asterfusion, Nvidia, Juniper, Cisco |
|---|
Warranty & Delivery Information
Warranty
Quality Certifications
Delivery Time
Our standard products are typically shipped within one week (business days).
For custom products, please contact customer service to inquire about the specific delivery time.
