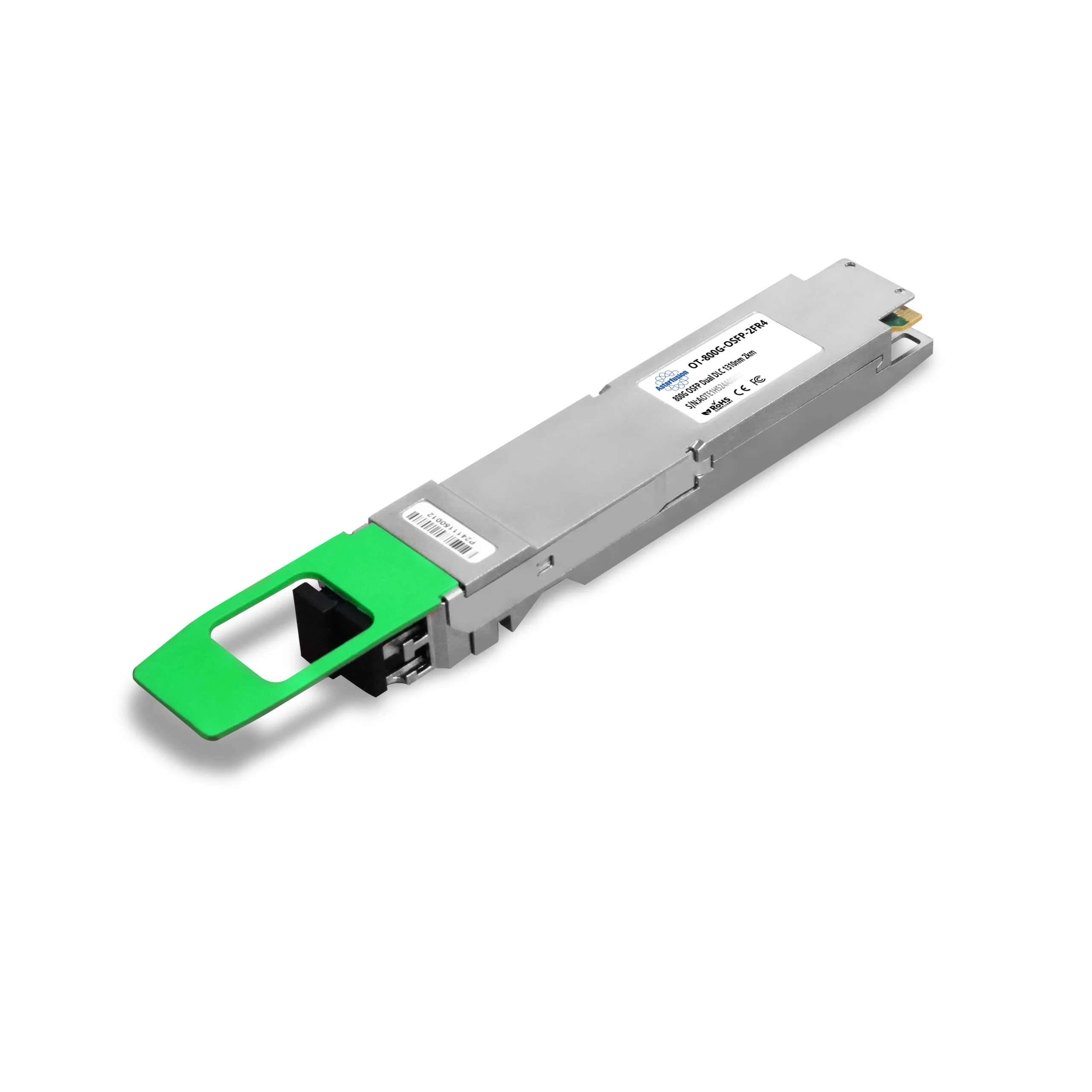

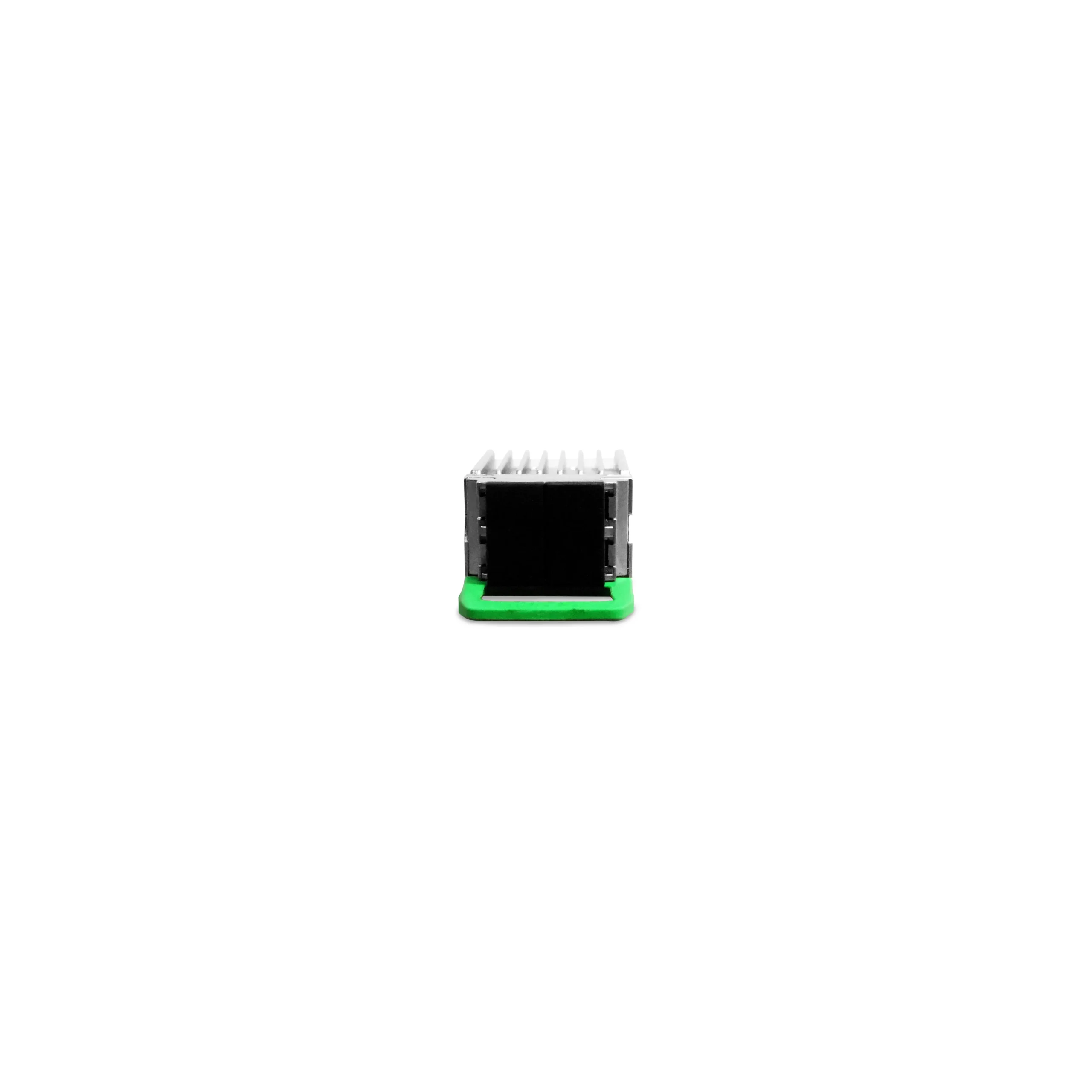

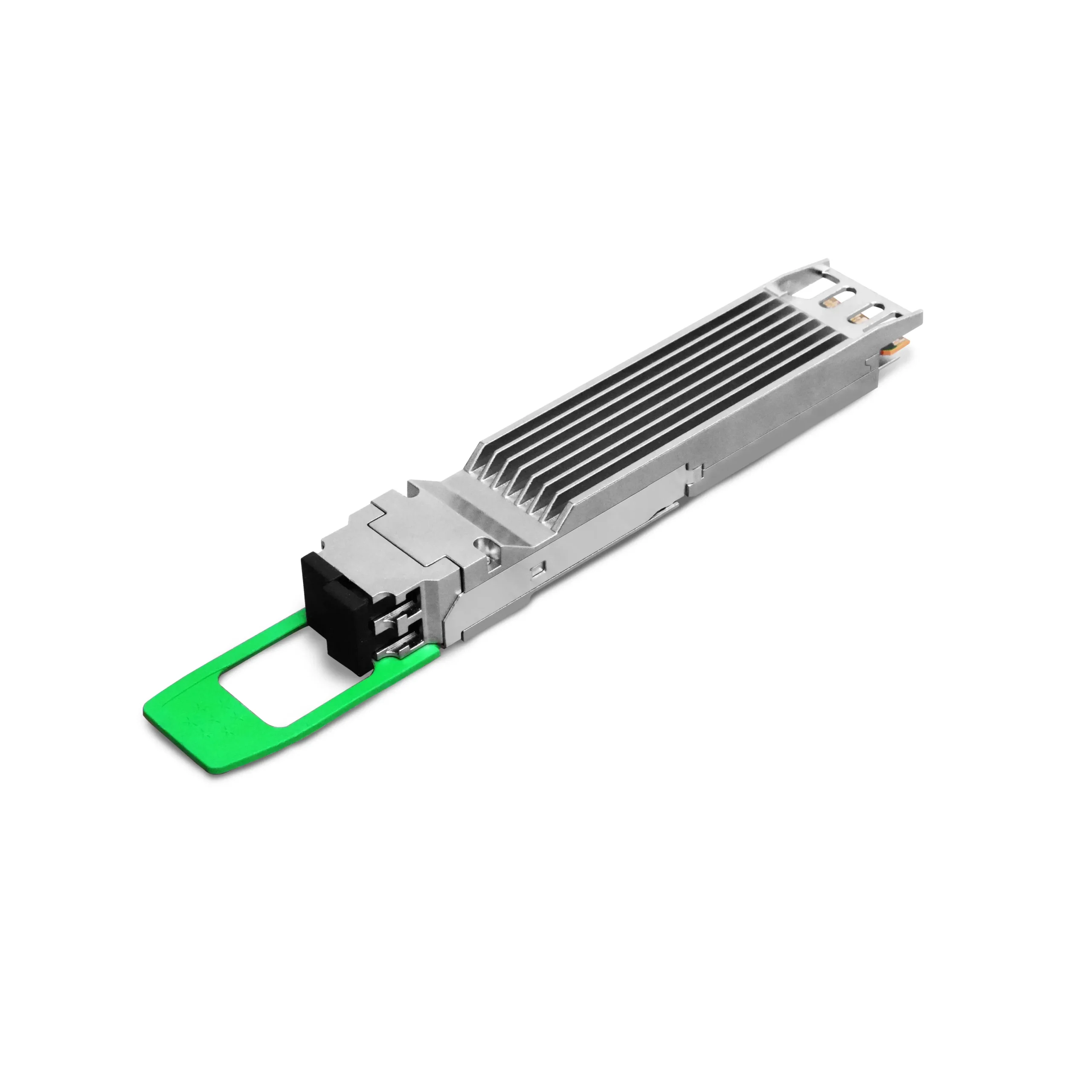

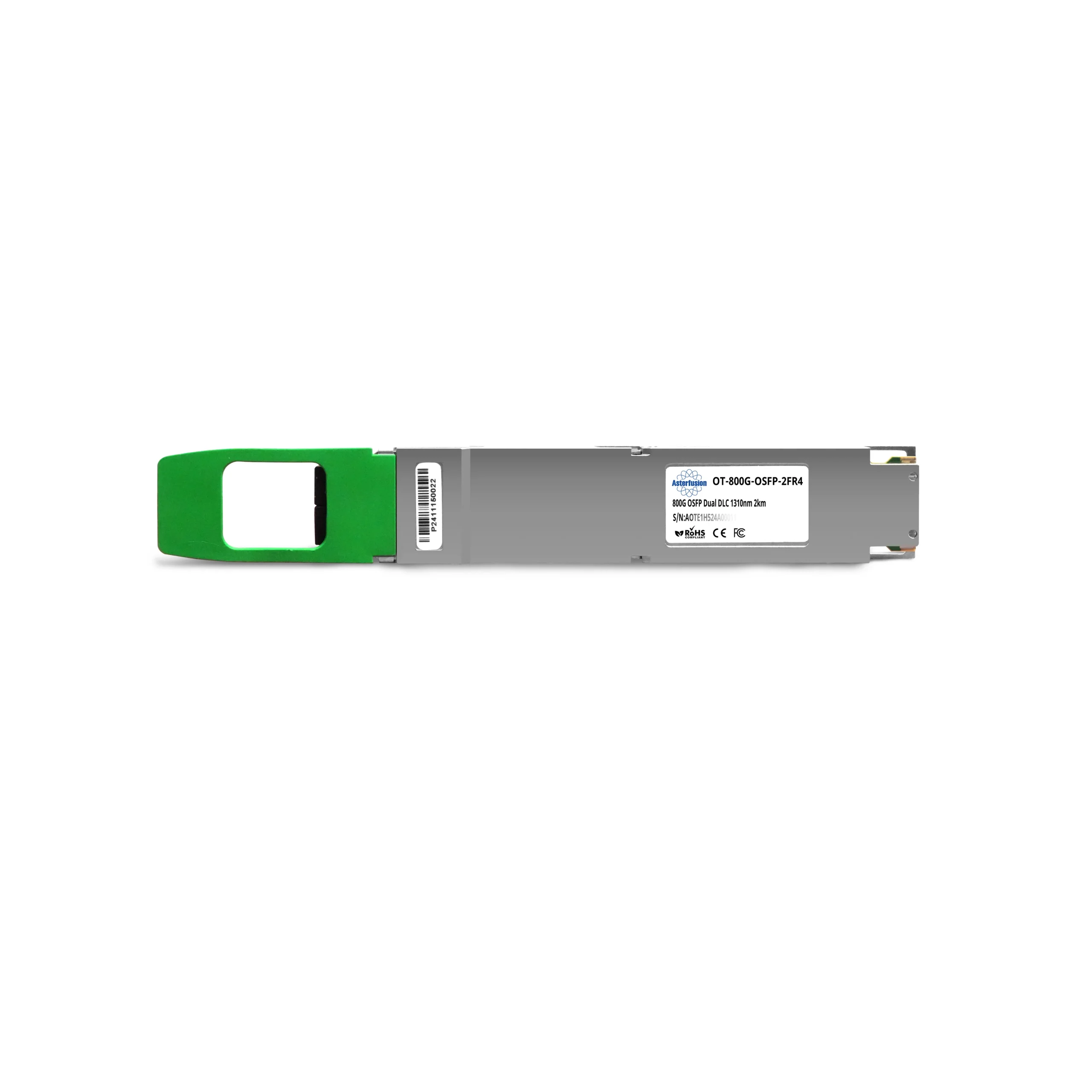

800G OSFP 2FR4 1310nm 2km SMF Optical Transceiver Module
$1,668.00
- Transmission Distance: Up to 2km over OS2 SMF
- Connector Type: Dual Duplex LC
- Wavelength: 1310nm
- Power Consumption: ≤16W, optimized for energy efficiency
- Chip Technology: 7nm DSP with SiPh integration and 3D packaging
- Compliance: OSFP MSA, IEEE 802.3, CMIS-compatible
MSA Compatible 800G OSFP 2FR4 Optical Transceiver Module Support 2x 400G FR4 (SMF 1310nm, 2km, PAM4, Dual Duplex LC )
The 800G OSFP 2FR4 Optical Transceiver Module delivers reliable high-speed connectivity for modern data centers and cloud infrastructure. Designed to the OSFP MSA standard, it supports 800 Gbps throughput using PAM4 modulation and operates at 1310 nm over single-mode fiber. With transmission distances up to 2 km, it is ideal for inter-rack and metro data center links.
Built with advanced silicon photonics and 7 nm DSP technology, the module ensures strong signal integrity while keeping power consumption under 16W. Hot-swappable and easy to deploy, it also features digital diagnostics (DDM/DOM) for real-time monitoring of performance and reliability.
Fully compliant with OSFP MSA, CMIS, IEEE 802.3ck, and RoHS, the 800G OSFP 2FR4 is a dependable, energy-efficient choice for hyperscale, AI, and telecom backbone networks needing high-capacity and future-proof scalability.
Specifications
Form Factor | OSFP | Connector | Dual Duplex LC |
Media | SMF | Max. Cable Distance | 2km |
Data Rate | 800Gbps | Wavelengths Range | 1271nm, 1291nm, 1311nm, 1331nm |
Transmitter Type | EML | Receiver Type | PIN |
TX Power | -3.2~4.4dBm | RX Power | -7.2~4.4dBm |
Extinction Ratio | >3.5dB | Receiver Sensitivity | <-4.6dBm |
Supply Voltage | 3.3V | Power Consumption | <16W |
Op. Temperature | 0 to 70°C (32 to 158°F) | Humidity(non-condensing) | 5-95% |
DDM/DOM | Supported | Electrical Interface | Hot-pluggable |
Applications | 800G Ethernet Data Center | Protocols | CMIS, OSFP MSA, IEEE 802.3cu, and 100G Lambda MSA |

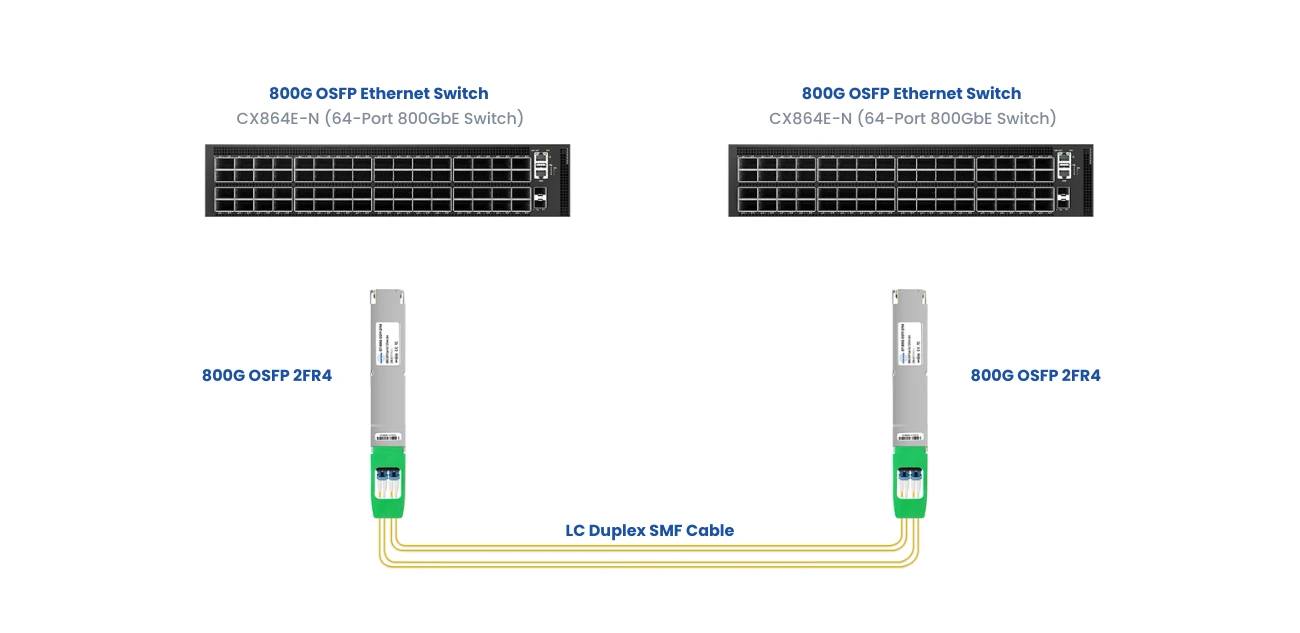

Connectivity solution
| Compatible Brands | Generic, Asterfusion, Arista, Nvidia, Juniper, Cisco, HUAWEI, H3C, Ruijie |
|---|
Warranty & Delivery Information
Warranty
Quality Certifications
Delivery Time
Our standard products are typically shipped within one week (business days).
For custom products, please contact customer service to inquire about the specific delivery time.
