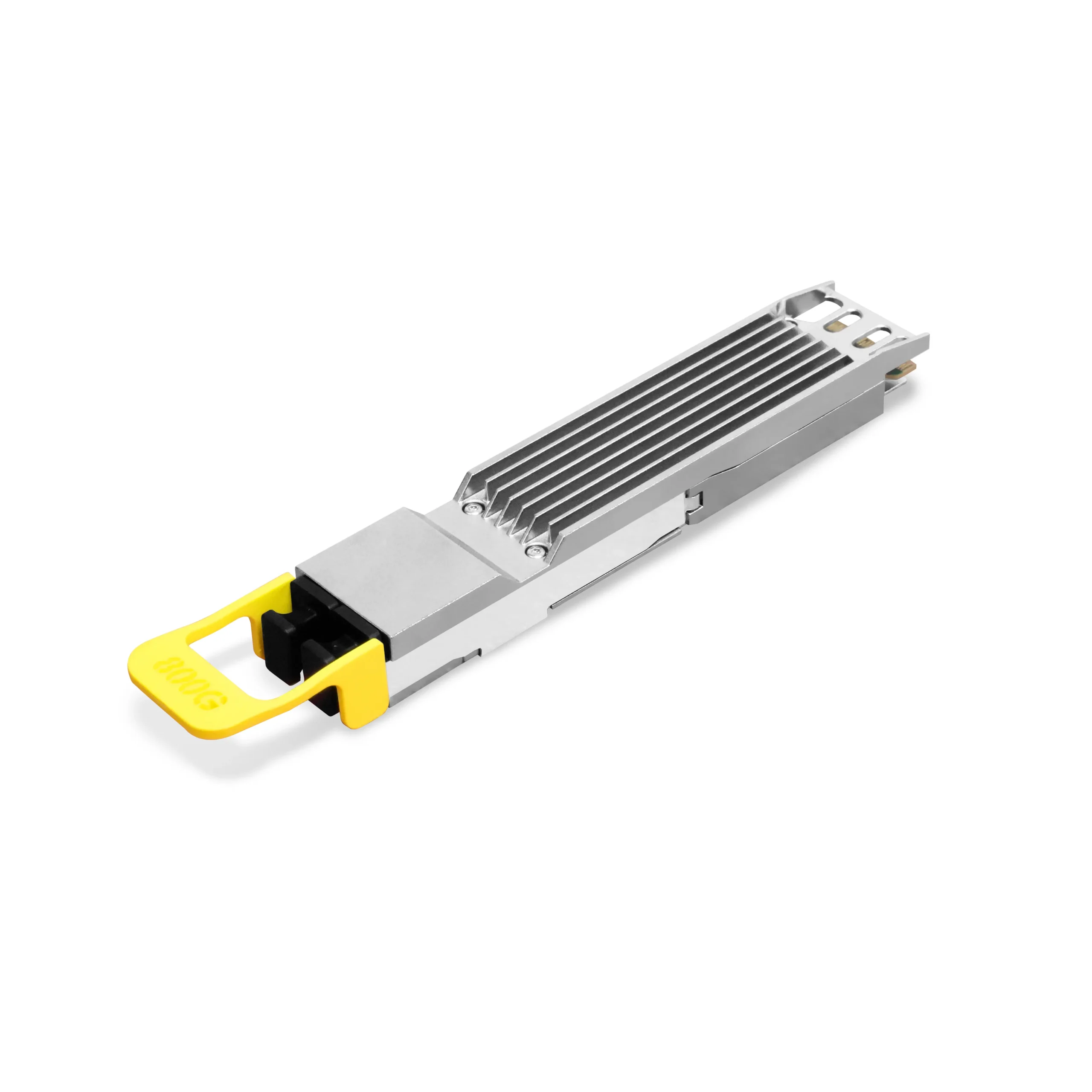

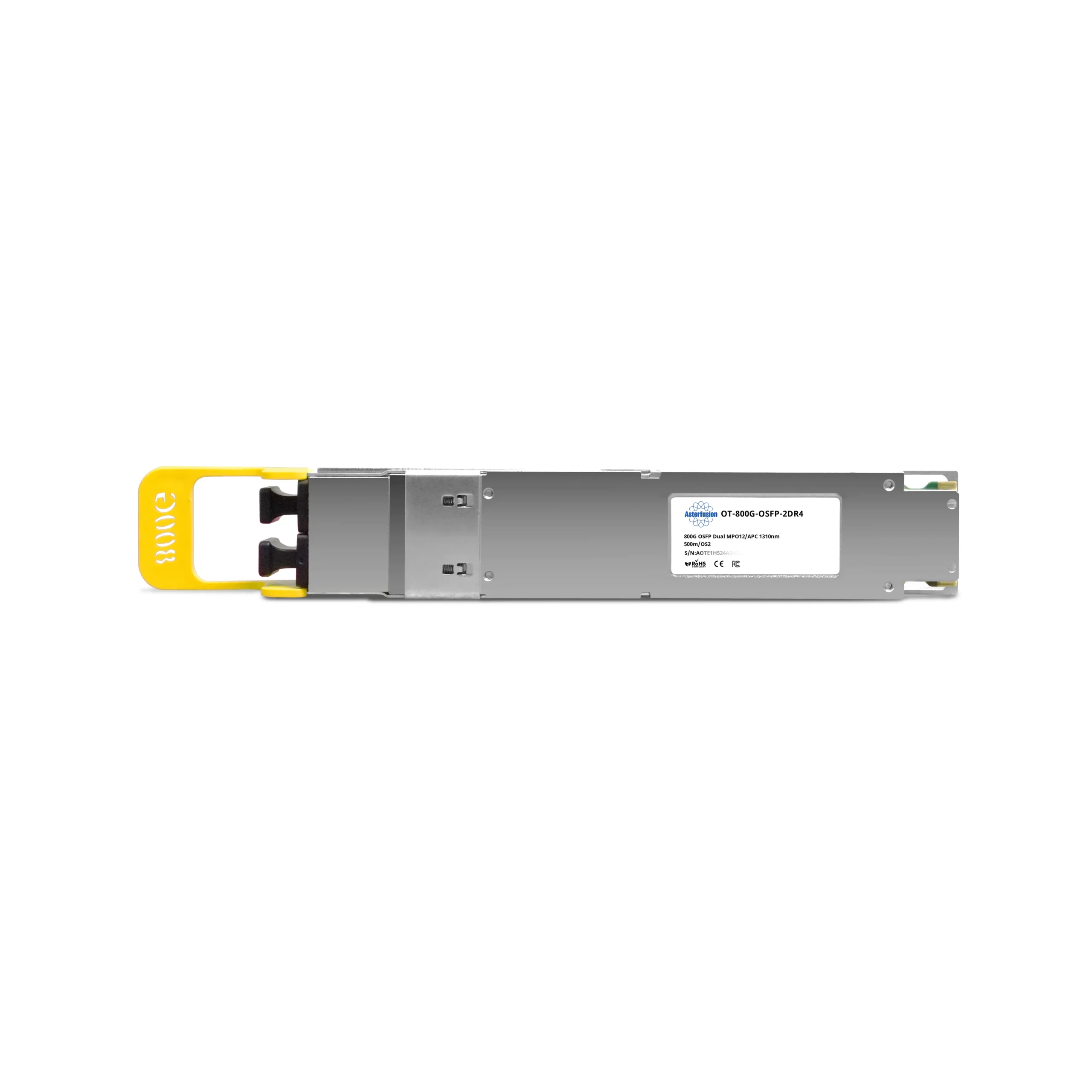

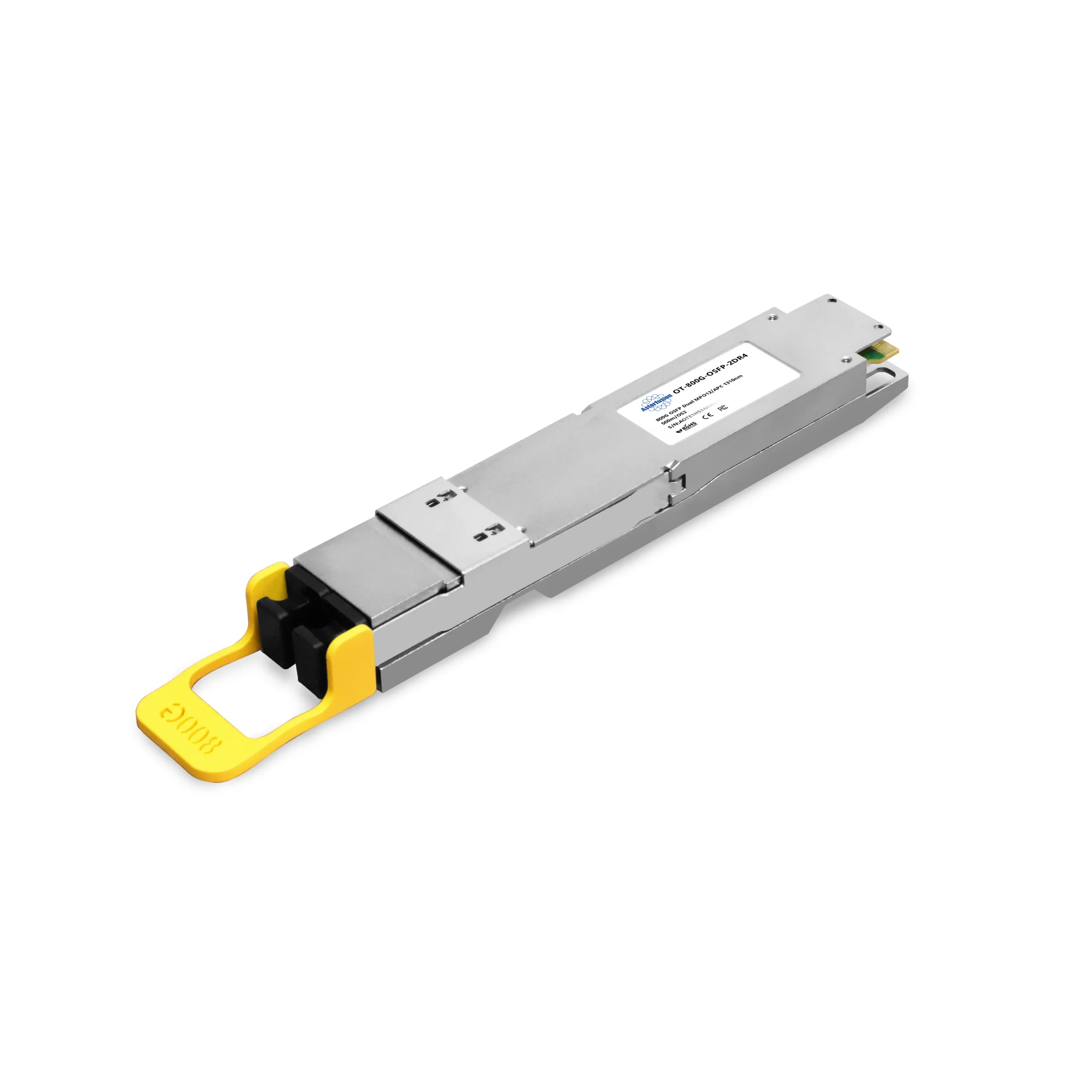

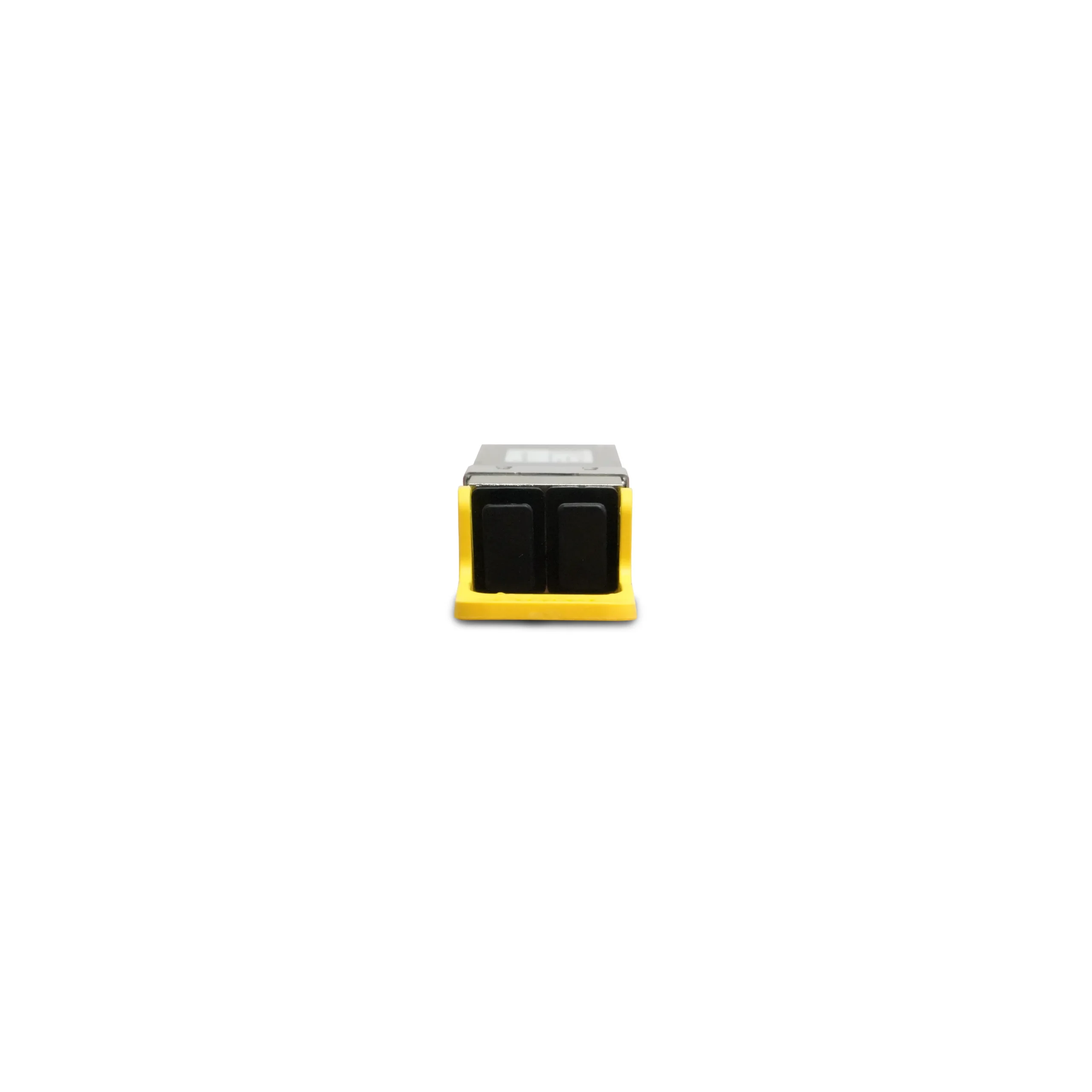

800G OSFP 2DR4 1310nm 500m Optical Transceiver Module Finned Top

MSA Compatible 800G OSFP 2DR4 Optical Transceiver Module(1310nm, 500m, Finned Top, Dual MPO12/APC)

The 800G OSFP 2DR4 Optical Transceiver Module is built on the OSFP (Octal Small Form-Factor Pluggable) standard. This hot-swappable module supports an aggregate data rate of 850 Gbps, delivered through eight lanes of 106.25 Gbps each using advanced PAM4 modulation. The SMF transceiver module operates at a 1310 nm wavelength and supports transmission distances of up to 500 meters, making it ideal for inter-rack and backbone connections inside large-scale data centers. The use of dual MPO-12 APC connectors and a compact OSFP design. Backed by silicon photonics technology, 3D packaging, and cutting-edge 7 nm DSP chips with KP-FEC, the transceiver delivers both outstanding performance and signal integrity across every lane.

With power consumption under 18W, it helps to reduce energy costs and cooling demands in hyperscale and cloud data centers. The 800G optical module includes digital diagnostics monitoring (DDM/DOM), offering real-time insights into critical parameters such as voltage, temperature, and optical output. This proactive monitoring simplifies network management and ensures stable, uninterrupted service.
