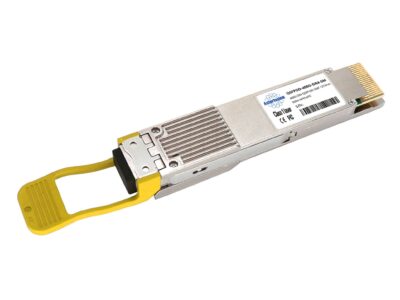

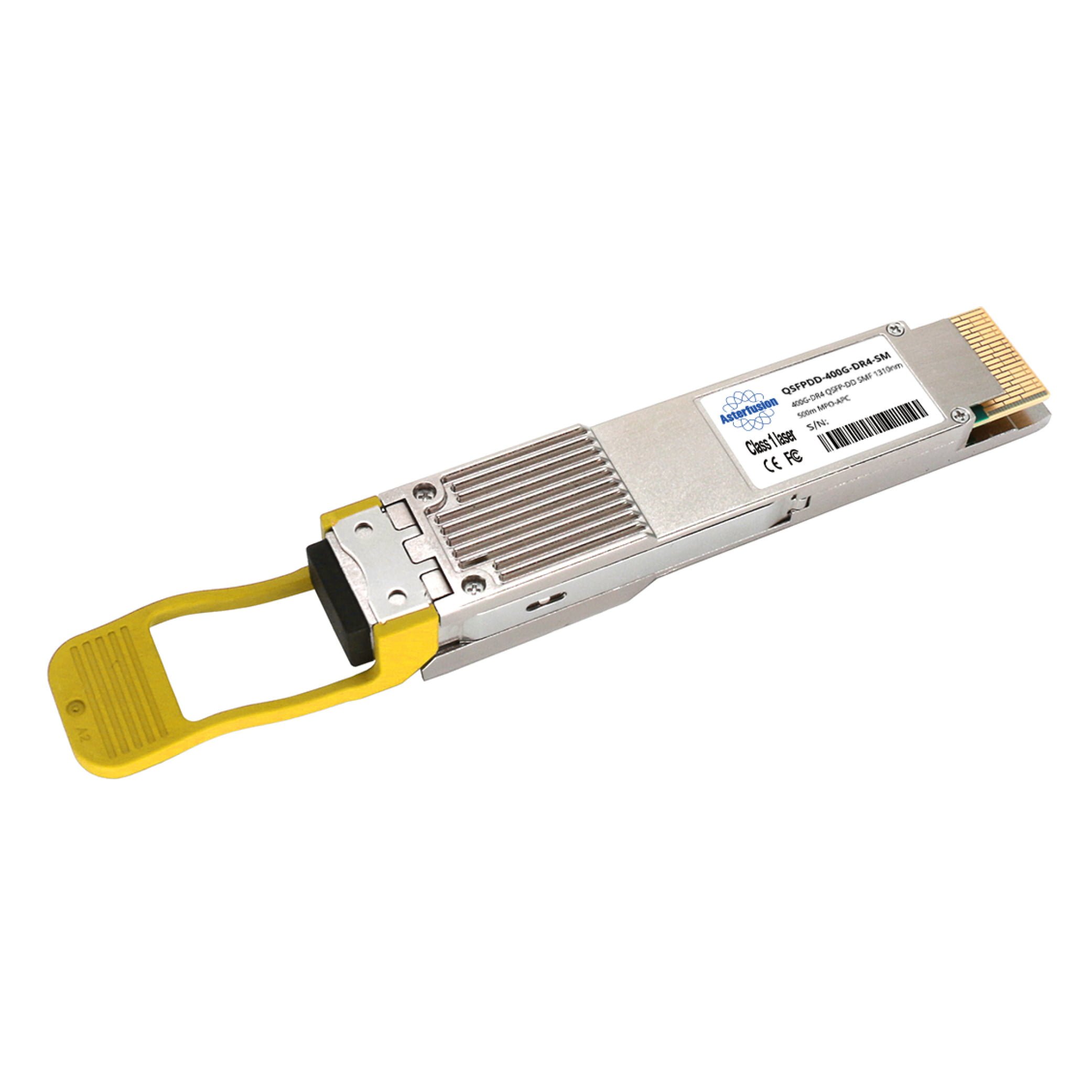

400G DR4 QSFP-DD 1310nm 500m MPO12/APC Optical Transceiver Module
$366.00 VAT excl.
- 400G high-speed data transmission over 106.25Gbps each lane.
- 500m reach on single-mode fiber, perfect for data center links.
- 1310nm PAM4 technology for stable and efficient performance.
- Standards compliant with QSFP-DD MSA and IEEE 802.3bs.
- Supports 4×100G breakout for flexible deployments.
- Low power use (<9.5W) with digital diagnostics (DDM).
- Reliable with a 0–70 °C operating range for data center environments.
SiPh technology is employed by the 400G QSFP-DD optical transceiver for 400 Gigabit Ethernet. Utilizing the 3D packing technique and 7nm DSP chips that this QSFP-DD transceiver guarantees the lowest latency and integrity of signals for short-range data transmissions in multi-lanes. The 400G DR4 optical module has an MPO-12 receptacle. The module can transmit the data for up to 500 meters over G.652 Single-mode Fiber (SMF), which has Forward Error Correction is an excellent alternative for short-range data transmission.
For high-bandwidth Enterprises and data centers, this transceiver delivers high-quality, fast performance at 4x106.25Gbps (53.125GBd PAM4) for electrical and optical connections. The digital diagnostics feature in this 400G DR4 optical module enables continuous monitoring of performance in real time. The optical module 400G is RoHS compatible and resistant to electromagnetic interference (EMI). It is suitable for data centers, computing, and cloud storage.
| Form Factor | QSFP-DD | Connector | MPO12 |
|---|---|---|---|
| Media | SMF | Max. Cable Distance | 500m |
| Data Rate | 425Gbps(4x106.25Gbps) | Wavelengths Range | 1310nm |
| Transmitter Type | EML | Receiver Type | PIN |
| TX Power | -2.9~4dBm | RX Power | -5.9~4dBm |
| Extinction Ratio | >3.5dB | ||
| Supply Voltage | 3.3V | ||
| Op. Temperature | 0 to 70°C (32 to 158°F) | Humidity(non-condensing) | 5-95% |
| DDM/DOM | Supported | Electrical Interface | Hot-pluggable |
| Inbuilt FEC | Yes | Protocols | IEEE 802.3bs, CMIS compliant |
| Compatible Brands | Generic, Asterfusion, Arista, Nvidia, Juniper, Cisco, HUAWEI, H3C, Ruijie |
|---|---|
| Connector | MPO12/APC |
| Interface | QSFP-DD, OSFP |
| Model | DR4 |
| Reach | 500m |
| Speed | 400G |
