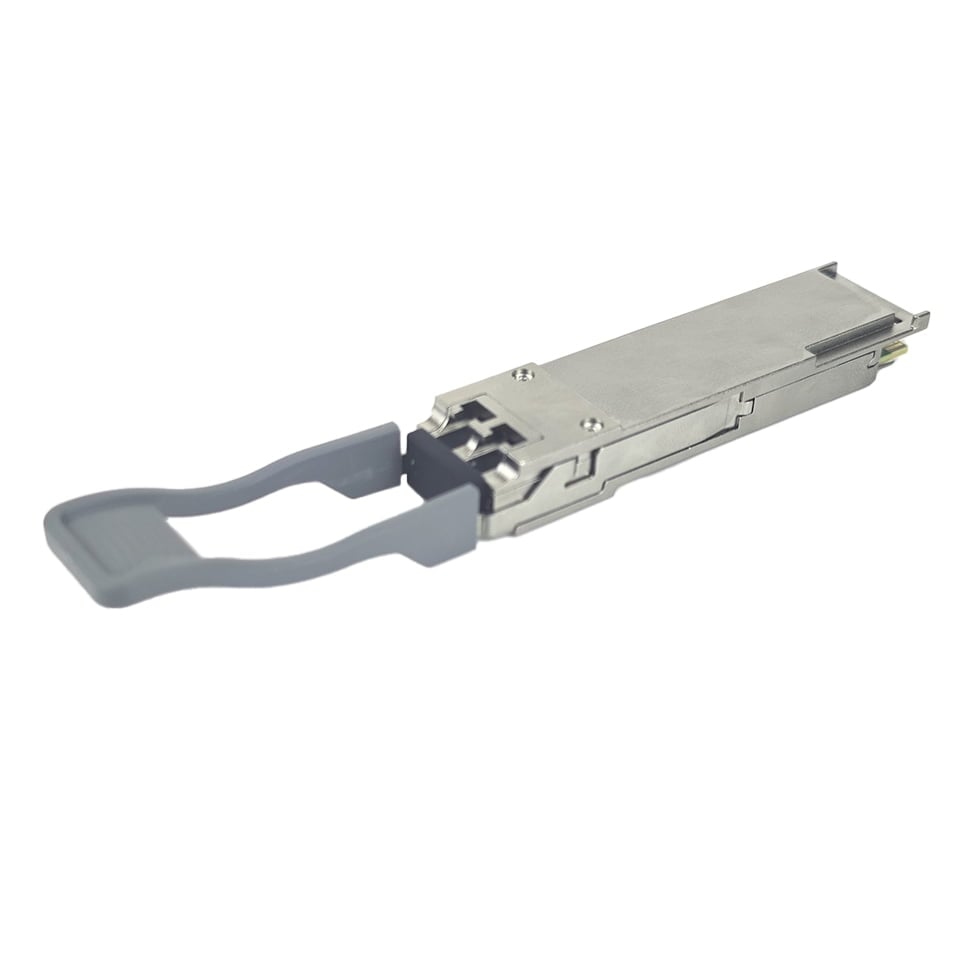

100G SWDM4 QSFP28 850-940nm 100m/OM4 Duplex LC MMF Optical Transceiver Module

For 100G Ethernet over duplex multimode fiber, the 100G QSFP28 SWDM4 transceiver models are excellent choices. These transceivers utilize four channels within a frequency range of 850-940 nm (specifically 850 nm, 880 nm, 910 nm, and 940 nm). Data is transmitted at 25.78 Gbps per channel, resulting in a total throughput of 103.1 Gbps. The device can handle a distance of up to 150 meters using OM5 multimode fiber and 100 meters across OM4 MMF. The QSFP 100G SWDM4 operates efficiently with a power consumption of only 3.5W.

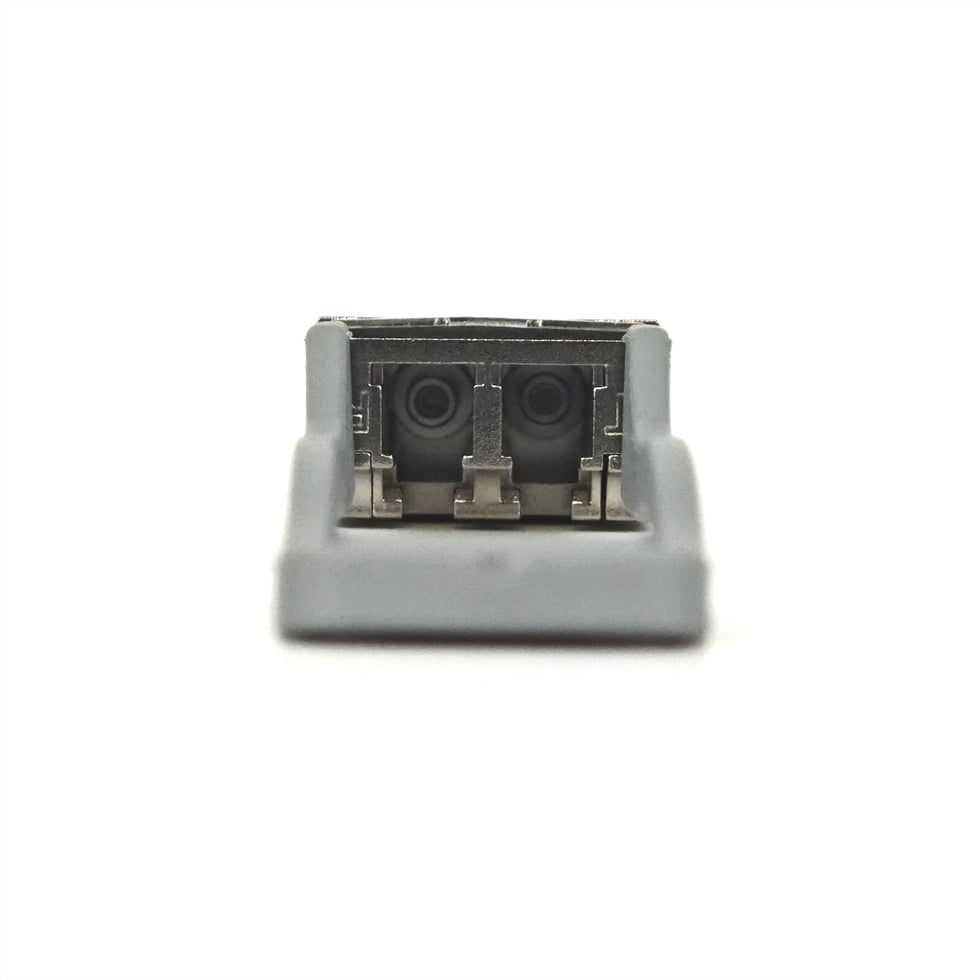

Connections are safe and reliable due to the dual LC receptacles of the optical module, making it suitable for short-range interconnects and data transfers. Additionally, the hot-pluggable device features digital diagnostic monitoring through the I2C interface, allowing for real-time access to operational data, as well as simplifying upgrades and maintenance. Its durability and compatibility are ensured by adherence to current industry standards, making it the ideal option for connecting to existing 10-Gb dual-channel MMF infrastructure to meet 100G connectivity requirements.
