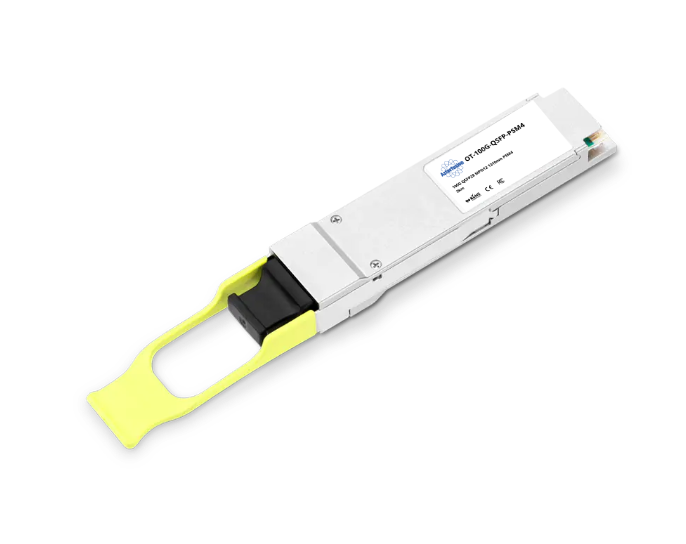

100G QSFP28 PSM4 1310nm 2km MPO12/APC DDM Optical Transceiver Module
$149.00 VAT excl.
- 100 G data rate via 4 × 25.78 G lanes (PAM4)
- Up to 2 km reach over single-mode fiber (1310 nm)
- MPO-12 multimode connector (SMF interface)
- Hot-pluggable QSFP28 form factor
- Low power consumption (< 3.5 W)
- Real-time monitoring via digital diagnostics (DDM/DOM)
- Compliant with QSFP MSA, SFF-8436, SFF-8636, and PSM4 MSA
- Commercial temp range 0 – 70 °C
The four 25.78125G data transmissions of two kilometers over SMF can be supported with QSFP28, the QSFP28 100G PSM4 optical transceiver module. The QSFP MSA SFF-8436, SFF-836, and PSM4 MSA standards are all fulfilled by the optical PSM4 100G module. The I2C interface offers Digital Diagnostic capabilities. Control features such as Module Select (ModSelL), Module Reset (ResetL), and Low Power Mode (LPMode) are created by using CML's host's LVTTL interfaces. Differential AC-coupled Tx as well as Rx information interfaces work with CML. It is RoHS compliant and has an energy consumption that is reduced to 3.5W. Applications that require high-performance computers or data centers, as well as 100-gigabit Ethernet, are best suited to the QSFP 100G PSM4 optical module.
| Form Factor | QSFP28 | Connector | MPO12 APC |
|---|---|---|---|
| Media | SMF | Max. Cable Distance | 2km |
| Data Rate | 100Gbps | Wavelengths Range | 1310nm |
| Transmitter Type | DML | Receiver Type | PIN |
| TX Power | -6.5~2.5dBm | RX Power | -10.6~-2.5dBm |
| Extinction Ratio | >3.5dB | ||
| Supply Voltage | 3.3V | ||
| Op. Temperature | 0 to 70°C (32 to 158°F) | CDR | Tx and Rx |
| DDM/DOM | Supported | Inbuilt FEC | Yes |
| Applications | 100G-SR Ethernet, Data centers | Protocols | QSFP28 MSA |
| Compatible Brands | Generic, Asterfusion, Nvidia, Juniper, Cisco |
|---|---|
| Connector | MPO12/APC |
| Interface | QSFP28 |
| Model | PSM4 |
| Reach | 2km |
| Speed | 100G |
