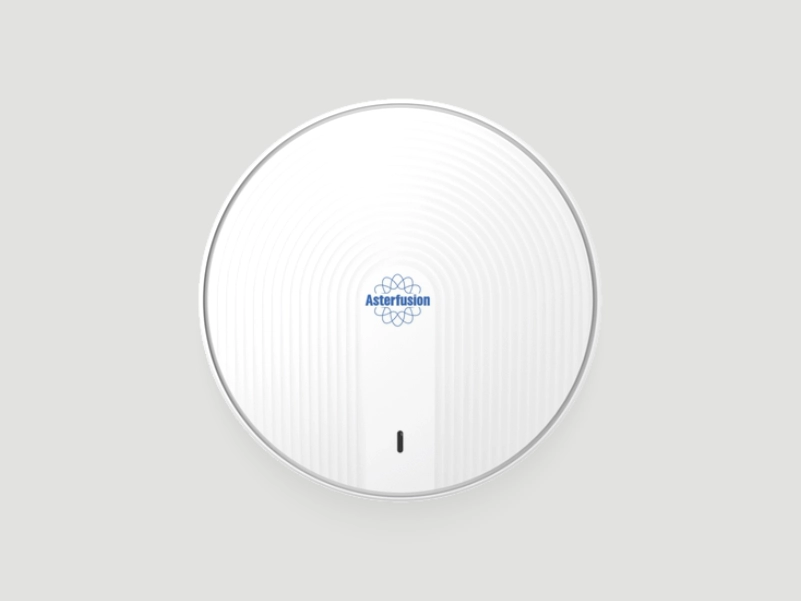

WiFi 6E Tri-Band Wireless Access Point – 8.2Gbps with OpenWiFi Support
$249.00
The AP6240 is a high-performance tri-band WiFi 6E access point offering up to 8.2 Gbps speeds, OpenWiFi support, seamless roaming, and robust security—ideal for enterprise, education, and IoT networks.
Note: Prices are exclusive of customs duties, import taxes, and VAT. Any additional charges imposed by your country are the buyer's responsibility.
Upgrade your wireless infrastructure with the AP6240, a powerful tri-band WiFi 6E access point engineered for high-performance indoor networking. Powered by the Qualcomm IPQ5018 chipset, this device delivers a total wireless throughput of up to 8.2 Gbps, making it ideal for high-density environments like enterprise offices, educational campuses, smart factories, and public venues.
The AP6240 supports simultaneous 2.4GHz, 5GHz, and 6GHz frequency bands to reduce congestion and enhance speed and stability across all connected devices. With 6 spatial streams and advanced WiFi 6/6E technologies like OFDMA, MU-MIMO, and 1024-QAM, it ensures ultra-low latency and higher data capacity for modern digital environments.
With support for over 100 active users and 1024 total clients, this access point excels in high-density usage scenarios. Seamless 802.11k/v/r roaming ensures users stay connected without noticeable drops when moving between zones, while MPSK and WPA3 enhance wireless security.
The AP6240 is OpenWiFi compatible, giving network engineers and developers the flexibility to customize firmware or integrate with cloud platforms and controller systems.
Ethernet Ports | 1x10/100/1000/2500Mbps Ethernet port(PoE input) 1x10/100/1000Mbps Ethernet port | ||
AP Chip | Qualcomm IPQ5018 | ||
Wireless Standards | 802.11a/b/g/n/ac/ax | ||
Frequency Band | 2.4 GHz | 5 GHz | 6GHz | ||
Transmission Rate | 8000Mpbs | ||
Peak Data Rate | 2.4GHz: 574Mbps | 5GHz: 4804Mbps | 6GHz: 2882Mbps | ||
Antenna Type | 2x2 2.4G/5GHz dual radio antenna 2x2 5GHz antenna | 2x2 6GHz antenna | ||
Antenna gain | 4dBi | ||
Max. Access Client Number | 1024 | ||
Recommended Access Clients | 100 | ||
Power Method | PoE | Mount Type | Ceiling / Wall-plate |
Max Power Consumption | 20Watt | Input Power | 802.3at Power over Ethernet | 12V 1.5A DC |
Dimension | Φ218x 54.6mm | Weight | 0.96KG |
Op.Temperature | -20 - 55℃(-4 to 131°F) | Op. Humidity | 5% - 95%(non-condensing) |
WLAN
- Support MU-MIMO, OFDMA, TWT
- Max. Access Client Number: 1024
- Recommended Access Clients: 100
- Max. Virtual AP Number: 16
- Forwarding Mode: Direct forwarding / Tunnel forwarding
- Support SSID Hiding, Access Limitations of Low-rate Clients, Air Time Fairness (ATF)
Security
- Encryption: WPA-PSK / WPA2-PSK / WPA-Enterprise / WPA2- Enterprise / WPA3-Enterprise / MPSK
- Authentication: Built-in/External Portal, or Radius Client
Management
- Support NTP, Remote Packet Capture, ZTP
- Support Network telemetry
- Support Location Report
- Device Management: SSH, WEB, Syslog, Asteria Campus Controller
Network
- IP Address Acquire: Static IP, DHCP acquisition
- Support DHCP, VLAN, LLDP, PPPoE Client
- Support NAT, ACL, NTP
- Support VXLAN, Dynamic VLAN, Multicast to Unicast
Roaming
- Support 802.11k/v/r
- Support (Signal strength threshold configurable) Sticky Client Roaming
Quality of Service
- QoS: Rate limit based on SSID, Port-based DSCP, DNS-based DSCP
- WMM (802.11e): Support
Client Isolation
- VLAN based Isolation: Support
- SSID based Isolation: Support
Radio Management
- Support DFS, TPC
