WiFi 6E Outdoor Access Point – Tri-Band Wall/Pole Mount | OpenWiFi Compatible
$489.00
Deploy blazing-fast connectivity outdoors with this tri-band WiFi 6E access point. Designed for smart cities and industrial IoT, it supports OpenWiFi and delivers up to 8 Gbps performance with advanced WPA3 security.
Tri-band operation (2.4GHz / 5GHz / 6GHz)
8Gbps throughput
1024QAM modulation, MU-MIMO, OFDMA, and TWT
WPA3 and MPSK security protocols
Supports OpenWiFi
PoE++ (802.3bt) and IP-rated outdoor design.
Note: Prices are exclusive of customs duties, import taxes, and VAT. Any additional charges imposed by your country are the buyer's responsibility.

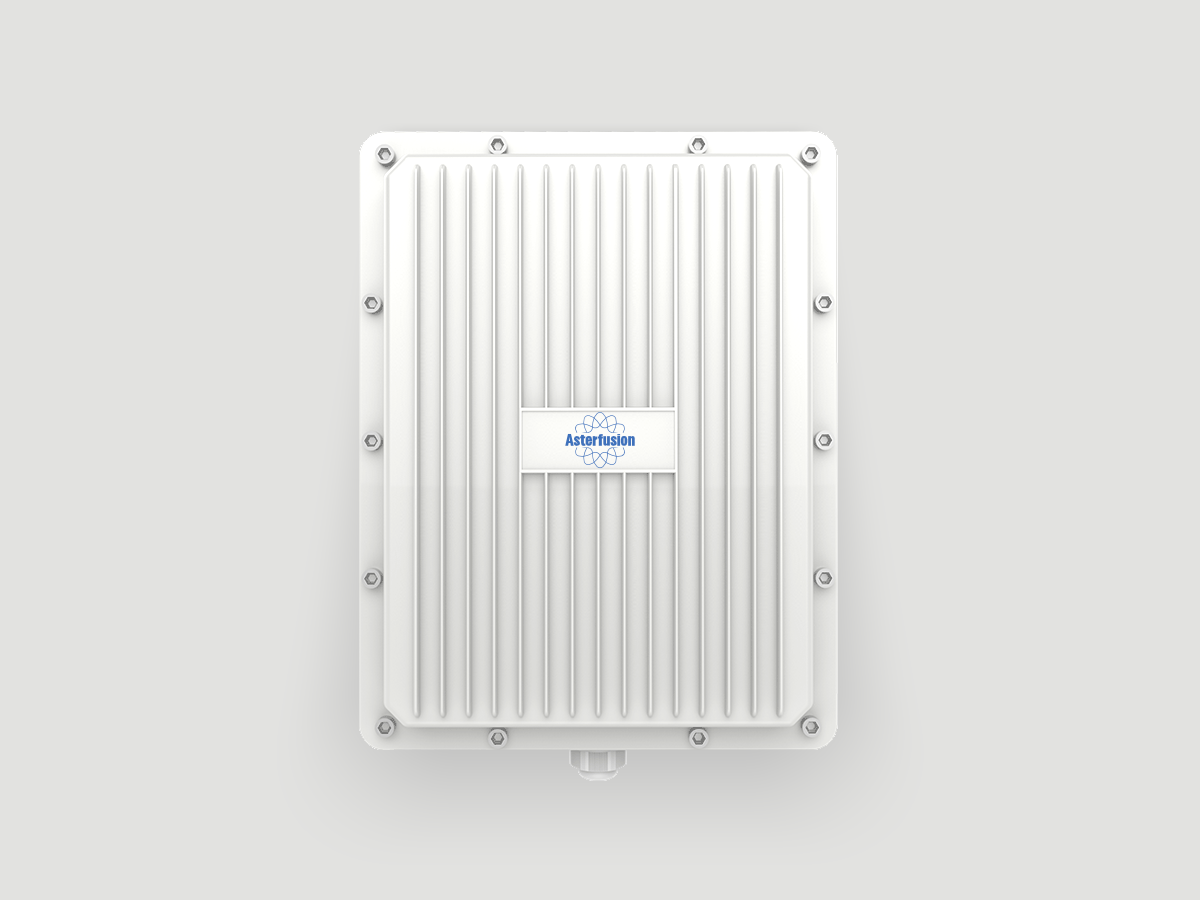

Bring high-speed, next-generation wireless connectivity to outdoor environments with the AP6241E WiFi 6E Outdoor Access Point. Built on the Qualcomm IPQ5018 platform and supporting the latest 802.11ax (WiFi 6E) standard, this device offers robust, secure, and scalable connectivity with up to 8Gbps total throughput.
Ideal for smart cities, campuses, stadiums, and industrial IoT, the AP6241E supports simultaneous 2.4GHz, 5GHz, and 6GHz tri-band operation. Designed with Open Network principles in mind, it’s fully compatible with OpenWiFi, making it easy to integrate into open-source or controller-managed systems.
The weather-resistant, wall or pole-mountable chassis makes this access point perfect for outdoor deployment in demanding conditions.
Ethernet Ports | 1x10/100/1000/2500Mbps Ethernet port(PoE input) | ||
Console Port | 1xRJ45 | ||
AP Chip | Qualcomm IPQ5018 | ||
Wireless Standards | 802.11a/b/g/n/ac/ax | ||
Frequency Band | 2.4 GHz | 5 GHz | 6 GHz | ||
Transmission Rate | 8000Mpbs | ||
Peak Data Rate | 2.4GHz: 574Mbps | 5GHz: 4804Mbps | 6GHz: 2882Mbps | ||
Antenna Type | 2x2 2.4G/5GHz dual radio antenna | 2x2 5GHz antenna | 2x2 6GHz antenna | ||
Antenna gain | 4dBi | ||
Max. Access Client Number | 1024 | ||
Recommended Access Clients | 100 | ||
Power Method | PoE | Mount Type | Pole / Wall-plate |
Max Power Consumption | 30Watt | Input Power | 802.3bt Power over Ethernet |
Dimension | 295x231x80mm | Weight | 2.2KG |
Op.Temperature | -30 - 55℃ (-22 to 131°F) | Op. Humidity | 5% - 95% (non-condensing) |
WLAN
- Support MU-MIMO, OFDMA, TWT
- Max. Access Client Number: 512
- Recommended Access Clients: 100
- Max. Virtual AP Number: 8
- Forwarding Mode: Direct forwarding / Tunnel forwarding
- Support SSID Hiding, Access Limitations of Low-rate Clients, Air Time Fairness (ATF)
Security
- Encryption: WPA-PSK / WPA2-PSK / WPA-Enterprise / WPA2- Enterprise / WPA3-Enterprise / MPSK
- Authentication: Built-in/External Portal, or Radius Client
Management
- Support NTP, Remote Packet Capture, ZTP
- Support Network telemetry
- Support Location Report
- Device Management: SSH, WEB, Syslog, Asteria Campus Controller
Network
- IP Address Acquire: Static IP, DHCP acquisition
- Support DHCP, VLAN, LLDP, PPPoE Client
- Support NAT, ACL, NTP
- Support VXLAN, Dynamic VLAN, Multicast to Unicast
Roaming
- Support 802.11k/v/r
- Support (Signal strength threshold configurable) Sticky Client Roaming
Quality of Service
- QoS: Rate limit based on SSID, Port-based DSCP, DNS-based DSCP
- WMM (802.11e): Support
Client Isolation
- VLAN based Isolation: Support
- SSID based Isolation: Support
Radio Management
- Support DFS, TPC
