Outdoor WiFi 6 Access Point – Dual-Band with OpenWiFi | Wall & Pole Mount
$159.00
Deploy dual-band WiFi 6 access point outdoors with OpenWiFi: up to 2.975 Gbps throughput, WPA3 security, and robust outdoor design for smart cities and campuses.
Note: Prices are exclusive of customs duties, import taxes, and VAT. Any additional charges imposed by your country are the buyer's responsibility.

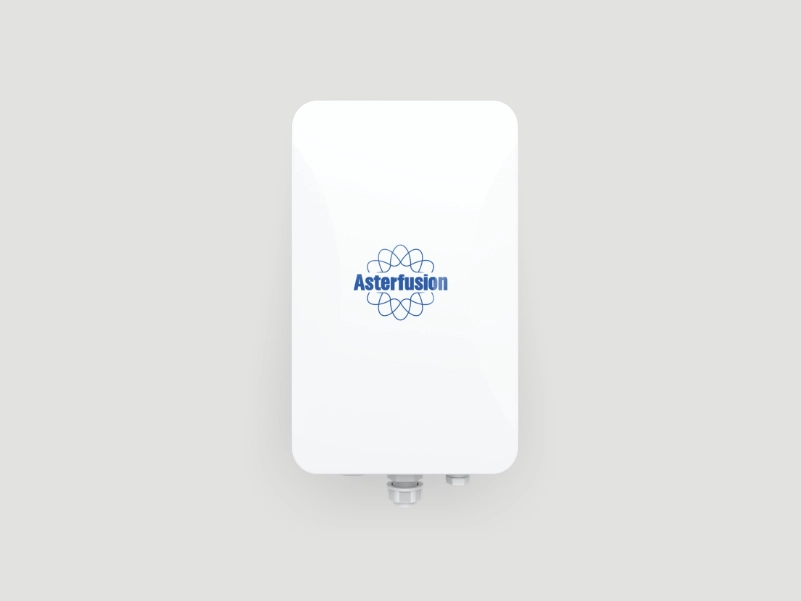

Power your smart city, campus, or large outdoor space with the AP6031 Outdoor Wireless Access Point – a high-performance, open-network solution built for rugged environments. Featuring dual-band support with 2.4GHz and 5GHz radios, this AP delivers up to 2.975 Gbps of wireless throughput using the 802.11ax (WiFi 6) standard.
With support for MU-MIMO, OFDMA, TWT, and 1024QAM modulation, the AP6031 ensures low-latency, high-efficiency connectivity across many clients – ideal for parks, stadiums, school districts, and municipal wireless networks.
Built on the Qualcomm IPQ5018 + QCN6102 chipset and equipped with PoE input, this outdoor AP combines the power of open-source firmware with enterprise-grade reliability and security.
Ethernet Ports | 1x10/100/1000/2500Mbps Ethernet port(PoE input) | ||
Console Port | 1xRJ45 | ||
AP Chip | Qualcomm IPQ5018+QCN6102 | ||
Wireless Standards | 802.11a/b/g/n/ac/ax | ||
Frequency Band | 2.4 GHz | 5 GHz | ||
Transmission Rate | 2975Mpbs | ||
Peak Data Rate | 2.4GHz: 573Mbps | 5GHz: 2402Mbps | ||
Antenna Type | 2x2 2.4G/5GHz Omnidirectional antenna | ||
Antenna gain | 6dBi | ||
Max. Access Client Number | 1024 | ||
Recommended Access Clients | 120 | ||
Power Method | PoE | Mount Type | Pole / Wall-plate |
Max Power Consumption | 16Watt | Input Power | 802.3at Power over Ethernet |
Dimension | 304x181x88mm | Weight | 1.6KG |
Op.Temperature | -20 - 55℃(-4 to 131°F) | Op. Humidity | 5% - 95%(non-condensing) |
WLAN
- Support MU-MIMO, OFDMA, TWT
- Max. Access Client Number: 512
- Recommended Access Clients: 100
- Max. Virtual AP Number: 8
- Forwarding Mode: Direct forwarding / Tunnel forwarding
- Support SSID Hiding, Access Limitations of Low-rate Clients, Air Time Fairness (ATF)
Security
- Encryption: WPA-PSK / WPA2-PSK / WPA-Enterprise / WPA2- Enterprise / WPA3-Enterprise / MPSK
- Authentication: Built-in/External Portal, or Radius Client
Management
- Support NTP, Remote Packet Capture, ZTP
- Support Network telemetry
- Support Location Report
- Device Management: SSH, WEB, Syslog, Asteria Campus Controller
Network
- IP Address Acquire: Static IP, DHCP acquisition
- Support DHCP, VLAN, LLDP, PPPoE Client
- Support NAT, ACL, NTP
- Support VXLAN, Dynamic VLAN, Multicast to Unicast
Roaming
- Support 802.11k/v/r
- Support (Signal strength threshold configurable) Sticky Client Roaming
Quality of Service
- QoS: Rate limit based on SSID, Port-based DSCP, DNS-based DSCP
- WMM (802.11e): Support
Client Isolation
- VLAN based Isolation: Support
- SSID based Isolation: Support
Radio Management
- Support DFS, TPC
