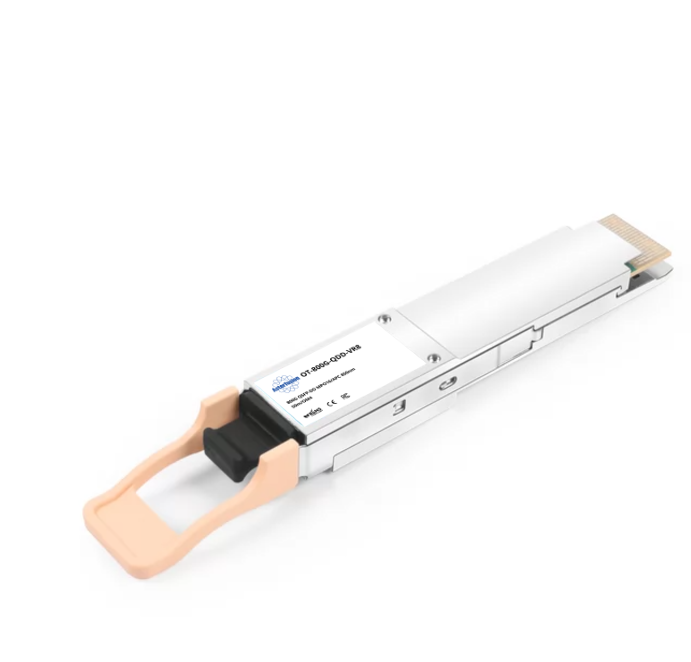

800G QSFP-DD VR8 850nm 50m/OM4 30m/OM3 Optical Transceiver Module MPO16/APC Finned Top
$1,219.00
Transmission Distance: 50m (OM4 MMF), 30m (OM3 MMF)
Connector Type: MPO-16 APC
Wavelength: 850nm
Power Consumption: ≤17W
Technology: 8-channel VCSEL transmitters + PIN photodetectors
Diagnostics: DDM/DOM for real-time monitoring
Error Correction: Supports KP-FEC for error-free performance
Compliance: QSFP-DD MSA, IEEE 802.3, CMIS
Note: Prices are exclusive of customs duties, import taxes, and VAT. Any additional charges imposed by your country are the buyer's responsibility.
To simplify the maintenance and integration of networks, the 800GBASE-VR8 transceiver features a hot-pluggable QSFP-DD form factor with an MPO16 APC connector. This optical transceiver operates at 800 Gigabits per second and comprises eight channels. Its primary function is to facilitate multi-lane, short-range information transmission.
The device features an 8-channel PIN photodetector array and an 850nm eight-channel array of VCSELs. With the addition of Forward Error Correction (FEC), it can achieve maximum transmission distances of 50 meters for OM4 fiber and 30 meters for OM3 fiber.
Utilizing only 17 watts of power, the 800G optical transceiver is an excellent choice for businesses focused on energy efficiency. The module also includes digital diagnostic tools to monitor performance reliability. It is compatible with Ethernet telecom, standard Ethernet, and InfiniBand applications used in data centers and business networks.
Applications
AI/ML clusters requiring short-reach, high-speed interconnects
HPC environments handling parallel workloads
Cloud-scale and hyperscale data centers with dense networking
Enterprise backbone networks
Server-to-switch links within racks
Specifications
Form Factor | QSFP112-DD | Connector | MPO16/APC |
Media | MMF | Max. Cable Distance | 50m OM4/30m OM3 |
Data Rate | 800Gbps | Wavelengths Range | 850nm |
Transmitter Type | VCSEL | Receiver Type | PIN |
TX Power | -4.6~4dBm | RX Power | -6.3~4dBm |
Extinction Ratio | >2.5dB | Receiver Sensitivity | <-4.6dBm |
Supply Voltage | 3.3V | Power Consumption | <17W |
Op. Temperature | 0 to 70°C (32 to 158°F) | Humidity(non-condensing) | 5-85% |
DDM/DOM | Supported | Electrical Interface | Hot-pluggable |
Applications | 800G Ethernet Data Center | Protocols | QSFP-DD MSA, IEEE 802.3db, IEEE 802.3ck |
| Compatible Brands | Generic, Asterfusion, Nvidia, Juniper, Cisco |
|---|
Warranty & Delivery Information
Warranty
Quality Certifications
Delivery Time
Our standard products are typically shipped within one week (business days).
For custom products, please contact customer service to inquire about the specific delivery time.
