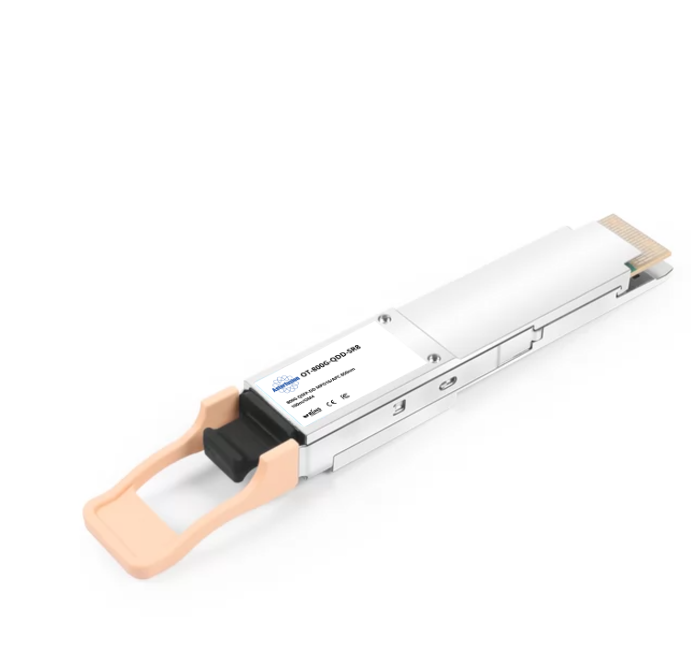

800G QSFP-DD SR8 850nm 100m/OM4 MPO16/APC Optical Transceiver Module
$1,219.00
Transmission Distance: 60m (OM3 MMF), 100m (OM4 MMF)
Connector Type: MPO-16 APC
Wavelength: 850nm
Power Consumption: ≤13.5W, optimized for dense data centers
Technology: VCSEL transmitter array + PIN photodetector array
Error Correction: KP-FEC for reliable data transmission
Diagnostics: Built-in DDM/DOM for real-time monitoring
Compliance: QSFP-DD MSA, IEEE 802.3, CMIS, RoHS
Note: Prices are exclusive of customs duties, import taxes, and VAT. Any additional charges imposed by your country are the buyer's responsibility.
The QSFP DD 800G SR8 optical transceiver module significantly enhances data transmission speeds. It is a full-duplex transceiver with eight channels that supports 800 Gigabit Ethernet. The module utilizes highly reliable and robust MPO-16 connectors, designed for multi-lane, short-range transfers.
Featuring a VCSEL array operating at 850 nm and a PIN photodetector array, the QSFP-DD module employs PAM4 technology, providing 106.25 Gbps per channel and offering superior signal quality compared to multimode fiber. It consumes less than 13.5W of power, promoting energy efficiency, and supports distances of up to 60 meters with OM3 and 100 meters with OM4 multimode fibers, utilizing Forward Error Correction (FEC).
This module is suitable for various applications and ensures excellent reliability and performance in data transmission. It is also hot-pluggable, facilitating easy installation and maintenance. Additionally, it includes diagnostic tools for real-time monitoring and operates efficiently between 0°C and +70°C.
The 800G SR8 optical component complies with RoHS and CMIS standards, making it an excellent choice for interconnectivity in routing and switching within data centers, as well as for streaming media.
Specifications
Form Factor | QSFP112-DD | Connector | MPO16/APC |
Media | MMF | Max. Cable Distance | 100m OM4/60m OM3 |
Data Rate | 800Gbps | Wavelengths Range | 850nm |
Transmitter Type | VCSEL | Receiver Type | PIN |
TX Power | -4.6~4dBm | RX Power | -6.4~4dBm |
Extinction Ratio | >2.5dB | Receiver Sensitivity | <-4.6dBm |
Supply Voltage | 3.3V | Power Consumption | <13.5W |
Op. Temperature | 0 to 70°C (32 to 158°F) | Humidity(non-condensing) | 5-85% |
DDM/DOM | Supported | Electrical Interface | Hot-pluggable |
Applications | 800G Ethernet Data Center | Protocols | QSFP-DD MSA, IEEE 802.3db, IEEE 802.3ck |
| Compatible Brands | Generic, Asterfusion, Nvidia, Juniper, Cisco |
|---|
