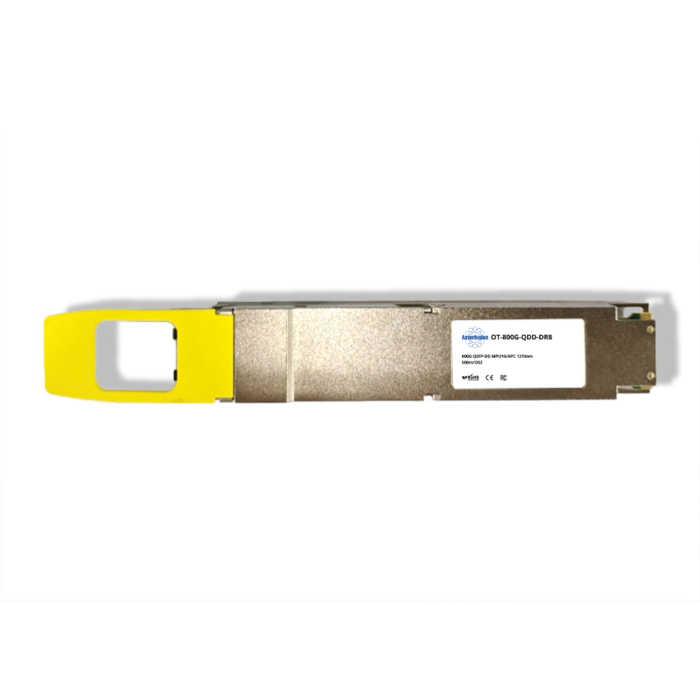

800G QSFP-DD DR8 1310nm 500m/OS2 MPO16/APC Optical Transceiver Module SiPh Based
$1,419.00
800 Gbps via 8 × 106.25 Gbps PAM4 lanes.
500 m reach over G.652 SMF at 1310 nm.
Silicon photonics with 7 nm DSP and KP-FEC.
QSFP-DD MSA and CMIS 4.0 compliant.
MPO-16 connector with real-time DDM.
<18.5 W power; optimized for data center and AI networks.
Note: Prices are exclusive of customs duties, import taxes, and VAT. Any additional charges imposed by your country are the buyer's responsibility.
The 800G DR8 QSFP-DD transceiver module is compliant in accordance with IEEE 802.3 and the QSFP-DD MSA. It was specifically designed for situations that require optical communications beyond 500 meters. 8×106.25Gbps (53.125GBd PAM4) optical and electrical connections are provided by this optical 800G DR8 module. The silicon photonics (SiPh) platform acts as the base to the silicon-based photonics transceiver. It is built using 7nm DSP chips as well as 3D packaging technology and SiPh processors, which integrate an array of active and passive optical components. The elements of humidity, temperature, and electromagnetic interference are a few of the harshest outdoor conditions it is created to withstand. It features a low energy consumption of 18.5W and is compliant with the RoHS directive. It is able to be accessed via a 2-wire serial interface, providing incredible capabilities and feature integration.
Applications
Data center interconnects (DCI) requiring up to 500m reach
AI/ML clusters with massive parallel data workloads
High-performance computing (HPC) and scientific research
Enterprise and telecom backbones with 800G capacity
Scalable Ethernet deployments using MPO-16/APC connectivity
Specifications
Form Factor | QSFP112-DD | Connector | MPO16/APC |
Media | SMF | Max. Cable Distance | 500m |
Data Rate | 800Gbps | Wavelengths Range | 1310nm |
Transmitter Type | EML | Receiver Type | PIN |
TX Power | -2.9~4dBm | RX Power | -5.9~4dBm |
Extinction Ratio | >3.5dB | Receiver Sensitivity | <-4.4dBm |
Supply Voltage | 3.3V | Power Consumption | <18.5W |
Op. Temperature | 0 to 70°C (32 to 158°F) | Humidity(non-condensing) | 5-85% |
DDM/DOM | Supported | Electrical Interface | Hot-pluggable |
Applications | 800GBASE-DR8 Ethernet Data Center Network | Protocols | QSFP-DD MSA, IEEE 802.3, CMIS |
| Compatible Brands | Generic, Asterfusion, Nvidia, Juniper, Cisco |
|---|
Warranty & Delivery Information
Warranty
Quality Certifications
Delivery Time
Our standard products are typically shipped within one week (business days).
For custom products, please contact customer service to inquire about the specific delivery time.
