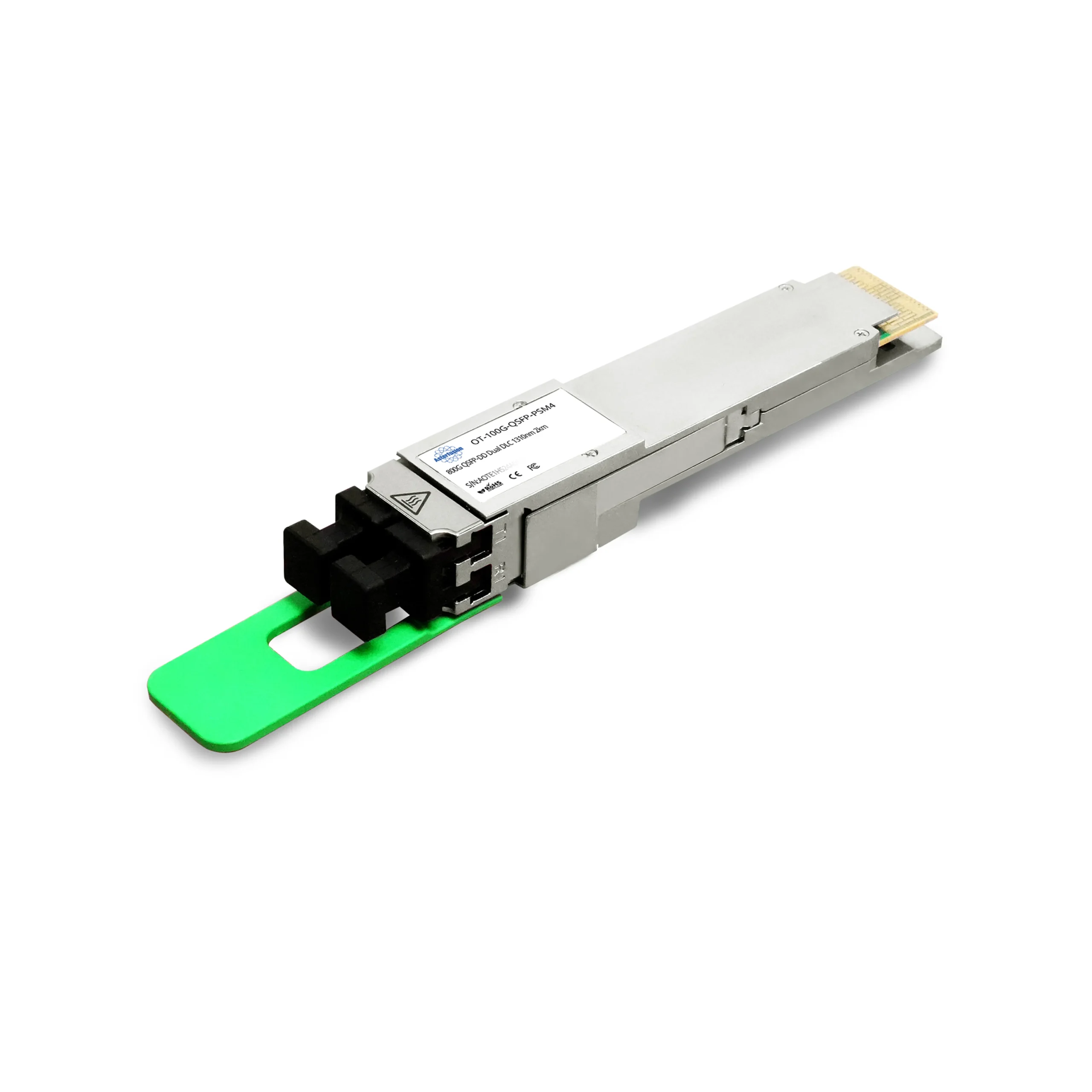

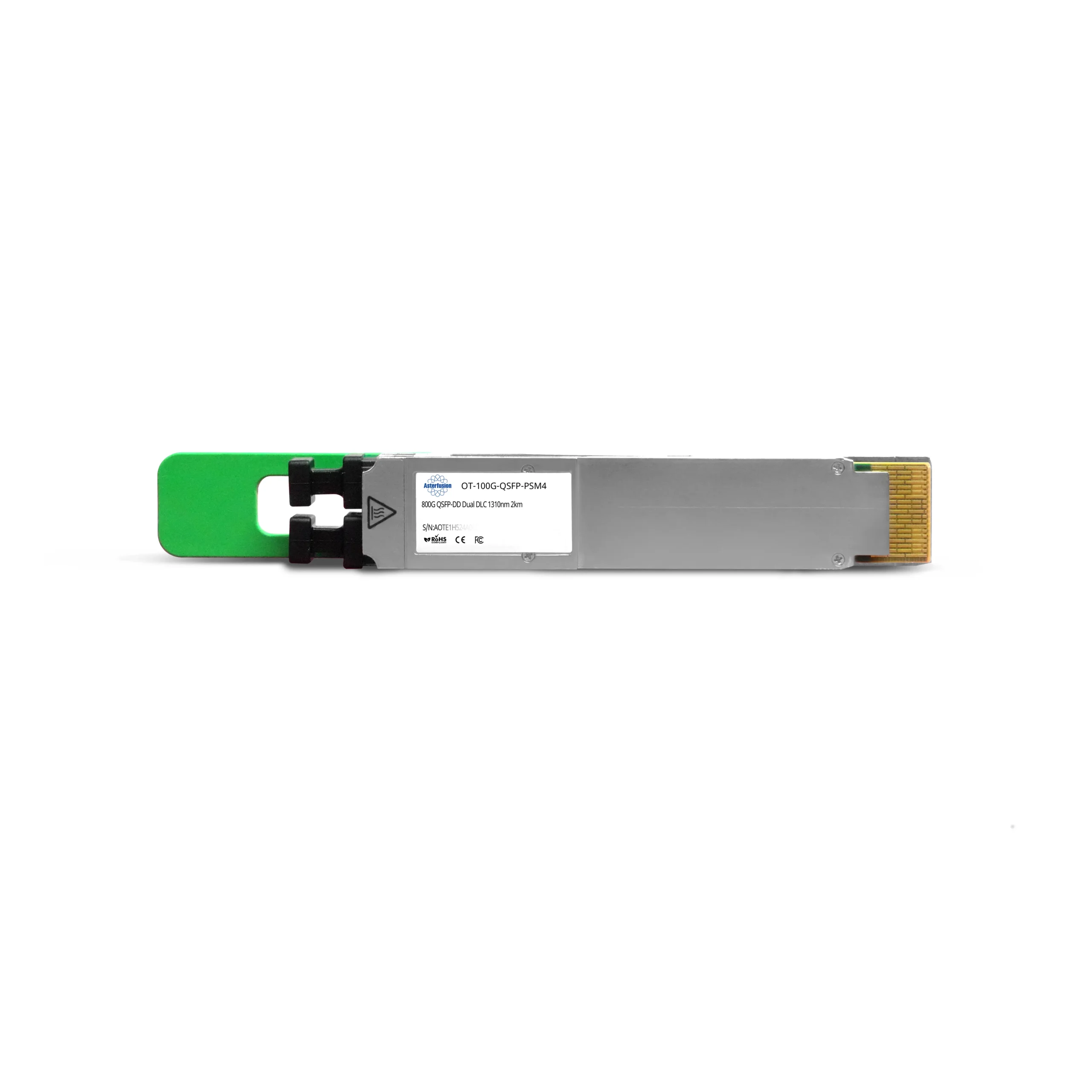

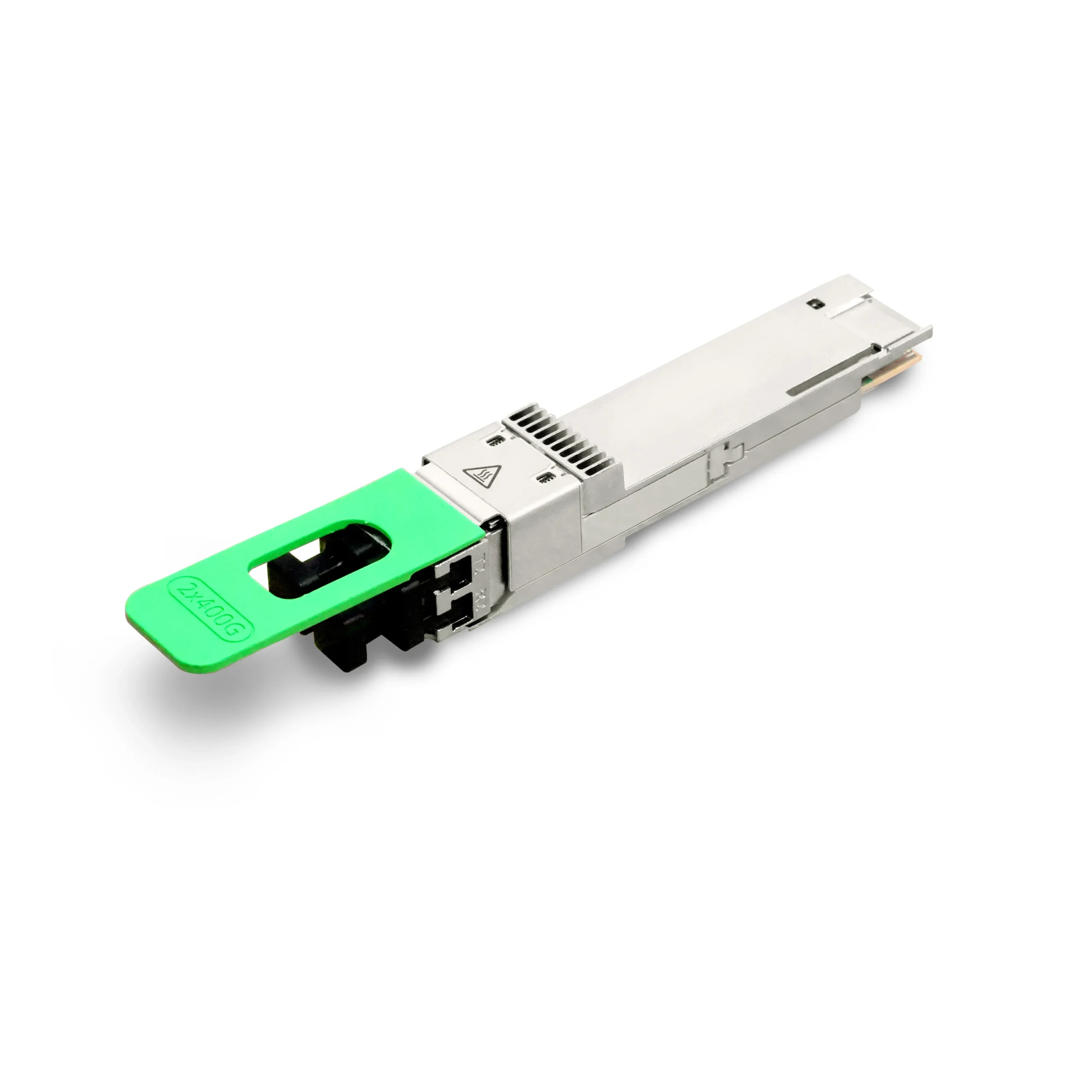

800G QSFP-DD 2FR4 1310nm 2km PAM4 Dual Duplex LC Finned Top Optical Transceiver Module
$2,100.00
Bandwidth: 800G (2×400G FR4)
Transmission Distance: Up to 2km over OS2 SMF

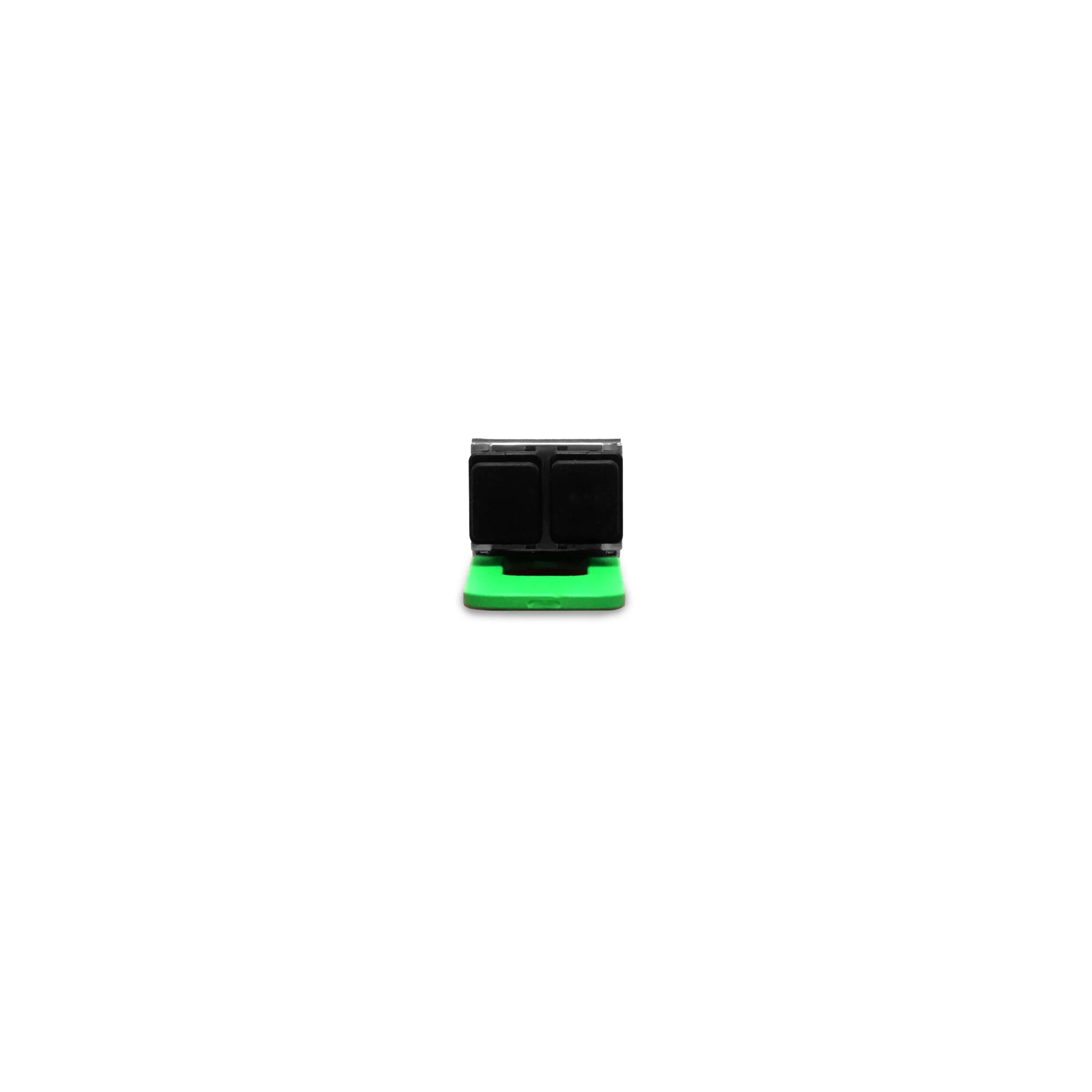

Connector Type: Dual Duplex LC
Wavelengths: 1271nm, 1291nm, 1311nm, 1331nm
Power Consumption: ≤16.5W, energy-efficient design
Chipset: SiPh-based integration with 7nm DSP
Diagnostics: Built-in DDM/DOM for real-time monitoring
Compliance: QSFP-DD MSA, IEEE 802.3, CMIS standard
Note: Prices are exclusive of customs duties, import taxes, and VAT. Any additional charges imposed by your country are the buyer's responsibility.
The QSFP-DD 800G 2FR4 optical transceiver module is built for long-reach 800G Ethernet transmission in data center interconnects (DCI), high-performance computing (HPC), enterprise backbones, and 5G/Beyond-5G networks. Supporting 2×400G FR4 over OS2 single-mode fiber (SMF), it achieves transmission distances of up to 2km at a 1310nm wavelength while maintaining a power consumption of under 16W. Powered by silicon photonics (SiPh), 3D packaging, and 7nm DSP chips, this module ensures low latency, scalability, and reliable performance.
Specifications
Form Factor | QSFP112-DD | Connector | Dual Duplex LC |
Media | SMF | Max. Cable Distance | 2km |
Data Rate | 800Gbps | Wavelengths Range | 1271nm, 1291nm, 1311nm, 1331nm |
Transmitter Type | EML | Receiver Type | PIN |
TX Power | -3.2~4.4dBm | RX Power | -7.2~4.4dBm |
Extinction Ratio | >3.5dB | Receiver Sensitivity | <-4.6dBm |
Supply Voltage | 3.3V | Power Consumption | <16.5W |
Op. Temperature | 0 to 70°C (32 to 158°F) | Humidity(non-condensing) | 5-85% |
DDM/DOM | Supported | Electrical Interface | Hot-pluggable |
Applications | 800G Ethernet Data Center | Protocols | CMIS, QSFP-DD MSA, IEEE 802.3 |
| Compatible Brands | Generic, Asterfusion, Nvidia, Juniper, Cisco |
|---|
Warranty & Delivery Information
Warranty
Quality Certifications
Delivery Time
Our standard products are typically shipped within one week (business days).
For custom products, please contact customer service to inquire about the specific delivery time.
