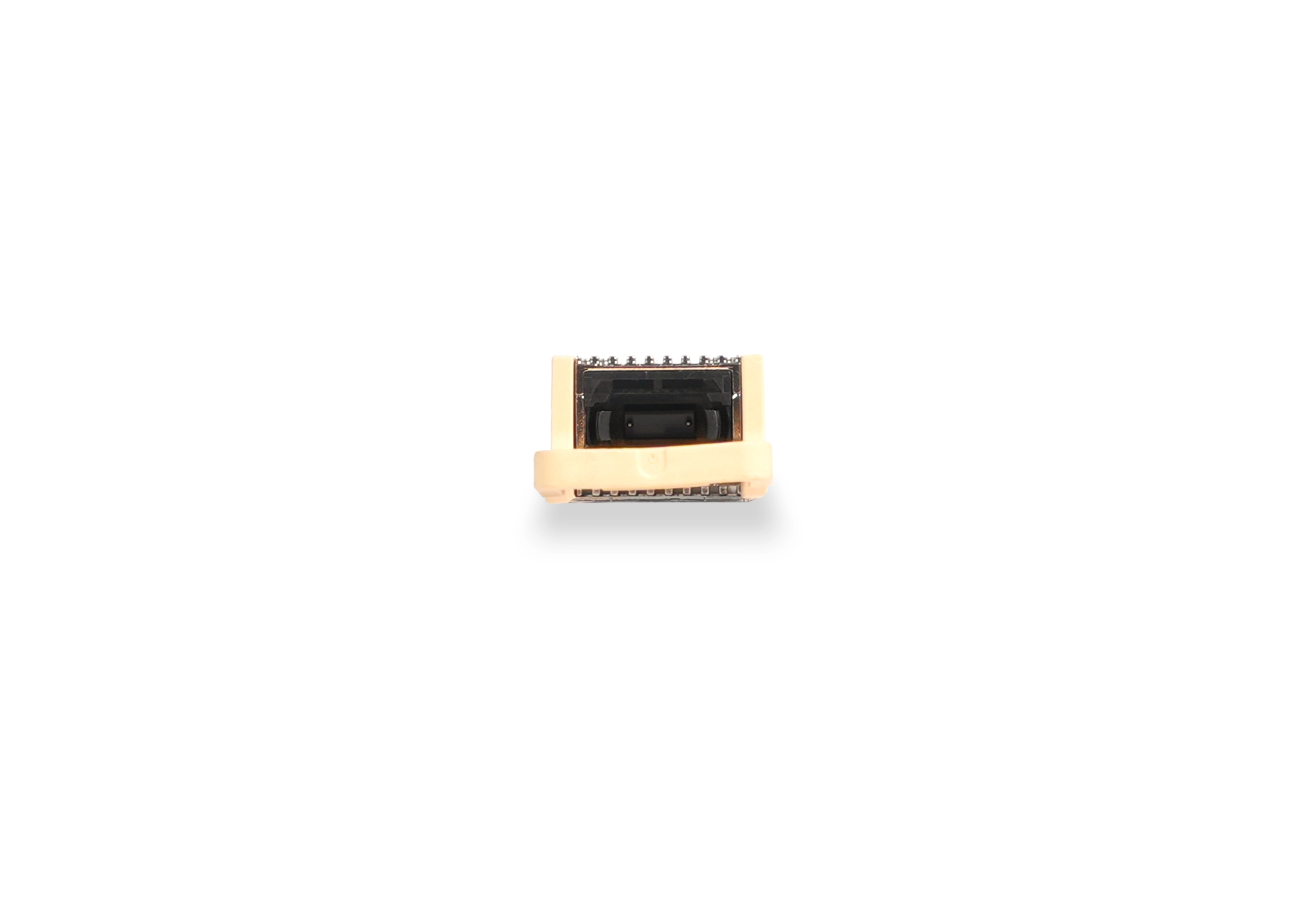

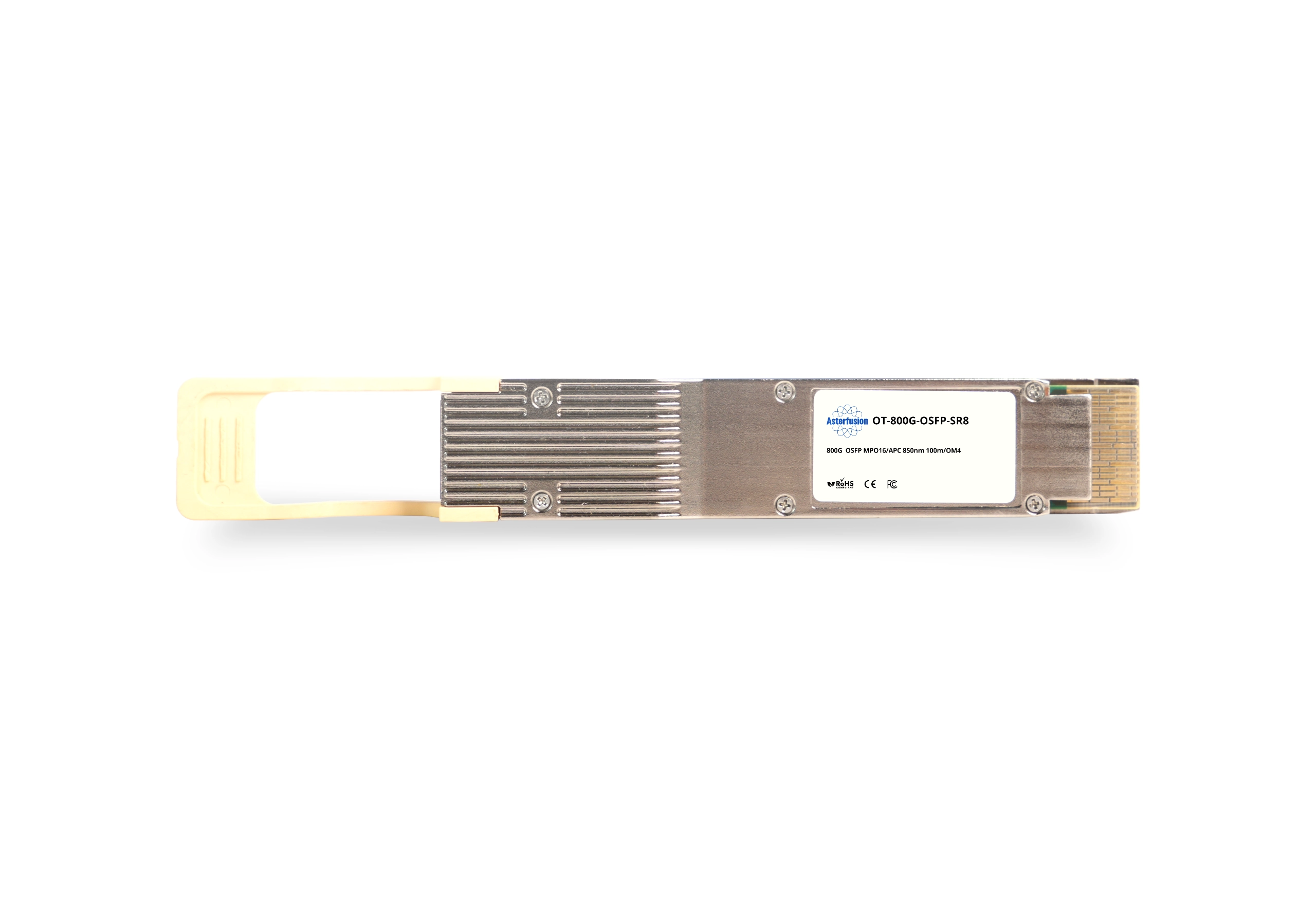

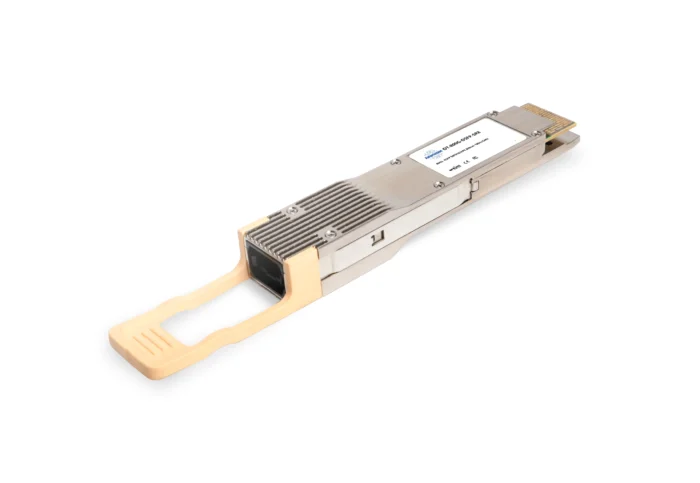

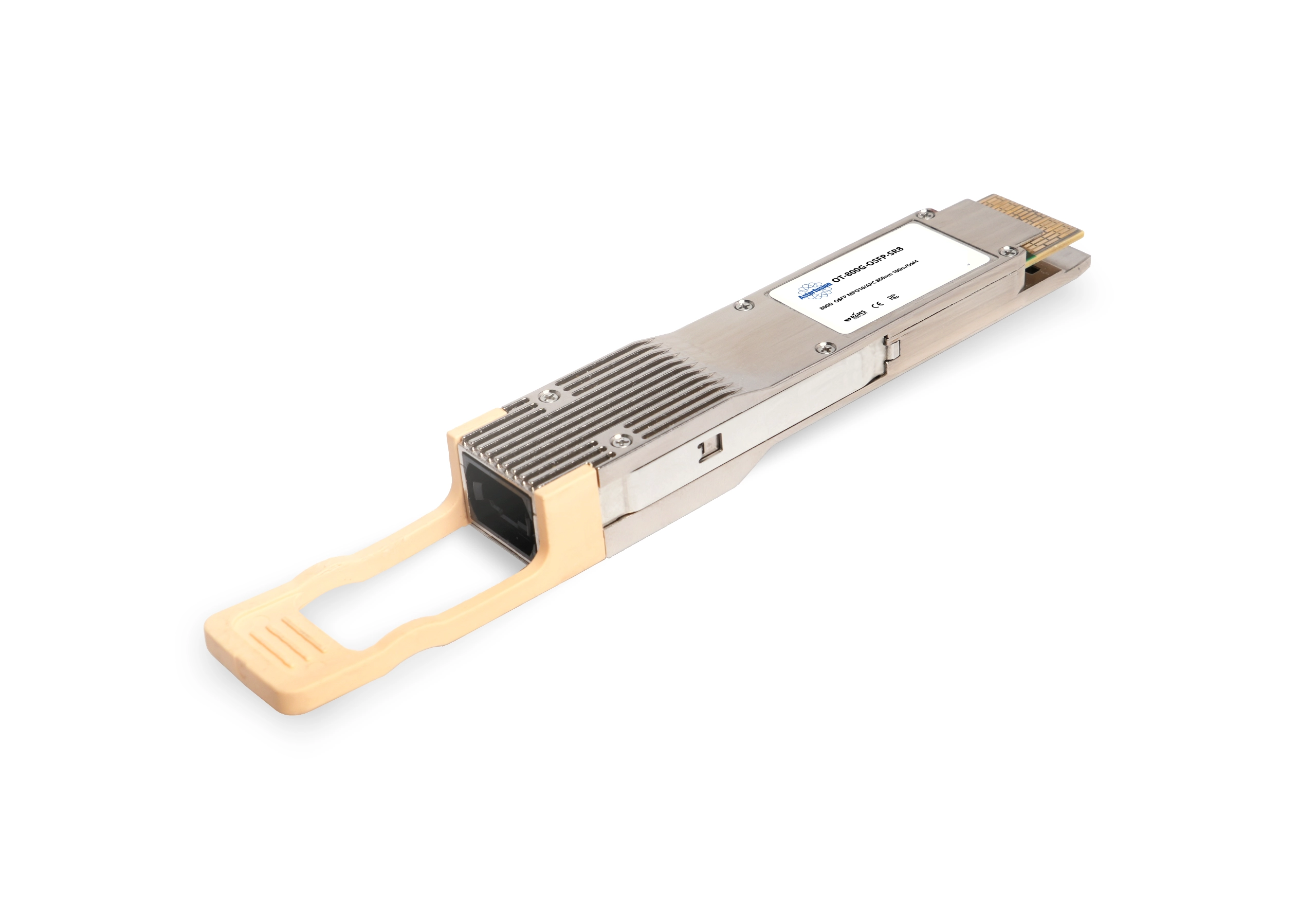

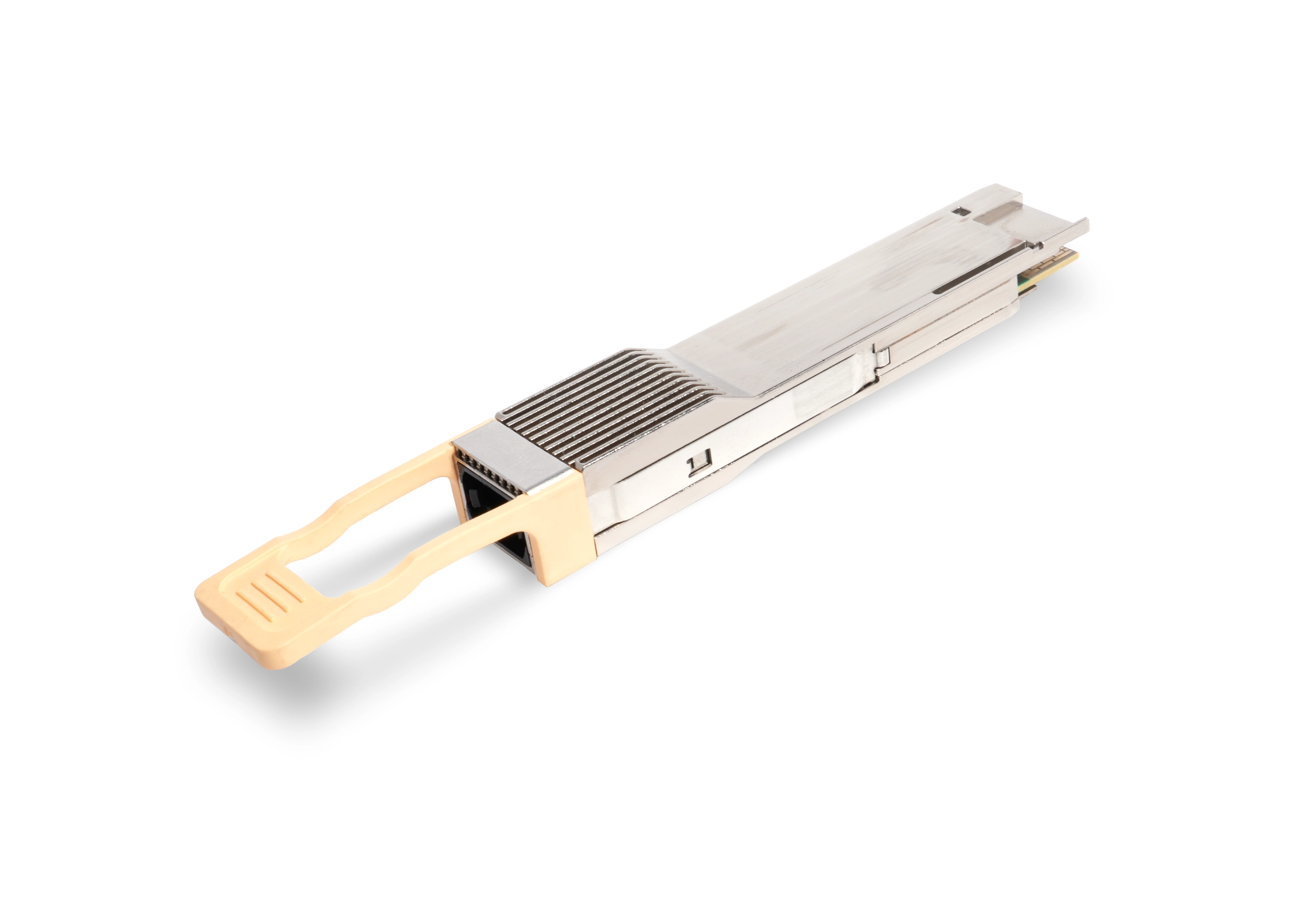

800G OSFP SR8 850nm 100m/OM4 MPO16/APC Optical Transceiver Module
$750.00
Bandwidth: 800G Ethernet (8×53.125Gb/s PAM4)
Transmission Distance: Up to 100m over OM4 multimode fiber (MMF)
Connector Type: MPO-16 APC
Wavelength: 850nm (VCSEL-based)
Power Consumption: ≤13.5W, designed for energy-efficient operations
Technology: VCSEL + PIN photodetector array
Hot-Pluggable: Easy installation and maintenance
Compliance: OSFP MSA, IEEE 802.3, CMIS compatible
Note: Prices are exclusive of customs duties, import taxes, and VAT. Any additional charges imposed by your country are the buyer's responsibility.
The OSFP 800G SR8 optical transceiver module delivers ultra-high-speed short-reach connectivity for modern data centers, cloud providers, and AI/ML clusters. Supporting 8×53.125 Gb/s PAM4 lanes over OM4 multimode fiber, it enables distances up to 100 meters at 850nm wavelength. With hot-pluggable MPO-16 APC connectors and low power consumption below 13.5W, this SR8 module is engineered for scalable, energy-efficient, and reliable 800G Ethernet deployments.
Application
Short-reach 800G Ethernet links inside data centers
Cloud-scale data centers and hyperscale networking
AI/ML computing clusters requiring massive parallel bandwidth
High-performance enterprise networks with low-latency needs
Server-to-switch interconnects within 100m
Specifications
Form Factor | OSFP | Connector | MPO16/APC |
Media | MMF | Max. Cable Distance | 100m |
Data Rate | 800Gbps | Wavelengths Range | 850nm |
Transmitter Type | VCSEL | Receiver Type | PIN |
TX Power | -4.6~4dBm | RX Power | -6.4~4dBm |
Extinction Ratio | >3.5dB | Receiver Sensitivity | <-4.6dBm |
Supply Voltage | 3.3V | Power Consumption | <13.5W |
Op. Temperature | 0 to 70°C (32 to 158°F) | Humidity(non-condensing) | 5-85% |
DDM/DOM | Supported | Electrical Interface | Hot-pluggable |
Applications | 800G Ethernet Data Center | Protocols | CMIS, OSFP MSA, IEEE 802.3db, IEEE 802.3ck |
| Compatible Brands | Generic, Asterfusion, Nvidia, Juniper, Cisco |
|---|
