800G OSFP 2VR4 850nm 50m OM4 MPO-12 APC Finned Top Optical Transceiver Module
$689.00
- Form Factor: OSFP, hot-swappable, MSA-compliant
- Data Rate: 8 × 106.25 Gbps (aggregate 850 Gbps)
- Optical Technology: 850 nm VCSEL over OM4 multimode fiber
- Reach: Up to 50 m for short-distance rack-to-rack connections
- Connector: Dual MPO-12 for simplified, high-density cabling
- Power Efficiency: <15 W (<13.5 W in optimized deployments)
- Diagnostics: Digital monitoring (DDM/DOM) for real-time performance tracking
- Compliance: OSFP MSA, CMIS, IEEE 802.3db, RoHS 2.0
Note: Prices are exclusive of customs duties, import taxes, and VAT. Any additional charges imposed by your country are the buyer's responsibility.
MSA Compatible 800G OSFP 2VR4 Optical Transceiver Module(MMF 850nm, 50m/OM4, Dual MPO-12 )
The 800G OSFP 2VR4 transceiver module supports optical communication applications with a range of 50m. It is fully compliant with the OSFP MSA and the IEEE 802.3 standard. The optical module has dual MPO-12 receptacles for connectivity and a maximum power consumption of less than 16W. The OSFP 800G optical module supports 2x 400G LR4 and is ideal for 8x100GbE Ethernet and data center interconnects.
Technical Specifications
| Feature | Specification |
|---|---|
| Form Factor | OSFP, hot-pluggable |
| Data Rate | 8 × 106.25 Gbps (850 Gbps) |
| Wavelength / Fiber | 850 nm VCSEL, OM4 multimode fiber |
| Max Distance | 50 m |
| Connector | Dual MPO-12 |
| Power Consumption | <15 W (<13.5 W optimized) |
| Supply Voltage | 3.3 V |
| Operating Temp. | 0 °C to 70 °C |
| Compliance | OSFP MSA, CMIS, IEEE 802.3db, RoHS 2.0 |
Applications
-
Hyperscale data centers need high-density short-reach connectivity
-
Cloud and AI/ML workloads requiring massive data throughput
-
High-Performance Computing (HPC) clusters
-
5G backhaul and metro networks
Specifications
Form Factor | OSFP | Connector | Dual MPO12 APC |
Media | MMF | Max. Cable Distance | 50m OM4 |
Data Rate | 850Gbps (8x106.25Gbps) | Wavelengths Range | 850nm |
Transmitter Type | VCSEL | Receiver Type | PIN |
TX Power | -4.6~4dBm | RX Power | -6.3~4dBm |
Extinction Ratio | >2.5dB | Receiver Sensitivity | <-4.4dBm |
Supply Voltage | 3.3V | Power Consumption | <15W |
Op. Temperature | 0 to 70°C (32 to 158°F) | Humidity(non-condensing) | 5-95% |
DDM/DOM | Supported | Electrical Interface | Hot-pluggable |
Applications | 800G Ethernet Data Center Interconnect | Protocols | IEEE 802.db, IEEE 802.ck, OSFP MSA, CMIS |

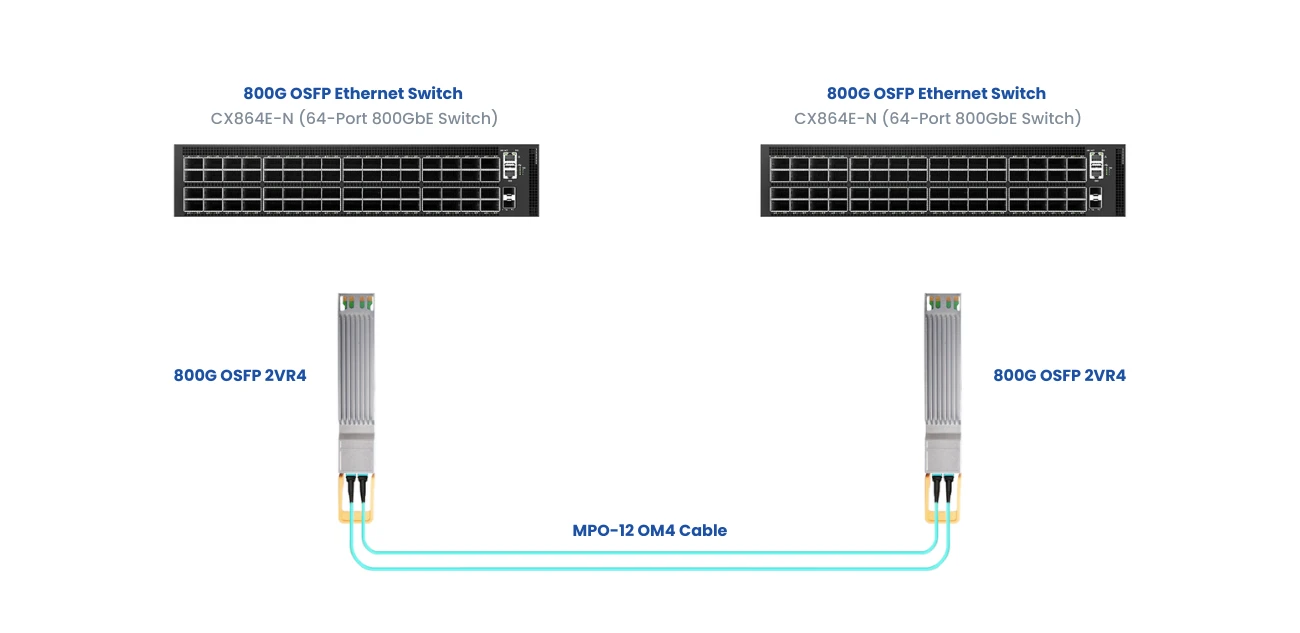

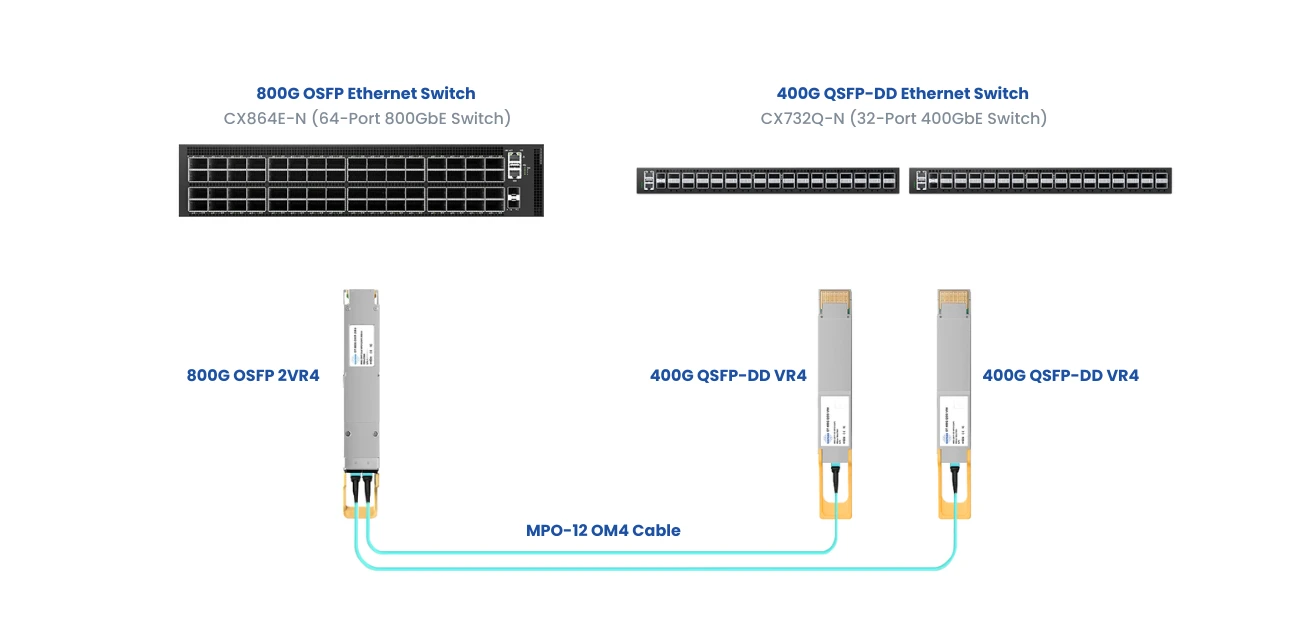

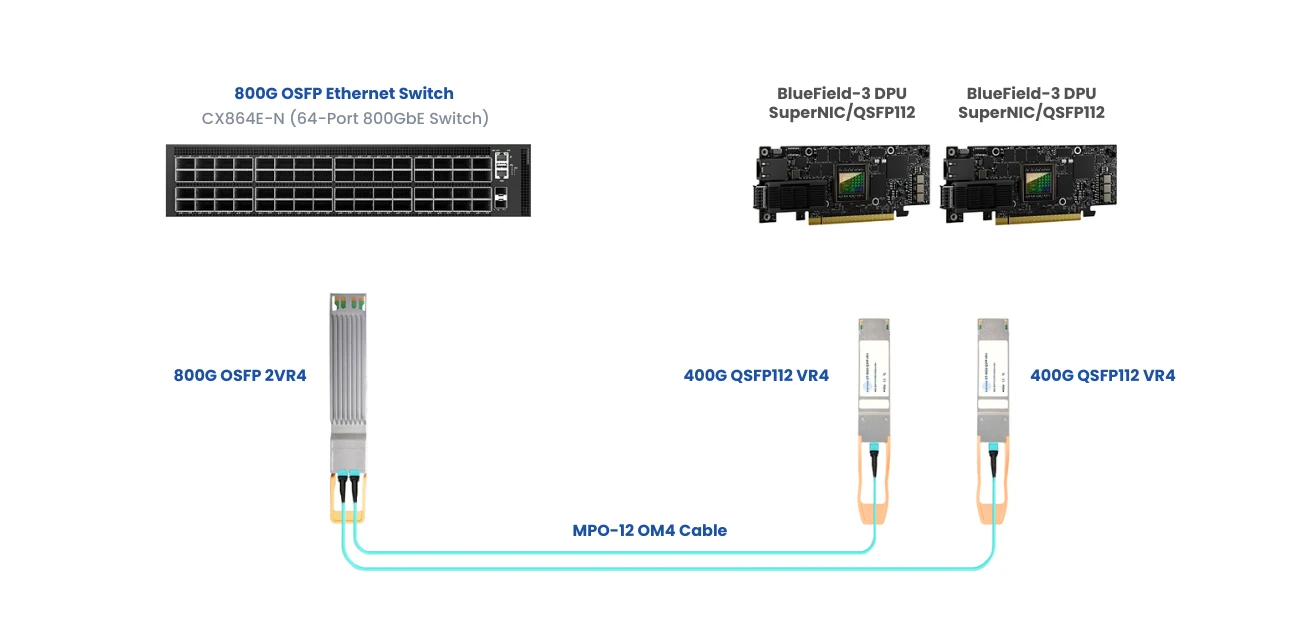

Connectivity solution
| Compatible Brands | Generic, Asterfusion, Nvidia, Juniper, Cisco |
|---|
Warranty & Delivery Information
Warranty
Quality Certifications
Delivery Time
Our standard products are typically shipped within one week (business days).
For custom products, please contact customer service to inquire about the specific delivery time.
