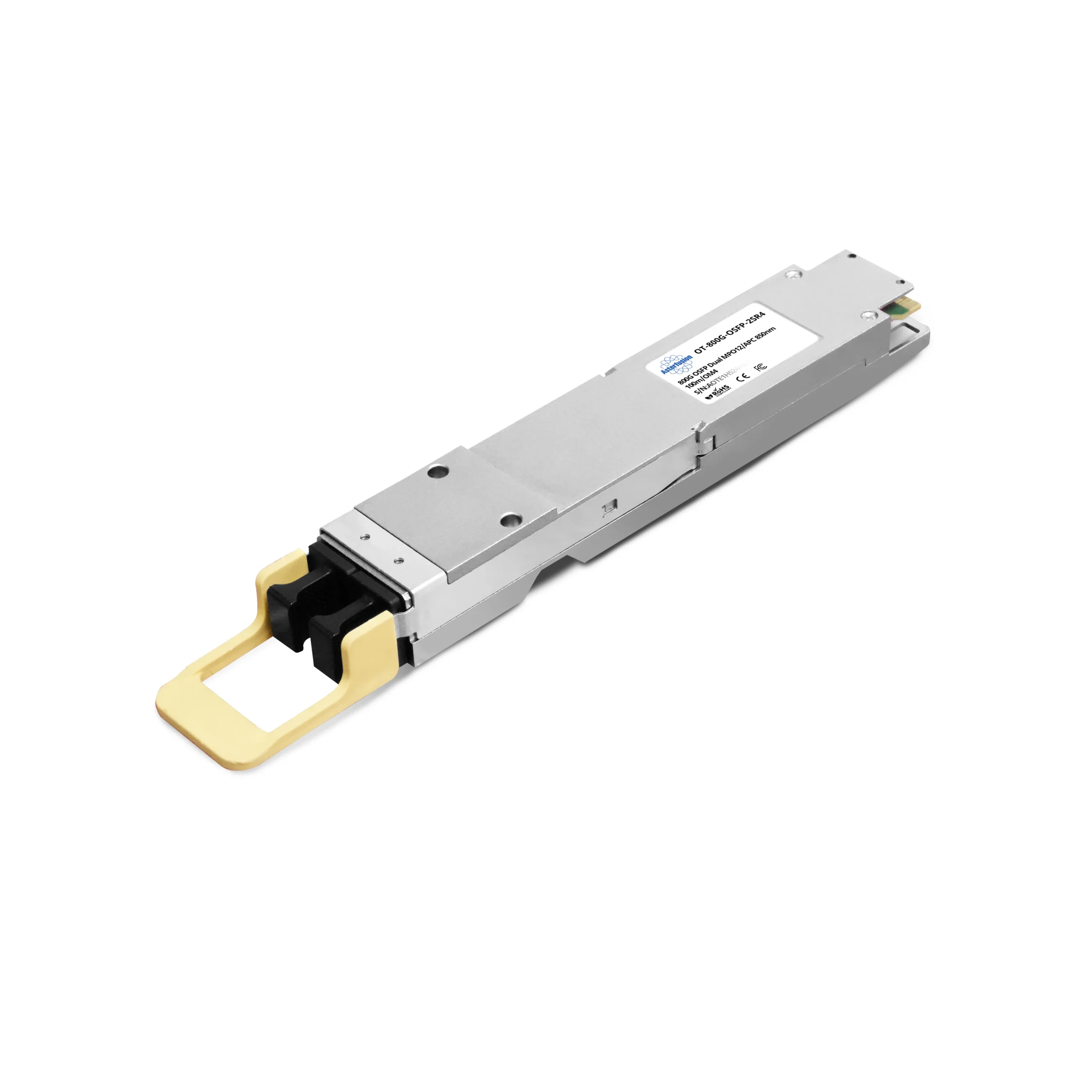

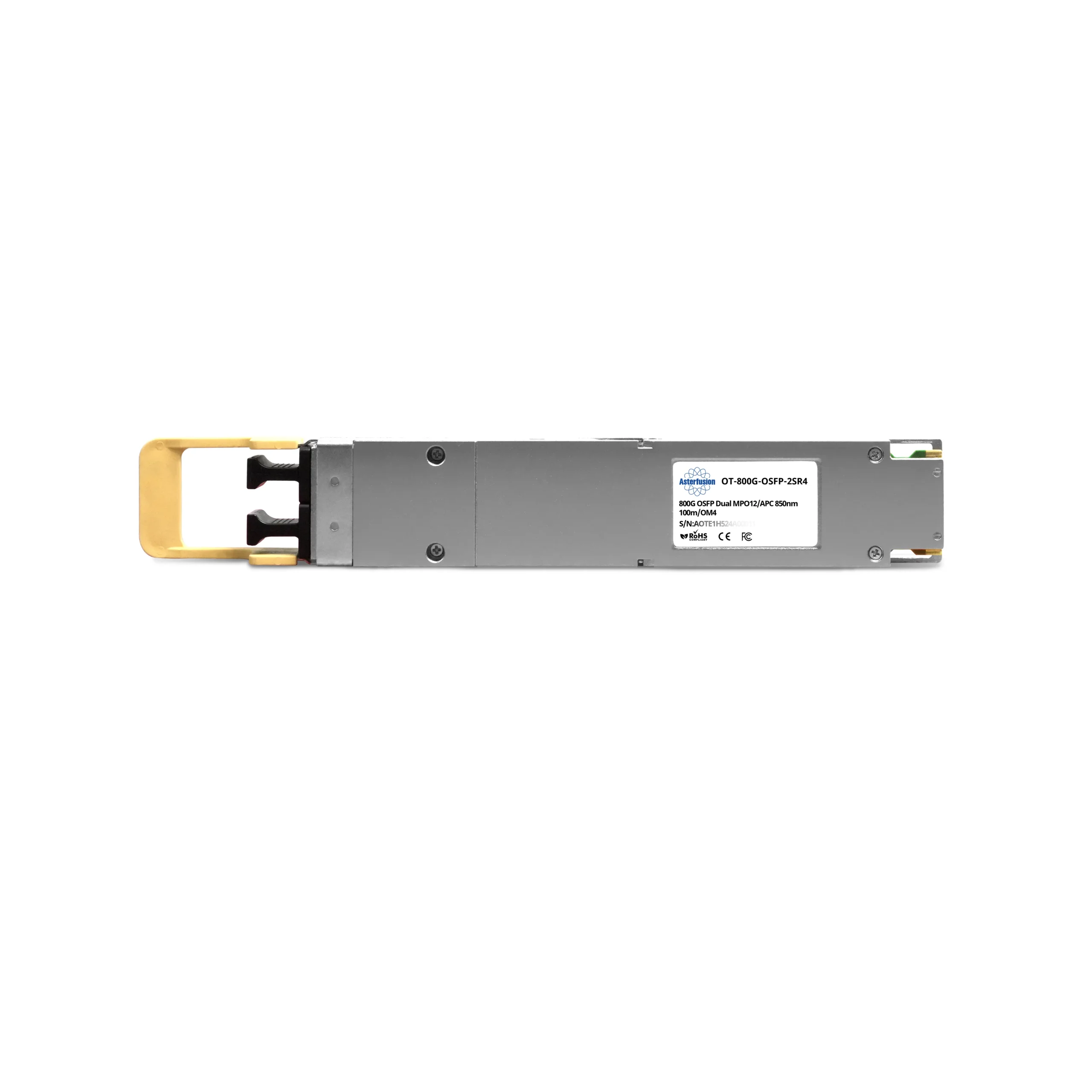

800G OSFP 2SR4 850nm 100m Finned Top Optical Transceiver Module Dual MPO-12
$750.00
- Form Factor: OSFP, MSA-compliant, hot-pluggable
- Data Throughput: 8 × 106.25 Gbps (PAM4) = total 850 Gbps
- Fiber Interface: 850 nm VCSEL over OM4 multimode fiber, up to 100 m (60 m on OM3)
- Connector: MPO-16 APC for streamlined cabling and high-density
- Power Consumption: Under 13.5 W for energy-efficient operation
- Voltage: Standard 3.3 V supply
- Diagnostics: Integrated digital monitoring (DDM/DOM)
- Compliance: Meets OSFP MSA, IEEE 802.3db, and RoHS standards
Note: Prices are exclusive of customs duties, import taxes, and VAT. Any additional charges imposed by your country are the buyer's responsibility.
- Description
- Specification
- Connectivity Solution
- Additional information
- Warranty
- Documentation
- Reviews (0)
MSA Compatible 800G OSFP 2SR4 Optical Transceiver Module (MMF 850nm, 100m OM4, 60m OM3, PAM4, Dual MPO-12 )
The 800G OSFP 2SR4 Multimode Optical Transceiver Module offers an aggregate data rate of 850 Gbps across eight lanes of 106.25 Gbps PAM4. This module supports high-bandwidth communication between racks, servers, switches, and racks in cloud data centers (AI/hyperscale data centers), racks in AI data centers as well as hyperscale data centers. Built upon the OSFP MSA standard requirements, deployment and upgrades become simple and seamless processes, ensuring cost efficiency both during deployment and upgrades.

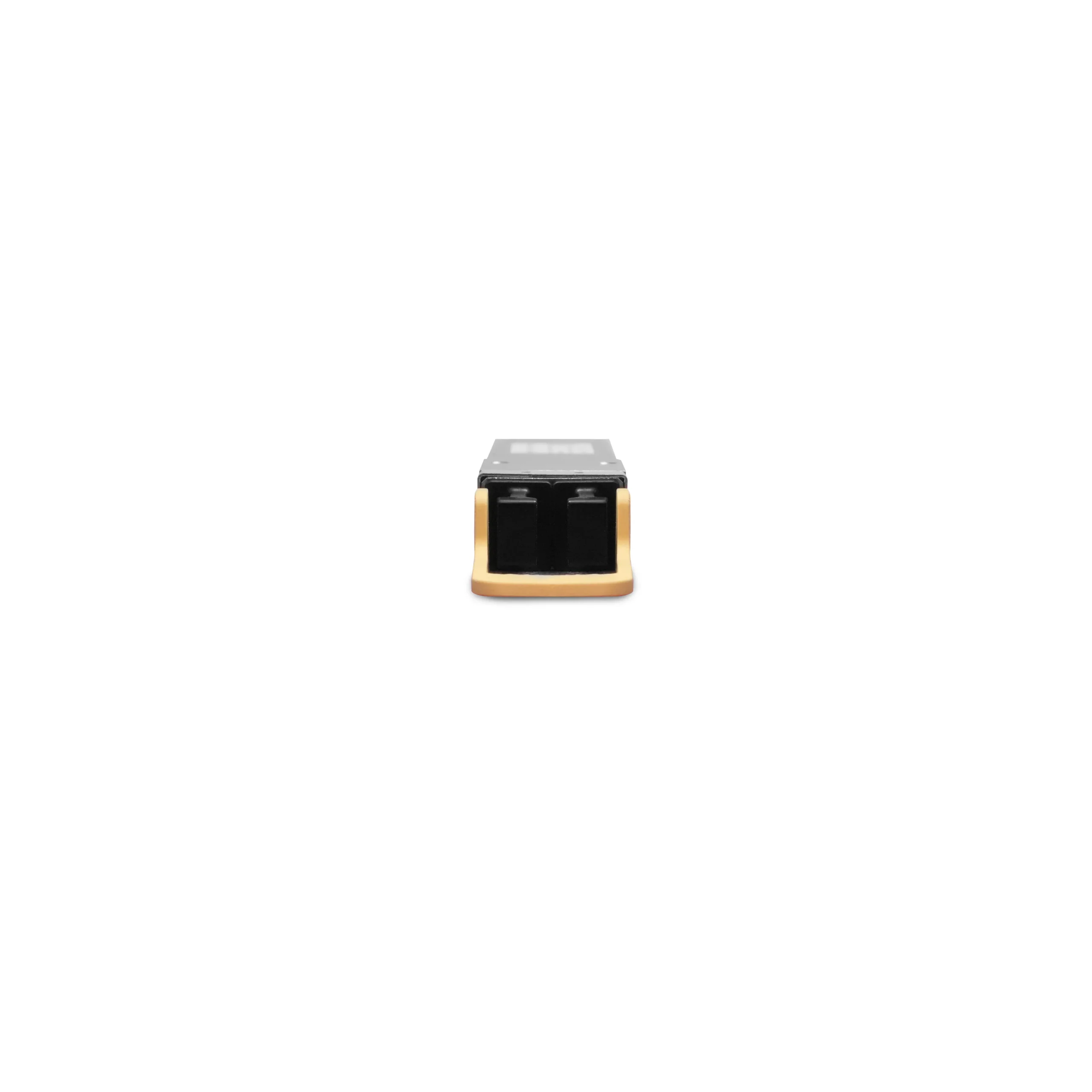

The 800G OSFP 2SR4 optical module utilizes an 850nm VCSEL to deliver reliable transmission across OM4 fiber up to 100 meters, or 60 meters when using OM3. Dual MPO-12 APC connector ensures high-density cabling, which reduces space requirements while simultaneously maintaining reliable connectivity within critical infrastructure environments.
With complete compliance to IEEE 802.3db and RoHS environmental standards, the 800G OSFP SR8 module is safe and sustainable in commercial temperature ranges between 0 °C and 70 °C, boasting high throughput capabilities, short reach capabilities, efficient design features, and is an ideal choice for organizations building high-density data centers, scaling AI workloads, or expanding cloud-based infrastructure. Combining performance, reliability, and ease of deployment capabilities, this future-ready foundation ensures reliable networking environments of any sort.
Optical Specifications
High-performance 800G OSFP 2SR4 optical transceiver designed for short-reach data center applications up to 100 m over multimode fiber.
Form Factor | OSFP | Connector | Dual MPO-12 |
Media | MMF | Max. Cable Distance | 60m(OM3) / 100m(OM4) |
Data Rate | 800Gbps | Wavelengths Range | 850nm |
Transmitter Type | VCSEL | Receiver Type | PIN |
Extinction Ratio | >2.5dB | DDM/DOM | Supported |
Supply Voltage | 3.3V | Power Consumption | <13.5W |
Op. Temperature | 0 to 70°C (32 to 158°F) | Humidity(non-condensing) | 0-85% |
St. Temperature | -40 to 85°C (-40 to 185°F) | Electrical Interface | Hot-pluggable |
Application | 2 x 400GBASE-SR4 Ethernet | Protocols | OSFP MSA, IEEE 802.3db |

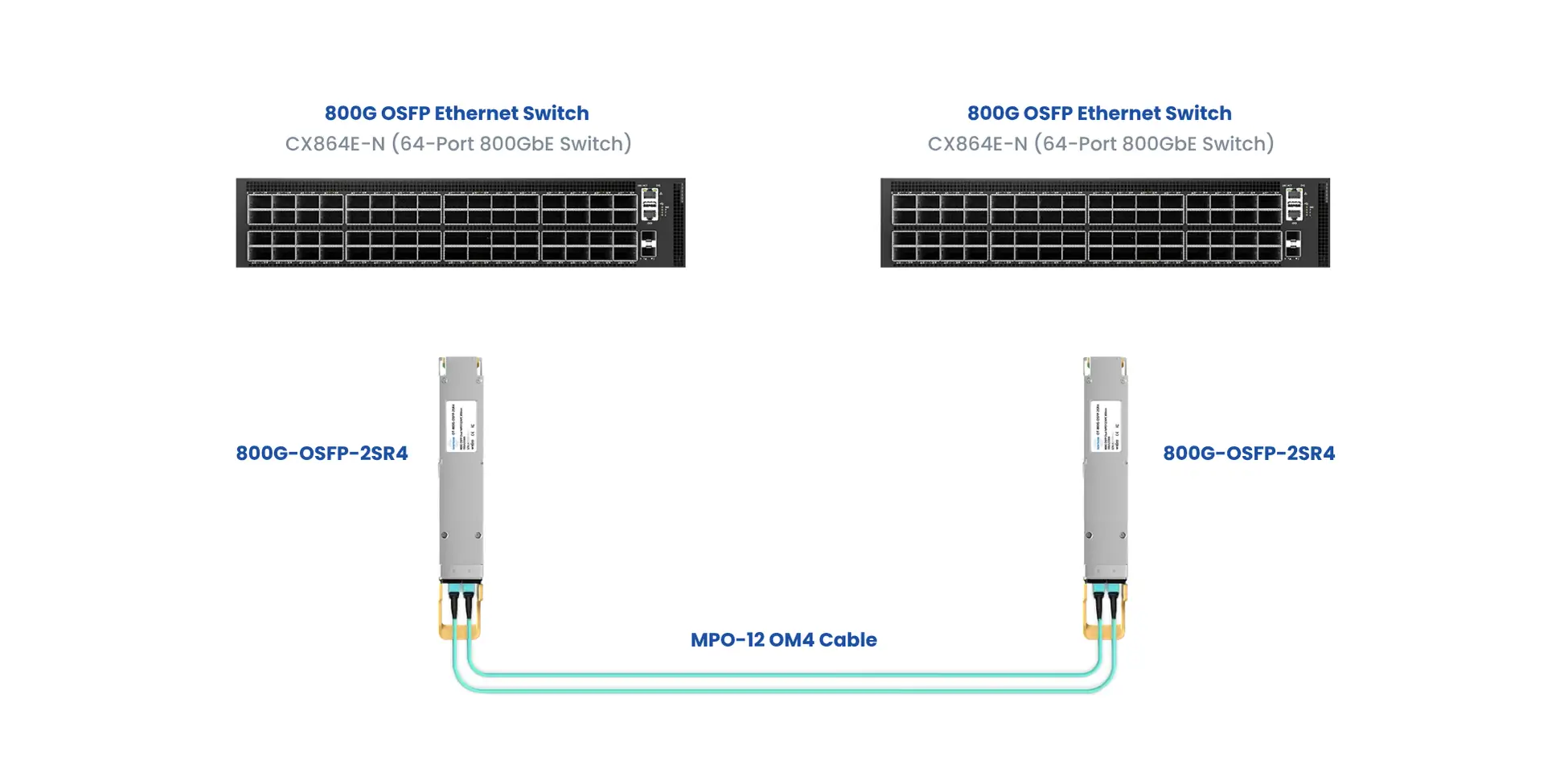

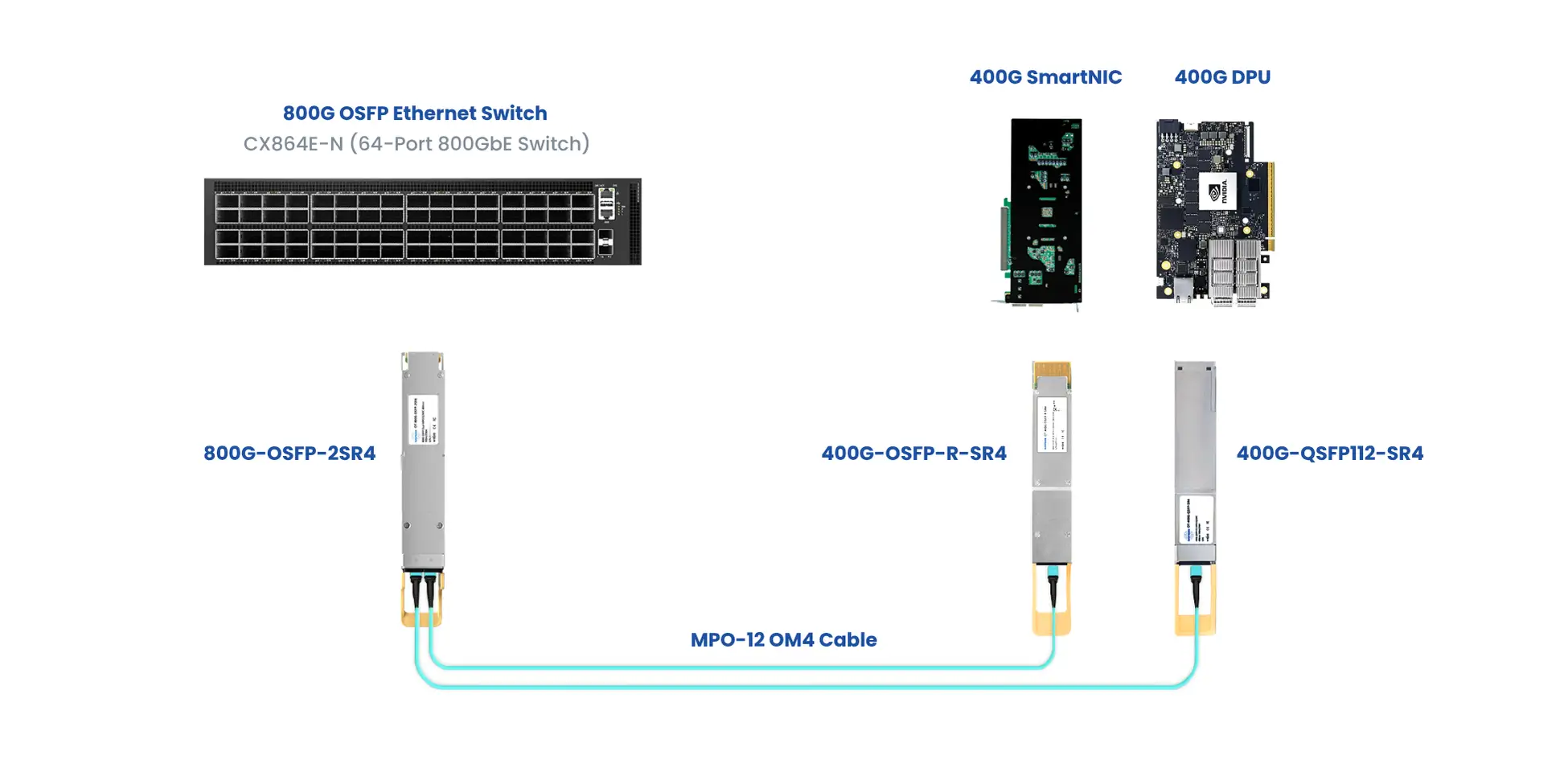

Connectivity solution
| Compatible Brands | Generic, Asterfusion, Arista, Nvidia, Juniper, Cisco, HUAWEI, H3C, Ruijie |
|---|
Warranty & Delivery Information
Warranty
Quality Certifications
Delivery Time
Our standard products are typically shipped within one week (business days).
For custom products, please contact customer service to inquire about the specific delivery time.
800G OSFP 2SR4 Optical Transceiver
Module Overview
Empowering High-Speed Data Center Connectivity
Top Performance
Supports 800Gbps, with dual MPO-12 connectors for smooth data center connectivity.
Short-Reach Optimized
Operates at 850nm, enabling reliable 100m transfer over multimode fiber for dense data center links.
