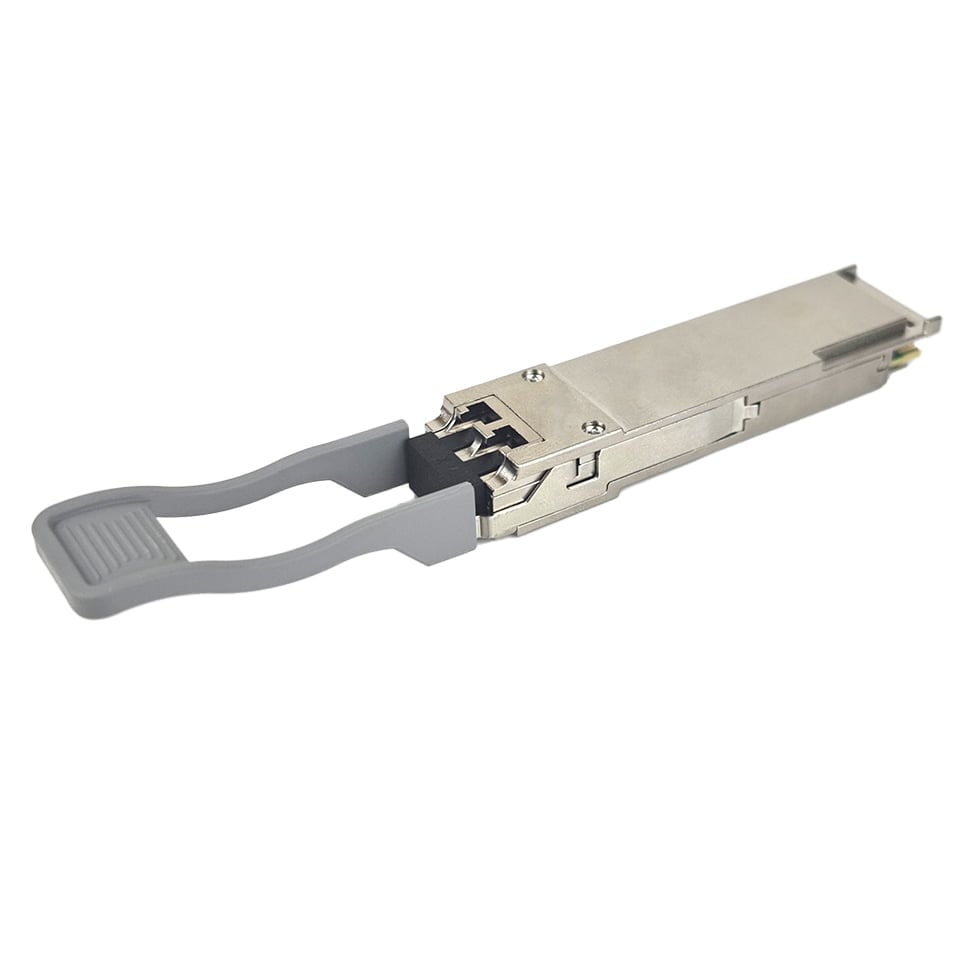

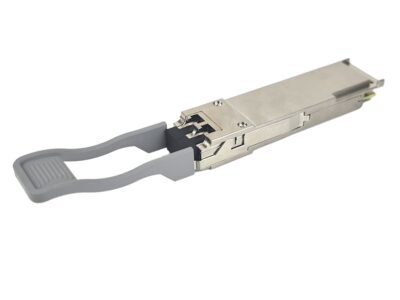

40GBASE QSFP+ SWDM4 240m/OM3 350m/OM4 440m/OM5 MMF Optical Transceiver Module Duplex LC
$240.00
- 41.2 Gbps via 4×10 Gb/s SWDM VCSEL lanes
- Supports distances up to 240 m (OM3), 350 m (OM4), 440 m (OM5)
- Duplex LC multimode fiber interface
- Hot-pluggable QSFP+ form factor
- Low power consumption: < 3.5 W
- Operational over 0–70 °C
- Real-time diagnostics (DDM/DOM) with I²C interface
- Compliant with QSFP+ MSA, SWDM MSA, SFF-8636, IEEE 802.3ba, RoHS, and Class 1 Laser Safety
Note: Prices are exclusive of customs duties, import taxes, and VAT. Any additional charges imposed by your country are the buyer's responsibility.
The 40G QSFP+ SWDM4 transceiver is designed for 40G Ethernet connections using multimode duplex fibers. This module is compatible with the QSFP+ MSA, SWDM MSA, SFF-8636, and IEEE 802.3ba standards, facilitating easy integration with existing network infrastructures. It features duplex LC connectors for straightforward communication.
The SWDM4 optical transceiver module utilizes a VCSEL-based 4x10Gb/s SWDM transmitter, which is perfect for communication networks and data centers. It can transmit over distances of up to 240 meters on OM3 fiber, 350 meters on OM4 fiber, and up to 440 meters with OM5 MMF.
With a temperature range from 0 °C to 70 °C, the transceiver can be trusted even under the most extreme conditions. In addition, the XLPPI electrical interfaces enhance the integrity of the signal, ensuring error-free data transmission. In addition, the SWDM4 optical module is compatible with QSFP+ MSA. It supports I2C digital diagnostics to ensure optimal performance and to facilitate preventive maintenance.
Specifications
Form Factor | QSFP28 | Connector | Duplex LC |
Media | MMF | Max. Cable Distance | 240m OM3 /350m OM4 /440m OM5 |
Data Rate | 100Gbps | Wavelengths Range | 850nm, 880nm, 910nm and 940nm |
Transmitter Type | VCSEL | Receiver Type | PIN |
Extinction Ratio | >2dB | Receiver Sensitivity | <-9.1dB |
Supply Voltage | 3.3V | Power Consumption | <3.5W |
Op. Temperature | 0 to 70°C (32 to 158°F) | CDR | Tx and Rx |
DDM/DOM | Supported | Inbuilt FEC | Yes |
Applications | 40G Ethernet | Protocols | QSFP+ MSA, SWDM MSA, SFF-8636 |
| Compatible Brands | Generic, Asterfusion, Nvidia, Juniper, Cisco |
|---|
