40GBASE LR4 QSFP+ CWDM 10km Duplex LC Optical Transceiver Module
$108.00
- 40 G data rate delivered via 4 × 10 G CWDM lanes
- Up to 10 km reach over single-mode fiber (1310 nm)
- Duplex LC connector for SMF interface
- Hot-pluggable QSFP+ form factor
- Energy-efficient design with power draw under 2.5 W
- Includes 4 CWDM DFB lasers for reliable transmission
- Compliant with QSFP+ MSA and IEEE 802.3ba (40GBASE-LR4) standards
- RoHS 6 environmental compliance
- Operating temperature range: 0 – 70 °C
Note: Prices are exclusive of customs duties, import taxes, and VAT. Any additional charges imposed by your country are the buyer's responsibility.
With a 4x10G configuration, this 40G QSFP+ Transceiver Module provides a high-speed 40 Gbps of connectivity in the compact footprint of QSFP. This QSFP+ 40G LR4 module links four transmitters and receivers via an optical multiplexer/demultiplexer (MUX/DeMUX) using Arrayed Waveguide Grating (AWG) technology. This 40Gbase LR4 optical module has been made to perform exceptionally well in applications that conform to the standards of 40GBASE-LR4 and IEEE 802.3ba and QSFP MSA. It is guaranteed to have a 10-kilometer range over standard single-mode fiber. Since it utilizes 1300nm channels to support Coarse Wavelength Division Multiplexing (CWDM), this 40G LR4 transceiver improves efficiency and reliability, which makes it ideal for high-density, complex network scenarios.
Specifications
Form Factor | QSFP+ | Connector | Duplex LC |
Media | SMF | Max. Cable Distance | 10km |
Data Rate | 40Gbps | Wavelengths Range | 1310nm |
Transmitter Type | DFB CWDM | Receiver Type | PIN |
Extinction Ratio | >3.5dB | Receiver Sensitivity | <-11.5dBm |
Supply Voltage | 3.3V | Power Consumption | <2.5W |
Op. Temperature | 0 to 70°C (32 to 158°F) | Humidity(non-condensing) | 5-95% |
St. Temperature | -40 to 85°C (-40 to 185°F) | Electrical Interface | Hot-pluggable |
Application | 40GBASE-LR Ethernet | Protocols | IEEE 802.3ba |

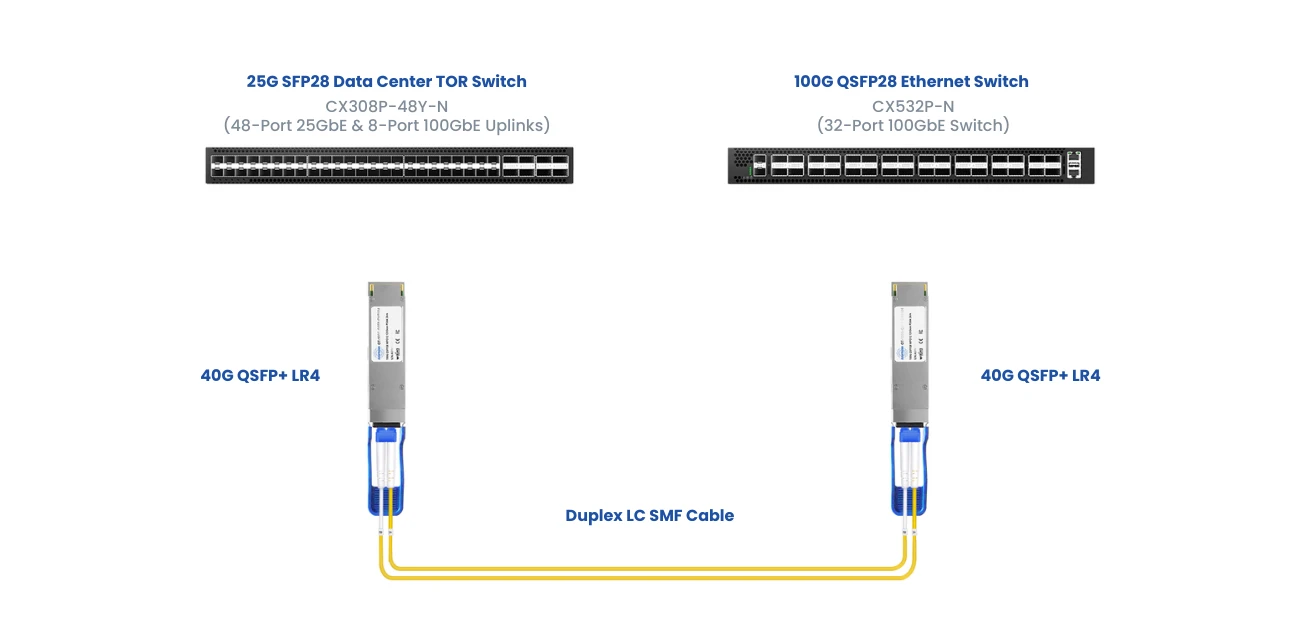

Connectivity solution
| Compatible Brands | Generic, Asterfusion, Arista, Nvidia, Juniper, Cisco, HUAWEI, H3C, Ruijie |
|---|
Warranty & Delivery Information
Warranty
Quality Certifications
Delivery Time
Our standard products are typically shipped within one week (business days).
For custom products, please contact customer service to inquire about the specific delivery time.
