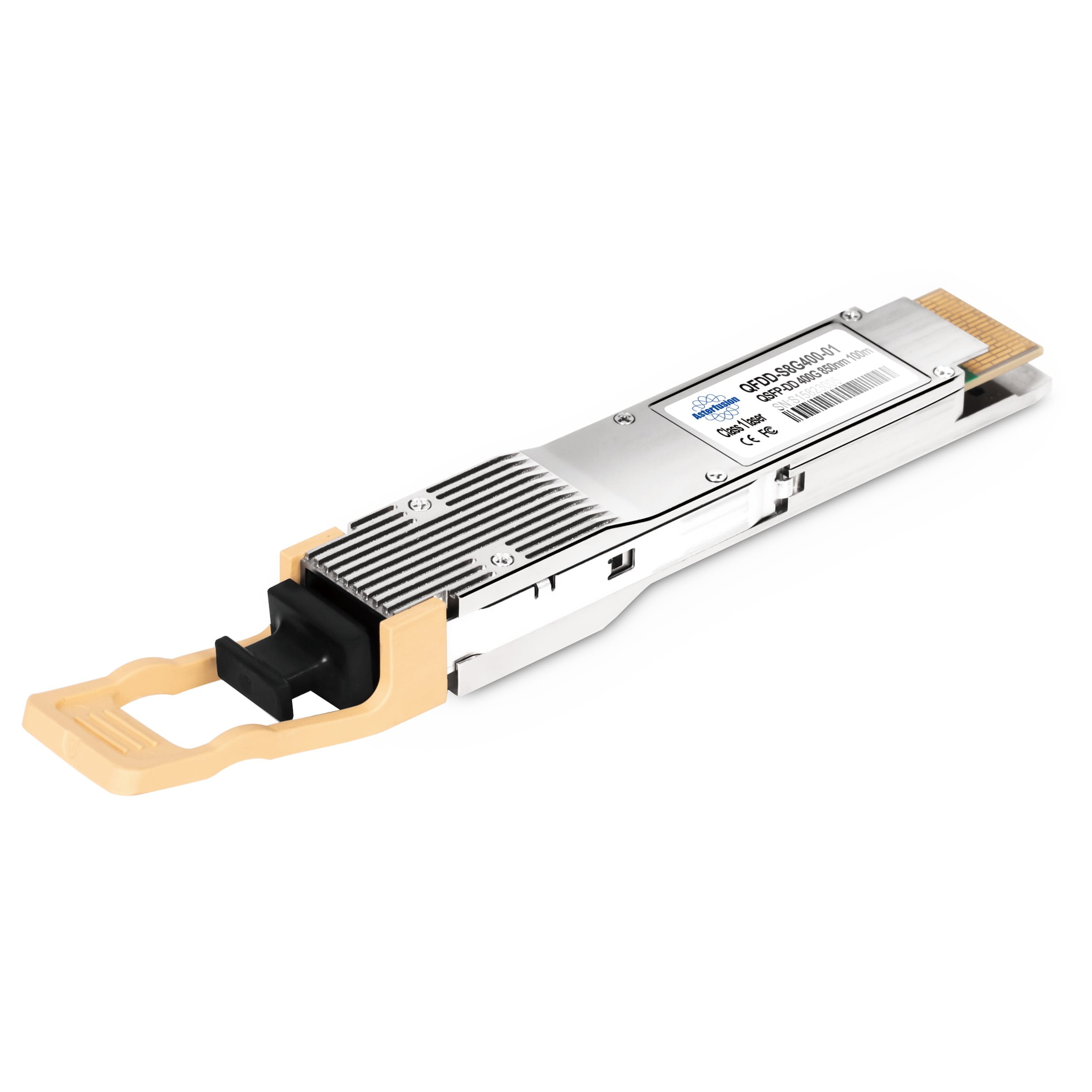

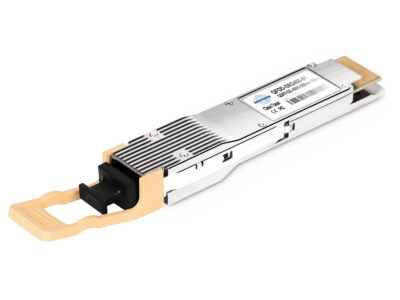

400G SR8 QSFP-DD 850nm 100m Optical Transceiver Module
$204.00
- 425 Gb/s speed with 8×53.125 Gb/s PAM4 lanes
- 100 m on OM4 MMF with FEC
- Hot-pluggable QSFP-DD design for easy upgrades
- MTP/MPO-16 interface supports dense cabling
- Real-time DDM monitoring keeps your network healthy
- Efficient power draw (<8 W) for low energy impact
- 0–70 °C operating range ensures robust data center performance
- Fully QSFP-DD & IEEE-compliant, future-ready module
- Breakout capable—supports 2×200G or 8×50G configurations
Note: Prices are exclusive of customs duties, import taxes, and VAT. Any additional charges imposed by your country are the buyer's responsibility.
The QSFP-DD 400G SR8 transceiver supports 400G Ethernet connections in data centers, as well as other applications that require breakout connections. This optical module has eight lanes, is able to process up to 425 Gbps of data at once. Its maximum speed for each channel will be 53.125 Gbps. It can be utilized in a range of high-density networking scenarios because it can be used in a variety of configurations, from 1x 400GBASE-SR8 with 400GAUI-8, 2x 200GBASE-SR4 with 200GAUI-4, 4x 100GBASE-SR2 with 100GAUI-2, 8x 50GBASE-SR with 50GAUI-1, 2x 100GBase-SR4 with CAUI-4, 8x 25GBase-SR with 25GAUI-1.
This is a transmitter designed for applications that require high bandwidth and short range. It can transmit data over 100 meters over OM4 fiber with forward error correction (FEC). The accompanying electronic diagnostics monitor features enable users to check the health and performance of the system in real-time, ensuring that the system is always operating in the way you want it to. The device is built to run quickly and has low power consumption. Additionally, it can be connected hot-pluggable. Connecting a 400G optical transceiver to your network is a straightforward and cost-effective way to boost the strength and flexibility of your network.
Specifications
Form Factor | QSFP-DD | Connector | MPO16 APC |
Media | MMF | Max. Cable Distance | 100m OM4/70m OM3 |
Data Rate | 400Gbps | Wavelengths Range | 850nm |
Transmitter Type | VCSEL | Receiver Type | PIN |
TX Power | -6.5~4dBm | RX Power | -8.4~4dBm |
Extinction Ratio | >3dB | Receiver Sensitivity | <-6.5dBm |
Supply Voltage | 3.3V | Power Consumption | <8W |
Op. Temperature | 0 to 70°C (32 to 158°F) | Humidity(non-condensing) | 5-95% |
DDM/DOM | Supported | Electrical Interface | Hot-pluggable |
Inbuilt FEC | Yes | Protocols | IEEE 802.3 cd, QSFP-DD MSA |

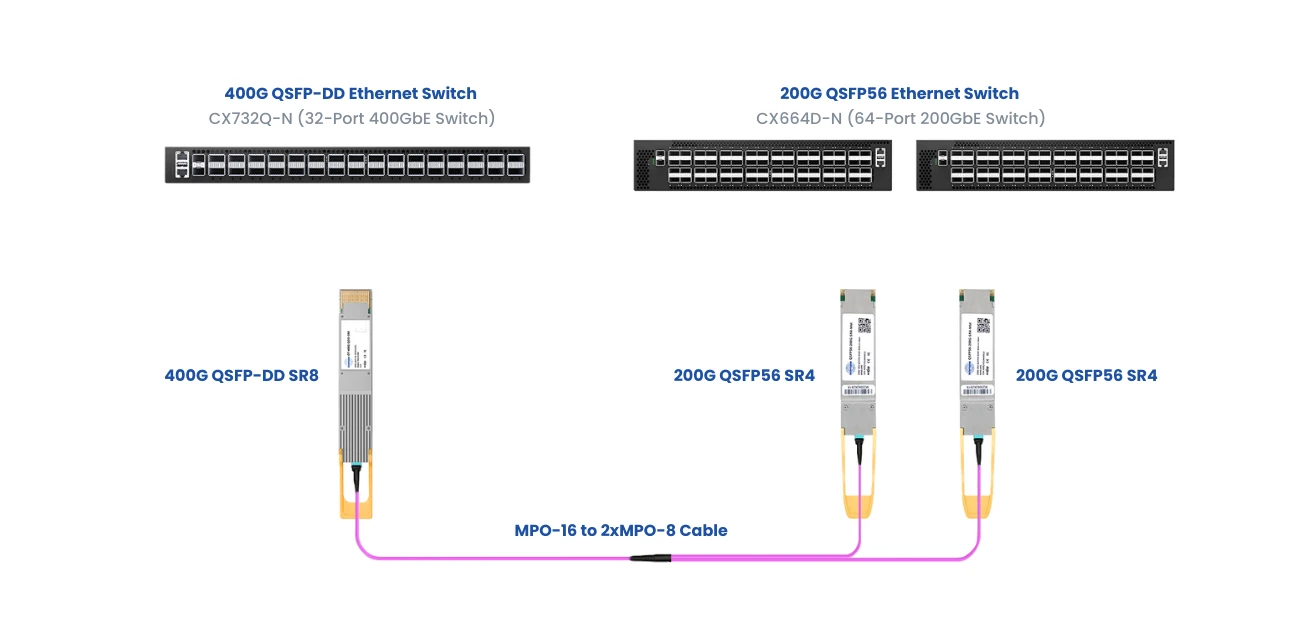

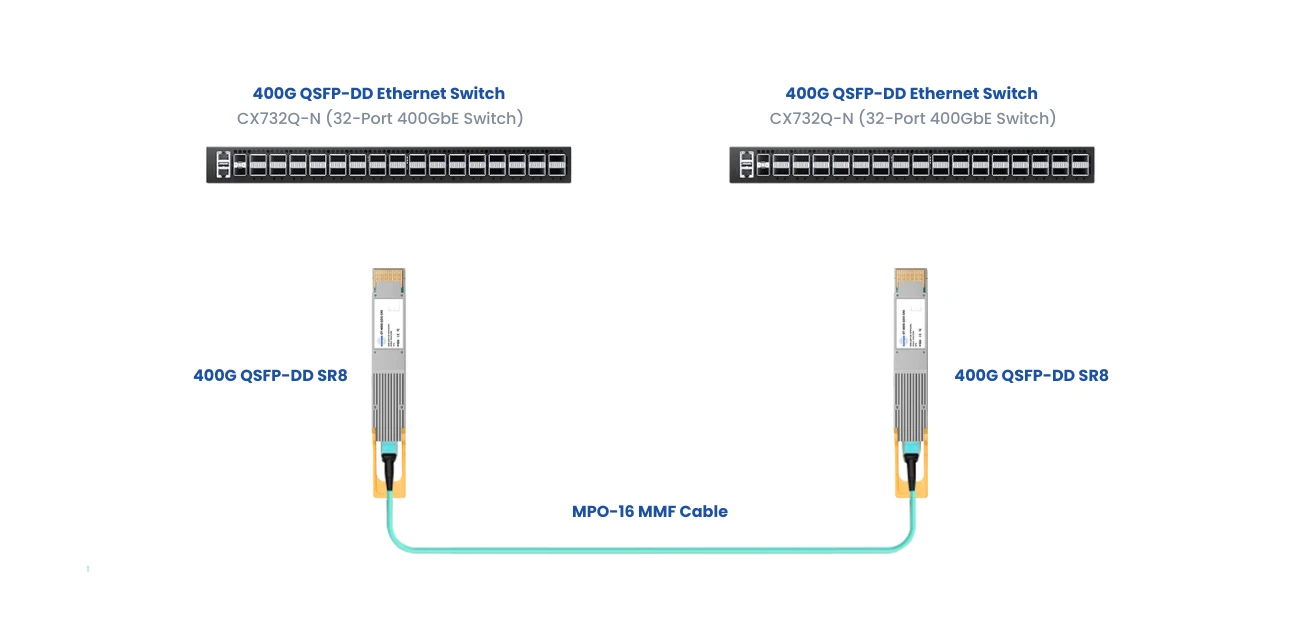

Connectivity solution
| Compatible Brands | Generic, Asterfusion, Arista, Nvidia, Juniper, Cisco, HUAWEI, H3C, Ruijie |
|---|
Warranty & Delivery Information
Warranty
Quality Certifications
Delivery Time
Our standard products are typically shipped within one week (business days).
For custom products, please contact customer service to inquire about the specific delivery time.
