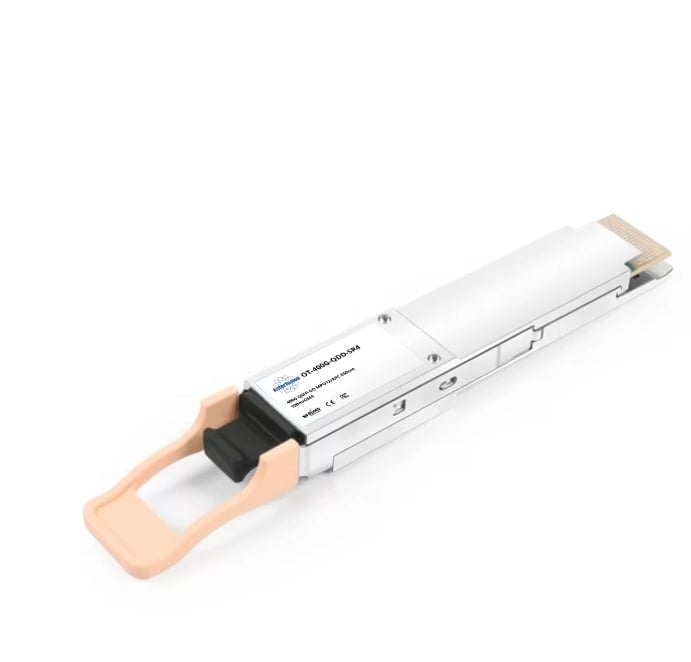

400G SR4 QSFP-DD 850nm 60m OM3/100m OM4 MPO12 APC Optical Transceiver Module
$402.00
- 400G data rate using 8×50 Gb/s PAM4 to 4×100 Gb/s optical lanes
- Up to 100 m reach over OM4 multimode fiber with MPO-12 connector
- Hot-swappable QSFP-DD form factor for easy deployment and dense
- Low power consumption (≤ 8 W typical) for energy-efficient operation
- Integrated real-time diagnostics (DDM/DOM) for monitoring performance
- Fully compliant with QSFP-DD MSA, IEEE 802.3bs, and 400GAUI-8/PAM4 standards
- Reliable performance from 0 °C to 70 °C for standard data center environments
Note: Prices are exclusive of customs duties, import taxes, and VAT. Any additional charges imposed by your country are the buyer's responsibility.
The 400G QSFP-DD SR4 supports 400 Gigabit Ethernet applications. This fiber-optic, parallel QSFP-DD double-density device can be used as a plug-in device. With multiple lanes, this device is a highly efficient module that allows for the exchange of data at small distances. The eight channels of electric information at a speed of 53.125 Gbit/s can be transformed into four optical channels at a speed of 106.25 Gbit/s each by using this module. In turn, it transforms four channels of 106.25 Gbit/s of visual input into 8 channels of output electrical information at one end. Each lane can operate for up to 60 meters using OM3 fiber, and 100 meters with OM4 fibers with FEC. The optical modules are made to work with 850-nanometer multimode fibers with a wavelength of 850 nm. It is an MTP 12-fiber (MPO) connector. The VCSEL and circuits that have been tested have been demonstrated to work effectively, last for a long time, and provide steady service, and are employed for the CMIS standard for QSFPDD modules.
Specifications
Form Factor | QSFP56-DD | Connector | MPO12 |
Media | MMF | Max. Cable Distance | 100m OM4/60m OM3 |
Data Rate | 400Gbps | Wavelengths Range | 850nm |
Transmitter Type | VCSEL | Receiver Type | PIN |
TX Power | -4.6~4dBm | RX Power | -6.4~4dBm |
Extinction Ratio | >2.5dB | Receiver Sensitivity | <-4.6dBm |
Supply Voltage | 3.3V | Power Consumption | <10W |
DDM/DOM | Supported | DSP | Tx and Rx |
Inbuilt FEC | Yes | Electrical Interface | Hot-pluggable |
Op. Temperature | 0 to 70°C (32 to 158°F) | Protocols | IEEE 802.db-2022, IEEE 802.3bs, QSFP-DD MSA |

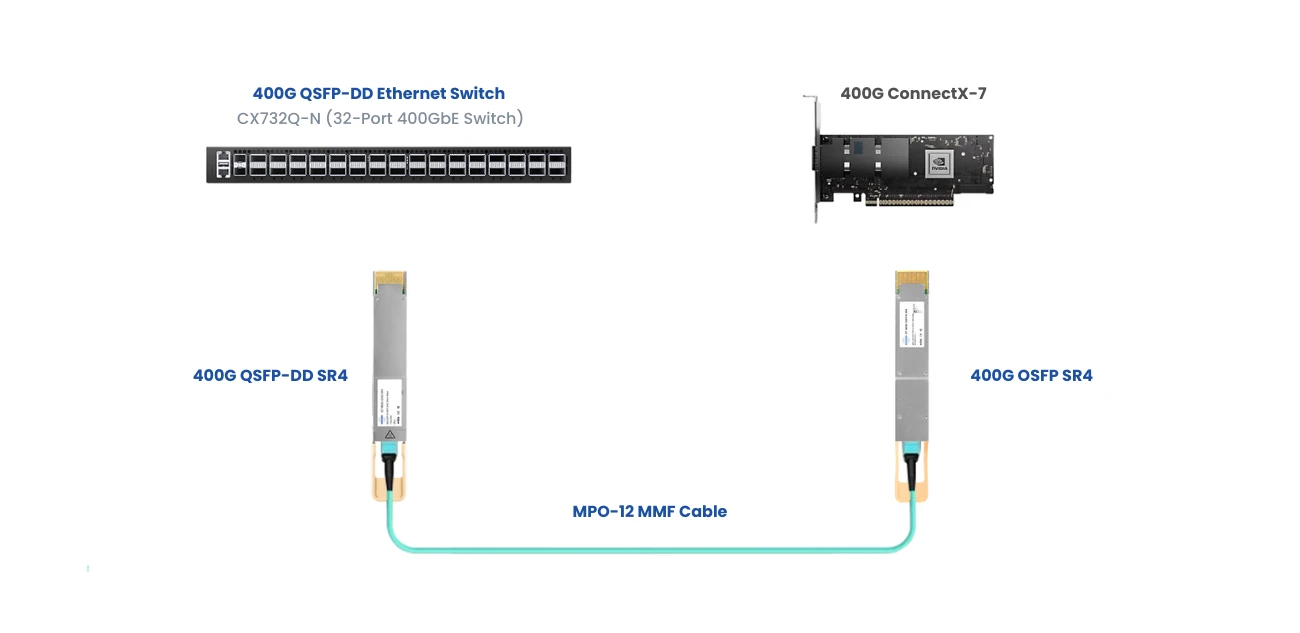

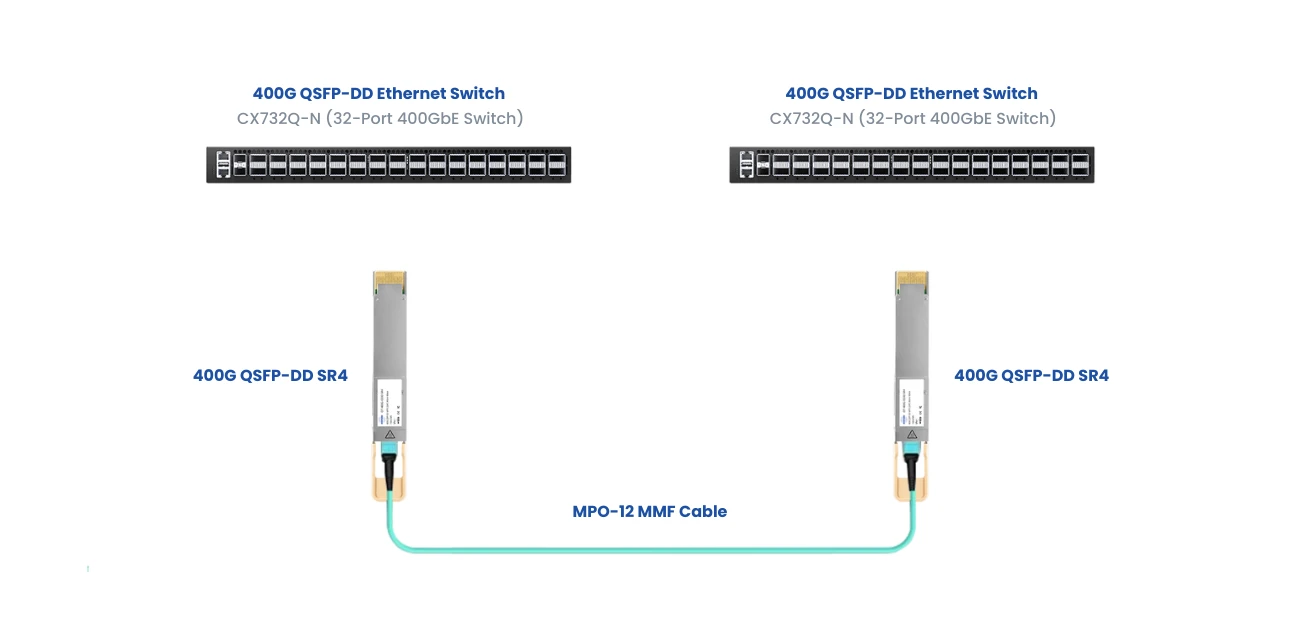

Connectivity solution
| Compatible Brands | Generic, Asterfusion, Arista, Nvidia, Juniper, Cisco, HUAWEI, H3C, Ruijie |
|---|
Warranty & Delivery Information
Warranty
Quality Certifications
Delivery Time
Our standard products are typically shipped within one week (business days).
For custom products, please contact customer service to inquire about the specific delivery time.
