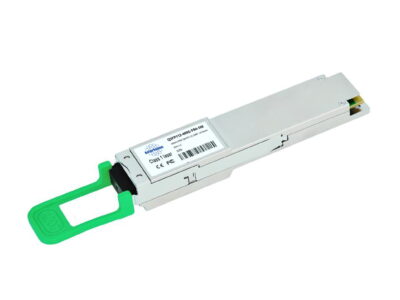

400G FR4 QSFP112 1310nm 2km Duplex LC Optical Transceiver Module
$379.00
- 425 G bps data rate via 4×106.25 G bps PAM4 lanes
- 2 km reach over SMF with duplex LC connector
- Hot-pluggable QSFP112 form factor
- Low power consumption ≤ 9 W, energy-efficient
- Built-in DDM/DOM and FEC support for monitoring and reliability
- CWDM wavelengths at 1271/1291/1311/1331 nm, SMF optimized
- Compliant with QSFP112 MSA, CMIS 5.0, IEEE 802.3cu
- Reliable operation at 0–70 °C
Note: Prices are exclusive of customs duties, import taxes, and VAT. Any additional charges imposed by your country are the buyer's responsibility.
To support 400 Gigabit Ethernet applications, the 400G FR4 transceiver is a great choice that offers high performance and reliability. The module can support 425Gb/s optical data transmission by multi-channeling data on a single-mode fiber that has each optical and electrical channel supporting 106.25Gbps. It is ideal for medium-range interconnect and data transfer applications due to its 2-kilometer transmission range across a duplex single-mode LC connector optical fiber cable. It efficiently utilizes CWDM nominal frequencies of 1271nm, 1311 nm, 1291nm, and 1331 nm. These wavelengths are used to transmit signals through one-mode fiber networks. Apart from providing reliable and secure connections, a Duplex SMF connector’s minimal usage of power and RoHS conformity show how eco-sustainable it is.
Specifications
Form Factor | QSFP112 | Connector | Duplex LC |
Media | SMF | Max. Cable Distance | 2km |
Data Rate | 425Gbps | Wavelengths Range | 1271nm,1291nm,1311nm,1331nm |
Transmitter Type | CWDM EML | Receiver Type | PIN |
TX Power | -3.2~4.4dBm | RX Power | -7.2~4.4dBm |
Extinction Ratio | >3.5dB | Receiver Sensitivity | <-4.6dBm |
Supply Voltage | 3.3V | Power Consumption | <9W |
Op. Temperature | 0 to 70°C (32 to 158°F) | Inbuilt FEC | Tx and Rx |
DDM/DOM | Supported | Applications | 400G Ethernet |
Electrical Interface | Hot-pluggable | Protocols | CMIS, QSFP112 MSA, IEEE802.3cu, IEEE802.3ck |
| Compatible Brands | Generic, Asterfusion, Nvidia, Juniper, Cisco |
|---|
Warranty & Delivery Information
Warranty
Quality Certifications
Delivery Time
Our standard products are typically shipped within one week (business days).
For custom products, please contact customer service to inquire about the specific delivery time.
