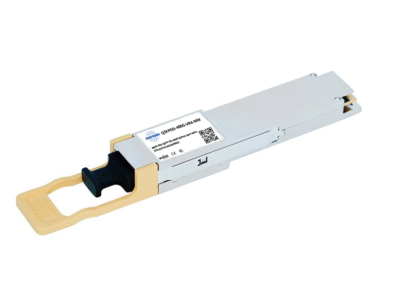

400G QSFP-DD VR4 850nm 50m MPO12 Optical Transceiver Module
$360.00
- 4 channels 850nm VCSEL array and PIN photo detector array
- Hot-swappable for easy upgrades
- OM4 fiber, 50 m reach—ideal for close-range links
- Under 8 W power draw keeps things efficient
- MPO-12 interface fits modern gear
- Built-in DDM/DOM diagnostics
- 0–70 °C operating range—solid for usual environments
- QSFP112 & IEEE 802.3db compliant—trusted and compatible
Note: Prices are exclusive of customs duties, import taxes, and VAT. Any additional charges imposed by your country are the buyer's responsibility.
This 400G QSFP-DD VR4 optical transceiver module conforms to the QSFP112 MSA, as well as the IEEE 802.3db Ethernet Transport Protocol standards, ensuring compatibility and efficiency across a range of networking equipment. It supports hot-pluggable and adheres to the RoHS standard, that simple to install and safe for the environment. It is capable of speeds up to 425Gb/s when connected with multimode parallel fibers (OM4 MMF) that are up to 50m in length by using 850nm PIN and VCSEL technologies. The design is specifically designed to meet the needs of modern computer rooms and information centers. The 400G QSFP DD transceiver module has a four-channel full-duplex transceiver that can achieve speeds of up to 425Gb/s, a 850nm length of VCSEL using 850nm and PIN technology.
Specifications
Form Factor | QSFP56-DD | Connector | MPO12 |
Media | MMF | Max. Cable Distance | 50m OM4/30m OM3 |
Data Rate | 400Gbps | Wavelengths Range | 850nm |
Transmitter Type | VCSEL | Receiver Type | PIN |
TX Power | -4.6~4dBm | RX Power | -6.3~4dBm |
Extinction Ratio | >2.5dB | Receiver Sensitivity | <-4.4dBm |
Supply Voltage | 3.3V | Power Consumption | <8W |
Op. Temperature | 0 to 70°C (32 to 158°F) | DSP | Tx and Rx |
DDM/DOM | Supported | Inbuilt FEC | Yes |
Electrical Interface | Hot-pluggable | Protocols | IEEE 802.db, IEEE 802.3bs, QSFP-DD MSA |
| Compatible Brands | Generic, Asterfusion, Nvidia, Juniper, Cisco |
|---|
Warranty & Delivery Information
Warranty
Quality Certifications
Delivery Time
Our standard products are typically shipped within one week (business days).
For custom products, please contact customer service to inquire about the specific delivery time.
