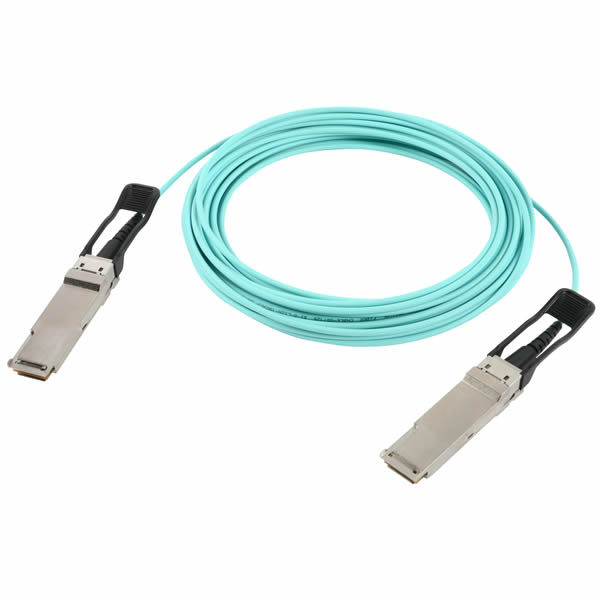

400G QSFP-DD to OSFP-RHS Active Optical Cable

SKU:

<8W | QSFP-DD to OSFP-RHS | 50m

  • Hot-pluggable OSFP-RHS and QSFP-DD form factor

  • Transmission data rate up to 106.25G per channel

  • 4x106.25Gbps PAM4 transmitter and PAM4 receiver

  • 4 channels 850nm VCSEL array (both End)

  • 4 channels PIN photo detector array (both End)

  • Power consumption <8W

  • Compliant to OSFP&QSFP-DD MSA and CMIS4.0

  • Built-in digital diagnostic functions

Request Discount

The 400G QSFP-DD to OSFP-RHS active optical cable bridges QSFP-DD switch ports and OSFP-RHS NIC/DPU ports over a single 400G link, supporting maximum transmission distances of 30m on OM3 multimode fiber and 50m on OM4 multimode fiber with FEC enabled. Each end carries 4 lanes of 106.25Gbps PAM4 (53.125 GBd per lane) through 850nm VCSEL arrays and PIN photodetector arrays, for an aggregate data rate of 425Gbps.

The cable is fully compliant with OSFP MSA, QSFP-DD MSA, IEEE 802.3db, and IEEE 802.3ck, and exposes digital diagnostics via CMIS 4.0 over a 2-wire I2C interface — covering per-lane Tx/Rx optical power, bias current, module temperature, and supply voltage. It's well suited for 400GBASE-VR4 Ethernet, HPC clusters, and AI/ML fabrics that mix QSFP-DD switch silicon with OSFP-based NICs.

Connector TypeQSFP-DD, OSFP112-RHS
Cable TypeOM3 | OM4
MediaMMF
Max. Cable Distance30m(OM3) | 50m(OM4)
Data Rate400Gbps
Wavelengths Range850nm
Transmitter TypeVCSEL
Receiver TypePIN
Extinction Ratio>2.5dB
Supply Voltage3.3V
DDMSupported
Power Consumption (Max)8W
Op. Temperature0 to 70°C (32 to 158°F)
ProtocolsIEEE802.3db, IEEE802.3ck, 400GBASE-VR4 Ethernet(PAM4)
