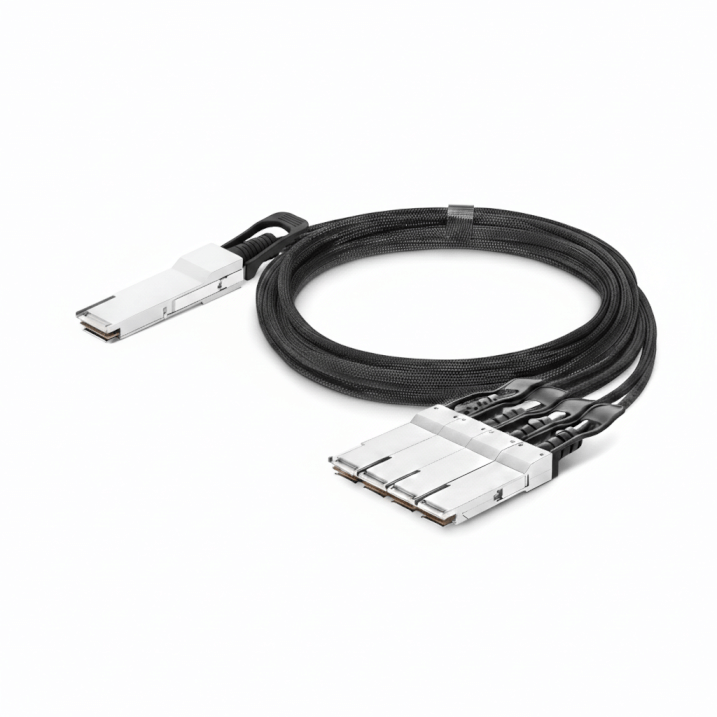

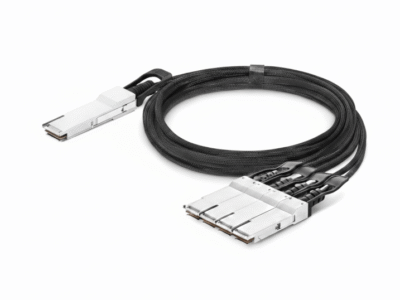

400G QSFP56-DD to 4×100G QSFP56 Breakout AEC Cable — 8×56G PAM4, Up to 8m
Price range: $1,086.00 through $1,166.00
- Compliant with QSFP-DD, QSFP56 MSA, and CMIS5.2
- Enables 400Gb/s to 4x100Gb/s transmission
- 8x56G PAM4 to Quad 2x56G PAM4 electrical data rates
- Link length 8m (30AWG)
- Typical power consumption: 7.5W (QSFP-DD side) and 3.5W (QSFP56 side)
- Single +3.3V power supply
- BER (Post-FEC) <10-15
- Operation case temperature: 0 to 70℃
Note: Prices are exclusive of customs duties, import taxes, and VAT. Any additional charges imposed by your country are the buyer's responsibility.
One switch port. Four server connections. The AEC-400G-QDD-4*QSFP56 breaks a single 400G QSFP56-DD port into four independent 100G QSFP56 links — active copper, up to 8 meters, built for AI inference fabrics and high-density data center breakout.
The Asteraix AEC-400G-QDD-4*QSFP56 is a breakout active electrical cable that splits a single 400G QSFP56-DD switch port into four independent 100G QSFP56 connections. On the switch side, 8 lanes of 56G PAM4 carry the full 400G signal. On the server side, each of the four QSFP56 legs carries 2 lanes of 56G PAM4, delivering exactly 100G per port — at up to 8 meters on 30AWG copper.
Unlike passive breakout DACs limited to ~3m, the active signal conditioning in this AEC extends clean breakout reach to 8 meters — covering full-rack and adjacent-rack deployments. It is QSFP-DD MSA, QSFP56 MSA, and CMIS 5.2 compliant, with a full I²C management interface on the QSFP-DD end. Power consumption is 7.5W at the QSFP-DD head and just 3.5W per QSFP56 tail — the most power-efficient breakout geometry in the AEC product family. The datasheet explicitly lists AI Inference Fabric as a primary application, reflecting its role in connecting 400G-capable spine switches to inference servers running multiple 100G NIC ports.
Specifications
Module Form Factor | QSFP-DD, QSFP56 | Management Interface | I2C |
Max. Data Rate | 400Gbps | Number of Data Lanes (QSFP-DD end) | 8 TX and 8 RX per module (PAM4) |
Wire AWG | 30AWG | Number of Data Lanes (QSFP end) | 4 TX and 4 RX per module (PAM4) |
Power Consumption | 7.5W(QSFP-DD end) 3.5W(QSFP end) | Supply Voltage | 3.3V |
Op. Temperature | 0 to 70°C (32 to 158°F) | Protocols | QSFP-DD MSA, QSFP MSA, and CMIS5.2 |
| Length | 1m, 2m, 3m, 5m |
|---|---|
| Compatible Brands | Generic, Asterfusion, Nvidia, Juniper, Cisco |
