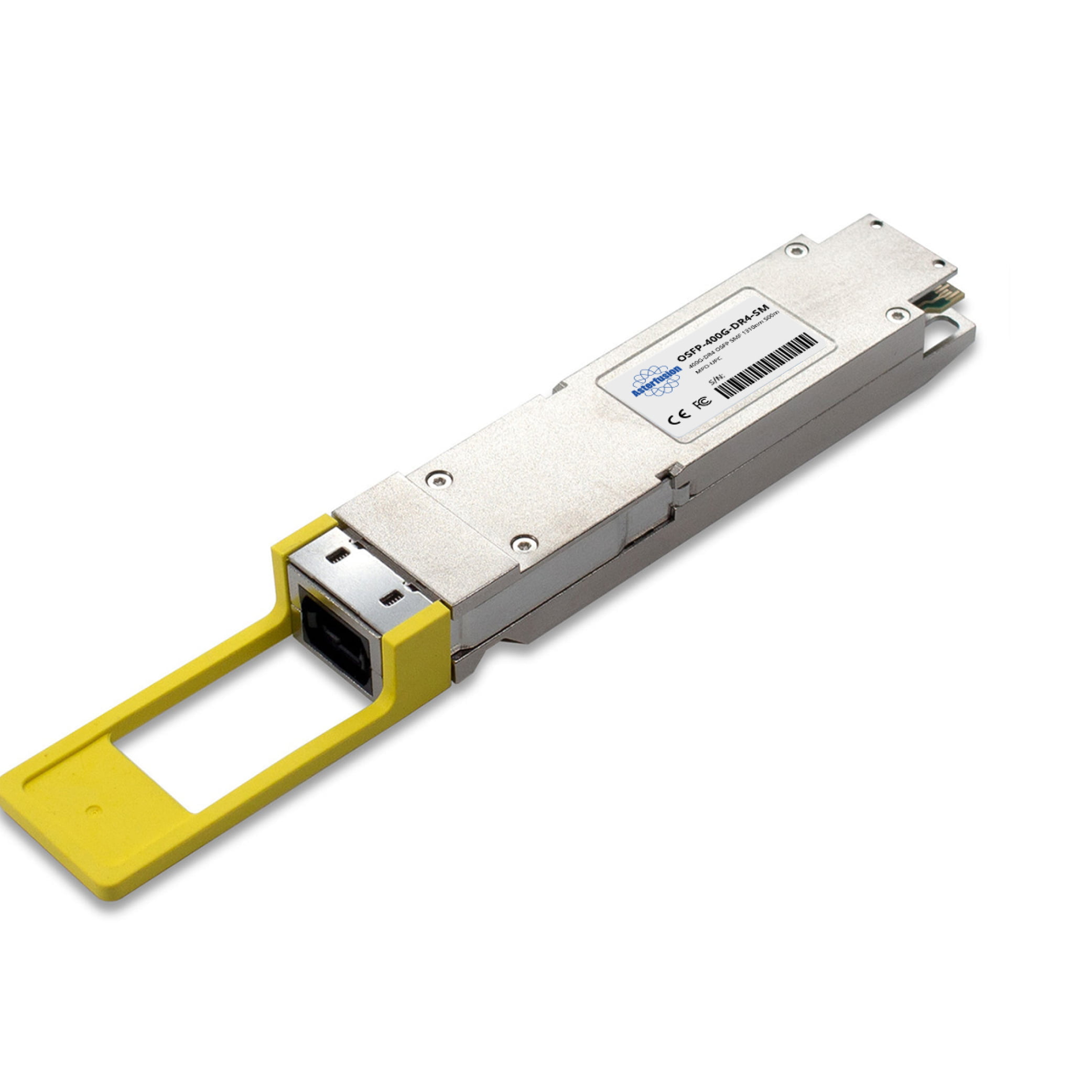

400G DR4 OSFP-RHS 1310nm 500m MPO12/APC Optical Transceiver Module
$699.00
- 400G data rate with 4×100G PAM4 lanes
- Up to 500 m reach over SMF
- MPO-12 fiber connector
- Hot-pluggable OSFP form factor
- Low power consumption <10 W
- Digital diagnostics (DDM/DOM) support
- Compliant with IEEE 802.3bs and OSFP MSA
- Operating temperature 0–70 °C
Note: Prices are exclusive of customs duties, import taxes, and VAT. Any additional charges imposed by your country are the buyer's responsibility.
Fast data transfer of up to 500m SMF is the purpose of the 400G OSFP-RHS DR4 transceiver module. Modern technology in silicon photonics (SiPh) technology, which includes active and passive optical components as well as 3D packaging and powerful 7nm DSP processors, is used in this transceiver 400G. It is specifically designed to meet the demanding specifications of modern data centers and provides an energy-efficient and affordable 400GBASE data transfer system. The reliability of the system in difficult conditions, such as humidity, temperature, as well as electromagnetic disturbance, is guaranteed through this OSFP 400G module’s powerful capabilities and feature integration that incorporates digital diagnostics that are accessible through the two-wire serial interface. This module’s OSFP MSA, as well as IEEE 802.3bs standards, are adhered to through this 400G DR4 transceiver module. Secure connections are provided by the MPO-12 outlets as well, and their sustainability for the environment is improved due to their low power consumption that is low and RoHS conformity. Ideal for applications such as Ethernet telecom, Ethernet, and InfiniBand.
Specifications
Form Factor | OSFP112-RHS | Connector | MPO12/APC |
Media | SMF | Max. Cable Distance | 500m |
Data Rate | 425Gbps | Wavelengths Range | 1310nm |
TX Power | -2.9~4dBm | RX Power | -5.9~4dBm |
Extinction Ratio | >3.5dB | Receiver Sensitivity | <-4.4dBm |
Supply Voltage | 3.3V | Power Consumption | <10W |
Op. Temperature | 0 to 70°C (32 to 158°F) | Inbuilt FEC | Tx and Rx |
DDM/DOM | Supported | Applications | 400G Ethernet |
Electrical Interface | Hot-pluggable | Protocols | CMIS, QSFP112 MSA, IEEE802.3cu, IEEE802.3ck |
| Compatible Brands | Generic, Asterfusion, Nvidia, Juniper, Cisco |
|---|
