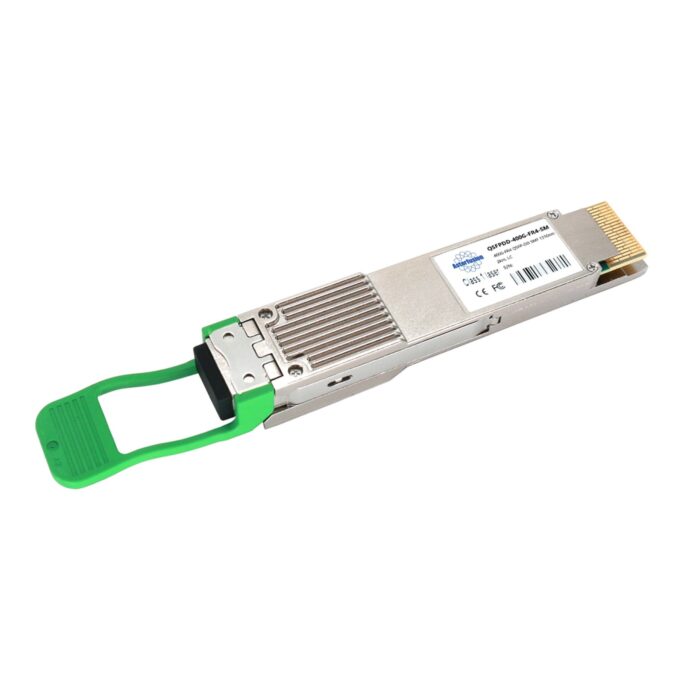

400G FR4 QSFP-DD 1310nm 2km Duplex LC DDM Optical Transceiver Module
$378.00
- 400G data rate for high-bandwidth networks
- 2 km reach over SMF with duplex LC
- 4×100G CWDM lanes with PAM4 modulation
- Hot-swappable QSFP-DD form factor
- Low power consumption <11W
- Real-time monitoring with DDM/DOM
- Compliant with IEEE 802.3cu and QSFP-DD MSA
- Operating temperature 0–70 °C
Note: Prices are exclusive of customs duties, import taxes, and VAT. Any additional charges imposed by your country are the buyer's responsibility.
The QSFP-DD FR4 400G optical transceiver module offers a maximum of 2 km distance for data transmission. The eight 50Gb/s (PAM4) electrical input channels are able to be converted to 4x100Gb/s CWDM (Coarse Wavelength Division Multiplexing) optical signals. Then, the signals are efficiently multiplexed to form one optical transmission channel at a rate of 400Gb/s. The module is able to divide a 400Gb/s optical input into four distinct CWDM optical channels at one side of the receiver. In order to provide efficient throughput with low latency, these channels can then be converted back to eight 50Gb/s (PAM4) electrical output channels. IEEE802.3cu-2021 400G-FR4 Technical Specification D2p0, and CEI 56G-VSR-PAM4 standards are all fulfilled by the optical module 400GBASE FR4. This method is more reliable and efficient in the transmission of data over long distances because it functions equally in both directions. Data centers for cloud computing, VoIP, as well as AI/ML networks for business, all benefit from the QDD 400G optical transceiver.
Specifications
Form Factor | QSFP-DD | Connector | Duplex LC |
Media | SMF | Max. Cable Distance | 2km |
Data Rate | 425Gbps (4x106.25Gbps) | Wavelengths Range | 1271nm, 1291nm, 1311nm, 1331nm |
Transmitter Type | EML | Receiver Type | PIN |
TX Power | -3.2~4.4dBm | RX Power | -7.2~4.4dBm |
Extinction Ratio | >3.5dB | Receiver Sensitivity | <-4.6dBm |
Supply Voltage | 3.3V | Power Consumption | <11W |
Op. Temperature | 0 to 70°C (32 to 158°F) | Humidity(non-condensing) | 5-95% |
DDM/DOM | Supported | Electrical Interface | Hot-pluggable |
Inbuilt FEC | Yes | Protocols | IEEE802.3cu-2021, QSFP-DD MSA, CMIS |

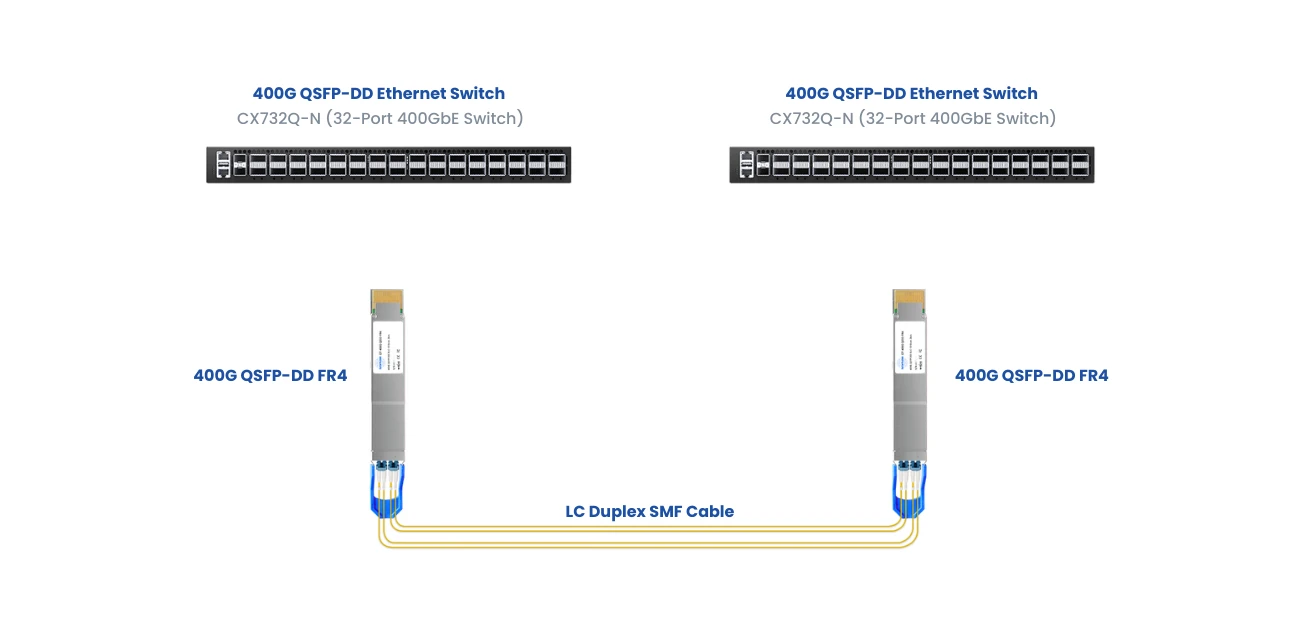

Connectivity solution
| Compatible Brands | Generic, Asterfusion, Arista, Nvidia, Juniper, Cisco, HUAWEI, H3C, Ruijie |
|---|
Warranty & Delivery Information
Warranty
Quality Certifications
Delivery Time
Our standard products are typically shipped within one week (business days).
For custom products, please contact customer service to inquire about the specific delivery time.
