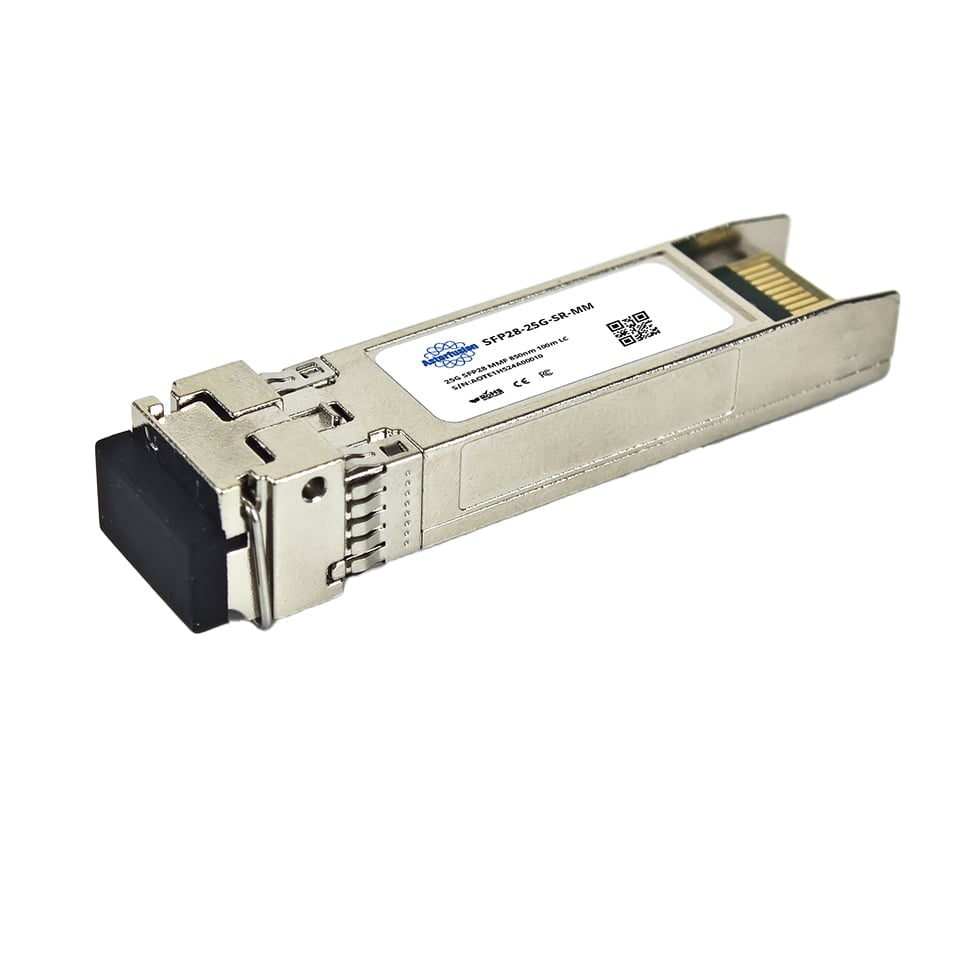

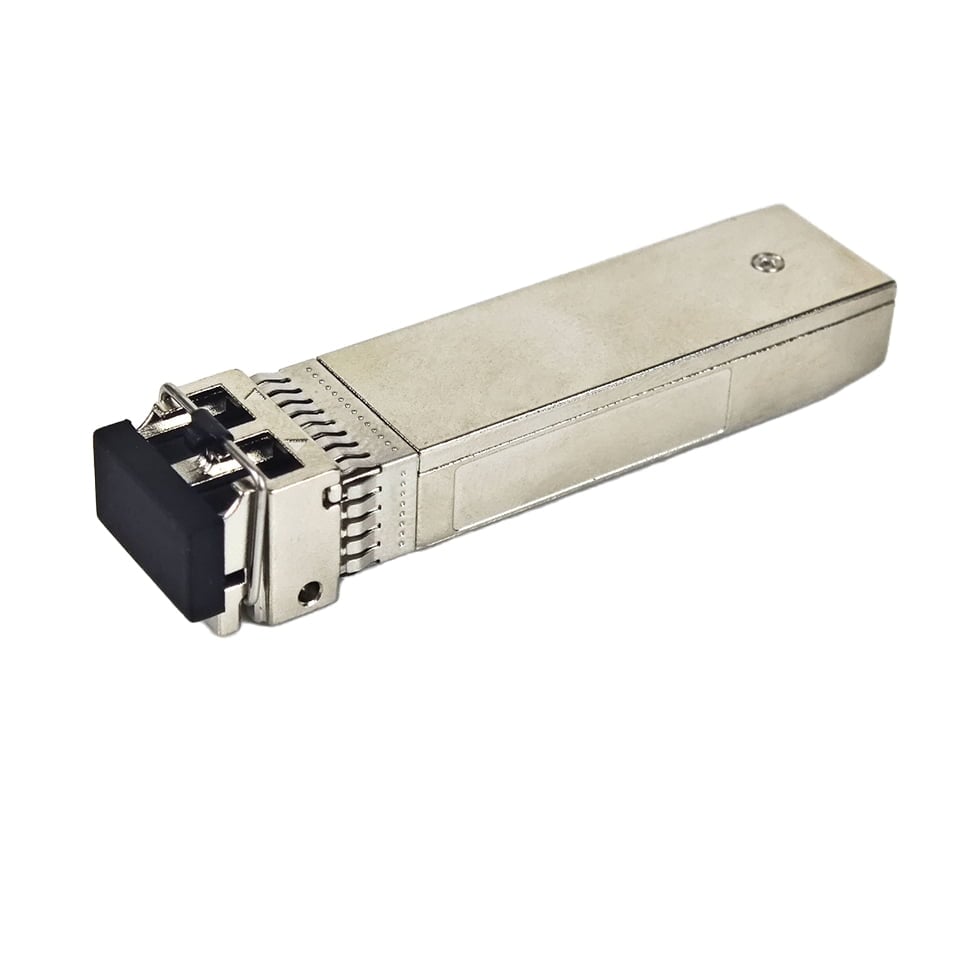

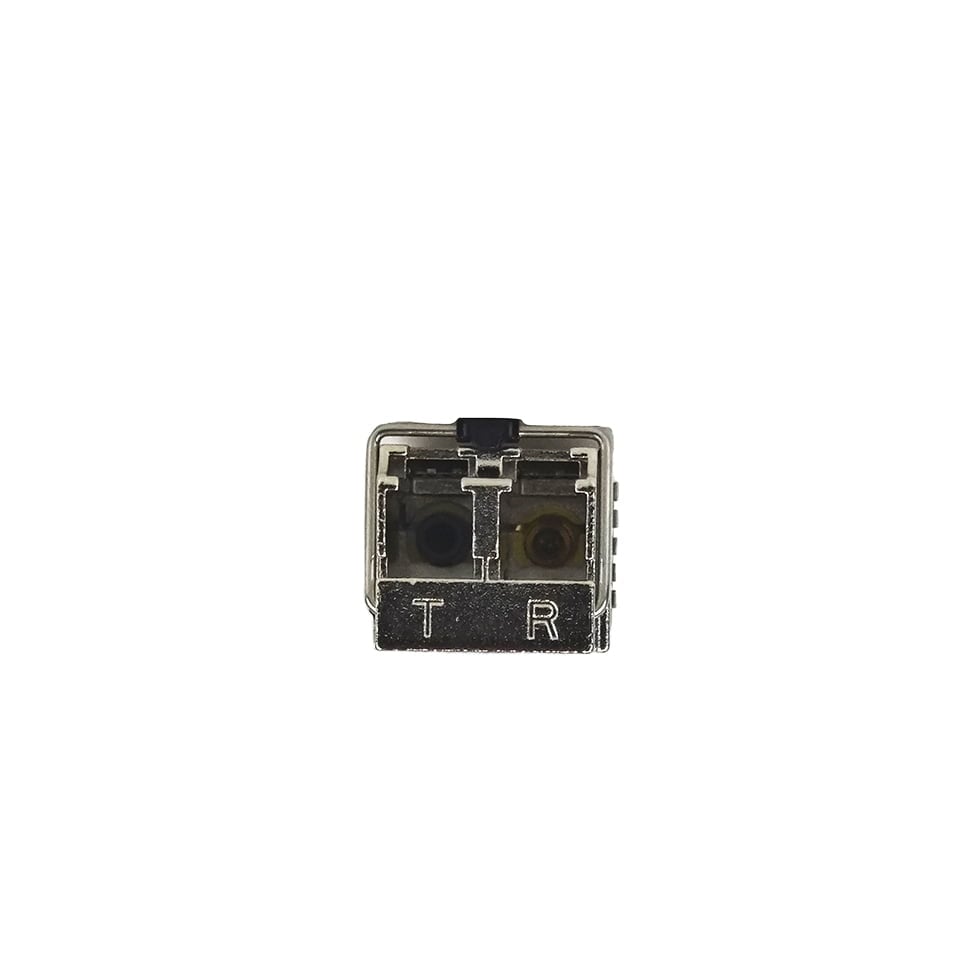

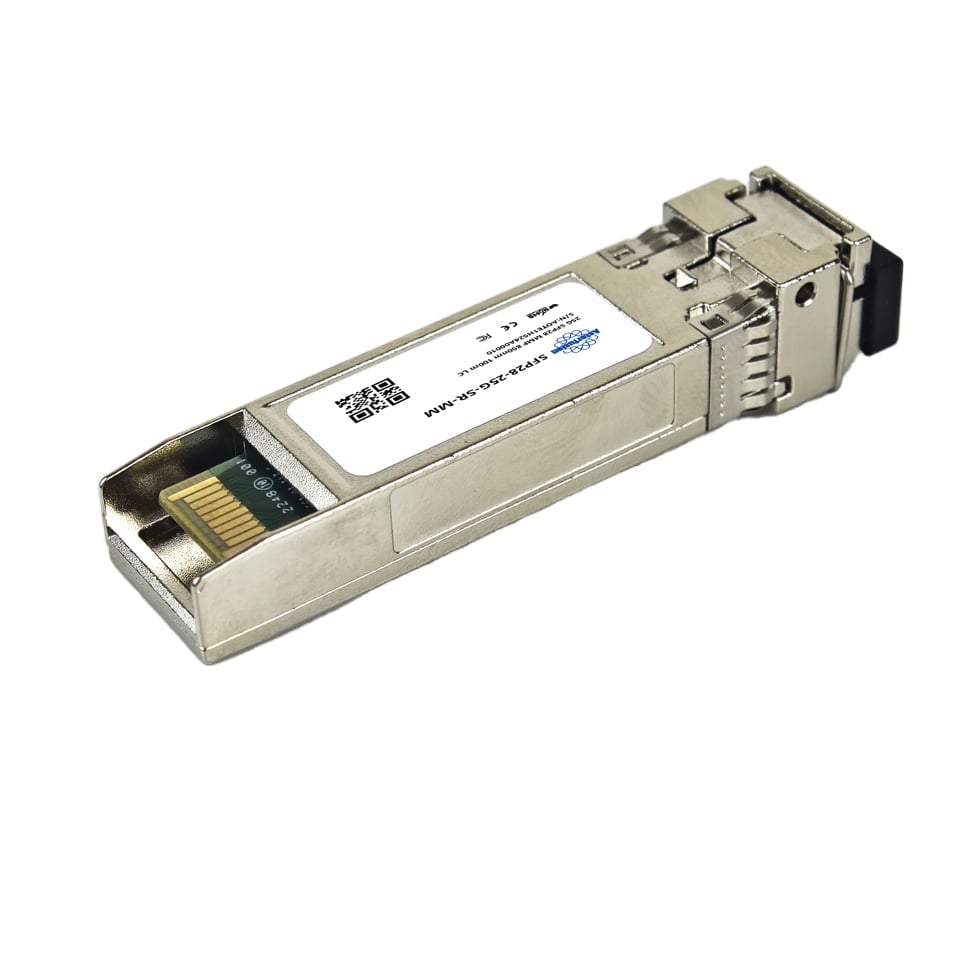

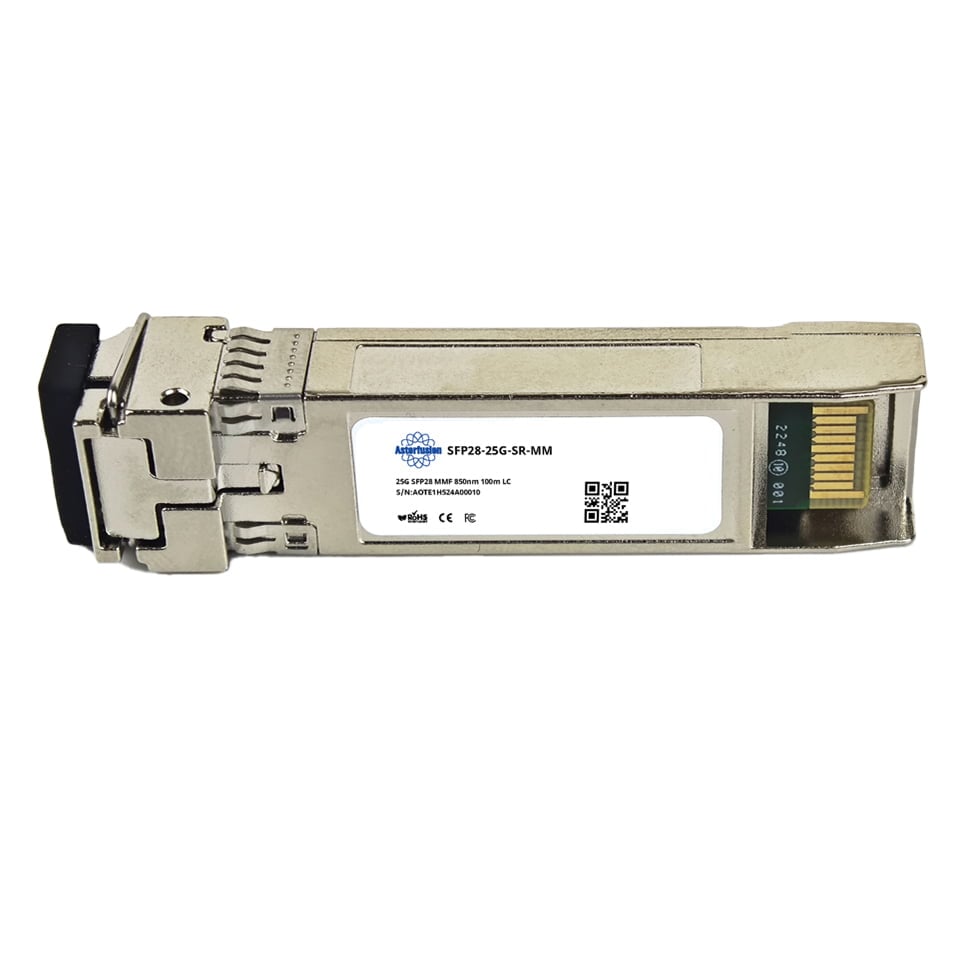

25GBASE-SR SFP28 850nm 100m OM4 Duplex LC Optical Transceiver Module
$22.00
- Supports 25 Gbps data rate
- Reach up to 100 m (OM4) / 70 m (OM3)
- Duplex LC multimode fiber interface
- Hot-pluggable SFP28 form factor
- Low power consumption < 2.5 W
- 850 nm VCSEL transmitter and PIN receiver
- DDM/DOM monitoring via I²C
- Compliant with SFP28 MSA and RoHS
- Operating temperature 0–70 °C
Note: Prices are exclusive of customs duties, import taxes, and VAT. Any additional charges imposed by your country are the buyer's responsibility.
The 25G SFP28 optical transceiver module offers reliable short-reach connectivity that is suitable for 25 Gigabit Ethernet Applications. It operates at an 850 nm wavelength and has a VCSEL transmitter and a PIN receiver. The device is able to support distances of up to 70 meters for OM3 and 100 meters with OM4 Multimode Fiber.
The 25G optical module is equipped with a hot-pluggable design, making the module it easy to install and replace. It offers 25 Gbps of data transmission and has a low energy consumption, averaging less than 2.5 W. Digital diagnostics built in through I2C provide the monitoring of parameters in real time that improve management of networks and maintenance.
Compatible with the SFP28 MSA and the IEEE 802.3by, this 25G SR optical transceiver module provides broad interoperability with routers and switches from various manufacturers, resulting in an affordable solution for data centers with high density and enterprise networks.
Specifications
Form Factor | SFP28 | Connector | Duplex LC |
Media | MMF | Max. Cable Distance | 70m OM3 /100m OM4 |
Data Rate | 25Gbps | Wavelengths Range | 850nm |
Transmitter Type | VCSEL | Receiver Type | PIN |
Extinction Ratio | >2dB | Receiver Sensitivity | <-10dBm |
Supply Voltage | 3.3V | Power Consumption | <1W |
Op. Temperature | 0 to 70°C (32 to 158°F) | Humidity(non-condensing) | 5-95% |
St. Temperature | -40 to 85°C (-40 to 185°F) | Electrical Interface | Hot-pluggable |
Application | 25GBASE-SR Ethernet | DDM/DOM | Supported |

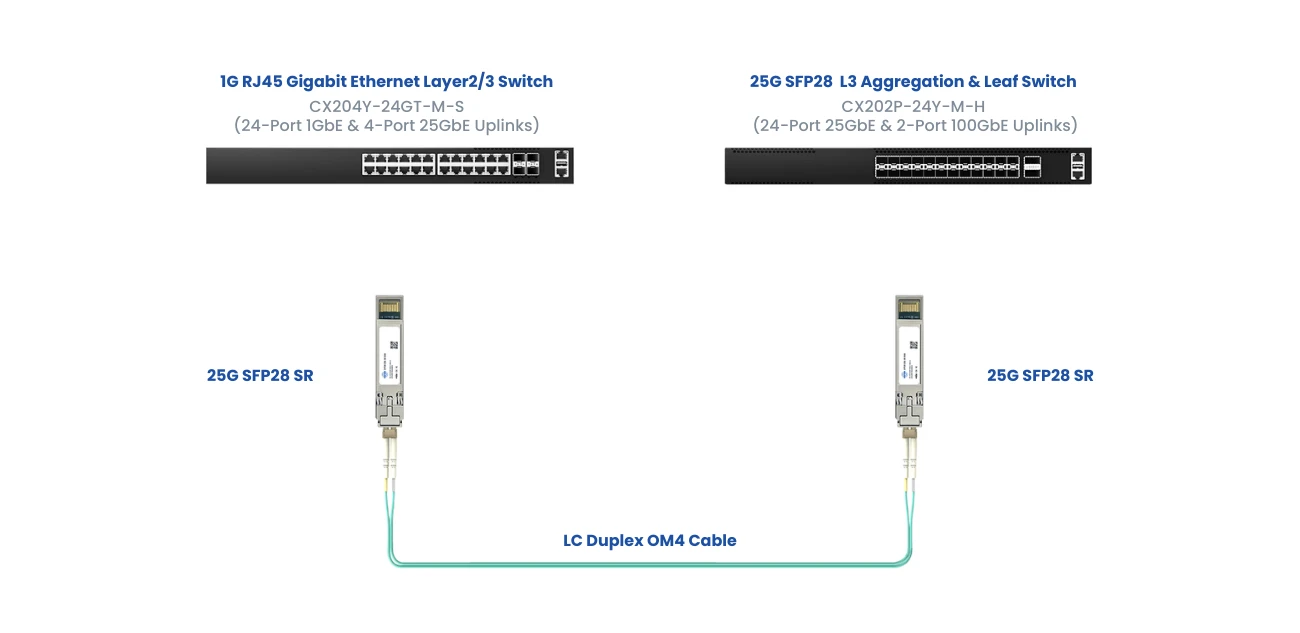

Connectivity solution
| Compatible Brands | Generic, Asterfusion, Arista, Nvidia, Juniper, Cisco, HUAWEI, H3C, Ruijie |
|---|
Warranty & Delivery Information
Warranty
Quality Certifications
Delivery Time
Our standard products are typically shipped within one week (business days).
For custom products, please contact customer service to inquire about the specific delivery time.
