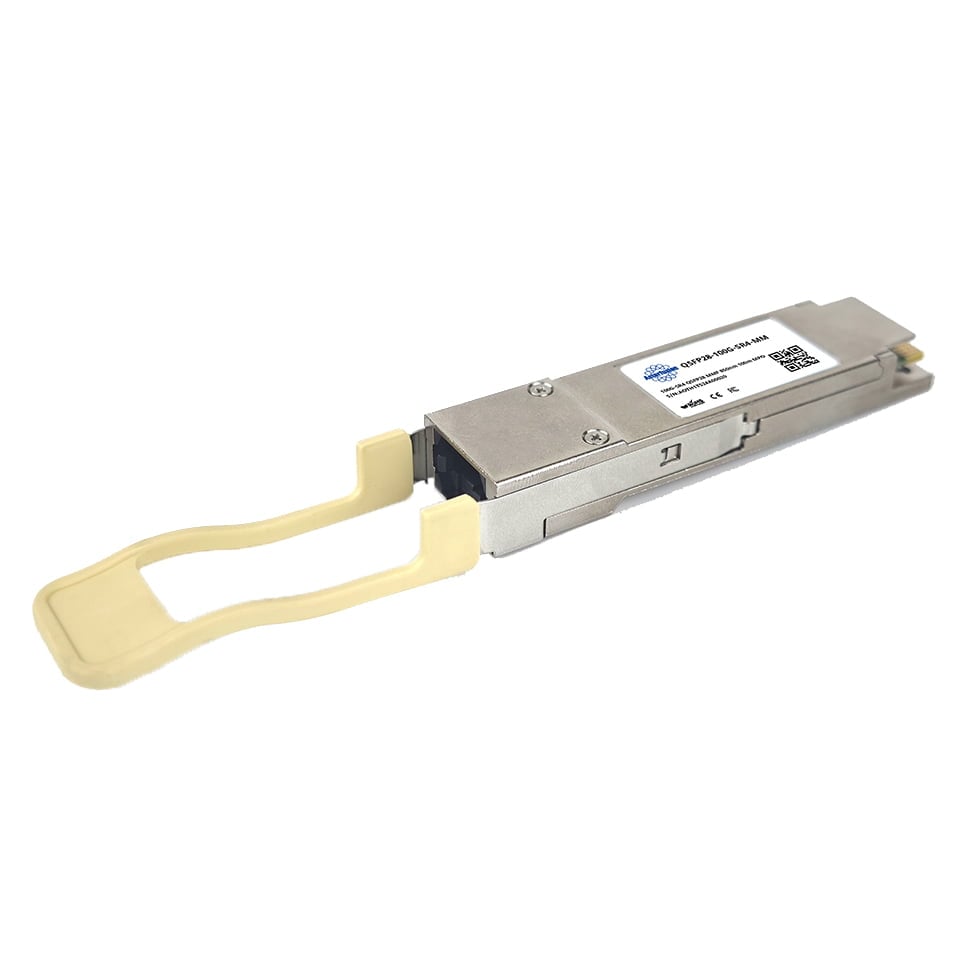

100GBASE-SR4 QSFP28 850nm 100m/OM4 Optical Transceiver Module
$41.00
- 100G data rate with 4×25G NRZ lanes
- Up to 70 m on OM3, 100 m on OM4 fiber
- MPO-12 multimode fiber connector
- Hot-pluggable QSFP28 form factor
- Low power consumption <2.5 W
- Digital diagnostics (DDM/DOM) support
- IEEE 802.3bm and QSFP28 MSA compliant
- Operating temperature 0–70 °C
Note: Prices are exclusive of customs duties, import taxes, and VAT. Any additional charges imposed by your country are the buyer's responsibility.
The 100 Gigabit Ethernet networks are supported by the 100GBASE SR4 QSFP28 optical transceiver module. Multimode fiber (MMF) lengths up to 100 meters are covered by this 100G SR4 transceiver. It conforms to the criteria of the QSFP28 Multi-Source Agreement (MSA) and other IEEE standards, including as IEEE 802.3bm 100GBASE SR4 and CAUI-4 requirements. Additionally, a 12-fiber MTP/MPO connection on the QSFP28 SR4 optical module ensures reliable and efficient signal transmission and reception. Storage area networks (SANs), high-performance computing (HPC) clusters, and network switches are all good applications for this optical device.
Specifications
Form Factor | QSFP28 | Connector | Duplex LC |
Media | MMF | Max. Cable Distance | 100m OM4/70m OM3 |
Data Rate | 111.8Gbps(4x27.95Gbps) | Wavelengths Range | 850nm |
Transmitter Type | VCSEL | Receiver Type | PIN |
TX Power | -8~2.4dBm | RX Power | -10.3~2.4dBm |
Extinction Ratio | >2dB | Receiver Sensitivity | <-8.5dBm |
Supply Voltage | 3.3V | Power Consumption | <2.5W |
Op. Temperature | 0 to 70°C (32 to 158°F) | Humidity(non-condensing) | 5-85% |
St. Temperature | -20 to 85°C (-4 to 185°F) | Electrical Interface | Hot-pluggable |
DDM/DOM | Supported | Protocols | 100G Ethernet Compliant |

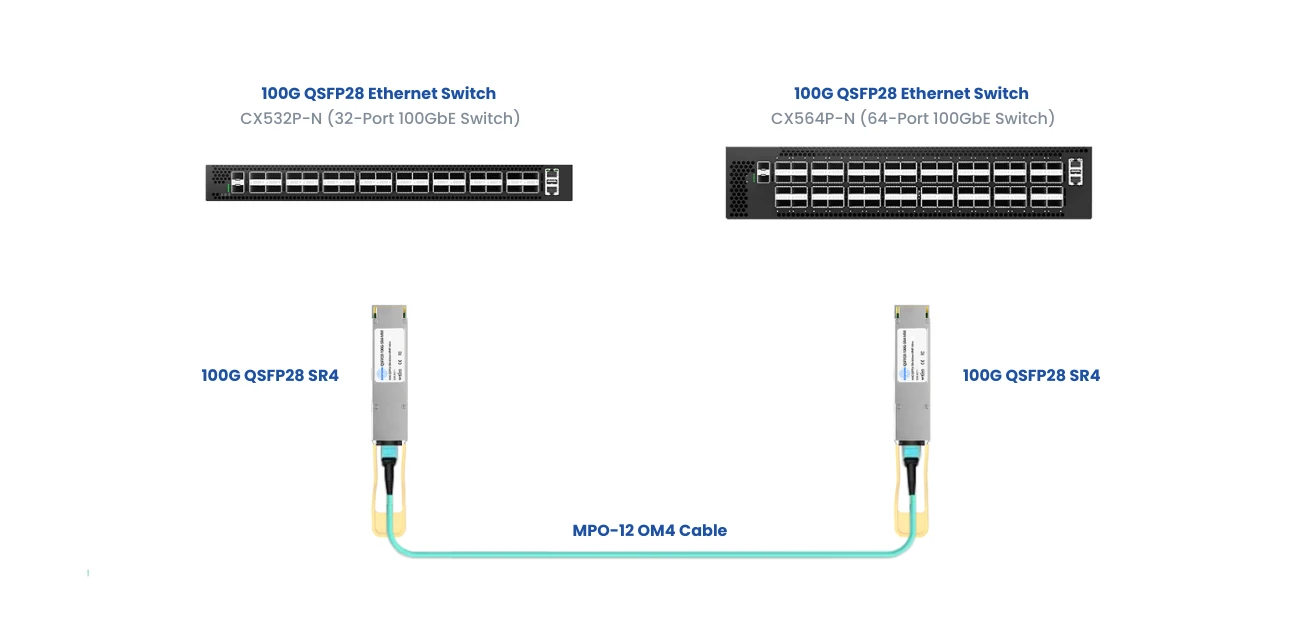

Connectivity solution
| Compatible Brands | Generic, Asterfusion, Arista, Nvidia, Juniper, Cisco, HUAWEI, H3C, Ruijie |
|---|
Warranty & Delivery Information
Warranty
Quality Certifications
Delivery Time
Our standard products are typically shipped within one week (business days).
For custom products, please contact customer service to inquire about the specific delivery time.
