100GBASE ER4 QSFP28 LAN WDM 40km Duplex LC Optical Transceiver Module
1.249,00 €
- 100G data rate via 4 × LAN-WDM lanes (~27.95 Gb/s each)
- Extended reach up to 40 km over single-mode fiber (1310 nm)
- Duplex LC interface for SMF connection
- Hot-pluggable QSFP28 form factor
- Low power consumption (< 5.5 W)
- Real-time monitoring with DDM/DOM support
- Built-in TX and RX clock/data recovery (CDR)
- Fully compliant with QSFP28 MSA, IEEE 802.3ba 100GBASE-ER4, and OTU4/ITU-T G.959.1 standards
- Operating temperature range: 0 – 70 °C (case), storage: –20 – 85 °C
Note: Prices are exclusive of customs duties, import taxes, and VAT. Any additional charges imposed by your country are the buyer's responsibility.
The 100GBASE ER4 standards are met by the 100G QSFP28 ER4 transceiver module. The maximum reach distance with single-mode fiber is 40 km. Real-time digital diagnostic monitoring of many transceiver and optical link parameters is supported by the 100G ER4 transceiver. Four channels of 25Gb/s electrical data are converted into four channels of LAN-WDM optical signals by this transceiver, which then multiplexes them into a single 100Gb/s optical stream for transmission. It skillfully de-multiplexes a 100Gb/s optical input back into four separate LAN-WDM optical signal channels on the receiving end. The 100GbE IEEE 802.3ba 100GBASE-ER4 and ITU-T G.959.1 OTU4 (4L1-9C1F) specifications are met by this optical module.
Specifications
Form Factor | QSFP28 | Connector | Duplex LC |
Media | SMF | Max. Cable Distance | 40km |
Data Rate | 111.8Gbps(4x27.95Gbps) | Wavelengths Range | 1310nm LWDM4 |
Transmitter Type | EML | Receiver Type | PIN |
Extinction Ratio | >8dB | Receiver Sensitivity | <-21.4dBm |
Supply Voltage | 3.3V | Power Consumption | <5.5W |
Op. Temperature | 0 to 70°C (32 to 158°F) | Humidity(non-condensing) | 5-85% |
St. Temperature | -20 to 85°C (-4 to 185°F) | Electrical Interface | Hot-pluggable |
DDM/DOM | Supported | Protocols | 100G Ethernet Compliant |

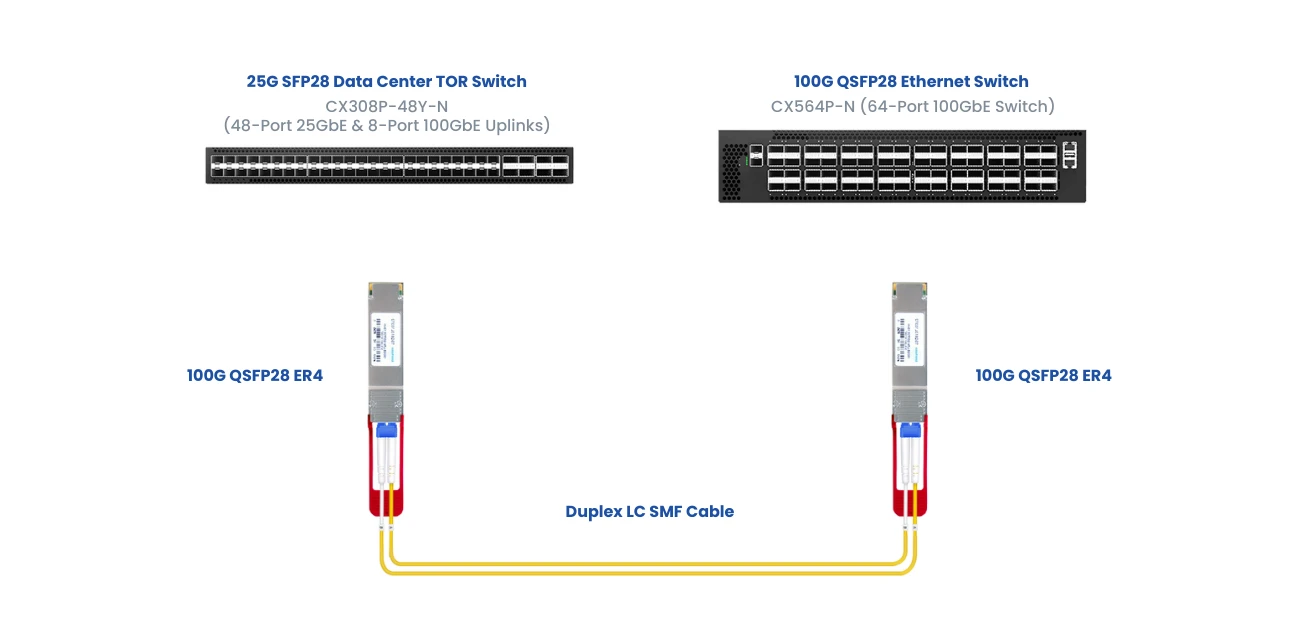

Connectivity solution
| Compatible Brands | Generic, Asterfusion, Arista, Nvidia, Juniper, Cisco, HUAWEI, H3C, Ruijie |
|---|
Warranty & Delivery Information
Warranty
Quality Certifications
Delivery Time
Our standard products are typically shipped within one week (business days).
For custom products, please contact customer service to inquire about the specific delivery time.
