100G DR1 QSFP28 1310nm 500m Duplex LC Single Lambda Optical Transceiver Module
156,00 €
- 100 G data rate via 4×25.781 Gb/s CAUI-4 (PAM4) lanes
- Up to 500 m reach over single-mode fiber (1310 nm)

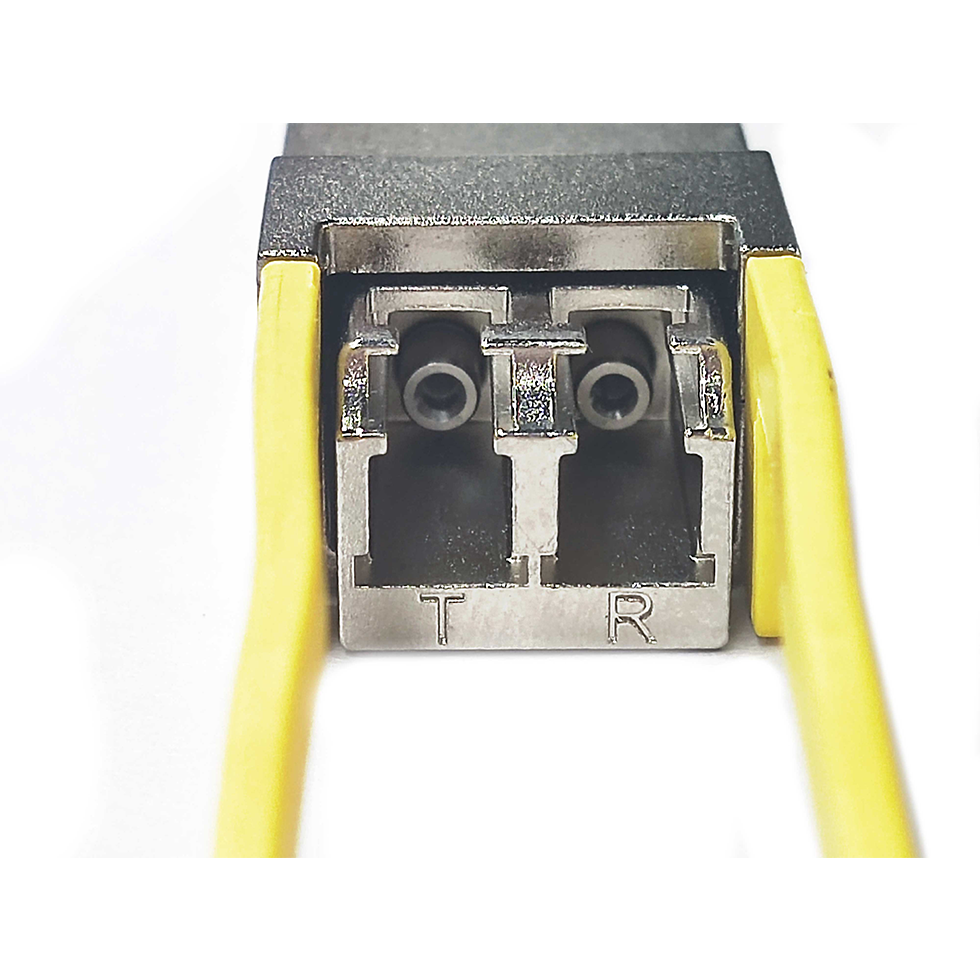

- Duplex LC connector for SMF interface
- Hot-pluggable QSFP28 form factor
- Low power consumption (< 4 W)
- Real-time monitoring with DDM/DOM support
- Compliant with QSFP28 MSA and IEEE 802.3cu (100GBASE-DR1) standards
- Operating temperature range: 0–70 °C
Note: Prices are exclusive of customs duties, import taxes, and VAT. Any additional charges imposed by your country are the buyer's responsibility.
With KP-FEC, the 100GBASE-DR1 QSFP28 transceiver module can communicate up to 500m in G.652 SMF. The transceiver 100Gbase DR1 is compatible with IEEE 802.3cu 100GBASE-DR1 and also the QSFP28 Multi-Source Agreement (MSA). Signal processing is enhanced thanks to the digital 100G signal processing (DSP) that can handle data rates aggregating to 106.25 Gb/s. Its power consumption of only 4 watts and commercial temperature range from 0 to 70 degrees Celsius help to improve its energy efficiency. For reliable operation with a range of up to 500m, the optical module comes with a VCSEL with four channels of 1310 nm array and a PIN detector. It also comes with routers or switches, a 4:1 breakout with 400GBASE-DR4, and reliable connectivity within the center of data. Because it conforms to RoHS and RoHS, it’s an environmentally friendly option for modern networking settings.
Specifications
Form Factor | QSFP28 | Connector | Duplex LC |
Media | SMF | Max. Cable Distance | 500m |
Data Rate | 100Gbps | Wavelengths Range | 1310nm |
Transmitter Type | EML | Receiver Type | PIN |
TX Power | -2.9~4dBm | RX Power | -5.9~4dBm |
Extinction Ratio | >3.5dB | Receiver Sensitivity | <-3.9dBm |
Supply Voltage | 3.3V | Power Consumption | <4W |
Op. Temperature | 0 to 70°C (32 to 158°F) | DSP | Tx and Rx |
DDM/DOM | Supported | Inbuilt FEC | Yes |
Electrical Interface | Hot-pluggable | Protocols | IEEE 802.3cu, QSFP28 MSA |

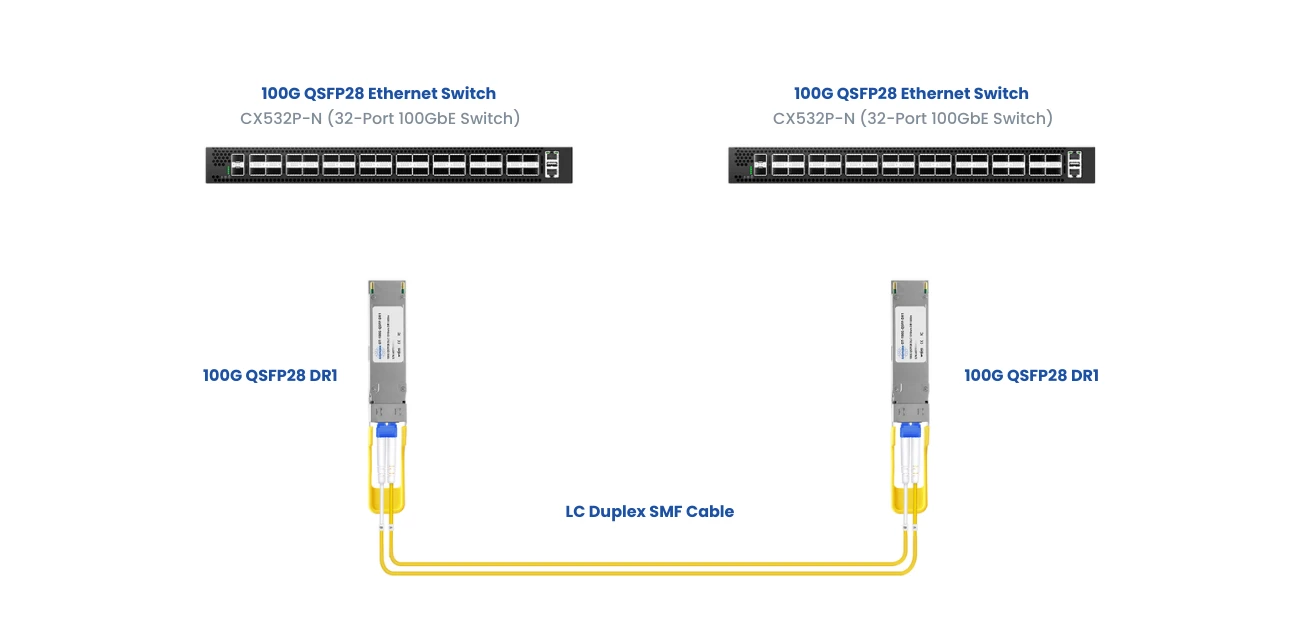

Connectivity solution
| Compatible Brands | Generic, Asterfusion, Arista, Nvidia, Juniper, Cisco, HUAWEI, H3C, Ruijie |
|---|
Warranty & Delivery Information
Warranty
Quality Certifications
Delivery Time
Our standard products are typically shipped within one week (business days).
For custom products, please contact customer service to inquire about the specific delivery time.
