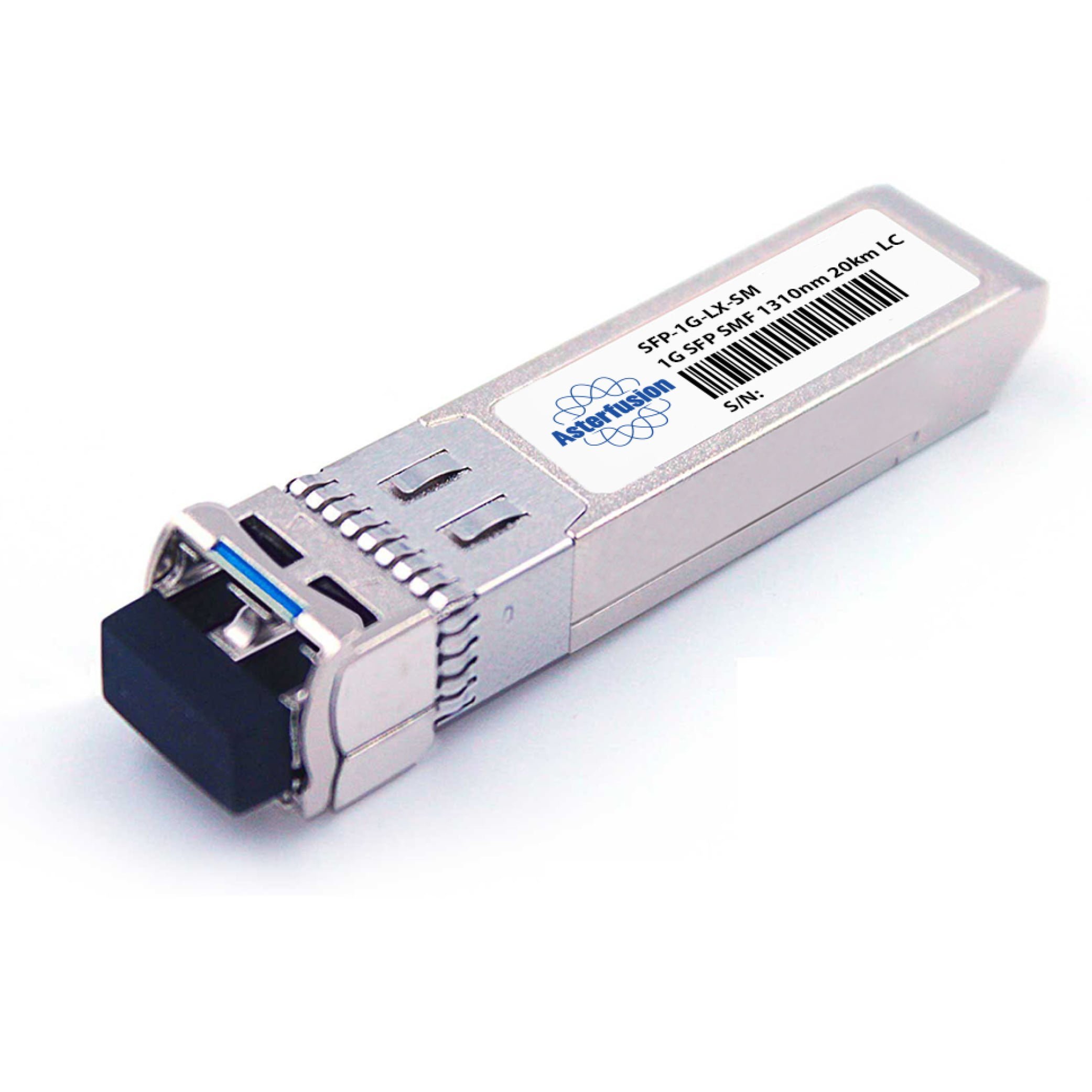

1000BASE LX SFP 1310nm 20km Duplex LC Optical Transceiver Module

$11.00

Duplex LC connector, Hot-pluggable SFP footprint
1310nm FP laser transmitter for stable transmission
RoHS-compliant and lead-free for eco-friendliness
Transmits up to 20km on 9/125μm SMF
Metal enclosure minimizes EMI
Compliant with SFP MSA SFF-8074i standards
Maximum power consumption <0.8W
Operating temperature range 0°C to +70°C

Compatible Brands

Clear

Note: Prices are exclusive of customs duties, import taxes, and VAT. Any additional charges imposed by your country are the buyer's responsibility.

GUARANTEED SAFE CHECKOUT

SKU: OT-1G-SFP-LX Category: Optical Transceivers Tags: 1G, Duplex LC, 1G SFP, 20km

The SFP 1000BASE LX SFP transceiver module offers a reliable 1 Gigabit Ethernet connectivity. The SFP 1G LX uses single-mode fiber with a transmission range of up to 20 km. When multi-mode or copper limitations are exceeded, the 1G optical module that utilizes FP (Fabry-Perot) optical technology and operates at 1310 nanometers in wavelength is a cost-effective option for applications that require long distances.
The hot-pluggable SFP form factor supports interruption-free integration of service into existing network infrastructure. The metal enclosure design ensures electromagnetic interference. Low power consumption is less than 0.8W. The module can be used with single-mode fiber 9/125mm. It complies with RoHS, SFP MSA standards.

Specifications

Form Factor	SFP+	Connector	Duplex LC
Media	SMF	Max. Cable Distance	20km
Data Rate	1.25Gbps	Wavelengths Range	1310nm
Transmitter Type	DFB	Receiver Type	PIN
Extinction Ratio	>9dB	Receiver Sensitivity	<-25dBm
Supply Voltage	3.3V	Power Consumption	<0.8W
Op. Temperature	0 to 70°C (32 to 158°F)	Humidity(non-condensing)	0-85%
St. Temperature	-40 to 85°C (-40 to 185°F)	Electrical Interface	Hot-pluggable
Application	1000BASE-LX Ethernet	Core Size	9/125um
