100GbE Leaf Spine Switch with 64x QSFP28 Ports, Low Latency, Enterprise SONiC Ready
$9,759.00
- Powered by Marvell Teralynx with 12.8 Tbps switching capacity.
- Ideal for leaf-spine and Top-of-Rack deployments in data centers.
- Enterprise SONiC is installed to support advanced protocols.
- Hot-swappable 3+1 fans and 1+1 power modules for high availability.
- Supports 40G/100G spine connections for scalable architectures.
Note: Prices are exclusive of customs duties, import taxes, and VAT. Any additional charges imposed by your country are the buyer's responsibility.
64×100GbE QSFP28 Low Latency Leaf/Spine Switch
The CX564P-N 64-port 100G QSFP28 data center switch is designed for top-of-rack (ToR) or future-generation leaf and spine deployments. It is ideal for business networks with high-performance hyperscale data centers. Powered by the Marvell Teralynx 7 ASIC, which delivers extremely low latency and line-rate L2/L3 switching capacity that can reach 12.8 Tbps. This leaf and spine switch is pre-installed with Enterprise SoniC (AsterNOS), ensuring seamless integration into cloud-native modern architectures through the use of advanced technologies such as RoCEv2, EVPN Multihoming, VXLAN, MLAG, PFC, ECN, DCBX, and INT. In mission-critical environments with 3+1 hot-swappable fans along with 1+1 power module ensure reliability and flexibility. The CX564P-N 64-port 100G switch offers unbeatable performance in terms of programmability, reliability, and operational efficiency, with support for spine interconnects of 40G/100G.
Specification
Rack & Physical
Dimension (HxWxD) 88.8×440×560mm
Weight 16KG
Rack Space 2U
Airflow Front to Rear
Data Plane Ports
Fixed Interfaces
(64) 100GbE QSFP28
Fixed Interfaces
(2) 10GbE SFP+
Switch Core
Switch ASIC Marvell Teralynx
Switching Capacity 6.4Tbps
Packet Buffer 70MB
Forwarding Rate 7600Mpps
Management & Control
Management Ports
(1) USB2.0
(1) Console RJ45
(1) MGMT RJ45
Control and Management CPU
(CPU) Broadwell DE D-1508
(RAM) 16GB DDR4, extensible to 96GB
(SSD) 128GB/-, m.2 SATA
Address & Routing Entries
Mac Addr. Entries 44K
ARP Entries 36K
IPv4 Prefix Routes 72K
IPv6 Prefix Routes 36K
Power & Cooling
Power Module (1+1) Hot-pluggable
FAN Modules (3+1) Hot-pluggable
Input Range 100~240V AC / 36~72V DC
Max Power Consumption 820W
Operating Environment
Op. Temperature 0~40℃ (32 to 104℉)
Op. Humidity 10%~90% (non-condensing)
AsterNOS – Enterprise SONiC, Optimized for Performance
AsterNOS is Asterfusion’s enhanced SONiC distribution, pre-installed on every CX Series switch. Built for modern data centers, it combines open-source flexibility with enterprise-grade reliability, usability, and speed. Battle-tested and production-ready, AsterNOS delivers the stability and performance you need — empowering your network to run smarter, faster, and stronger.
Layer 2 Features
- 4096 VLANs
- Multiple Spanning Tree Protocol (MSTP)
- Link Aggregation Control Protocol (LACP)
- 128 LAG groups / 64 LAG members
- Multi-Chassis Link Aggregation (MC-LAG)
- Link Layer Discovery Protocol (LLDP)
- Jumbo Frames (9K Bytes)
- Storm Suppression
- Port Isolation
- Monitoring Link
Layer 3 Features
- Routing Protocols: OSPF, OSPFv3, BGP, MP-BGP,IS-IS
- Equal Cost Multipath Routing (ECMP)
- VRF
- Bi-Directional Forwarding Detection (BFD)
- Route Maps
- VRRP
- Policy-Based Routing (PBR)
- AIDC Intelligent Routing
Virtualization Features
- VXLAN Routing and Bridging
- Anycast Gateway
- Distributed/Centralized Gateway
- Ethernet Auto Discovery
- Symmetry IRB
- EVPN Multi-homing
Management & Monitoring
- Console, SSH, Telnet, REST API, NETCONF
- Management over IPv6
- Industry Standard CLI
- Syslog
- Zero Touch Provisioning (ZTP)
- Containerized Custom Tools
- SNMPv2, SNMPv3, SNMP Trap
- SPAN, ERSPAN
- sFlow
- In-band Network Telemetry (INT)
- Buffer Drop Capture
- High Delay Capture
- AsterNOS Exporter (Prometheus)
- Grafana Dashboard
- RoCE Status
- Prometheus Alarm & Alert
Quality of Service (QoS)
- 802.1p-based classification
- DSCP-based classification and Remarking
- Strict priority queueing
- DWRR Scheduling
- Port/Queue-Based Traffic Shaping
- Rate limiting
- Explicit Congestion Notification (ECN)
- Per-Priority Flow Control (PFC)
- PFC Watchdog
- Data Center Bridging Extensions (DCBX)
- RoCEv2
- One-step RoCE Configuration
Security Features
Access Control Lists (ACLs)
- IPv4/IPv6 Ingress ACLs
- IPv4/IPv6 Egress ACLs
- User-defined Field (UDF) Matching
Security & Authentication
- Control Plane Policing (CoPP)
- Service ACLs
- TACACS+
- RADIUS

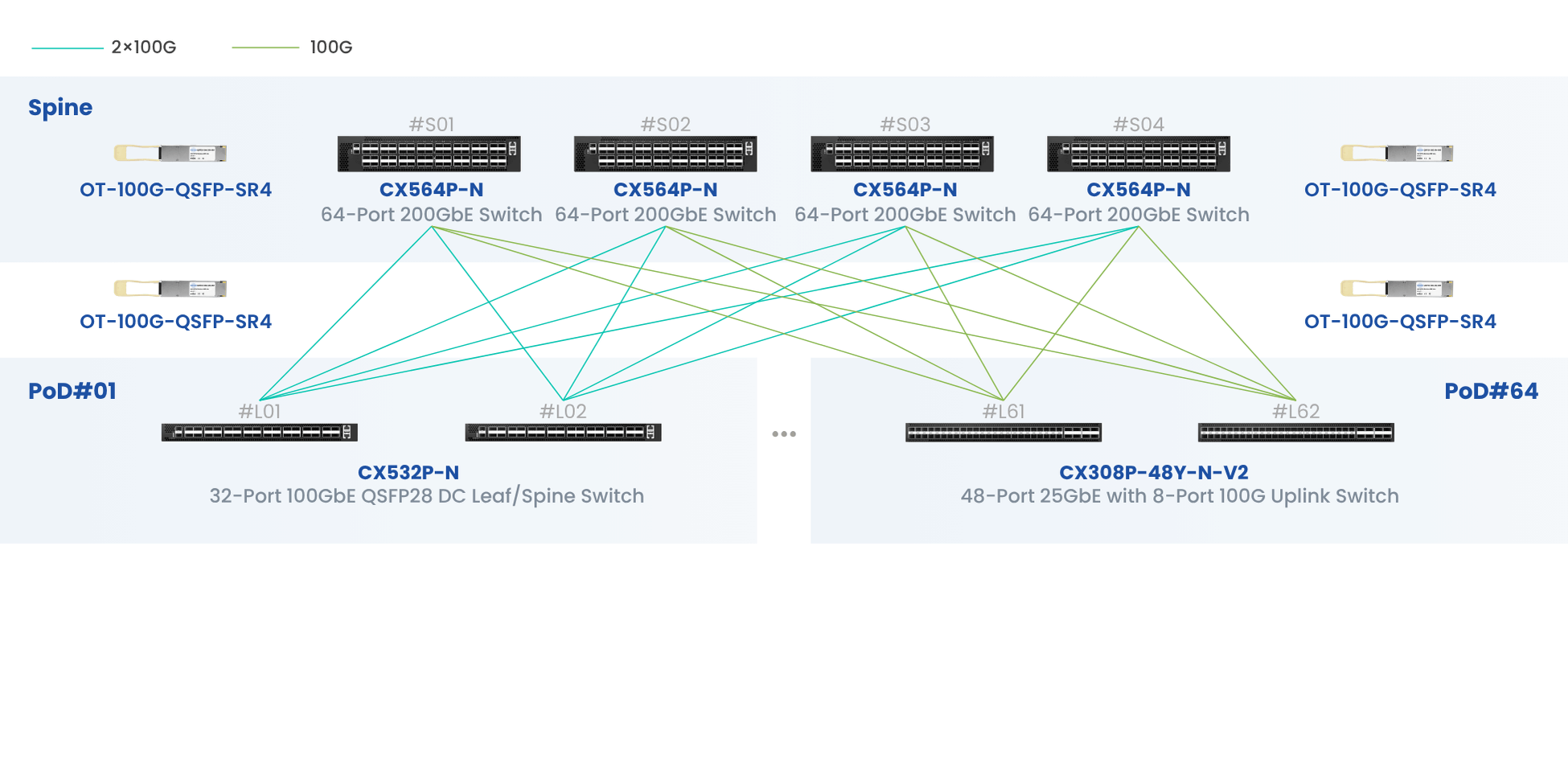

Connectivity solution
Product Assurance & Logistics
Warranty & Support
Quality Certifications
Delivery Time
Our standard products are typically shipped within one week (business days).
For custom products, please contact customer service to inquire about the specific delivery time.
500 ns
6.4 Tbps
70 MB
7600 Mpps
64 x 100G
Advanced Hardware Features
Engineered for scalability, efficiency, and always-on reliability.
Marvell Teralynx 7 Inside: Unleash Industry-Leading Performance & Ultra-Low Latency
With Marvell Teralynx 7 at its core, Asterfusion 400G switches achieve blazing-fast sub-500ns latency—perfect for AI/ML, HPC, and NVMe where speed drives results.
Redundant Power Supplies and Smart Fans
Boasting 64×100GbE QSFP28 and 2×10GbE ports, the device supports interface splitting via breakout cables, which helps enhance the efficiency of network resource usage and accommodate diverse application scenarios.
The dual 1+1 hot-pluggable power supplies ensure continuous operation by allowing replacement without system shutdown. Equipped with 3+1 hot-pluggable fan modules, the system delivers reliable cooling performance to maintain stability and efficiency under demanding workloads.
Full RoCEv2 Support for Ultra-Low Latency and Lossless Networking
Asterfusion 800G switches deliver full RoCEv2 support with ultra-low latency and near-zero CPU overhead. Combined with PFC and ECN for advanced congestion control, it enables a true lossless network.
AsterNOS supports Node Exporter to send CPU, traffic, packet loss, latency, and RoCE congestion metrics to Prometheus. Paired with Grafana, it enables real-time, visual insight into network performance.
Automate with Easy RoCE, ZTP, Python and Ansible, SPAN / ERSPAN Monitoring & more—cutting config time, errors, and costs.
