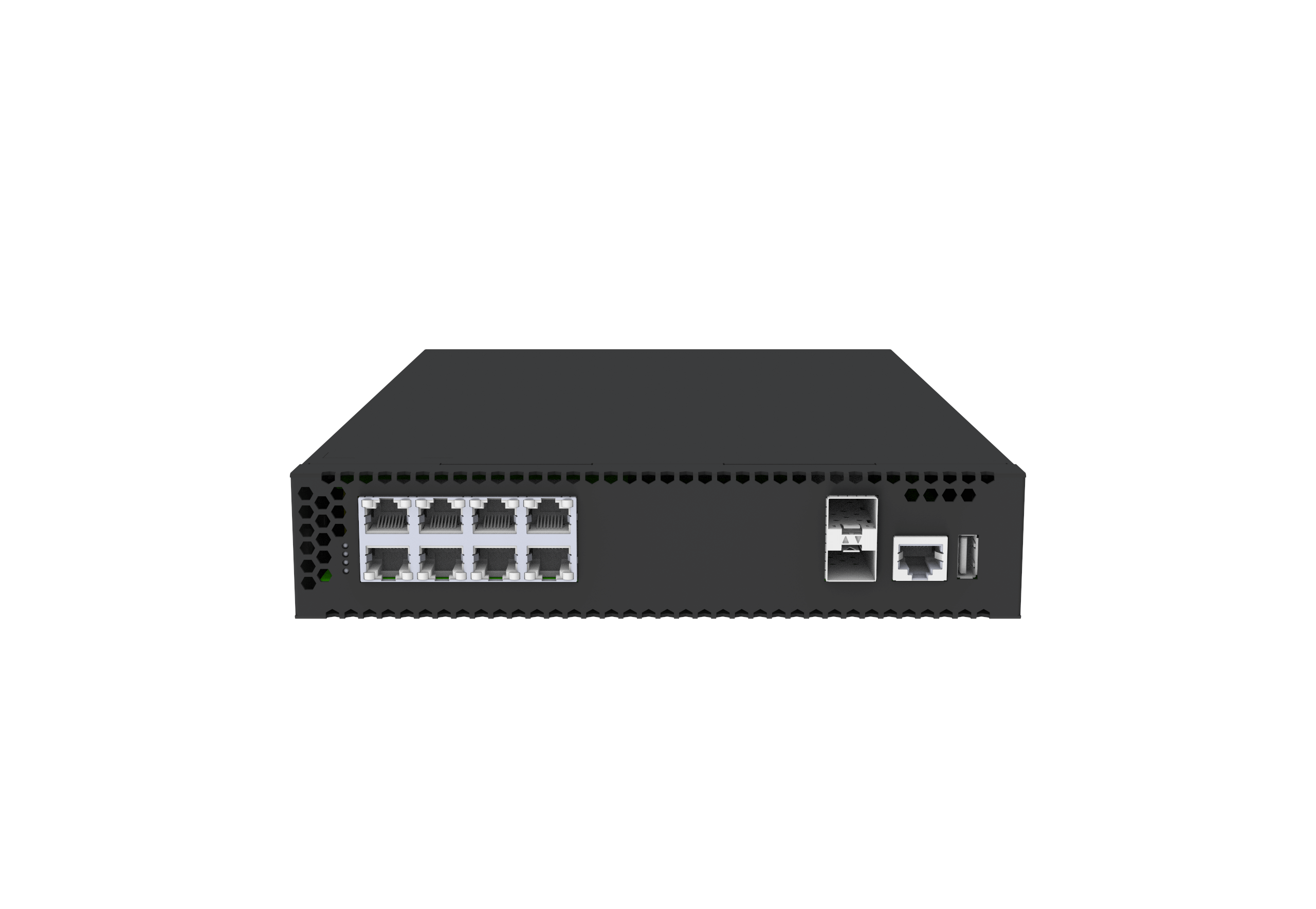

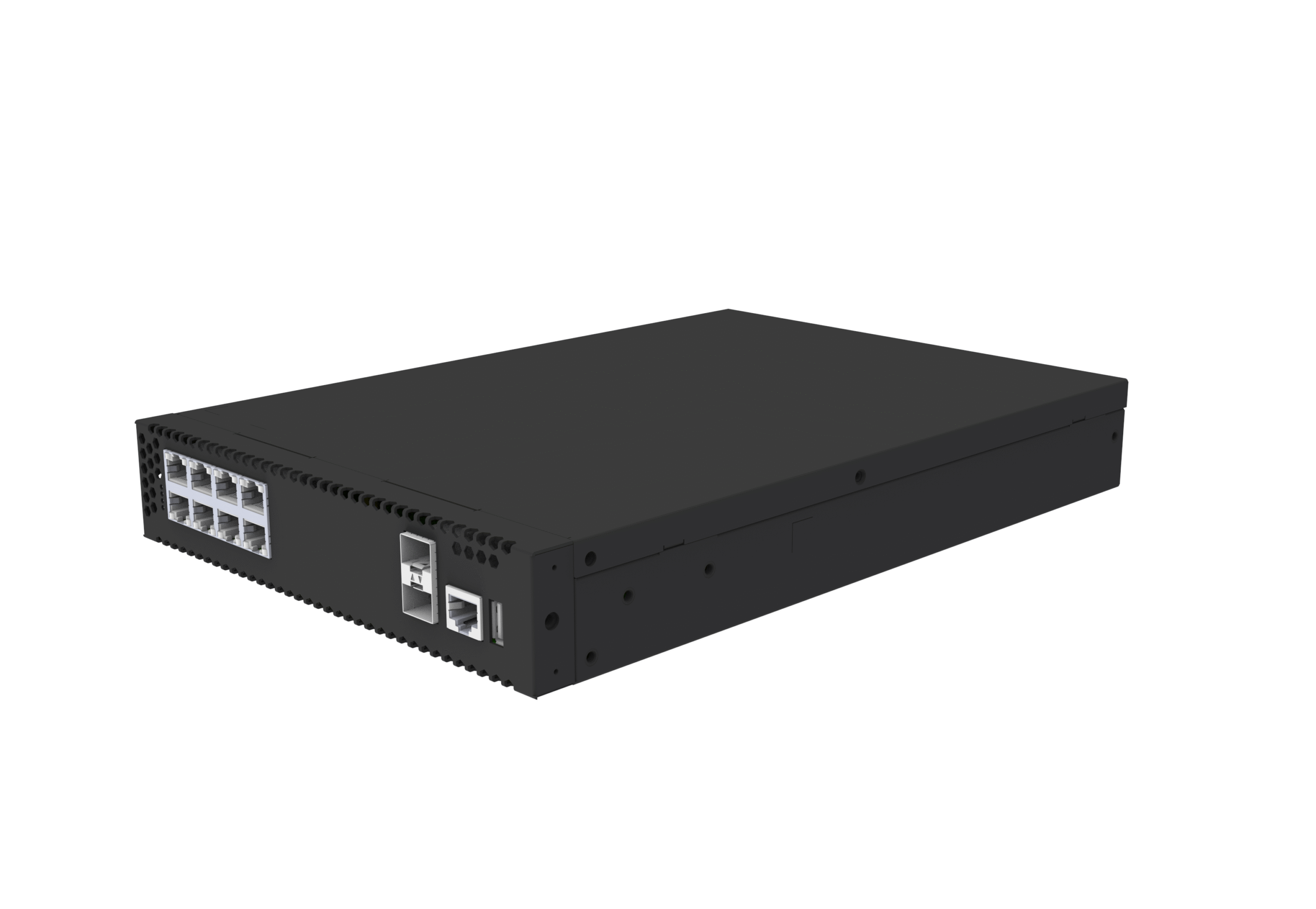

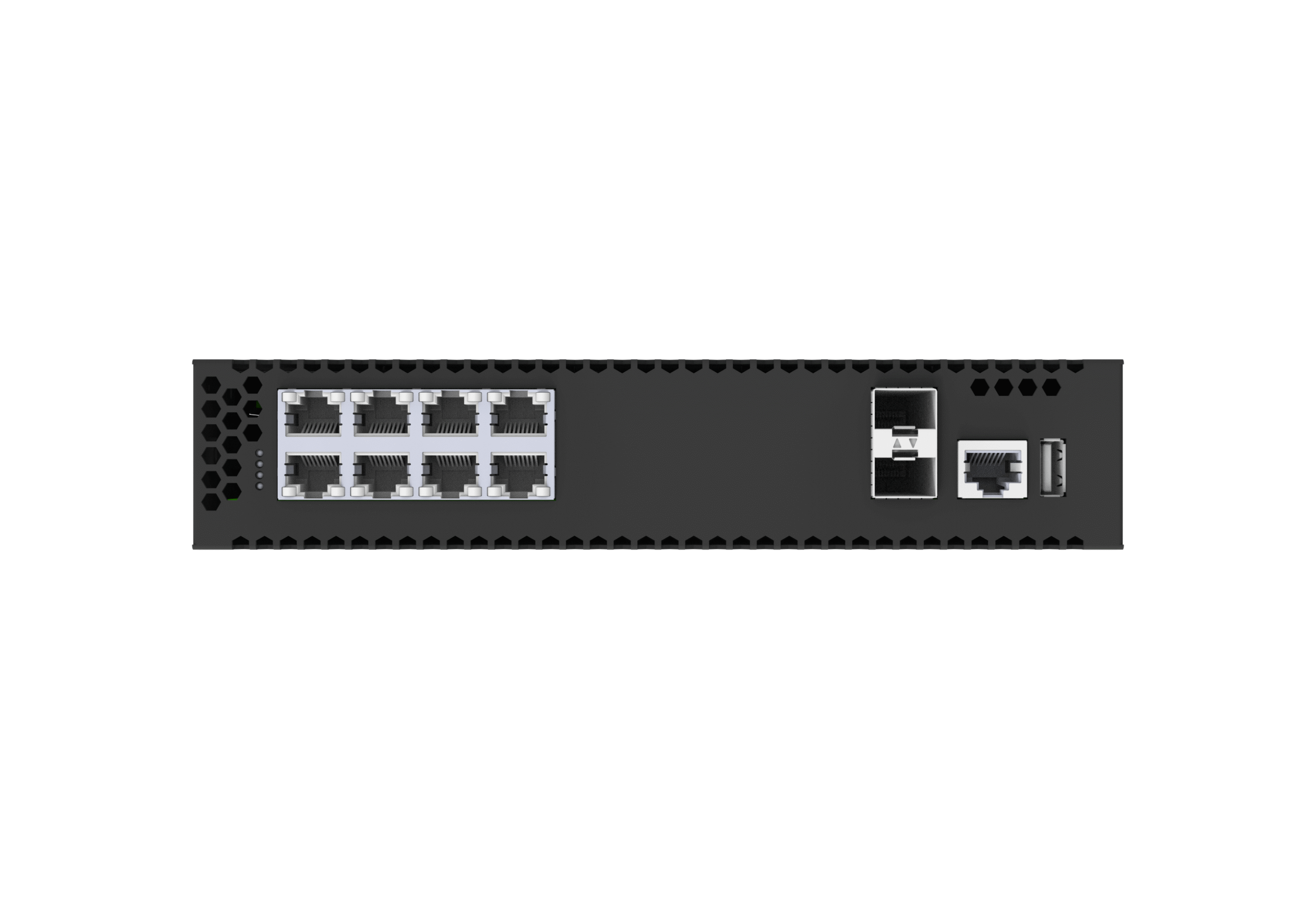

8-Port 2.5GbE RJ45, 2x10GbE SFP+ PoE++ L2/3 Access Switch, Enterprise SONiC Preloaded, MLAG/VXLAN Support

8-Port 2.5GbE RJ45, 2x10GbE SFP+ PoE++ L2/3 Access Switch, Enterprise SONiC Preloaded, MLAG/VXLAN Support - Image 2

8-Port 2.5GbE RJ45, 2x10GbE SFP+ PoE++ L2/3 Access Switch, Enterprise SONiC Preloaded, MLAG/VXLAN Support

Price range: $379.00 through $779.00

8 Ports 2.5G RJ45 with 10G uplinks
Support 8-port PoE++ (802.3bt)@150W
Rich Layer 2/3 features
Enterprise SONiC Distribution preload

Power Budget

PTP Extension Card

Clear

Note: Prices are exclusive of customs duties, import taxes, and VAT. Any additional charges imposed by your country are the buyer's responsibility.

GUARANTEED SAFE CHECKOUT

SKU: CX102S-8MT-M Category: Campus Access and Aggregation Switch Tags: 2.5G Enterprise Switches, 2.5G RJ45, 8 Ports, 10G SFP+ Uplinks, PoE+(802.3at), PoE++(802.3bt)

Asteraix 8-port 2.5G PoE++ switch CX102S-8MT has 8x 2.5G RJ45 ports with 2x 10G SFP+ ports uplinks, which is designed for high-performance WiFi 6/6E access points, HD/4K security camera systems, digital signage, IoT, and small business networks. These 8x 2.5G ports support PoE++(IEEE 802.3bt), and the maximum PoE power budget is 150W. The PoE power output per port is up to 60W(PoE++), these ports are backward compatible with PoE+ and PoE devices.

Compare to 8 port gigabit PoE++ switch, the 2.5G PoE++ switch increased bandwidth that better support for multiple high-bandwidth devices such as WiFi 6/6E APs.

Upgrade WiFi network deployment, and run bandwidth-intensive applications, a power over ethernet switch 8 port 2.5GbE is a good choice, preloaded commercial SONiC NOS – AsterNOS that supports rich features of layer 2 and layer 3, such as OSPF and BGP, and additional capabilities such as MLAG and IPV6. The optional PTP module provides accurate time synchronization, enhanced security, simplified network management, and improved network performance.

Specification

Rack & Physical

Dimension (HxWxD) 44×215×310mm
Weight 2.2KG

Rack Space 1U
Airflow Front to Rear

Data Plane Ports

Fixed Interfaces (8) 2.5GbE PoE+/PoE++
Fixed Interfaces (2) 10GbE SFP+

PoE Budget 150W
PoE Standard IEEE 802.3af/at/bt

Switch Core

Switch ASIC Marvell AlleyCat5Y
Switching Capacity 70Gbps
Forwarding Rate 41.6Mpps

Packet Buffer 3MB
RAM 4GB
Flash Memory 32GB eMMC

Address & Routing Entries

Mac Addr. Entries 32K
IPv4 Prefix Routes 13K

IPv6 Prefix Routes 6.5K
ARP Entries 6K

Management Interface

USB (1) USB2.0

Console (1) Console RJ45

Power & Cooling

Power Module (1) Built-in Power
FAN Modules (2) Built-in Fans

Input Range 100V – 240V AC
Max. Power Consumption 39Watt(w/o PoE)

Operating Environment

Operating Temperature 0~45℃ (32 to 113℉)

Operating Humidity 5%~90%(non-condensing)

Optimized Software for Advanced Workloads-AsterNOS

AsterNOS is the pre-installed network operating system on Asterfusion’s CX-M Series 2.5G campus switches. Built on SONiC, but enhanced far beyond the open-source version, AsterNOS delivers a rich set of enterprise-grade features tailored for modern campus and enterprise office environments. It supports comprehensive Layer 2 and Layer 3 protocols, advanced routing, and virtualization capabilities such as VXLAN and BGP-EVPN—along with powerful extensions like MPLS and MacSec for more specialized use cases. Smart, secure, and simple to manage, AsterNOS is purpose-built to power high-performance, always-on campus networks with ease and confidence.

Feature 1

Layer 2 Features

4K VLANs / Voice VLAN
Multiple Spanning Tree Protocol
QinQ
Link Aggregation Control Protocol
MLAG / VLAN Trunking
Link Layer Discovery Protocol (LLDP)
LLDP Enhancements for PoE
Port Isolation
IGMP Snooping
BPDU Guard, BPDU Filter
Loopback Detection

feature 2

Layer 3 Features

IPv4/v6 Dual Stack
Policy-Based Routing
Resilient ECMP
ARP-to-Host
VRF
Bi-Directional Forwarding Detection (BFD)
IGMP v2/v3
Route Map
VRRP
GRE
Routing Protocols: OSPF v2/v3, BGP, MP-BGP

Feature 3

Management & Monitoring

Asteria Campus Controller
Industry Standard CLI
Zero Touch Provisioning (ZTP)
SNMP v1/v2/v3
sFlow
Port Mirroring
Syslog
Log Management
PTP IEEE 1588v2 (TC and BC)
Containerized Custom Tools
BGP/BFD Operational Status

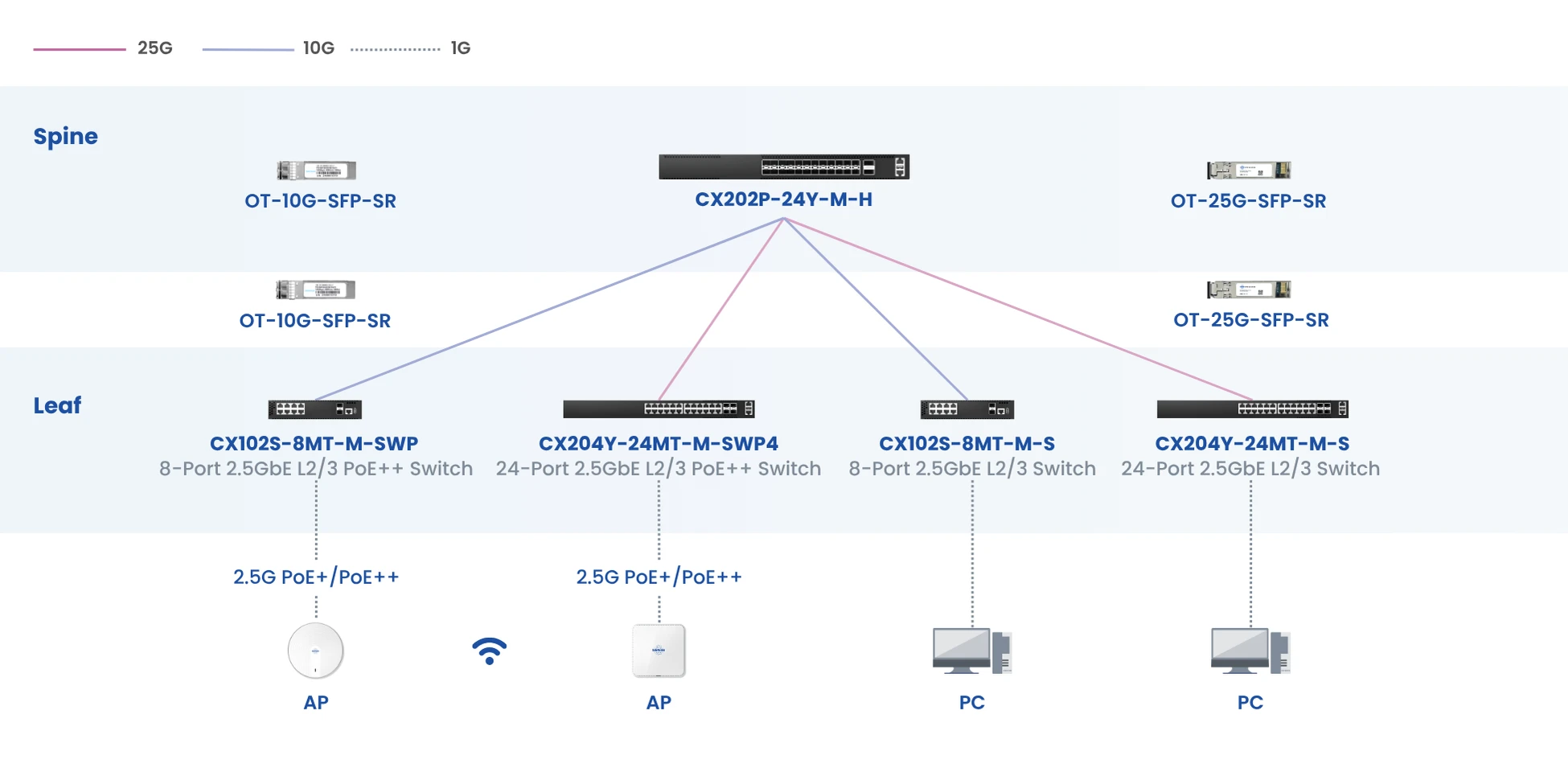

CX102S-8MT-M-SWP Access Switch Connectivity

Provides compact 2.5GbE access with PoE++ support, seamlessly connecting APs, PCs, and IoT devices to 10G/25G aggregation switches for reliable campus networking.

2.5g-spine–leaf-network-topology-using-CX204P-&-CX102S-8MT-switches

Power Budget	150Watt, None
PTP Extension Card	Class A, None

Free OpenWiFi Network Controller

our free management controller

Unified Visualization, Management & O&M with OpenWiFi Network Controller

Our campus switches, powered by enterprise SONiC, integrate with a TIP OpenWiFi – based controller. This integration enables unified monitoring, automated deployment, and streamlined operations.
Key features include intelligent topology planning, ZTP, real – time network visualization, and script – based automation. With centralized remote management and flexible deployment options (cloud or on – premise), this solution offers full control over the entire campus network, from APs to switches. It helps IT teams optimize performance, speed up troubleshooting, and scale easily.

Product-Overview-Asteria-Campus-Controller-e-20250822-v1.3 Download
