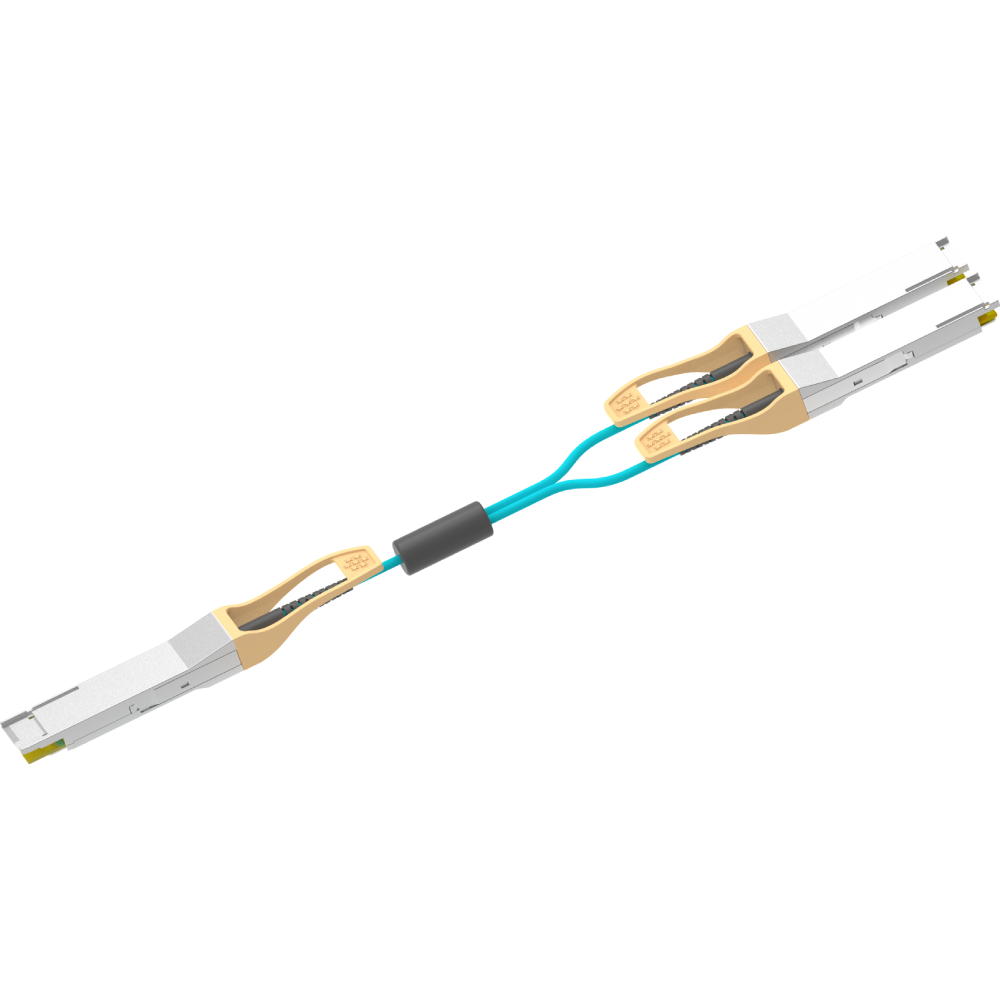

400G QSFP-DD to 2x200G QSFP56 Active Optical Cable

SKU:

<9W(400G End) | <5W(200G End) | QSFP-DD to 2*QSFP56 | 100m

  • Hot-pluggable QSFP-DD and QSFP56 form factor

  • Transmission data rate 8x50Gb/s PAM4 modulation

  • 400G end power consumption < 9W

  • 200G end power consumption <5W

  • RoHS-compliant and CMIS V4.0 compliant

  • 400GBASE-SR8 and 200GBASE-SR4 compliant

  • Max. link length of 70m on OM3 MMF, 100m on OM4/OM5 MMF

Request Discount

The 400G QSFP-DD to 2xQSFP56 active optical splitter cable connects a single 400G QSFP-DD port to two independent 200G QSFP56 ports, carrying 8 lanes of 50Gb/s PAM4 (26.5625G Baud/lane) over OM3/OM4/OM5 multimode fiber. It supports link distances of up to 70m on OM3 and 100m on OM4 or OM5, making it well suited for connecting newer 400G switch uplinks down to existing 200G server, NIC, or storage infrastructure.

The cable is compliant with QSFP-DD MSA, 400GBASE-SR8, and 200GBASE-SR4 (IEEE 802.3cd), and provides digital diagnostics over I2C per CMIS V4.0 — covering per-lane transmit/receive optical power monitoring alongside module-level voltage and temperature. Both ends use uncooled 850nm VCSEL arrays and PIN photodetector arrays, and the cable is rated for a minimum fiber bend radius of 30mm to protect signal integrity during rack cabling.

Form FactorQSFP-DD, QSFP56
Wavelength850nm
Max. Data Rate400Gbps
Baud Rate per Lane(PAM4)26.5625 GBaud/s
Cable TypeOM3/OM4/OM5
Cable Length70m (OM3) | 100m(OM4 & OM5)
Transmitter TypeVSCEL
Receiver TypePIN
DDM/DOMSupported
CDR (Clock and Data Recovery)TX & RX Built-in CDR
Modulation FormatPAM4
Power Consumption<9W(400G End) | <5W(200G End)
Fiber Bend Radius (mm)30mm
Extinction Ratio3dB
Optical Return Loss Tolerance12dB
Damage Threshold (each lane)6dBm
Humidity(non-condensing)5 -95%
Temperature Range0°C to 70°C
ProtocolsQSFP-DD MSA, 200GBASE-SR4, IEEE802.3cd
Application400G Ethernet, 200GASE-SR4 Ethernet
