Scale Out Open Intelligent Gateway Powered by Dual Marvell OCTEON 10 CN103
Price range: $3,979.00 through $8,907.00
- 2 x 8 x 2.5GHz ARM64 Neoverse N2 CPUs
- 2 x 2 x 100GE QSFP28,2 x 2 x 10GE SFP+, optional 2 x 2 x 2.5GE RJ45
- 2 x 16GB pluggable DDR5 SO-DIMM, expandable up to 2 x 48GB
- True inline crypto engine with 2 x 80Gbps encryption/decryption capacity
- 2 x 100Gbps intelligent data processing for routing, firewall, IPSec, and SSL/TLS
- Optional M.2 NVMe SSD up to 4TB
- Optional PTP/SyncE module with 20ns accuracy and BC support
- <200W power consumption with full configuration and workload
- Optional preloaded SONiC-VPP OS
Note: Prices are exclusive of customs duties, import taxes, and VAT. Any additional charges imposed by your country are the buyer's responsibility.
- Description
- Specification
- Software Feature
- Applications
- Additional information
- Documentation
- Reviews (0)
The Asteraix ET3616-4P4S is a 1U open intelligent gateway engineered for large-scale carrier, ISP, and data center deployments. Powered by dual Marvell OCTEON 10 CN103 DPUs with 16 ARM Neoverse N2 cores, it delivers exceptional performance, including 2x 100Gbps bidirectional routing, 2 × 80Gbps firewall throughput, and 2 × 80Gbps hardware-accelerated encryption. With 2 × 2 ×100GE QSFP28, 2 × 2 × 10GE SFP+, and 2 × 2 × 2.5GE RJ45 ports, optional 5G/LTE modules (4 SIM cards), the ET3616 provides the flexibility and power needed for demanding edge and backbone applications.
The ET3616 delivers comprehensive security with hardware-accelerated IPSec, SSL, and TLS processing. Its true inline encryption engine handles up to 2x80Gbps of encrypted traffic without performance degradation. Advanced stateful packet inspection (SPI) monitors traffic flows in real-time, while built-in VPN support includes IPSec, WireGuard, and L2TPv3 protocols for flexible secure connectivity options. Built on open standards, the ET3616 supports multiple Linux distributions including Ubuntu, Debian, and SONiC for maximum deployment flexibility. The platform is ready for high-performance networking with VPP and DPDK acceleration, while Kubernetes integration enables modern containerized applications. Additional support for O-RAN SC, KVM virtualization, and OpenVPN provides the foundation for flexible SDN and NFV deployment options across diverse use cases.
Achieve carrier-grade synchronization with the optional PTP module offering 20ns timing accuracy. Full Boundary Clock (BC) support ensures precise time distribution across your network, while exceptional holdover capability maintains accuracy for over 8 hours during signal loss. These features make the ET3616 ideal for demanding 5G fronthaul and O-RAN deployments where microsecond-level timing precision is critical.
Specification
Rack & Physical

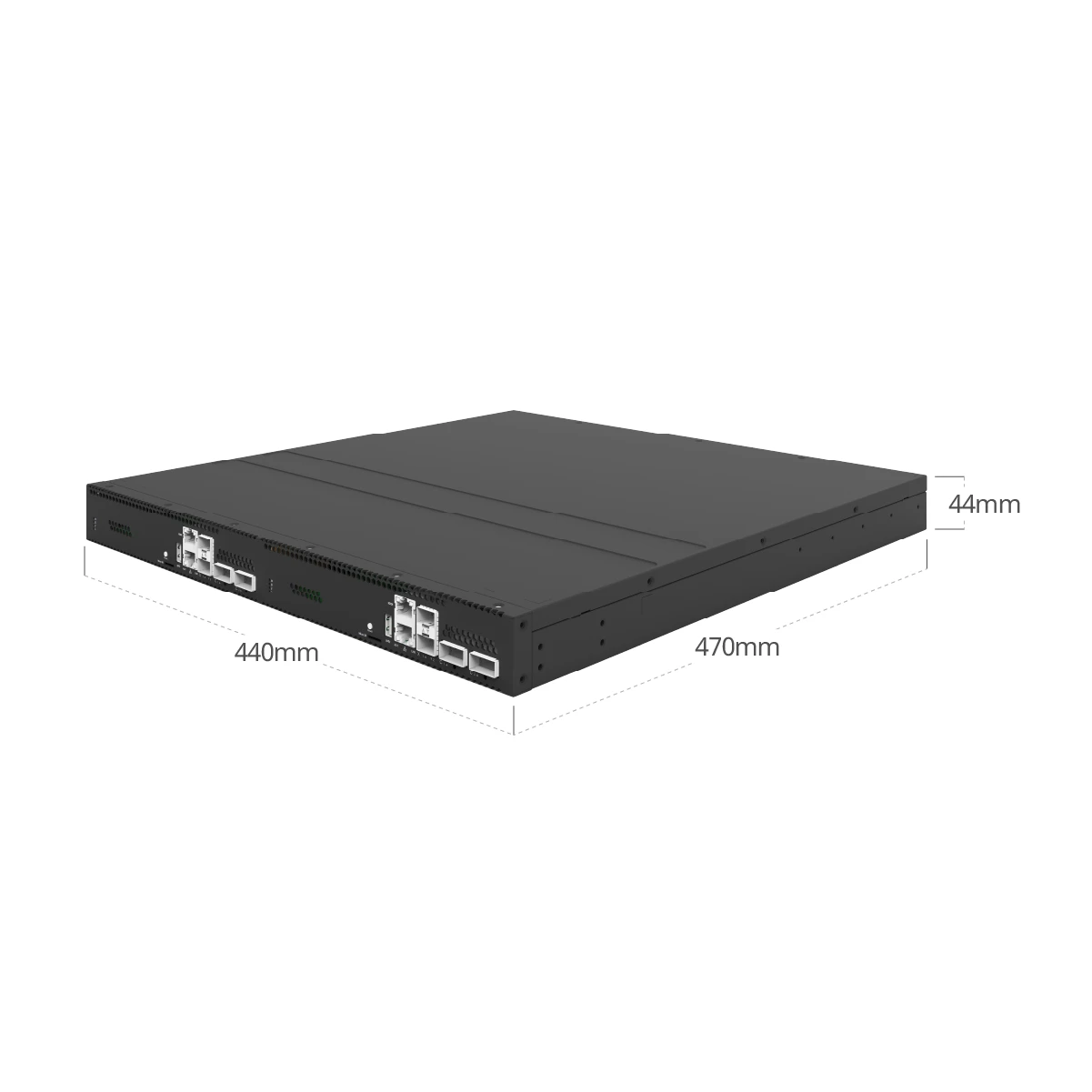

Dimension (HxWxD) 44×440×470mm
Rack Space 1U
Network interface
Fixed Interfaces (2×2) 100GE QSFP28
(2×2) 10GE SFP+
(2×2) 2.5GE RJ45
5G/LTE (Option) (2×2) SIM cards, M.2 B key
DPU
DPU Model (2) Marvell CN103
(2×8) Core ARM64 2.5GHz
Cache Capacity L2 8MB L3 16MB
Memory 2x16GB DDR5, Maximum 2x48GB
Flash (2) 64GB TF
SSD (Option) (2) M.2 NVME
Network Performance
L2/L3 Switching Capacity 2x200Gbps
Routing Capacity 2x100Gbps
Firewall Capacity 2x80Gbps
Encryption and Decryption Capacity 2x80Gbps
PTP/SyncE Accuracy 20ns
PTP/SyncE Holdover Time > 8hours

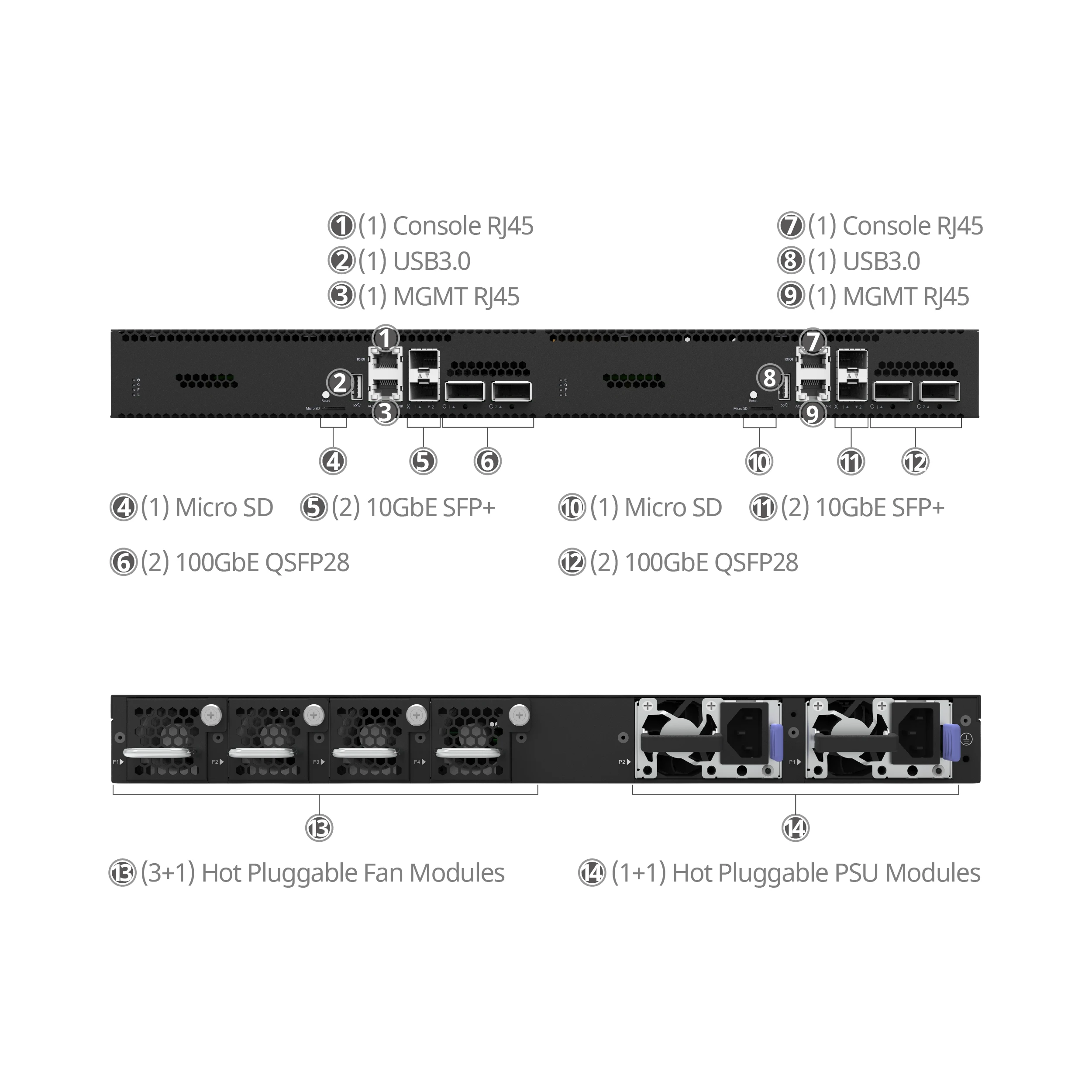

Management Interface
Console (2) Console RJ45
MGMT (2) MGMT RJ45
USB (1) USB3.0
Power & Cooling
Power Module (1+1) Hot Pluggable PSU Modules
FAN Modules (3+1) Hot Pluggable Fan Modules
Max. Power Consumption
200W (FULL configuration and workload)
Operating Environment
Operating Temperature 0~45℃ (32 to 113℉)
Operating Humidity 5%~90%(non-condensing)
Rich Software Ecosystems
Application Scenarios
The Open intelligent gateway leverages an open hardware-software disaggregated architecture, combining a robust suite of open-source software for the control plane with a hardware-optimized data plane. This unique combination addresses many application scenarios and is adaptable to combined usage.

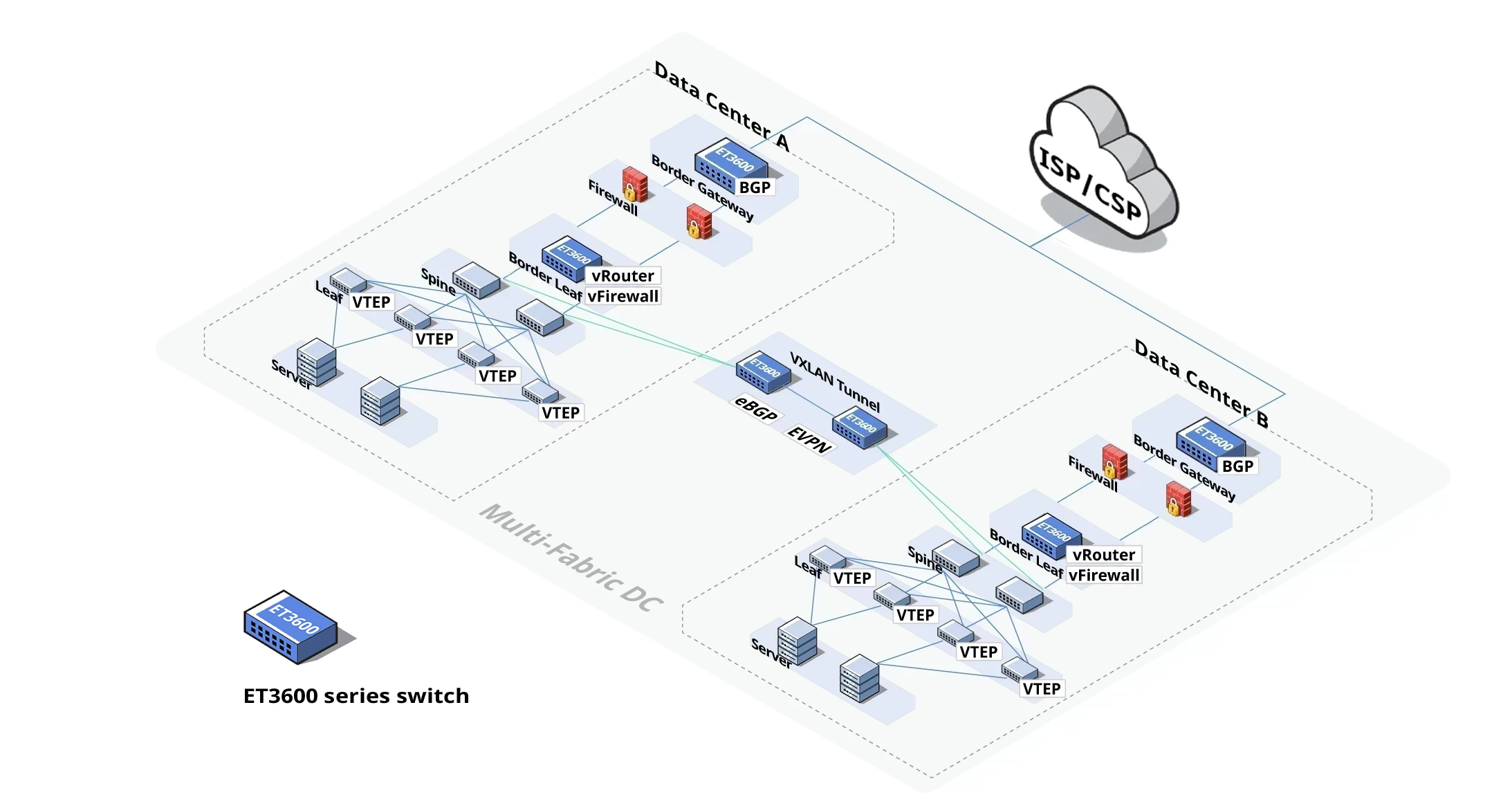

Cloud Edge Gateway: SONiC – VPP
- The Cloud Edge Gateway facilitates deployment in sophisticated edge routing scenarios, including Cloud-to-Public Internet Interconnectivity for efficient egress traffic management, Multi-Cloud/Multi-Fabric Interconnectivity Routing for secure and scalable cloud federation.
- BGP Gateway: Hardware-optimized vector packet technology and DPDK accelerate data plane forwarding, delivering up to 2 x 100Gbps forwarding performance.
- Border Leaf: Enables VRF for tenant traffic isolation, with vFirewall enforcing access control between tenants.
- DCI Leaf: Establishes VXLAN Tunnels for L2 extension across data centers, leveraging eBGP EVPN to support L2/L3 VPN functionalities
Intelligent Security Gateway: SONiC-VPP + Wireguard
- SONiC-VPP with IPsec/ Wireguard VPN can serve as a flexible and high-performance VPN gateway.
- Hardware-accelerated VPN with encryption/decryption engine supports up to 2 x 80Gbps throughput.
- Installation of the latest VPN software on demand to adapt to changing network environments.
| NVME SSD Module | 0T |
|---|---|
| Memory | 16GB, 32GB, 48GB |
| Software(Optional) | 2 x Commercial Plus Edition — ARM ET3600 ($3598), Default — Debian 12 (Included) |
ET3600 Open Intelligent Gateway
Next – Gen Networking
Asterfusion’s Open Intelligent Gateway
Streamlined System Installation & Upgrades
OS installation and upgrades are simplified through USB deployment, powered by Arm Trusted Firmware and UEFI for secure and reliable boot processes.
Advanced Packet Processing Performance
Embedded eBPF within the Linux kernel via XDP enables high-efficiency traffic filtering, monitoring, and acceleration for next-generation network performance.
2 x OCTEON CN103
AI Accelerator
PTP/SyncE
SONiC-VPP
Advanced Routing Capabilities
Equipped with powerful routing capabilities, including static routing, VRF, OSPFv2/v3, BGP, and MP-BGP, this model ensures flexible network segmentation and dynamic route management for demanding enterprise and campus environments.
Software Options
Router Solution – Hardware + AsterNOS-VPP
Skip the complexity of software installation and configuration. Order your ET3616 with AsterNOS-VPP pre-integrated for a turnkey routing platform that’s ready to deploy the moment you rack it. This purpose-built combination delivers carrier-grade routing performance with enterprise-class features—from dynamic routing protocols and VPN tunneling to advanced security and traffic management. Save time, reduce risk, and get your network running faster with a fully tested, pre-optimized solution.
