AsterNOS-VPP- Open Router OS High-Performance Networking Powered by SONiC & VPP

Price range: $0.00 through $1,799.00

SONiC’s modular control plane, VPP’s high-performance data plane.
Ultra-fast routing, firewall processing, and encryption/decryption.
Built-in IPSec, WireGuard, ACLs, GeoIP filtering protection.
Free image or pre-integrated with Asterfusion ARM-based hardware.
Support NetFlow, Prometheus, and SNMP for full-stack, real-time visibility.

Edition

Clear

Note: Prices are exclusive of customs duties, import taxes, and VAT. Any additional charges imposed by your country are the buyer's responsibility.

GUARANTEED SAFE CHECKOUT

SKU: AsterNOS-VPP Categories: Best Selling, Software

Open Router OS powered by SONiC & VPP brings next-level performance and security to your network infrastructure. Designed for high-speed routing, it combines SONiC’s modular control plane with VPP’s ultra-fast data plane to deliver lightning-fast performance with low latency. Whether you’re managing a small business or a large enterprise, this solution offers flexible deployment options, including a free image for DIY users or a bundled hardware option for enterprise needs.

With robust security features like IPSec VPN, WireGuard, ACLs, and GeoIP filtering, your network stays protected against external threats. Real-time monitoring tools such as NetFlow, Prometheus, and SNMP ensure you can continuously track network performance and health. Plus, with seamless integration and high scalability, Open Router OS ensures that your network can grow and evolve as needed.

Whether you need software-only deployment flexibility or complete hardware-software bundles, AsterNOS-VPP delivers enterprise-grade routing, advanced VPN, deep packet inspection, and real-time monitoring—all on open, vendor-neutral architecture.

Hardware-Accelerated Performance
Maximum Performance with Asterfusion Hardware
When deployed on Asterfusion ET2508 or ET3600 hardware, AsterNOS-VPP unlocks full hardware acceleration through optimized engine bindings to Marvell OCTEON CN102/CN103 processors. This delivers guaranteed performance:

ET2508: 50Gbps routing capacity, 50Gbps firewall capacity, 50Gbps encryption and decryption capacity
ET3608: 100Gbps routing capacity, 80Gbps firewall capacity, 80Gbps encryption and decryption capacity
ET3616: 2 x 100Gbps routing capacity, 2 x 80Gbps firewall capacity, 2 x 80Gbps encryption and decryption capacity

Flexible Performance on x86 Platforms
For software-only deployments on x86 platforms, AsterNOS-VPP performance scales with your hardware capabilities. Actual throughput depends on the CPU specifications, memory bandwidth, NIC capabilities, and the characteristics of the workload. This provides deployment flexibility—run it on virtual machines for testing or bare-metal servers for production workloads tailored to your requirements.

AsterNOS-VPP – Next-Generation Router OS for Modern Networks

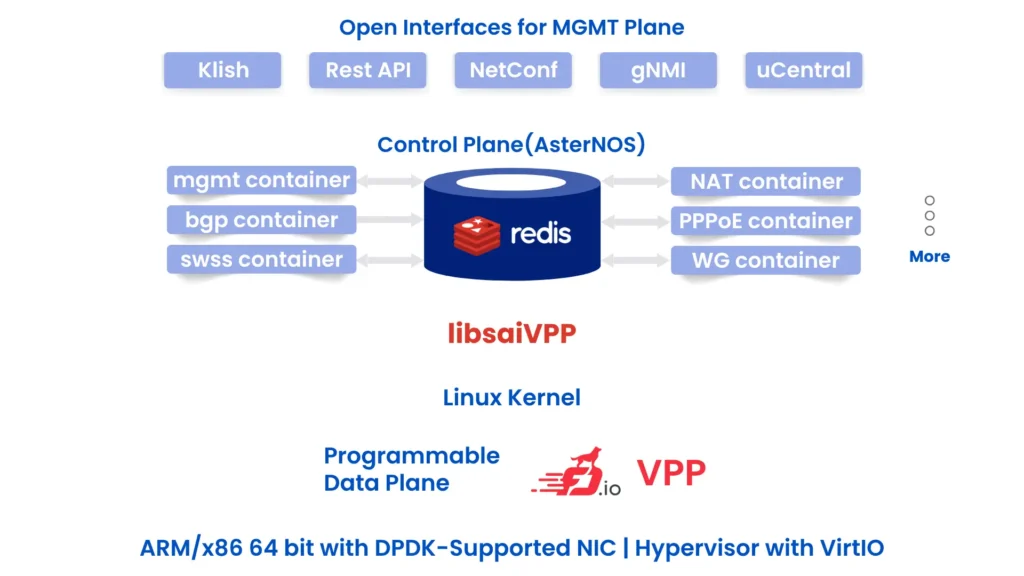

AsterNOS-VPP combines SONiC’s open control plane with VPP’s hardware-accelerated data plane, delivering carrier-grade performance from the edge to the core. Deploy as software-only on x86, or choose integrated hardware bundles with Marvell OCTEON CN102/CN103 platforms for turnkey solutions. Scale from 0 to 200Gbps across three editions designed for every network scenario—from branch offices to backbone infrastructure. Built-in IPSec/WireGuard VPN, advanced ACLs, GeoIP filtering, and comprehensive monitoring ensure your network stays fast, secure, and observable.

FREE EDITION

Forever Free

Software Specification

• VRF, BGP, OSPF v2/v3
• VXLAN, IPSec VPN
• SNAT, DNAT, DNAT Pool
• PPPoE Client
• Stateless ACL
• QoS

x86 VM Only

For learning & testing

Start now!

Commercial Edition

$999

+10% Annual Upgrade Fee

Software Specification

• RIP v1/v2, MPLS
• L2TPv3, GRE, Wireguard
• CGNAT, MAP-E/MAP-T
• PPPoE Client & Server
• GeoIP/GeoSite, SPI
• HQoS
• HW-Accelerated (ARM)

x86 VM Platform | ARM ET2508

For enterprise & campus

commercial Plus edition

$1799

+10% Annual Upgrade Fee

Software Specification

• RIP v1/v2, MPLS
• L2TPv3, GRE, Wireguard
• CGNAT, MAP-E/MAP-T
• PPPoE Client & Server
• GeoIP/GeoSite, SPI
• HQoS
• HW-Accelerated (ARM)

ARM ET3600

For data centers & ISPs

AsterNOS-VPP Features

Feature	Level 1 Function	Level 2 Function
Interface	Port Speed	1G/100M/10M
Interface	Port Speed	2.5G
Interface	Port Speed	10G/100G
Interface	Port Config	(no shutdown) / shut down
Interface	Port Config	start delay
Interface	PoE Features	PoE Enable/Disable
Interface	PoE Features	Power delay
Interface	PoE Features	15W/ 30W / 60W
Interface	PoE Features	Priority: Low/High / Critical
Interface	PoE Features	Legacy Detect
Interface	PoE Features	PoE Timer Control
Interface	PoE Features	LLDP PoE Negotiation
Interface	PoE Features	PoE Power Monitor
Interface	Interface Stats	Packets / Octets / Errors / Drops / Speed
Interface	Module Info	Presence / Absence
Interface	Module Info	Vendor info
Interface	Module Info	Optical Power
Interface	Bandwidth Alert	RX / TX Thresholds
Interface	Bandwidth Alert	Both Threshold
Interface	Batch Config	H/W Interfaces
Interface		LAG
Interface	Loopback IF	64 x Loopback
Interface	LAN IF	4×2.5G/1G + 8×1G/100M/10M RJ45
Interface	WAN IF	4×10G SFP+
Interface	WAN IF	PPPoE / DHCP / Static IP
Interface	Wi-Fi Interface	Optional 2.4/5GHz Module
IP Unicast Routing	Static Routing	-
IP Unicast Routing	VRF	L3 Port Isolation
IP Unicast Routing	VRF	VLAN IF Isolation
IP Unicast Routing	VRF	LAG IF Isolation
IP Unicast Routing	VRF	Neighbor Isolation
IP Unicast Routing	VRF	LPM Isolation
IP Unicast Routing	VRF	Inter-VRF Forwarding
IP Unicast Routing	PBR	-
IP Unicast Routing	BGP / MP-BGP	-
IP Unicast Routing	OSPF v2/v3	-
IP Unicast Routing	RIP v1/v2	-
IP Unicast Routing	Routing Policy	Route Map
IP Unicast Routing	Routing Policy	Prefix List (v4/v6)
IP Unicast Routing	ECMP/UCMP	-
MPLS	Basic MPLS	Global / Per-Interface
MPLS	Basic MPLS	Static LSP
MPLS	Basic MPLS	MPLS LDP
MPLS	Basic MPLS	LDP Security mechanism
MPLS	Basic MPLS	MPLS QoS
MPLS	VPN	VPWS
MPLS	VPN	VPLS
MPLS	VPN	L3VPN
NAT	1:1 NAT / Port Forward	-
NAT	Twice NAT	-
NAT	VRF Aware	-
NAT	NAT Hairpinning	-
NAT	TCP MSS Clamping	-
NAT	Static / Dynamic Mapping	-
NAT	Sub-Port Support	-
NAT	IF Support (Phy/VLANIF/LAG/Loopback)	-
NAT	SNAT/DNAT/DNAT POOL	-
NAT	CGNAT(Carrier-grade NAT)	-
NAT	MAP-E	-
NAT	MAP-T	-
Tunnel	GRE	L2/L3 tunnel
Tunnel	GRE	IPv4/IPv6
Tunnel	GRE	encap/decap stats
Tunnel	VXLAN	VTEP v4/v6
Tunnel	VXLAN	Static VXLAN
Tunnel	VXLAN	EVPN VXLAN
Tunnel	VXLAN	VXLAN gateway
Tunnel	VXLAN	encap format(v4 over v4, v6 over v4)
Tunnel	VXLAN	VXLAN Stats encap/decap
Tunnel	L2TPv3 VPN	-
Tunnel	IPsec VPN	Route Based VPN
Tunnel	IPsec VPN	Policy-Based (bypass / discard / protect)
Tunnel	IPsec VPN	IKEv2
Tunnel	IPsec VPN	Diffie-Hellman (DH)
Tunnel	IPsec VPN	Message Authentication Code (MAC) algorithm support:
Tunnel	IPsec VPN	Encryption: AES (CBC/GCM/CTR), 3DES, ChaCha20/Poly1305
Tunnel	Wireguard security VPN	Netbird Support
Tunnel	Wireguard security VPN	Encryption: ChaCha20-Poly1305 (RFC7539 AEAD)
Tunnel	Wireguard security VPN	Key Exchange: Curve25519 (ECDH)
Tunnel	Wireguard security VPN	Hashing: BLAKE2s (RFC7693)
Tunnel	Wireguard security VPN	Table keys: SipHash24
Tunnel	Wireguard security VPN	KDF: HKDF (RFC5869)
Tunnel	PPPoE	PPPoE Client
Tunnel	PPPoE	PPPoE Server
Service	ARP/NDP	-
Service	DHCPv4/v6 Server and Relay	-
Service	DNS	-
Security	BUM Ctl	-
Security	User Access AuthN	Dot1x
Security	User Access AuthN	Portal
Security	DHCP v4/v6 Snooping	-
Security	ND Snooping	-
Security	ND policy	-
Security	DAI (Dynamic ARP Inspection)	-
Security	IPSG v4/v6	-
Security	ACL	Ingress/Egress
Security	ACL	Match: MAC/IP/L3/L4 Fields
Security	ACL	Permit/Deny
Security	ACL	Hit Statistics
Security	ACL	Port/LAG/VLAN/SubIF Bind
Security	ACL	CtrlPlane (NTP/SNMP/SSH/Telnet)
Security	ACL	DNS/GeoIP/Geosite
Security	ACL	Stateless/Stateful
Security	*SPI(Stateful packet inspection)	-
Security	Unicast Reverse Path Forwarding (uRPF)	-
QoS	Priority Mapping	dot1p to tc
QoS	Priority Mapping	dscp to tc
QoS	Priority Mapping	tc to queue
QoS	Queue Schedule	Strict
QoS	Queue Schedule	DWRR
QoS	Rate Limit (RFC2697/2698/4115)	per port
QoS	Rate Limit (RFC2697/2698/4115)	per queue
QoS	Shaping	per interface
QoS	Flow Classify	IACL + CAR Binding
QoS	Flow Classify	EACL
QoS	Flow Classify	CAR (Committed Access Rate)
QoS	Qos Status	show IF qos stats
QoS	HQoS	Sub/User-Level
QoS	HQoS	Service-Level(VOIP/Video/Internet)
QoS	HQoS	App-Level (DSCP: EF/AF41/CS3/AF21)
High Availability	MC-LAG	-
High Availability	VRRP	Backup group (HW/VLAN IF)
High Availability	VRRP	VRRPv3 (RFC5798)
High Availability	VRRP	Advertise interval / priority config
High Availability	VRRP	Master auto send ARP/ND
High Availability	BFD	-
High Availability	Monitor Link	-
High Availability	SLA	-
High Availability	SLAAC	-
High Availability	Routing Track	-
High Availability	Hash	-
Monitoring & Management	SPAN/ ERSPAN	-
Monitoring & Management	SNMP	-
Monitoring & Management	NetFlow/IPFIX	-
Monitoring & Management	Prometheus exporter	-
Monitoring & Management	ZTP (Zero Touch Provisioning)	-
Monitoring & Management	SSH	-
Monitoring & Management	Telnet	-
Monitoring & Management	RestfulAPI	-
Monitoring & Management	uCentral	-

Edition	Free Edition — x86 VM Platform ($0), Commercial Edition — x86 VM Platform ($999), Commercial Edition — ARM ET2508 ($999), Commercial Plus Edition — ARM ET3600 ($1799)

asternos-vpp

AsterNOS VPP Quick Start Documentation

Explore the official AsterNOS VPP quick start guide — a comprehensive resource covering setup objectives, supported platforms, key features, sample configurations, and performance validation for fast and efficient deployment.

learn more

Frequently Asked Questions

Yes. You can download the free version and install it on x86-based devices to enjoy the benefits of open networking. A step-by-step installation guide is available here. Click here to view it. Please note that no additional technical support is provided for the free version.

The free version is limited to x86 platforms. The Commercial Edition offers significant improvements in two aspects:
· First, in terms of services, it provides exclusive technical support and consulting services;
· Second, in terms of functionality, it adds multiple extended capabilities. For example, the tunneling technology supports MPLS, L2TPv3, GRE, and Wireguard VPN, and the address translation function supports CGNAT, MAP-E/MAP-T, etc.
· For more extended functions of the paid version, you can learn about them in detail through the comparison table at the top of this page.

Performance depends on your deployment platform:
Asterfusion ET2500: Guaranteed 60Gbps routing/firewall/encryption with hardware-accelerated packet processing.
Asterfusion ET3600: Guaranteed up to 2 x 100Gbps routing, 2 x 80Gbps firewall/encryption with dual-DPU hardware acceleration.
x86 Platform (Software Only): Performance varies based on your hardware—CPU cores, clock speed, memory bandwidth, and NIC capabilities all affect throughput.

With the commercial edition, you’ll receive:
· A perpetual software license
· Comprehensive technical documentation
· Online service response and remote support via email or meetings
· Real-time remote assistance
· Regular software updates following a structured release policy
AsterNOS follows a predictable update schedule that applies to all editions, including:
· Quarterly major releases (at least 4 per year) that synchronize with Community SONiC
· More frequent minor releases containing enhancements, fixes, and patches for the current version, which can be released at any point during the major version support cycle.

Absolutely. You’re welcome to start with the free version and upgrade to a commercial plan at any time for additional features and support.

After your subscription expires, you can continue to receive full technical support services by simply paying an annual renewal fee equal to 10% of the original license cost.

Reviews

There are no reviews yet.

Be the first to review “AsterNOS-VPP- Open Router OS High-Performance Networking Powered by SONiC & VPP”

Not Sure What You Need?

Tell us your setup. We’ll recommend the right fit.
Watch a live demo tailored to your needs.

AsterNOS-VPP- Open Router OS High-Performance Networking Powered by SONiC & VPP

AsterNOS-VPP – Next-Generation Router OS for Modern Networks

FREE EDITION

Software Specification

x86 VM Only

Commercial Edition

+10% Annual Upgrade Fee

Software Specification

x86 VM Platform | ARM ET2508

commercial Plus edition

$1799

+10% Annual Upgrade Fee

Software Specification

ARM ET3600

AsterNOS-VPP Features

AsterNOS VPP Quick Start Documentation

Frequently Asked Questions

Reviews

Related Products

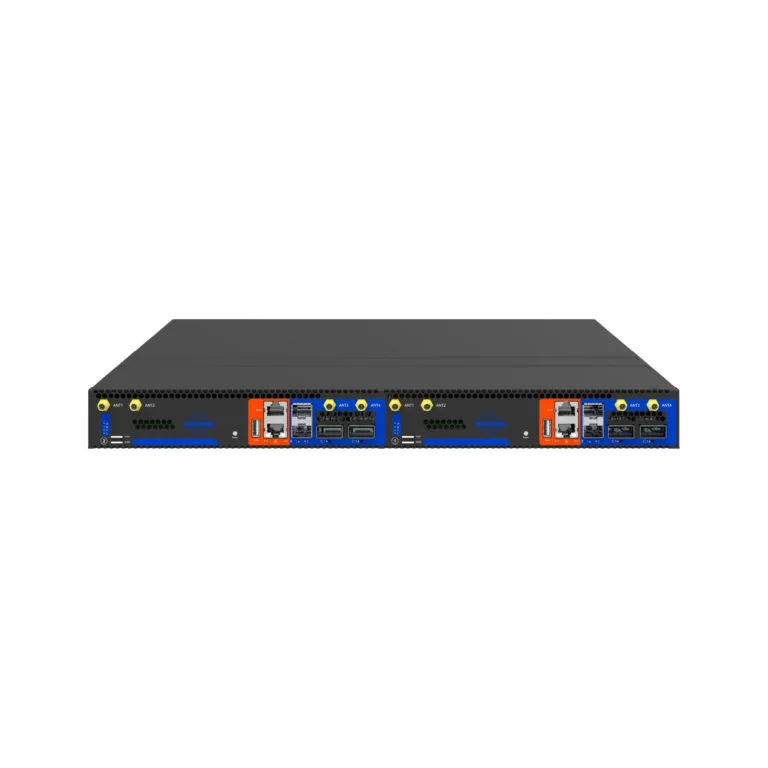

ET3616-4P4S Open Intelligent Gateway/Router

ET3608-2P2S Open Intelligent Gateway/Router

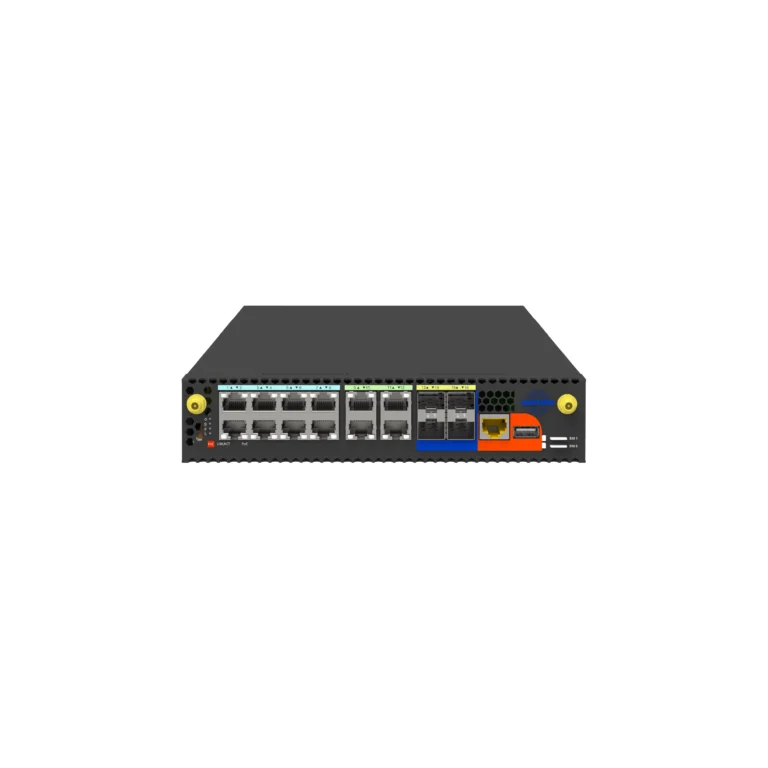

ET2508-4S4M8 Open Intelligent Gateway/Router
