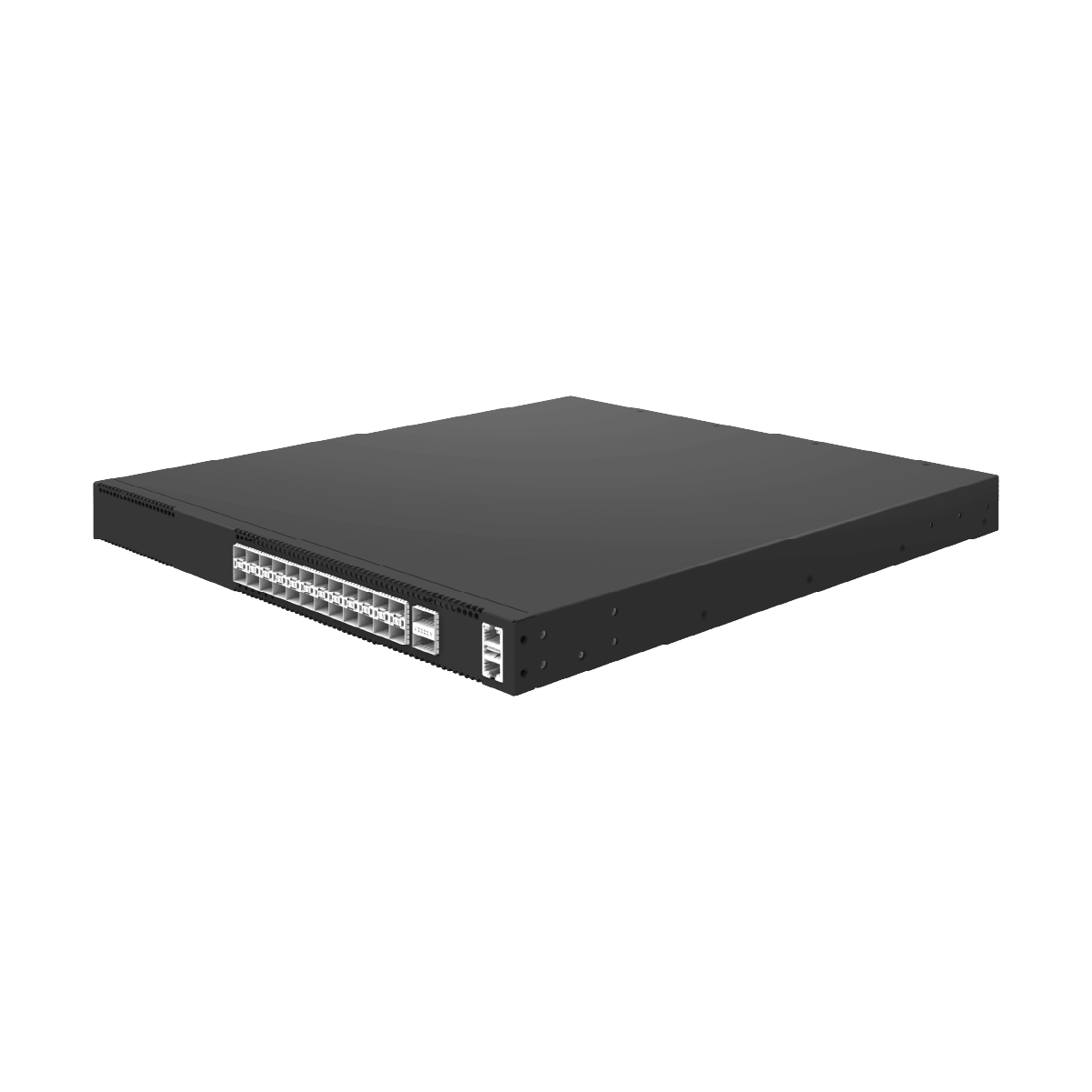

24-Port 25GbE SFP28, 2-Port 100GbE/40GbE QSFP28 L3 Core/Leaf Switch, Enterprise SONiC Preloaed, MLAG/VXLAN/PTP Support
Price range: $2,999.00 through $3,499.00
- 24-Port 25Gb SFP28, 2x 100Gb QSFP28/40Gb QSFP+ uplinks.
- Core/Leaf TOR switch for data centres and business networks.
- MLAG, VXLAN, QoS, BFD, IPSG, IPV6, and so on are supported.
- Installed was a feature-rich SONiC NOS.
Note: Prices are exclusive of customs duties, import taxes, and VAT. Any additional charges imposed by your country are the buyer's responsibility.
- Description
- Specification
- Software
- Connection
- Additional information
- Management
- Documentation
- Warranty
- Reviews (0)

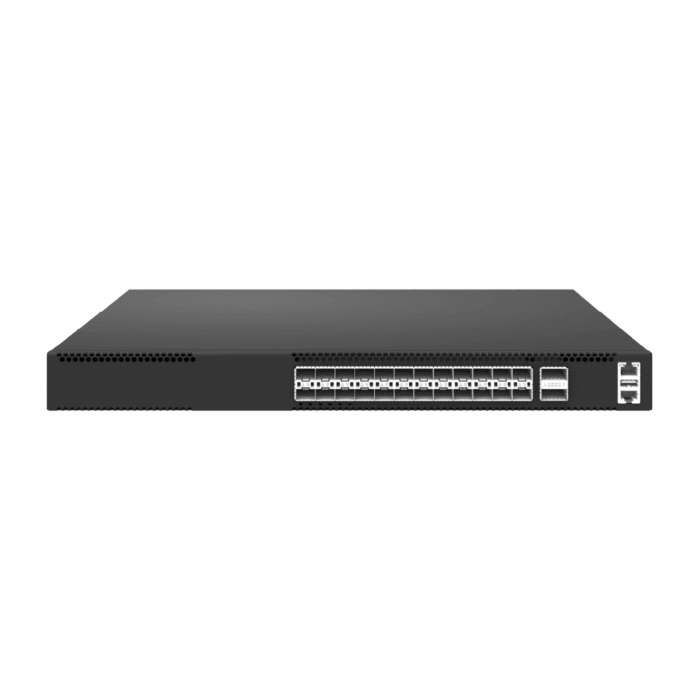

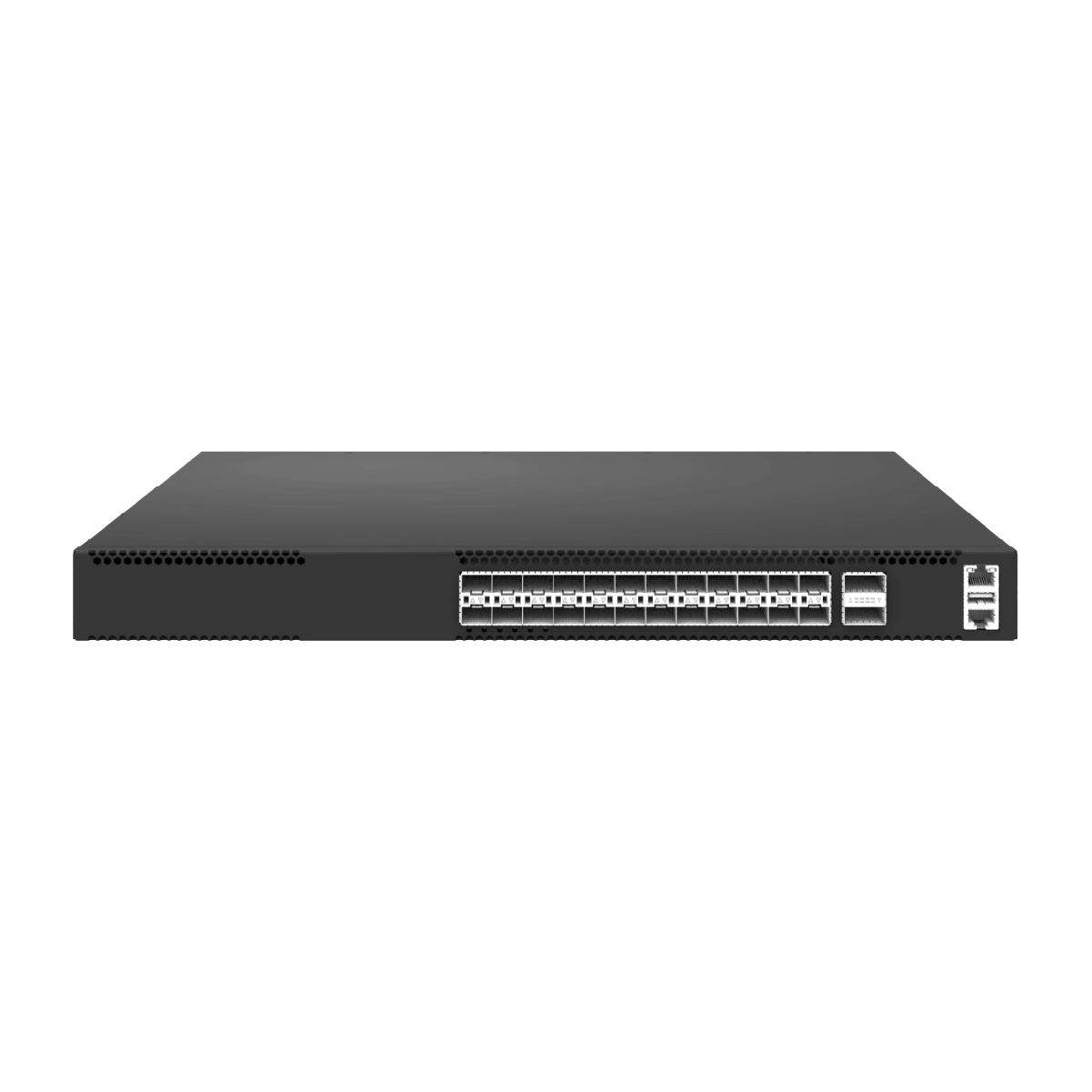

Asteraix 24-port ethernet switch CX202P-24Y has 24x25G SFP28/10G SFP+ and 2x100GQSFP28/40G QSFP+ ports, offering a total switching capacity of 800Gbps. This L3 ethernet switch is well-suited for enterprise layer 3 distribution and core networks.

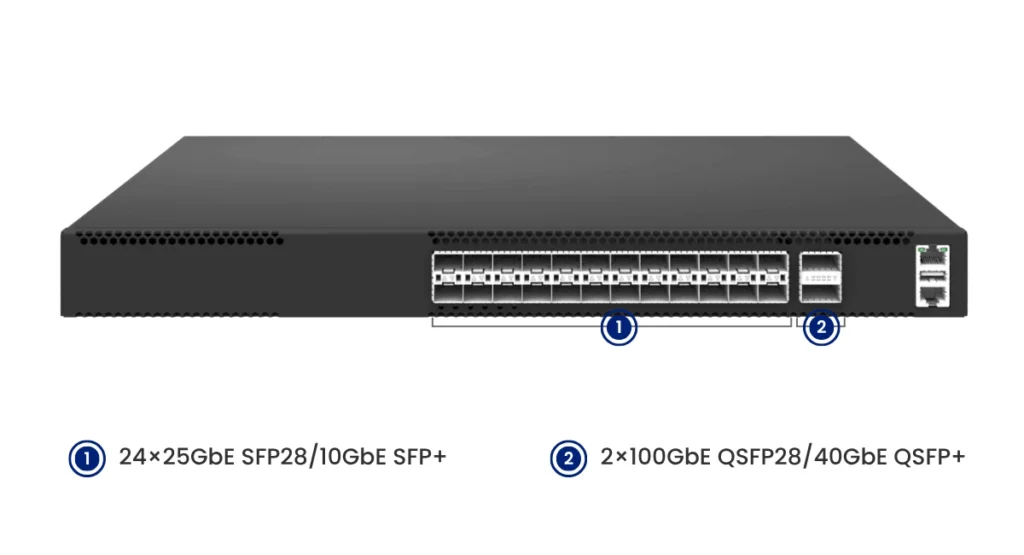

- 24x 25GbE ports and 2x 100GbE ports uplinks
- Easy switch management with Asteria campus controller
- Quick and easy setup
- Advanced L2/L3 network features (4K VLANs, MC-LAG, storm control, IPv4/v6 Dual Stack, BFD, etc.)
- Fan design (airflow front to rear)
- Limited 2-year warranty
- Enterprise SONiC OS is supported
Specification
Rack & Physical

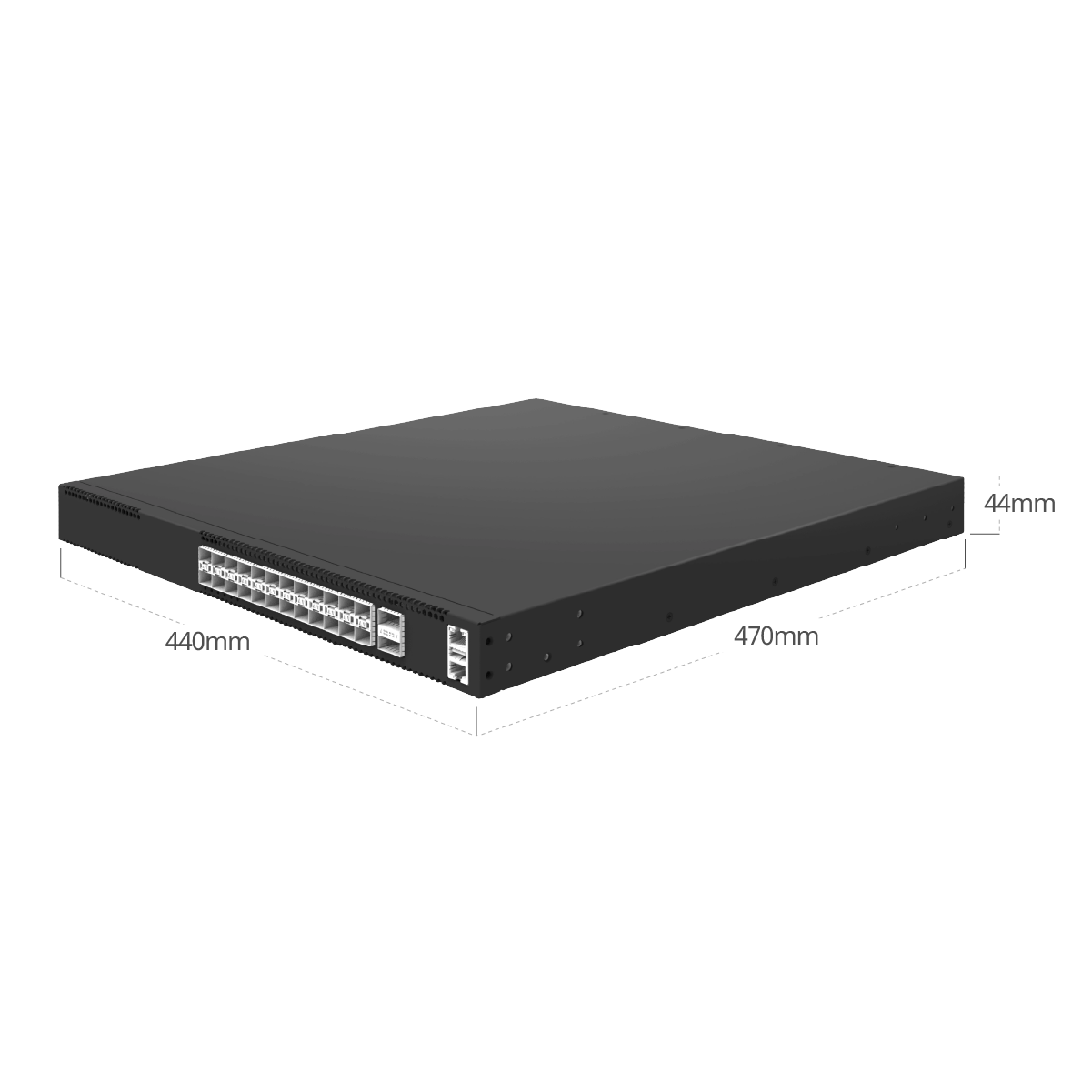

Dimension (HxWxD) 44×440×470mm
Weight 8.6KG
Rack Space 1U
Airflow Front to Rear
Data Plane Ports
Fixed Interfaces (24) 25GbE SFP28
Fixed Interfaces (2) 100GbE QSFP28
Switch Core
Switch ASIC Marvell Aldrin3
Switching Capacity 800Gbps
Forwarding Rate 810Mpps
Packet Buffer 8MB
DDR4 4GB
Flash Memory 32GB eMMC
Address & Routing Entries
Mac Addr. Entries 32K
IPv4 Prefix Routes 266K
IPv6 Prefix Routes 133K
Nexthop 16K
Management Interface
Console (1) Console RJ45
MGMT (1) MGMT RJ45
USB (1) USB2.0
Power & Cooling
Power Module (1+1) Hot-pluggable Power
FAN Modules (2+1) Hot-Pluggable Fans
Input Range 100V – 240V AC
Max. Power Consumption 130Watt
Operating Environment
Operating Temperature 0~45℃ (32 to 113℉)
Operating Humidity 5%~90%(non-condensing)
Optimized Software for Advanced Workloads-AsterNOS
AsterNOS is the pre-installed network operating system on Asterfusion’s CX-M Series campus switches. Built on SONiC and enhanced beyond the open-source version, AsterNOS offers advanced Layer 2 and Layer 3 features, as well as sophisticated routing capabilities. Support VXLAN EVPN virtualization, it supports scalable campus networks. AsterNOS is smart, secure, and easy to manage, providing a reliable operating platform for always-on enterprise networks.
Layer 2 Features
- 4K VLANs
- Voice VLAN
- Multiple Spanning Tree Protocol
- QinQ
- Link Aggregation Control Protocol
- Multi-Chassis Link Aggregation
- VLAN Trunking
- Link Layer Discovery Protocol (LLDP)
- LLDP Enhancements for PoE
- Port Isolation
- Jumbo Frames (9216 Bytes)
- IGMP Snooping
- Storm Control
- Monitor Link
- BPDU Guard, BPDU Filter
- Loopback Detection
Layer 3 Features
- IPv4/v6 Dual Stack
- Policy Based Routing
- Resilient ECMP
- ARP-to-Host
- VRF
- Bi-Directional Forwarding Detection (BFD)
- IGMP v2/v3
- Route Map
- VRRP
- GRE
- Routing Protocols: OSPF v2/v3, BGP, MP-BGP
Virtualization Features
EVPN Support
- Type 2: MAC/IP Advertisement
- Type 3: Inclusive Multicast Route
- Type 5: IP Prefix Route
VXLAN Gateway
- Centralized Gateway
- Distributed Gateway
Management & Monitoring
- Asteria Campus Controller
- Industry Standard CLI
- Zero Touch Provisioning (ZTP)
- SNMP v1/v2/v3
- sFlow
- Port Mirroring
- Syslog
- Log Management
- PTP IEEE 1588v2 (TC and BC)
- Containerized Custom Tools
- BGP/BFD Operational Status
Quality of Service (QoS)
- 8 Queues per Port
- 802.1p Based Classification
- DSCP Based Classification
- Strict priority queueing
- DWRR Scheduling
- Policing/Shaping
- Rate Limiting
Security Features
- Service ACLs
- ACL Logging and Counters
- Control Plane Policing (CoPP)
- Dynamic ARP Inspection (DAI)
- IP Source Guard v4/v6
- DHCPv4/v6 Relay
- DHCPv4/v6 Snooping
- ND Snooping
- 802.1x Authentication
- Portal Authentication
- MAC Authentication Bypass (MAB)
- Dynamic VLAN Assignment
- TACACS+
- RADIUS
- IPSG/DAI/SAVI

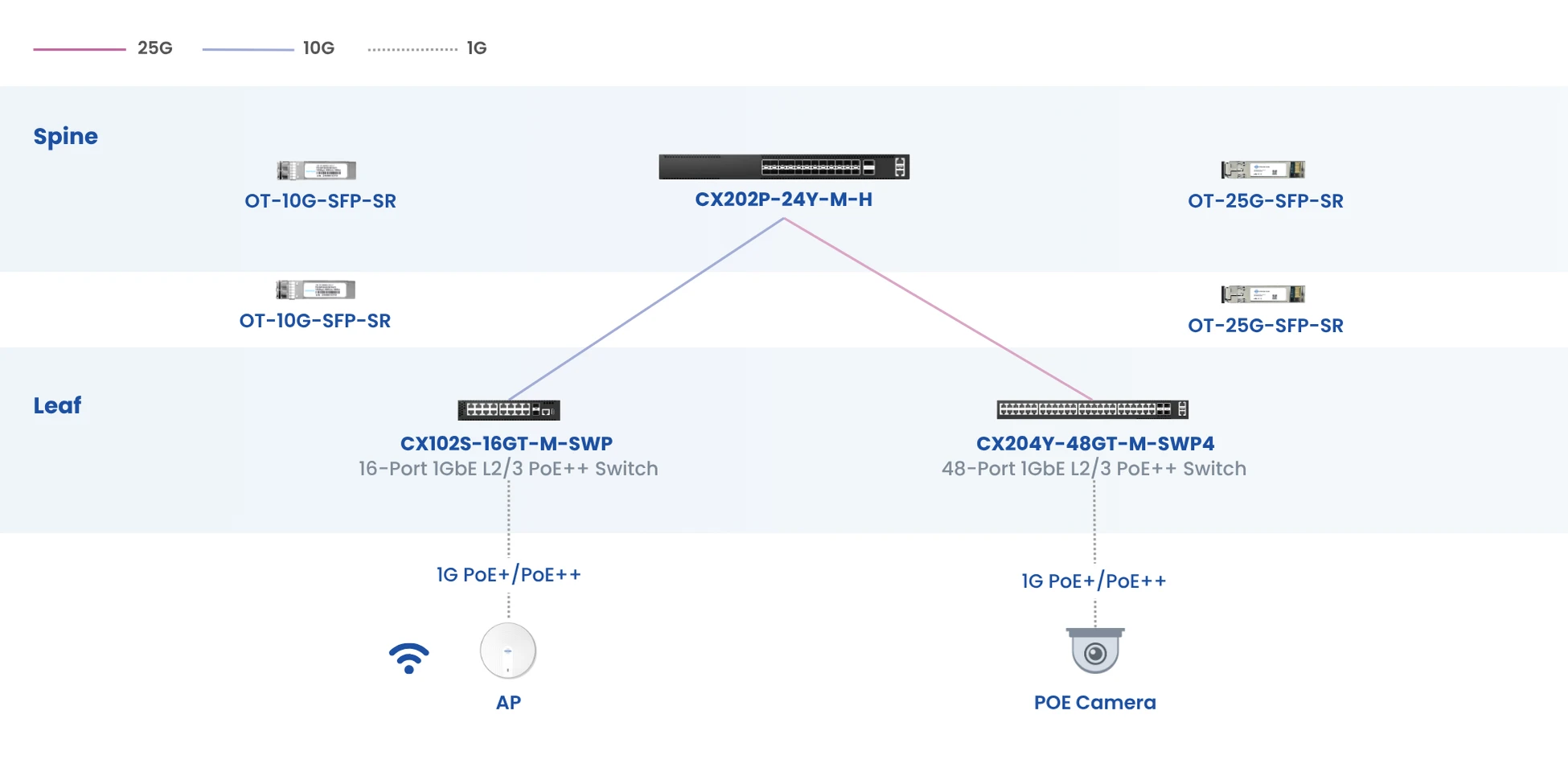

CX202P-24Y-M-H Spine Switch Connectivity
Connects 10GbE/25GbE spine layer with 1GbE PoE++ leaf switches, enabling flexible and scalable access for enterprise networks with diverse device connectivity.
| PTP Extension Card | Class C, None |
|---|
Free OpenWiFi Network Controller
our free management controller
Unified Visualization, Management & O&M with OpenWiFi Network Controller
Our campus switches, powered by enterprise SONiC, integrate with a TIP OpenWiFi – based controller. This integration enables unified monitoring, automated deployment, and streamlined operations.​
Key features include intelligent topology planning, ZTP, real – time network visualization, and script – based automation. With centralized remote management and flexible deployment options (cloud or on – premise), this solution offers full control over the entire campus network, from APs to switches. It helps IT teams optimize performance, speed up troubleshooting, and scale easily.
Campus Access Switch Documentation
Product Assurance & Logistics
Warranty & Support
Quality Certifications
Delivery Time
Our standard products are typically shipped within one week (business days).
For custom products, please contact customer service to inquire about the specific delivery time.
800 Gbps
810 Mpps
8 MB
2x100GbE
SONiC
Advanced Hardware Features
Engineered for scalability, efficiency, and always-on reliability.

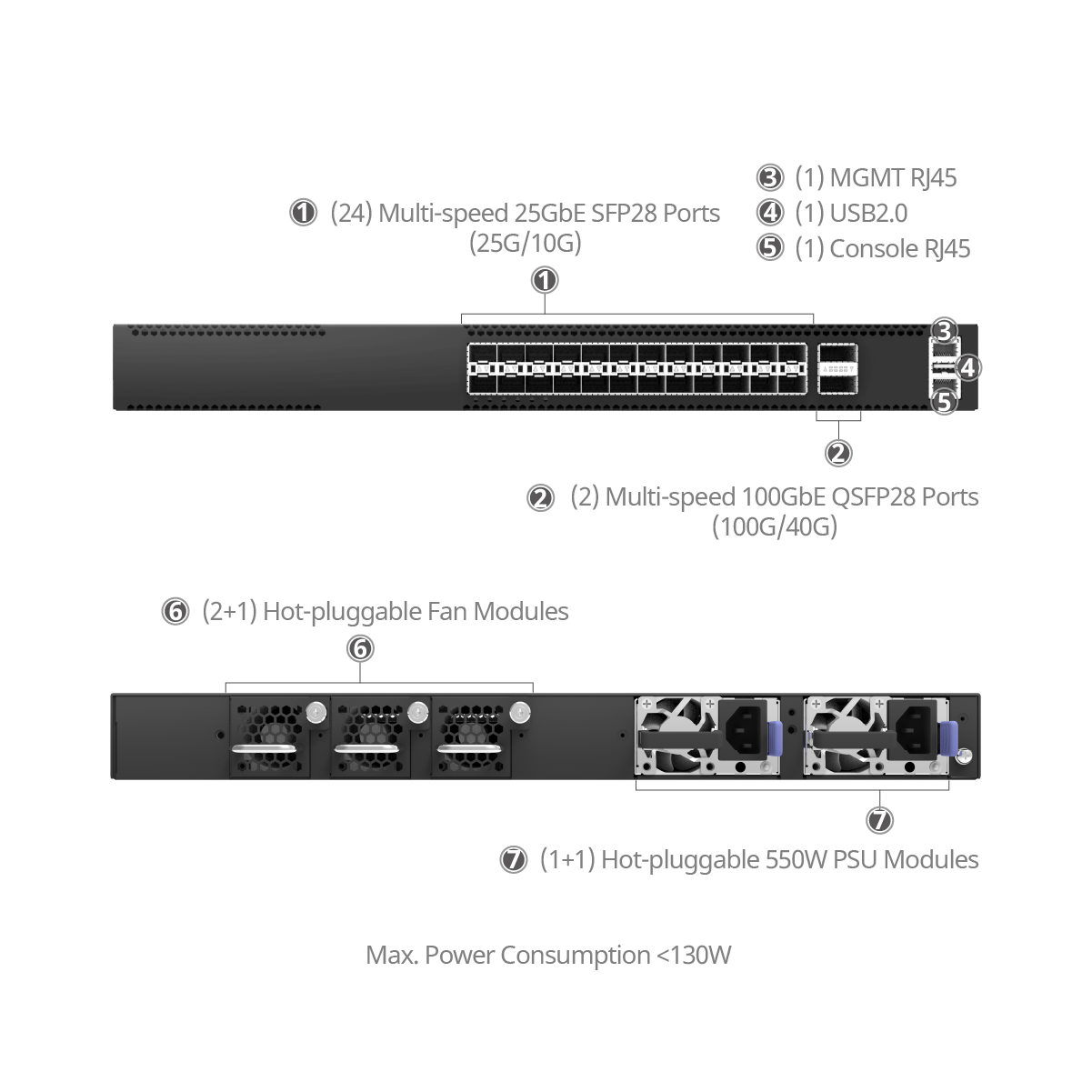

25/100G High-Speed Ports Enable Flexible Network Scaling
Boasting 24×25GbE and 2×100GbE ports, the device supports interface splitting via breakout cables, which helps enhance the efficiency of network resource usage and accommodate diverse application scenarios.
The dual 1+1 hot-pluggable power supplies ensure continuous operation by allowing replacement without system shutdown. Equipped with 2+1 hot-pluggable fan modules, the system delivers reliable cooling performance to maintain stability and efficiency under demanding workloads.
Optional MPLS Module
Enhance Your Network with Advanced MPLS Capabilities
This switch model supports robust MPLS functionality, enabling efficient label-switched path management and seamless traffic forwarding across complex networks. It delivers active-active-like reliability through MPLS-based redundancy mechanisms, ensuring uninterrupted connectivity for mission-critical applications.
Advanced Routing Capabilities
Equipped with powerful routing capabilities, including static routing, VRF, OSPFv2/v3, BGP, and MP-BGP, this model ensures flexible network segmentation and dynamic route management for demanding enterprise and campus environments.
Feature Set
This model supports full network virtualization features:
GRE/static GRE tunnels for point-to-point overlays, plus VXLAN with BGP-EVPN for scalable L2/L3 virtualization across distributed environments.Perfect for flexible, multi-tenant campus/enterprise networks.
Features
This model delivers robust L2/L3 security at the network edge and core, featuring storm control, DHCPv4/v6 Snooping, ND Snooping, RA Guard, and SAVI. With DAI, IP Source Guard (IPv4/IPv6), and CoPP, it protects against spoofing, man-in-the-middle attacks, and control plane overload—ensuring a secure, resilient network.
BFD-based link fault detection and sub-50ms re-routing capabilities ensure rapid, reliable failover across critical routing protocols including OSPF, BGP, and IS-IS, minimizing network downtime and maintaining uninterrupted traffic flow even during unexpected link failures.
MC-LAG support enables networks to maintain uninterrupted connectivity through seamless redundancy and active-active reliability,
ensuring zero downtime and optimal performance during link or device failures.
Enterprise SONiC Asterfusion’s Switches with PTP Support
Our switch fully supports IEEE1588 PTPv2 and SMPTE 2059-2 standards both through hardware and software. The hardware port supports PTP as a Boundary Clock (BC) or Transparent Clock (TC), with customizable modules to fit customer needs. On the software side, Asterfusion leads the way in implementing and optimizing PTP in SONiC, delivering top performance on our AsterNOS Enterprise Distribution. Currently, it supports PTP Class C with a maximum time error of ≤10 ns.
Network Packet Broker Functionality
The SONiC-based campus switches CX-M series take full advantage of SONiC’s open and containerized architecture, and fully leverage its capabilities by installing the new APP-PB container and deploying packet broker docker functionality on SONiC.
This integration unlocks a range of advanced features, including traffic mirroring, raw data tagging, filtering, aggregation, preprocessing, load balancing, and output replication.
