Enterprise SONiC 16 Port Gigabit Switch with Two Marvell OCTEON TX2 CN9130 DPUs as Gateway and Server
Price range: $779.00 through $1,359.00
- Gigabit POE++ layer 3 switch with 16 ports, Enterprise SONiC.
- Install Ubuntu, Debian, or OpenWRT on the smallest L3 switch.
- Wirespeed of 10 Mbps using DPDK/VPP.
- Extensive support for DPU-based open-source applications.
- Multiple functions, including switch, router, gateway, server, etc., are integrated into a single device.
Note: Prices are exclusive of customs duties, import taxes, and VAT. Any additional charges imposed by your country are the buyer's responsibility.
- Description
- Specification
- Software
- Connection
- Applications
- Additional information
- Management
- Documentation
- Warranty
- Reviews (0)
16 Ports Gigabit Switch as Gateway and Server into One, Optional Dual Marvell OCTEON TX2 CN9130 DPUs
The all-in-one device integrates functions of a 16-port PoE++ network switch, an intelligent gateway, and a server that provides one-stop IT services, and is designed for small businesses and SOHOs. The Marvell Prestera MV-DX2556 switch chip and enterprise SONiC support OSPF, BGP, VXLAN, BGP-EVPN, MLAG, and IPv6 at 72Gbps. Additionally, it uses 1 or 2 Marvell OCTEON CN9130 DPU chips with 4-core ARMv8 Cortex-A72 CPUs and encryption engines on the backplane via 10G Ethernet.
The 16-port 1G switch provides high-performance networking and computing capabilities, allowing it to meet different application needs such as retail chains, healthcare clinics, education institutions, factory automation, branch offices/chain stores, and smart building projects etc. The optional PTP module supports nanosecond-level timing accuracy across network devices and accurate latency measurements between network points. It supports telemetry, packet scheduling, log synchronization, and traffic analysis, and ensures consistent timing across redundant systems.
AsterNOS, Pre-installed enterprise SONiC software, powers the 16-port gigabit access switch’s networking capabilities. It supports Layer 2 and Layer 3 IPv4 and IPv6 operations and extensive security features, including ACL and 802.1x authentication. It supports OSPF and BGP routing protocols, making it adaptable to network situations.
Operating System
The enterprise SONiC Distribution, which comes pre-installed on the CX102S-16GT-DPU-M-SWP, offers a wide variety of Layer 2/3 capabilities. Two Marvell OCTEON TX2 CN9130 DPUs are included with the device; one comes with Ubuntu/Debian pre-installed, and the other with OpenWrt.
CentOS, OpenSUSE, Arch Linux, AlmaLinux, Rocky Linux, Linux Mint, and Elementary OS are also supported by the device. The OS can be installed and upgraded using a USB disk with Trusted Firmware and UEFI.
Specification
Rack & Physical
Dimension (HxWxD) 44×215×310mm
Weight 2.2KG
Rack Space 1U
Airflow Front to Rear
Data Plane Ports
Fixed Interfaces (16) 1GbE PoE+(port1 to port 8) PoE++; (2) 10GbE SFP+
PoE Budget 150W
PoE Standard IEEE 802.3af/at/bt
Switch Core
Switch ASIC Marvell AlleyCat5Y
Switching Capacity 72Gbps
Forwarding Rate 53.5Mpps
Packet Buffer 3MB
RAM 4GB
Flash Memory 32GB eMMC
Address & Routing Entries
Mac Addr. Entries 32K
IPv4 Prefix Routes 13K
IPv6 Prefix Routes 6.5K
ARP Entries 6K
Management Interface
USB (1) USB
Console (1) Console RJ45
Power & Cooling
Power Module (1) Built-in Power
FAN Modules (2) Built-in Fans
Input Range 100~240V AC
Operating Environment
Operating Temperature 0~45℃ (32 to 113℉)
Operating Humidity 5~90% (non-condensing)
Optimized Software for Advanced Workloads-AsterNOS
AsterNOS is the pre-installed network operating system on Asterfusion’s CX-M Series campus switches. Built on SONiC and enhanced beyond the open-source version, AsterNOS offers advanced Layer 2 and Layer 3 features, as well as sophisticated routing capabilities. Support VXLAN EVPN virtualization, it supports scalable campus networks. AsterNOS is smart, secure, and easy to manage, providing a reliable operating platform for always-on enterprise networks.
Layer 2 Features
- 4K VLANs
- Voice VLAN
- Multiple Spanning Tree Protocol
- QinQ
- Link Aggregation Control Protocol
- Multi-Chassis Link Aggregation
- VLAN Trunking
- Link Layer Discovery Protocol (LLDP)
- LLDP Enhancements for PoE
- Port Isolation
- Jumbo Frames (9216 Bytes)
- IGMP Snooping
- Storm Control
- Monitor Link
- BPDU Guard, BPDU Filter
- Loopback Detection
Layer 3 Features
- IPv4/v6 Dual Stack
- Policy-Based Routing
- Resilient ECMP
- ARP-to-Host
- VRF
- Bi-Directional Forwarding Detection (BFD)
- Route Map
- VRRP
- Routing Protocols: OSPF v2/v3, BGP, MP-BG
Security Features
- Service ACLs
- ACL Logging and Counters
- Control Plane Policing (CoPP)
- Dynamic ARP Inspection (DAI)
- IP Source Guard v4/v6
- DHCPv4/v6 Relay
- DHCPv4/v6 Snooping
- ND Snooping
- 802.1x Authentication
- Portal Authentication
- MAC Authentication Bypass (MAB)
- Dynamic VLAN Assignment
- TACACS+
- RADIUS
- IPSG/DAI/SAVI
Quality of Service (QoS)
- 8 Queues per Port
- 802.1p Based Classification
- DSCP Based Classification
- Strict priority queueing
- DWRR Scheduling
- Policing/Shaping
- Rate Limiting
Support PTP and PoE++
- Optional PTP Module
- Port 1-Port 8 offers POE++ (IEEE 802.3bt) standard
- Overall PoE power budget is 150W
Management & Monitoring
- Asteria Campus Controller
- Industry Standard CLI
- Zero Touch Provisioning (ZTP)
- SNMP v1/v2/v3
- sFlow
- Port Mirroring
- Syslog
- Log Management
- PTP IEEE 1588v2 (TC and BC)
- Containerized Custom Tools
- BGP/BFD Operational Status

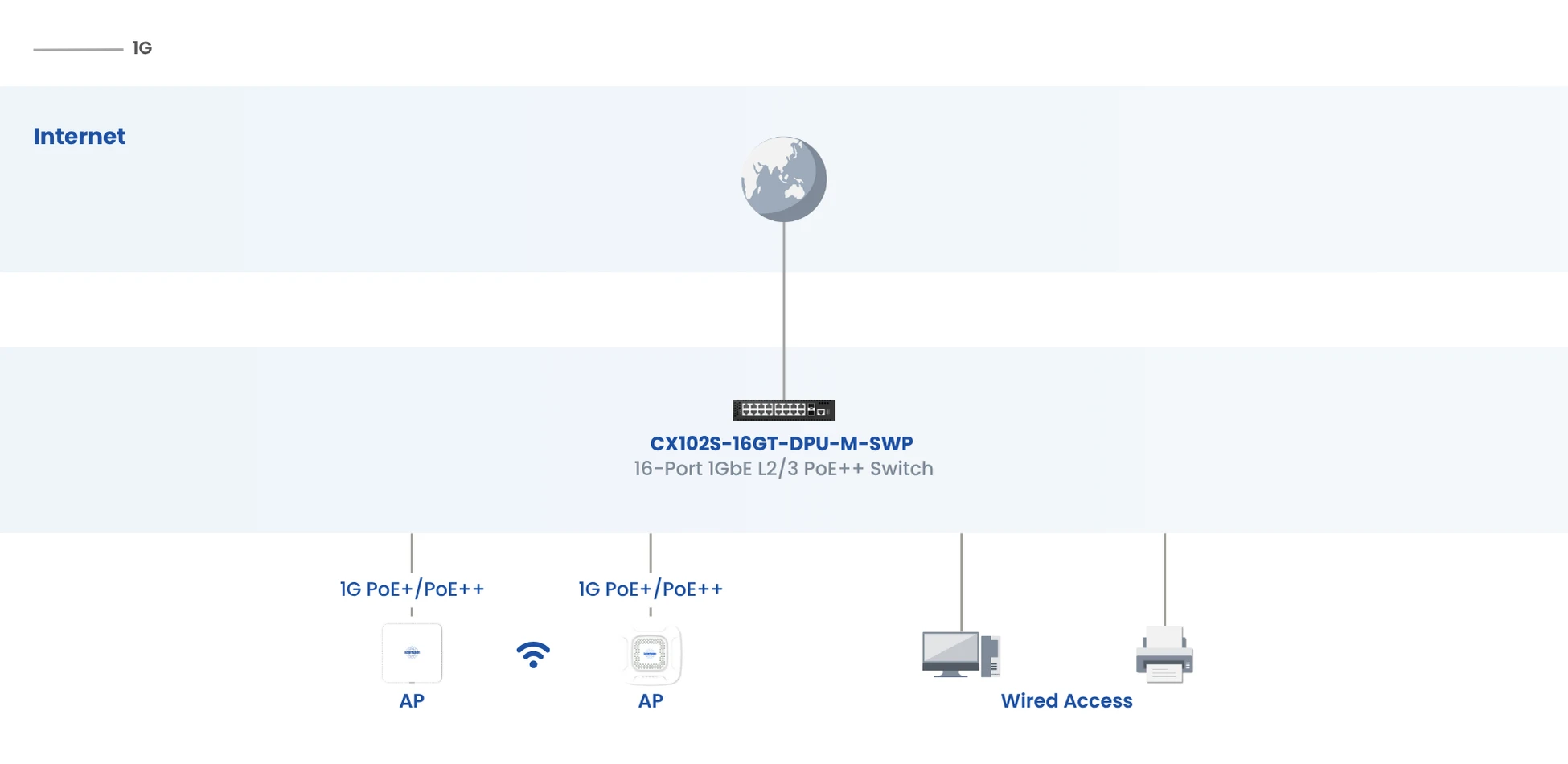

16-Ports 1GbE PoE++ Switch Connectivity
Connects to the Internet and powers 1GbE PoE+/PoE++ access devices like APs and wired endpoints, enabling efficient and reliable access layer connectivity for enterprise networks.

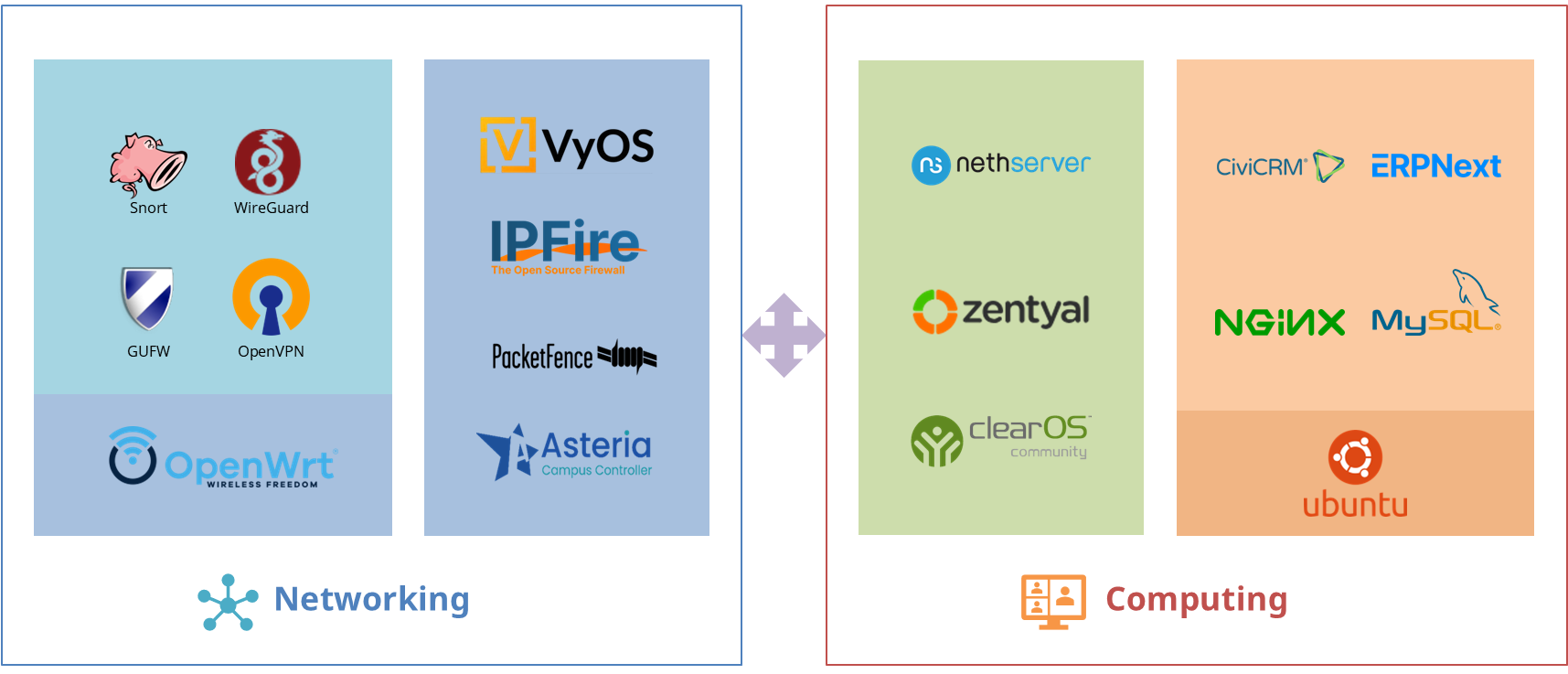

Application Scenarios of Marvell OCTEON DPUs
In addition to the standard switching functions, the CX102S-16GT-DPU incorporates two extra Marvell OCTEON TX2 CN9130 DPUs, thereby making the device the most multifaceted and versatile. It is therefore pertinent to explore the potential applications of these two DPUs .The following section outlines a number of typical scenarios in which the CX102S two DPUs are particularly effective, and which can be utilised not only individually but also in combination.
OpenWRT
OpenWRT + GUFW
OpenWRT + OpenVPN/WireGuard
OpenWRT + Snort
Ubuntu Server + Nginx + Mysql
Ubuntu + Astria Campus Controller
| DPU Number | 1, 2 |
|---|---|
| PTP Extension Card | Class A, None |
Free OpenWiFi Network Controller
our free management controller
Unified Visualization, Management & O&M with OpenWiFi Network Controller
Our campus switches, powered by enterprise SONiC, integrate with a TIP OpenWiFi – based controller. This integration enables unified monitoring, automated deployment, and streamlined operations.​
Key features include intelligent topology planning, ZTP, real – time network visualization, and script – based automation. With centralized remote management and flexible deployment options (cloud or on – premise), this solution offers full control over the entire campus network, from APs to switches. It helps IT teams optimize performance, speed up troubleshooting, and scale easily.
Campus Access Switch Documentation
Product Assurance & Logistics
Warranty & Support
Quality Certifications
Delivery Time
Our standard products are typically shipped within one week (business days).
For custom products, please contact customer service to inquire about the specific delivery time.
