16 Port 1G RJ45 POE+@150W L2 and L3 Switch, 2x10Gb SFP+ Uplinks, Enterprise SONiC
Price range: $369.00 through $779.00
- 16-Port Gigabit POE+ Switch for Enterprise Networks
- Layer 2/3 Features Support and Enterprise SONiC
- Uplinks with 2x10Gb SFP+ Ports
- Scalable and Resilient Network Solutions for SMBs and Enterprises
Note: Prices are exclusive of customs duties, import taxes, and VAT. Any additional charges imposed by your country are the buyer's responsibility.
- Description
- Specification
- Software
- Connection
- Additional information
- Management
- Documentation
- Warranty
- Reviews (0)
16-Port Gigabit POE++ Switch with 150W Power Budget and 2x10Gb SFP+ Uplinks, Enterprise SONiC Ready
Specification
Rack & Physical
Dimension (HxWxD) 44×215×310mm
Weight 2.2KG(4.85lb)
Rack Space 1U
Airflow Front to Rear
Data Plane Ports
Fixed Interfaces (16) 1GbE PoE+(port1 to port 8) PoE++; (2) 10GbE SFP+
PoE Standard IEEE 802.3af/at/bt
PoE Budget 150W
Switch Core
Switch ASIC Marvell AlleyCat5Y
Switching Capacity 72Gbps
Forwarding Rate 53.5Mpps
Packet Buffer 3MB
RAM 4GB
Flash Memory 32GB eMMC
Address & Routing Entries
Mac Addr. Entries 32K
IPv4 Prefix Routes 13K
IPv6 Prefix Routes 6.5K
ARP Entries 6K
Management Interface
USB (1) USB2.0
Console (1) Console RJ45
Power & Cooling
Power Module (1) Built-in Power
FAN Modules (2) Built-in Fans
Input Range 100~240V AC
Operating Environment
Operating temperature 0~45℃ (32 to 113℉)
Optimized Software for Advanced Workloads-AsterNOS
AsterNOS is the pre-installed network operating system on Asterfusion’s CX-M Series campus switches. Built on SONiC, but enhanced far beyond the open-source version, AsterNOS delivers a rich set of enterprise-grade features tailored for modern campus and enterprise office environments. It supports comprehensive Layer 2 and Layer 3 protocols, advanced routing, and virtualization capabilities such as VXLAN and BGP-EVPN—along with powerful extensions like MPLS and MacSec for more specialized use cases. Smart, secure, and simple to manage, AsterNOS is purpose-built to power high-performance, always-on campus networks with ease and confidence.
Layer 2 Features
4K VLANs / Voice VLAN
Multiple Spanning Tree Protocol
QinQ
Link Aggregation Control Protocol
MLAG / VLAN Trunking
Link Layer Discovery Protocol (LLDP)
LLDP Enhancements for PoE
Port Isolation
IGMP Snooping
BPDU Guard, BPDU Filter
Loopback Detection
Layer 3 Features
IPv4/v6 Dual Stack
Policy Based Routing
Resilient ECMP
ARP-to-Host
VRF
Bi-Directional Forwarding Detection (BFD)
IGMP v2/v3
Route Map
VRRP
GRE
Routing Protocols: OSPF v2/v3, BGP, MP-BGP
Management & Monitoring
Asteria Campus Controller
Industry Standard CLI
Zero Touch Provisioning (ZTP)
SNMP v1/v2/v3
sFlow
Port Mirroring
Syslog
Log Management
PTP IEEE 1588v2 (TC and BC)
Containerized Custom Tools
BGP/BFD Operational Status
CX102S-16GT-M-SWP Leaf Switch Connectivity
Connects to 10GbE spine switches and powers 1GbE PoE+/PoE++ access devices like APs and PCs, enabling flexible and efficient access layer connectivity for enterprise networks.
| Power Budget | None, 150W |
|---|---|
| PTP Extension Card | Class A, None |
Free OpenWiFi Network Controller
our free management controller
Unified Visualization, Management & O&M with OpenWiFi Network Controller
Our campus switches, powered by enterprise SONiC, integrate with a TIP OpenWiFi – based controller. This integration enables unified monitoring, automated deployment, and streamlined operations.​
Key features include intelligent topology planning, ZTP, real – time network visualization, and script – based automation. With centralized remote management and flexible deployment options (cloud or on – premise), this solution offers full control over the entire campus network, from APs to switches. It helps IT teams optimize performance, speed up troubleshooting, and scale easily.
Campus Access Switch Documentation
Product Assurance & Logistics
Warranty & Support
Quality Certifications
Delivery Time
Our standard products are typically shipped within one week (business days).
For custom products, please contact customer service to inquire about the specific delivery time.
10 GbE
150W PoE++
72 Gbps
13K/6.5K
SONiC
IEEE 802.3
af/at/bt
Intelligent PoE++ Power Delivery for Next-Gen Networks
Compliant with IEEE 802.3af/at/bt, this switch auto-detects and supplies exact power to devices—no manual setup. It has 16 PoE+ ports (30W max) and 8 configurable PoE++ ports (60W max), with a 150W total power budget. Ideal for power-hungry devices like IP phones, Wi-Fi 6/Wi-Fi7 APs, surveillance cameras, and smart endpoints, keeping networks powered and connected seamlessly.
Rich L2/L3 Features
Pack top 24 high-demand L2/L3 features, spanning stability, scalability, and smart control, to elevate network performance and simplify deployment.
Advanced Routing Capabilities
Equipped with powerful routing capabilities, including static routing, VRF, OSPFv2/v3, BGP, and MP-BGP, this model ensures flexible network segmentation and dynamic route management for demanding enterprise and campus environments.
Instant Wi-Fi Roaming:
10ms AP Handover, Zero Service Disruption
The Anycast Gateway architecture, combined with leaf switch traffic passthrough, BGP-EVPN, and ARP-to-Host, enables seamless 10ms AP roaming across the network.
HIGHLIGHT
BFD-Based Link Fault Detection & Re-routing in Sub-50ms
BFD-based link fault detection and sub-50ms re-routing capabilities ensure rapid, reliable failover across critical routing protocols including OSPF, BGP, and IS-IS, minimizing network downtime and maintaining uninterrupted traffic flow even during unexpected link failures.
HIGHLIGHT

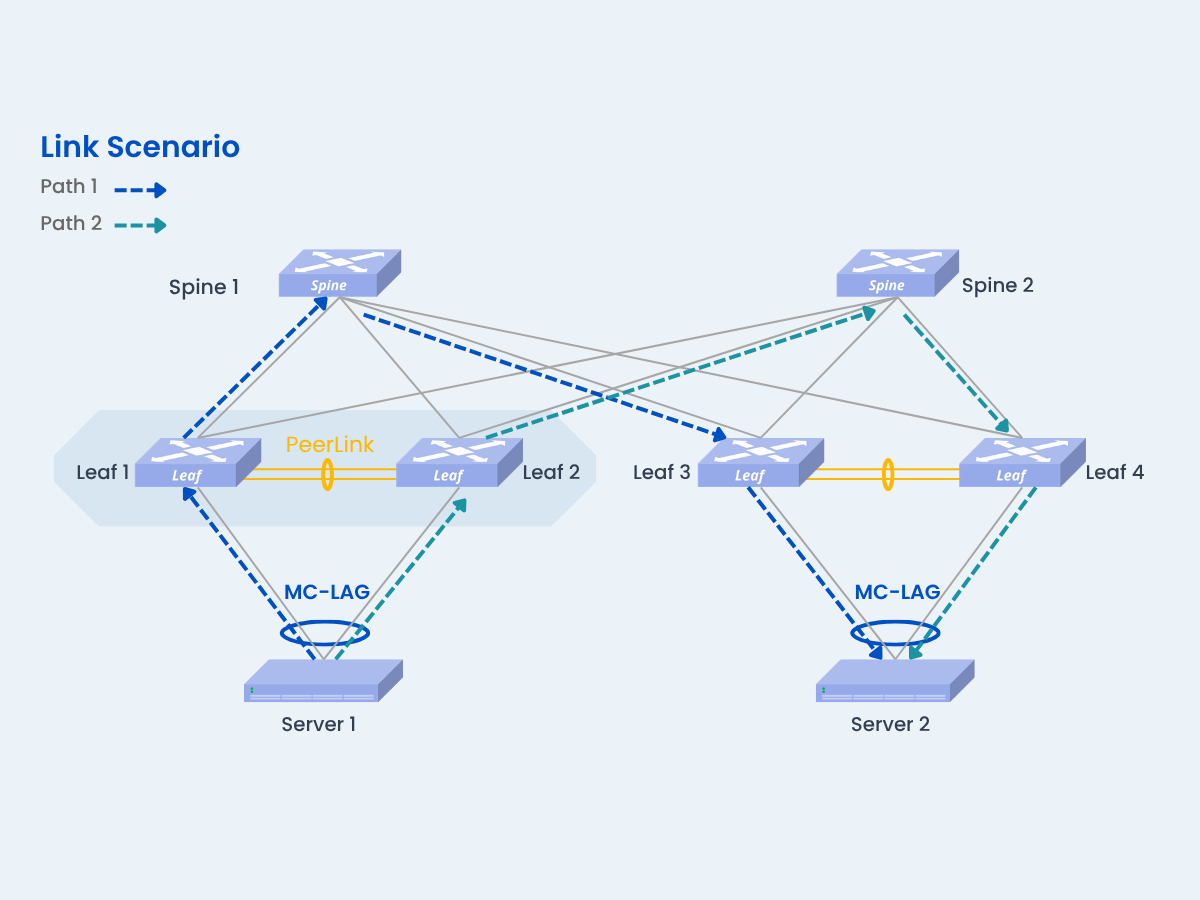

Achieve Seamless Redundancy & Active-active Reliability with MC-LAG Support
MC-LAG support enables networks to maintain uninterrupted connectivity through seamless redundancy and active-active reliability,
ensuring zero downtime and optimal performance during link or device failures.
OPTIONAL
Enterprise SONiC Asterfusion’s Switches with PTP Support
Our switch fully supports IEEE1588 PTPv2 and SMPTE 2059-2 standards both through hardware and software. The hardware port supports PTP as a Boundary Clock (BC) or Transparent Clock (TC), with customizable modules to fit customer needs. On the software side, Asterfusion leads the way in implementing and optimizing PTP in SONiC, delivering top performance on our AsterNOS Enterprise Distribution. Currently, it supports PTP Class A with a maximum time error of ≤50 ns.
OPTIONAL
Network Packet Broker Functionality
The SONiC-based campus switches CX-M series take full advantage of SONiC’s open and containerized architecture, and fully leverage its capabilities by installing the new APP-PB container and deploying packet broker docker functionality on SONiC.
This integration unlocks a range of advanced features, including traffic mirroring, raw data tagging, filtering, aggregation, preprocessing, load balancing, and output replication.
