• 40GBASE SR4 QSFP+ 850nm 150m MTP/MPO -12 Optical Transceiver Module

    40GBASE SR4 QSFP+ 850nm 150m MTP/MPO -12 Optical Transceiver Module

    $35.00
    • 40 G data rate via 4 × ~11.3 Gb/s lanes
    • Up to 100 m reach on OM3, 150 m on OM4 multimode fiber
    • MPO-12 fiber connector (MTP male)
    • Hot-pluggable QSFP+ form factor
    • Power consumption under 1.5 W, highly energy-efficient
    • Includes 850 nm VCSEL transmitters and PIN receivers
    • Supports I²C-based digital diagnostics (DDM/DOM)
    • Operates with a single 3.3 V supply at 0–70 °C
    • Fully compliant with QSFP+ MSA and IEEE 802.3ba (40GBASE-SR4)
    Select optionsDone This product has multiple variants. The options may be chosen on the product page
  • 100GBASE-SR4 QSFP28 850nm 100m/OM4 Optical Transceiver Module

    100GBASE-SR4 QSFP28 850nm 100m/OM4 Optical Transceiver Module

    $41.00
    • 100G data rate with 4×25G NRZ lanes
    • Up to 70 m on OM3, 100 m on OM4 fiber
    • MPO-12 multimode fiber connector
    • Hot-pluggable QSFP28 form factor
    • Low power consumption <2.5 W
    • Digital diagnostics (DDM/DOM) support
    • IEEE 802.3bm and QSFP28 MSA compliant
    • Operating temperature 0–70 °C
    Select optionsDone This product has multiple variants. The options may be chosen on the product page
  • 200GBASE-SR4 QSFP56 850nm 100m Optical Transceiver Module MPO12/APC

    200GBASE-SR4 QSFP56 850nm 100m Optical Transceiver Module MPO12/APC

    $120.00

    Transmission Distance: 70m (OM3 MMF), 100m (OM4/OM5 MMF)
    Connector Type: MPO-12
    Wavelength: 850nm
    Power Consumption: ≤4.5W, highly energy-efficient
    Technology: 850nm VCSEL array + PIN photodetectors
    Diagnostics: Real-time DDM/DOM monitoring via I²C interface
    Error Correction: PAM4 DSP enhances data integrity
    Compliance: QSFP56 MSA, IEEE 802.3cd 200GBASE-SR4, RoHS

    Select optionsDone This product has multiple variants. The options may be chosen on the product page

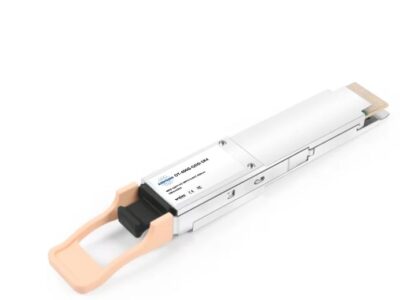

  • 400G SR4 QSFP-DD 850nm 60m OM3/100m OM4 MPO12 APC Optical Transceiver Module

    400G SR4 QSFP-DD 850nm 60m OM3/100m OM4 MPO12 APC Optical Transceiver Module

    $402.00
    • 400G data rate using 8×50 Gb/s PAM4 to 4×100 Gb/s optical lanes
    • Up to 100 m reach over OM4 multimode fiber with MPO-12 connector
    • Hot-swappable QSFP-DD form factor for easy deployment and dense
    • Low power consumption (≤ 8 W typical) for energy-efficient operation
    • Integrated real-time diagnostics (DDM/DOM) for monitoring performance
    • Fully compliant with QSFP-DD MSA, IEEE 802.3bs, and 400GAUI-8/PAM4 standards
    • Reliable performance from 0 °C to 70 °C for standard data center environments
    Select optionsDone This product has multiple variants. The options may be chosen on the product page
  • 400GBASE-SR4 QSFP112 PAM4 850nm 100m/OM4 Optical Transceiver Module

    400GBASE-SR4 QSFP112 PAM4 850nm 100m/OM4 Optical Transceiver Module

    $369.00
    • 400G data rate with 4×106.25G PAM4 lanes
    • Reach up to 60 m (OM3) or 100 m (OM4)
    • MPO-12 multimode fiber interface
    • Hot-pluggable QSFP112 form factor
    • Low power consumption <8 W
    • Supports DDM/DOM and FEC
    • Operating temperature 0–70 °C
